100kw On Grid Solar System
Name: 100KW On Grid Three Phase Solar System
Max. Power: 100KW
Inverter: 100KW Growatt On Grid Inverter three phase with MPPT
Output Voltage: 220V/380V, 230V/400V (340-440V)
Certificate: CE/TUV/ISO
Application: Commercial buildings, farms, database stations, large supermarkets, hospitals, etc.
Payment: T/T, Credit Card, Paypal, Western Union
Warranty: 25 Years
100kw On Grid Solar System
100KW Solar System Features:
- Energy saving and cost-effective; The 200kw solar system can generate a large amount of electricity, offsetting a significant portion of the consumption power for commercial, and industrial applications.
- Environmental-friendly energy; The 100kw solar system generates green electricity power by absolving energy from the sun. The process will not produce carbon, or any other harmful gases, it is truly environment-friendly and help to combat climate change in the long run.
- Reliability and Durability; Solar panels have a long lifespan of 25 years. And the 100kw solar system is designed to be durable and reliable. And less maintenance after installation.
- Scalability and flexibility; The solar panel system 100kw can be flexible to larger solar systems in the future. When you need a larger power, you can expand the solar systems by adding more solar panels, and solar inverters in the system to get a higher power.
- Government Incentives; Many countries offer incentives for installing solar power systems, which can greatly reduce the cost of a 100kw solar system.
Technical Data
- Components
- Solar Panel
- Inverter
| Model | 50000W-On | 50000W-On | 60000W-On | 60000W-On | 100000W-On |
| Bifacial solar panel 550W/41.95V |
90 pieces | 90 pieces | 112 pieces | 112 pieces | 180 pieces |
| Growatt Inverter | MAC 50KTL3-XLV | MAC 50KTL3-XMV | MAC 60KTL3-XLV | MAC 60KTL3-XMV | MAX 100KTL3-X LV |
| DC Combiner Box | Customized According to Solar System Configuration | ||||
| PV Cable 4 mm2 | 600 meter | 600 meter | 600 meter | 600 meter | 800 meter |
| Mounting Brackets | 1 set | ||||
| MC4 Connector | 50 pairs | 50 pairs | 60 pairs | 60 pairs | 80 pairs |
| Cell Type | Mono-crystalline |
| No. of Cells | 144(6*24) |
| Maximum Power | 550W |
| Maximum Power Voltage | 41.95V |
| Maximum Efficiency STC (%) | 21.29% |
| Dimensions | 2278*1134*30mm(89.69*44.65*1.18inch) |
| Weight | 27kg(59.52lbs) |
| Warranty | 25 years |
| Model | MAX 100KTL3-X LV |
| Input data (DC) | |
| Max.DC vatage | 1100V |
| Start voltoge | 195V |
| Nominal voltage | 600V |
| MPP vatage range | 180V-1000V |
| No.of MPP trackers | 10 |
| No. of PV strings per MPP trocker | 2 |
| Max.Input current per MPP tracker | 32A |
| Max.short-circult curent per MPP tracker | 40A |
| Output Data (AC) | |
| AC nominal power | 100000W |
| Max.AC apparent power | 110000VA |
| Nominal AC voltage(range*) | 230V/400V[340-440VAC) |
| AC grid frequency(range*) | 50/60 Hz(45~55Hz/55-65 Hz) |
| Max.output cument | 158.8A |
| Adjustable power Factor | 0.8leading …0.8lagging |
| THDi | <3% |
| AC grid connection type | 3W/N/PE |
| Efficiency | |
| Max.efficiency | 98.80% |
| European efficiency | 98.40% |
| MPPT efficiency | 99.90% |
Advantages
Mono-crystalline Solar panel
This is the mono-crystalline 550W solar panel, the investment in these solar panels can make a significant energy generation, and reduce electricity bills. The warranty is 25 years, Brand JA, Jinko, Longi, Trina, etc available. The solar panels installation both make benefits for homeowners, commercial, industrial, etc.

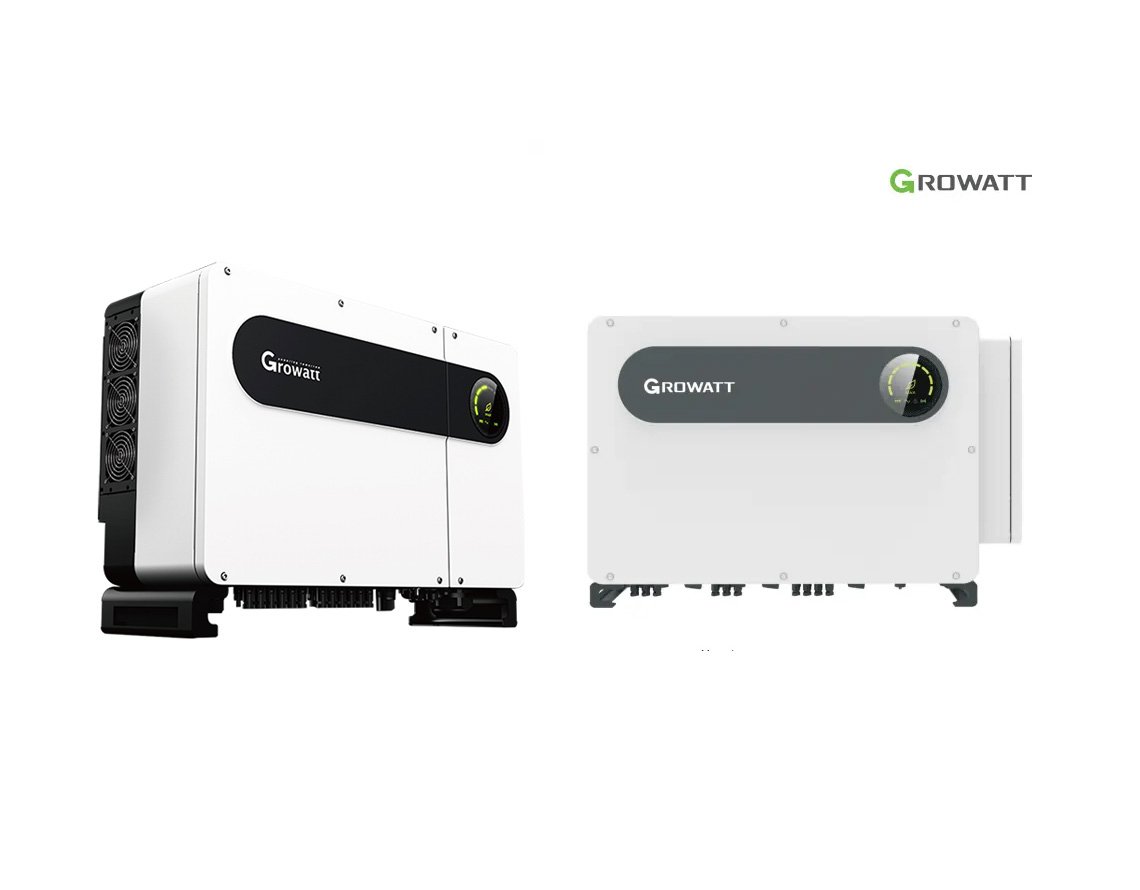

100KW On Grid Inverter
MAX 100KTL3-X LV Growatt solar inverter is a three phase solar inverter built-in with an MPPT charger, it convertes the electricity energy from the solar panels(DC) into alternative current for end users to supply the load. It supports feeding the excessive electricity into the mains grid. The max efficiency is 98.8%. The MAX 100KTL3-X LV solar inverter has the function of Wifi connection, which allow you to view and manage the working data of the 100kw solar inverter through your smart phone APP.
Packaging Service
100KW solar systems are in standard wood box packaging, we also support customization for tailored packaging requirements. Each solar system components like MC4 connectors, PV cables, AC breakers, combine boxes, and mounting structures are in stock, we provide professional trade services for you to ensure a smooth purchasing experience with fast delivery and safe arrival.
Application Cases (6)
What can HBOWA support you?
Solar Products with High Performance
Solar Lithium Batteries With Grade A Cells
Solar Panels, Solar Inverters, Solar Batteries Available
Solar Power System Free Design
Competitive Dealer Prices
Comprehensive Certificates to Ensure Good Quality
It depends on the solar panels quality, efficiency, number of the solar panels, weather, season, sunlight angle, and you location of installation of the solar system. If the effective sunlight hour is 4, then we can calculate the power: 550W(power of each solar panel) * 180 (quantity of the solar panel) * 4 (Hours) * 0.8(loss factor value)/1000 = 396 KWh per day. Of course, this is only a preliminary estimate. The specific power value still needs to be analyzed in detail according to your actual situation. So when you decide to buy the 100kw solar system, remember to contact suppliers about solar system specifications, and your conditions for your informed decisions.
It depends on the power of each solar panel you use. For this 100kw solar system design, we provide 550w mono PERC solar panels for you, and the quantity of the solar modules is 180 pieces. When you choose other types of solar modules, the number will be different, different solar panels may have different power generation efficiencies, so you need to pay attention to the brand of the solar modules, we provide brand JA, Jinko, Longi, Trina, etc. solar panels with competitive prices, feel free to reach out for bulk price.
The lifespan of the solar panels is 25 years, the warranty for the solar module is 12 years. The warranty of the Growatt on grid solar inverter is 5 years, and can be customized to 10 years.
