10kw 10kwh Solar Battery Storage
Name: 10kw 10KWh Solar Battery
Inverter: 10KW off-grid single phase inverter
Battery Cycle Life: More than 6000 times (@25℃ 80% DOD)
Application: Solar system, power backup, UPS
Warranty: 5 years, 10 years(Customization)
Certificates: MSDS, UN38.3, CE, IEC
Place of Origin: China
User InstructionDescription
10KW solar battery storage is designed with white color home appliance appearance, it consists of two 5KWh lithium phosphate battery layers, and one 10kw energy storage inverter, which is easy to install, maintain, and expandable for later power larger needs. 10kw solar battery is plug and play, suitable for households, small commercial areas power backup and UPS systems. The 10kw solar battery has communication port and comprehensive interfaces that support charging by power sources like solar panels, diesel generates, and utility grids. When the utility grid is out of use, you can use this battery storage to power your home appliances. And you can view and monitor the whole power system status and optimize the power usage via WIFI function through APP and desktop computers.
The 10kw energy storage system all in one type greatly reduces the cost of buying solar inverters and solar batteries separately. When there is power outrage in the utility grid, the 10kw battery storage system can automatically switch to the 10kwh battery storage to power the load ensuring the continuous power supply without interrupted experiences. 10kw battery storage system can expand its capacity to reach up to 75.6KWh, end users can flexiablely equipt this stackable energy storage system.
How to install and operate the 10KW all in one battery storage system(battery & inverter)?
Technical Data
- MECHANICAL DATA
| Model | XPC10KW+10.24KWh | XPC10KW+15.36KWh | XPC10KW+20.48KWh | XPC10KW+25.6KWh |
| Basic Parameters | Inverter layer ×1 | Inverter layer ×1 | Inverter layer ×1 | Inverter layer ×1 |
| Battery layer×2 | Battery layer×3 | Battery layer×4 | Battery layer×5 | |
| Nominal capacity(kWh) | 10.24 | 15.36 | 20.48 | 25.6 |
| Product Size(mm) | 550×500×692mm | 550×500×863mm | 550×500×1034mm | 550×500×1205mm |
| Net Weight(kg) | 132.5 | 176.7 | 220.9 | 265.1 |
| Gross Weight(kg) | 148 | 200 | 252 | 304 |
| Working Voltage(V) | 43.2-57.6 | |||
| Standard discharge current（A） | 100 | |||
| DOD | 90% | |||
| Rated Input Voltage | 220/230VAC | |||
| Rated Inverter Output Power | 10000W | |||
Advantages
Flexible Battery Capacity

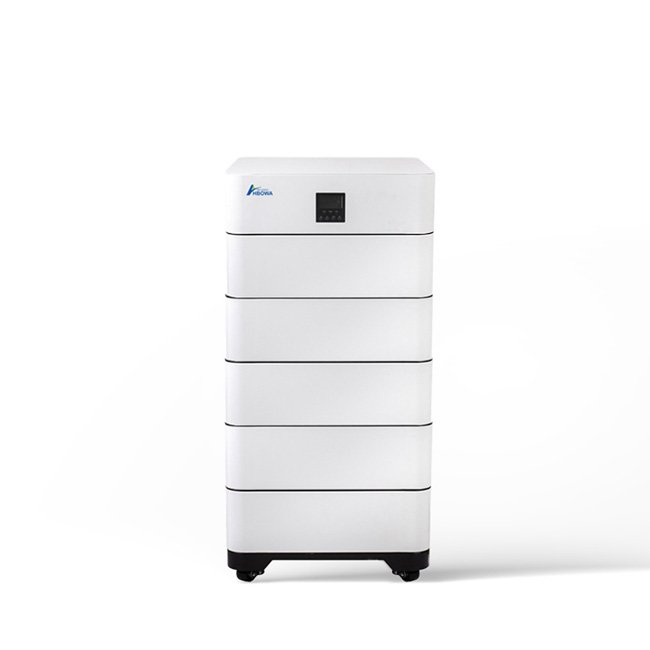

10kwh battery storage is designed with space-saving, it can be stacked as large battery capacity as you need with 10kw energy storage inverter on top layer, each battery layer is 5KWh 51.2V 100Ah, it can stacked as 10kwh, 15kwh, 20kwh,… maximum connection in parallel to 75KWh.
Stackable Battery & Inverter
10kwh solar battery with 10kw energy storage inverter has built-in battery management system(BMS), which protects the battery storage system from overcharge, over-discharge, overheating, short circuits, etc. ensuring you a safe and reliable power backup experience.
Features

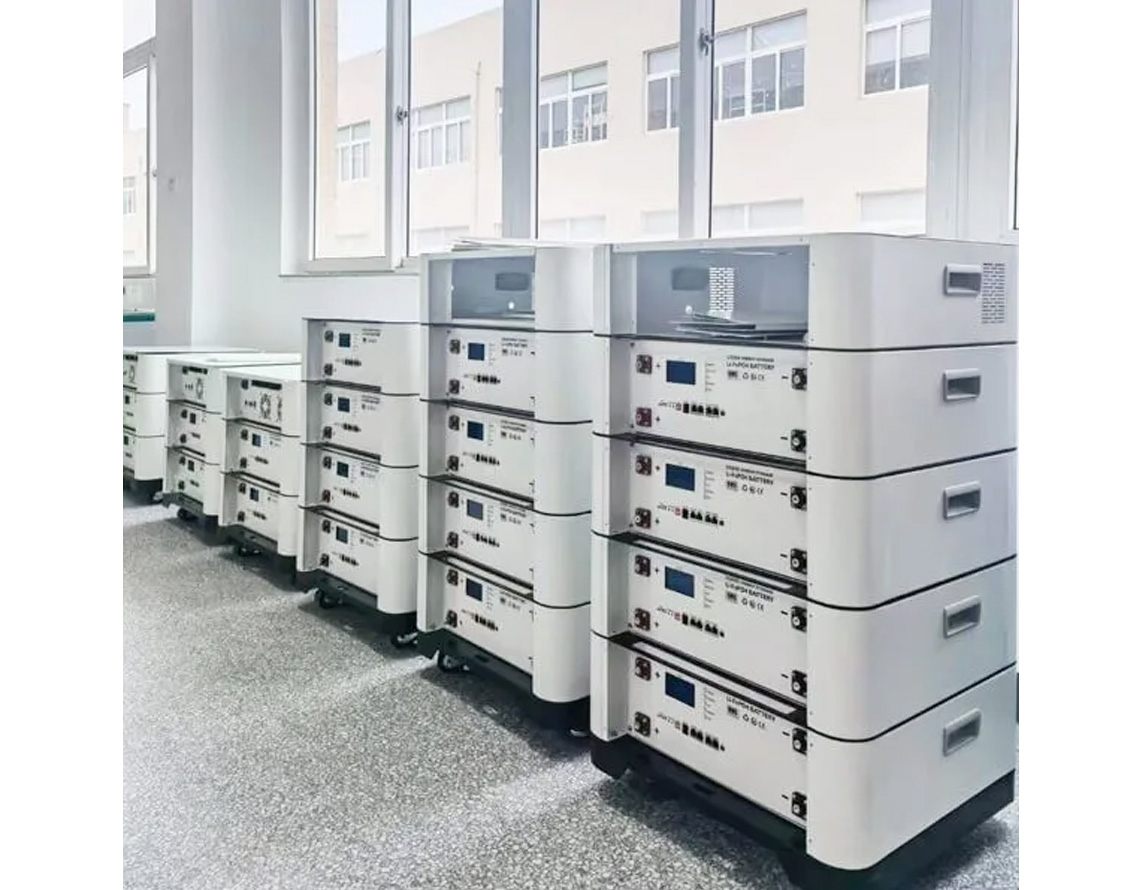

All In One Stacked LifePO4 Energy Storage
- Process
- Certificates
- Exhibition
Download Center

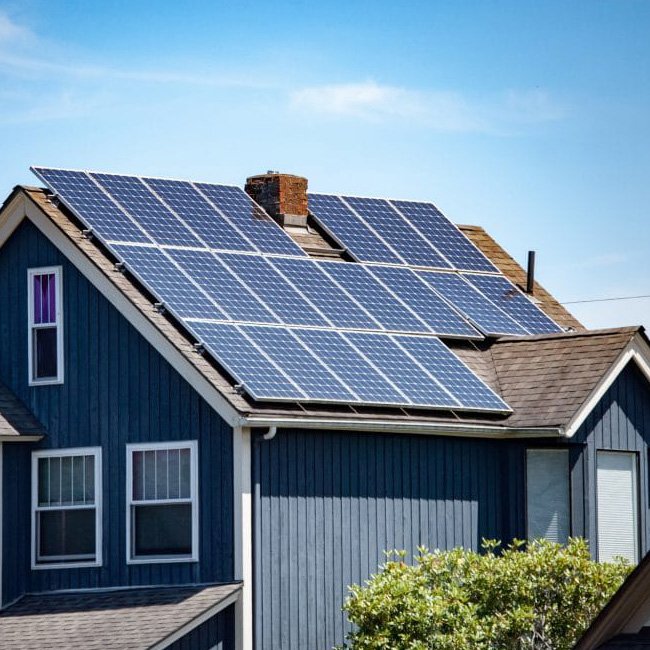

Wide Application Scenarios
Related Product (13)
With the exception of air conditioners and large power appliances, a typical 10kw battery can power an American family for 10-14 hours to maintain normal living requirements. Here is a detailed introduction to this issue.
To calculate the time for charging the 10kwh battery, you need to make it clear that the output power of the solar inverter that connects to the 10kwh solar battery is the key point. If the solar inverter is 5kw, to charge the 10kwh battery, it needs about 2 hours to fully charge the battery.
This 10kw 10kwh solar battery costs about $2400, not including the freight fee and installation, you can get a discount for bulk orders, feel free to contact us for a detailed quotation.
Sure, this is the stackable type of lifepo4 battery, it is module designed, can be easily expanded to larger capacities by adding batteries one by one to the 10kw battery system.
For the 10kw 10kwh battery, the number of solar panels depends on the power of a single module. Generally, we suggest 550w or 585w for customers, so if you choose 550w solar panels, you will need about 18-20 pieces of solar panels, and make sure you have enough space of about 21.6m² to install them.
