10KW 10KWh Off Grid Solar System

CheckSystem Type: 10KW 10KWh Off Grid Single phase

CheckInverter Brand: Growatt, MUST, Solis

CheckBattery: 51.2V 200Ah 10KWh wall mounted lifepo4 battery

CheckOutput Voltage: 230VAC ± 5% @50/60Hz

CheckCertificate: CE/TUV/CSA/CEC/UL/ISO

CheckPayment: T/T, Credit Card, Paypal, Western Union

CheckPlace of Origin: China

Description

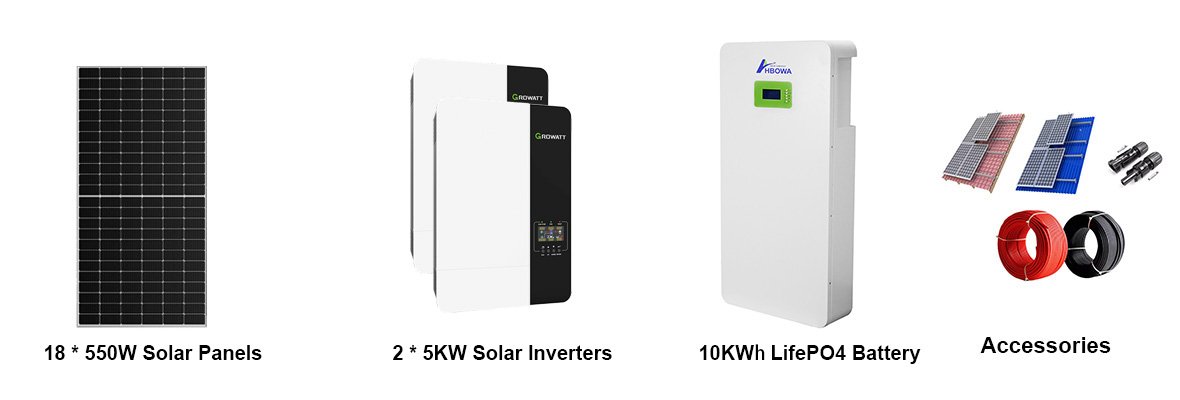

Composition:10KW off grid solar system with 10kwh lithium battery package

* 550W solar panels 18 pieces,

* Two 5kw off grid inverters(Growatt, Solis, MUST available),

* a 10kwh wall-mounted lithium battery,

* 1 piece * PV Combiner Box(5 Inputs 1 output);

* 1 piece * Solar Mounting Structure(Roof/Ground Install);

Details and warranties are shown in the technical data below.

Required installation space: at least 52 m²

The off grid system will generate about 39.6kwh per day(considering there are 4 hours of effective sunshine), home appliances such as a 2000w air conditioner, a 200w television, a 40w lighting, a 500w microwave oven, and a 500w washing machine, can be connected to the off grid system for stable use.

How to install 10KW off grid solar system?

For each solar system we sell, we have operation demo videos for you. Our engineer will also go overseas to help you if necessary. You can also consult local solar installers. They all offer free home solar installation consultations and cost evaluations. We suggest that you get installation quotations from at least three companies to compare prices and be sure to inquire about any discounts and preferential activities they may offer.

Solar Products HBOWA Offer

As a seasoned solar power system provider, HBOWA offers off-grid, on-grid, and hybrid solar solutions, providing complimentary design services to bolster your solar business. HBOWA offers you complete certificates of solar systems such as CE, TUV, CSA, CEC, UL, ISO, etc, we also support OEM and ODM services. We not only produce our brand solar panels, and lifepo4 lithium batteries, but also provide tier 1 brand solar panels, such as Jinko, JA, Longi, and Canadian Trina solar panels, and inverters such as Growatt, Deye, Solis, MUST, etc. For more detailed information, feel free to contact our team directly.

Technical Data

Model 3KW-Off 5KW-Off 10KW-Off 15KW-Off 20KW-Off
Mono-facial solar panel
550W/41.95V
6 pieces 10 pieces 18 pieces 27 pieces 36 pieces
Growatt Inverter 3000es * 1 5000es * 1 5000es * 2 5000es * 3 5000es * 4
DC Combiner Box Customized According to Solar System Configuration
Energy Storage Battery Lithium Ion
Battery
10KWh Lithium

Ion Battery

Lithium Ion
Battery
PV Cable 4 mm2 100 meter 100 meter 200 meter 200  meter 400 meter
Mounting Brackets 1 set
MC4 Connector 8 pieces 12 pieces 20 pieces 30 pieces 40 pieces

Components

550W solar panel
Solar Panel

Mono-crystalline panel

Mono-crystalline panel

Maximum Power(Pmax): 550W

Maximum Power Voltage: 41.95V

Maximum Power Current: 13.11A

Open Circuit Voltage: 49.90V

Short Circuit Current: 14.09A

Maximum Efficiency: 21.29%

Dimension: 2278*1134*30mm

Weight: 26.4kg  Total number: 18 pieces

Brand panel available: Longi/JA/Jinko/Trina

10KW Inverter

Off grid Solar System Inverter

High Efficiency: Off-grid inverters(Growatt, MUST, Solis available) are designed to maximize energy conversion efficiency;

Pure Sine Wave Output: Off-grid inverters produce a clean, pure sine wave output, ensuring compatibility with various electronic devices and appliances;

Brand Inverter Growatt MUST Solis Available
house solar battery pack 51V 200Ah
LifePO4 Battery

Lifepo4 Battery in Solar System

Mounting Structure

Mounting Structure for Solar Panel

Our ground solar mounting system offers a robust and versatile solution for solar system installations. It is designed to withstand various environmental conditions, ensuring long-term stability and durability. The system’s lightweight design minimizes roof load, while its pre-assembled components significantly reduce installation time and labor costs.

solar mounting structure
PV Accessories(combiner box MC4 connector PV Cable)
Accessories

Solar System Accessories

* 3 in and 1 out, combiner box with voltage resistance of 500V;

* PV single core cable 4m㎡,6m㎡,10m㎡ etc;

* MC4 connectors, according to solar panels.

If your customers need any other accessories, feel free to contact us.

Whole Site New Solar Panels Price: USD 0.09-0.1 per watt
