10KW Three Phase Low Voltage 48V Hybrid Solar Inverter
Model Number: 10KW
Output Voltage: 3L/N/PE 220/380 VAC, 230/400VAC
Max Efficiency: 97.6%

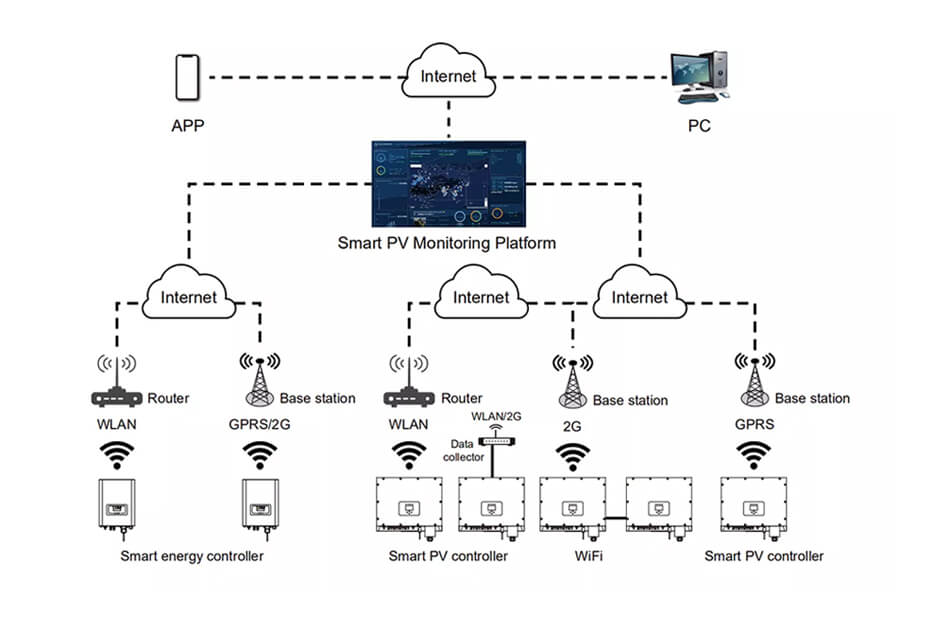

Monitoring mode: WIFI, APP
Protection Degree: IP65
Warranty: 5 years (10 years optional)
Place of Origin: China, OEM/ODM support
Inverter DatasheetDescription

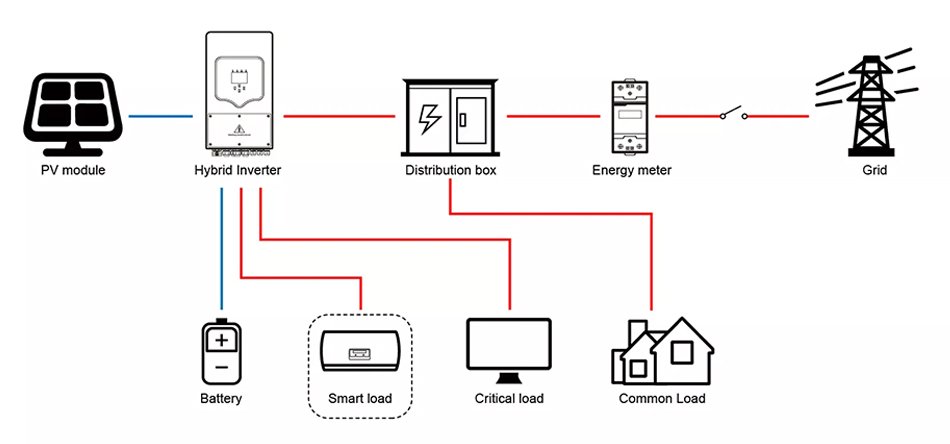

10KW solar hybrid inverter three phase type low voltage is compatible with (40-60V) low voltage storage batteries such as lead acid batteries and lifePO4 batteries, the max charging and discharging current is 200A, and supports multiple batteries in parallel.
10KW three phase hybrid solar inverter is designed for easy installation with IP65 ingress protection which means you can install the inverters on the outdoor wall, and support up to 10 units for parallel to expand the power to meet your actual requriements. We have 5-year warranty for standard low voltage hybrid inverters and support 10-year warranty optional.
10kw 3 phase hybrid inverter with low voltage are suitable for wide application scenes such as large shopping malls, office buildings, large automobile manufacturing factories, large greenhouse facilities, and so on. We have complete certificates to meet various requirements of the market, feel free to contact us for bulk price.
Technical Data
- PV String Input Data
- AC Output Data
- Battery Input Data
- Efficiency and Certificates
- General Data
| Model | HB10K-TPM-EU |
| Max. DC Input Power (W) | 13000 |
| Rated PV Input Voltage (V) | 550 (160-800v) |
| Start-up Voltage (V) | 160v |
| MPPT Voltage Range (V) | 200-650 |
| Full Load DC Voltage Range (V) | 350-425 |
| PV Input Current (A) | 26+13 |
| Max. PV I (A) | 34+17 |
| No.of MPP Trackers | 2 |
| No.of Strings per MPP Tracker | 2+1 |
| Model | HB10K-TPM-EU |
| Rated AC Output Active Power (W) | 10000 |
| Max AC Output Active Power (W) | 11000 |
| AC Output Rated Current (A) | 16.7 |
| Max AC Output Current (A) | 18.4 |
| Max. Continuous AC Passthrough (A) | 45 |
| Peak Power (off grid) | 2 time of rated power, 10 S |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Power Factor | 1 |
| Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380Vac, 230/400Vac |
| Grid Type | Three Phase |
| Total Harmonic Distortion (THD) | <3% (of nominal power) |
| DC Current Injection | <0.5% (Rated Current) |
| Model | HB10K-TPM-EU |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max. Charging Current (A) | 200 |
| Max. Discharging Current (A) | 200 |
| External Temperature Sensor | Yes |
| Charging Curve | 3 Stages / Equalization |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
| Model | HB10K-TPM-EU |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97.0% |
| MPPT Efficiency | 99.0% |
| Grid Regulation | IEC61727/EN50549-1 |
| Safety EMC / Standard | IEC/EN 61000-6/2/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| Model | HB10K-TPM-EU |
| Operating Temperature Range (℃) | -40-60℃, >45℃ Derating |
| Cooling | Smart Cooling |
| Noise (dB) | ≤50 dB |
| Communication with BMS | RS485; CAN |
| Weight (kg) | 37.5 |
| Cabinet Size (WxHxD mm) | 702W*422H*281Dmm |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Warranty | 5 Years (10 Years Optional) |
Hybrid Inverters Details
Hybrid Inverter Features
- 100% three phase unbalanced output, with each phase capable of delivering up to 50% of the rated power;
- AC coupling to retrofit existing solar system;
- Max. 10 pcs parallel for on-grid and off grid operation; support multiple batteries in parallel;
- Max charging/discharging current of 200A;
- 48V low voltage battery, transform isolation design;
- 6 time periods for battery charging/discharging;
- Support storing energy from diesel generator
Hybrid Inverter Back Side
