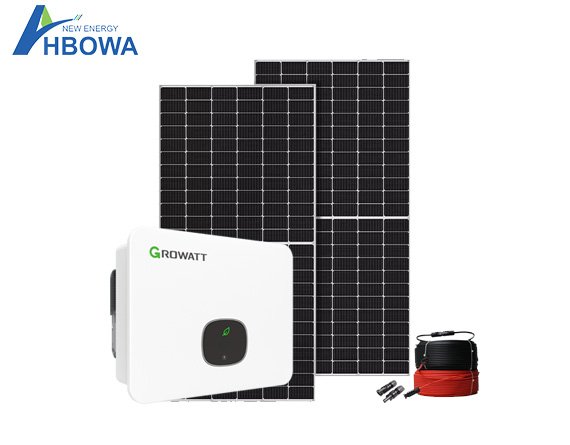

11-30KW On Grid Solar System
Name: 30kw On Grid Three Phase solar system
Inverter: on grid Growatt Inverter with MPPT controller
Max. Power: 11-30KW
Output Voltage: 220V/380V, 230V/400V (340-440V)
Certificate: CE/TUV/ISO
Lead Time:7-10 days
Warranty: 25 Years
Description

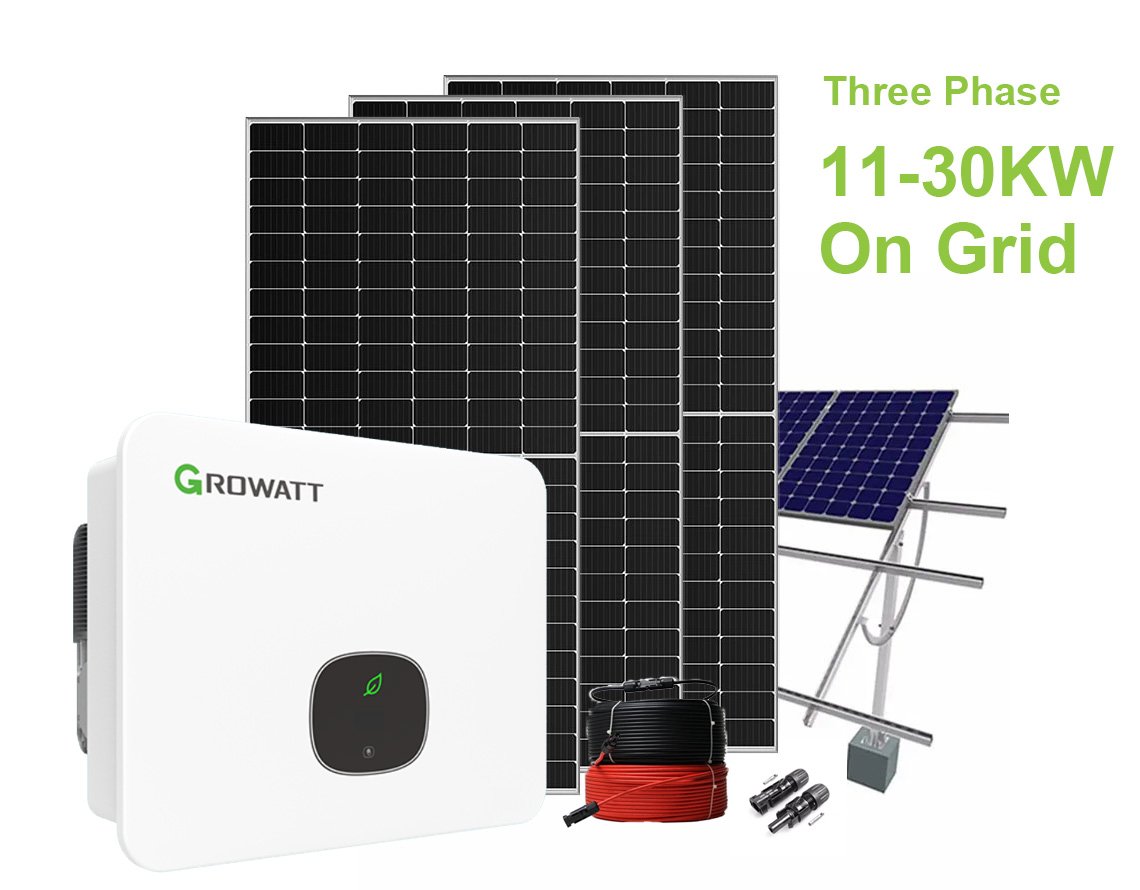

Composition:
HBOWA on-grid solar system consists of 550W solar power panels, an on-grid 3 phase Growatt inverter, and system accessories. We have certificates such as CE, TUV, UL, ISO, etc. to ensure high quality and performance. OEM and ODM services are supported.
Features:
- Green Energy Production
The on grid solar system produces environmental-friendly electricity energy for your house appliances loads, lowers carbon emissions, and rechargeable energy.
- Low Maintenance
The on-grid solar systems include durable and high-quality solar panels with a warranty of over 25 years and a long lifespan, the installation of the solar system makes the solar panels no movable and requires lower maintenance of the system.
- Increased Property of your House
The on grid solar system installed on your house roof, which will increase your house property, makes it a valuable investment option in the long run.
How many solar panels are required for 30kw on grid solar system?
It depends on the power of each solar panel you use. For this 30kw on grid solar system, we provide 56 pieces of bifacial 550w solar panels and need about 75 square meters to install them.
The number of solar panels can also be adjusted according to your specific needs.
How much power does a 30kw solar system produce?
The electricity power of the 30kw solar system generated per day depends on the environment of your location, the quality of your solar panels, the angle of your solar panel installation, the weather, the season, etc. If the effective sunlight is 4 hours per day, and uses 56 pieces of 550w solar panels, then the power will be 550*56*4/1000 = 123.2 KWH per day.
HBOWA not only produces our own brand solar panels, but also provides other brand solar products, such as Jinko, JA, Longi, Canadian, Trina, tier 1 solar panels, Growatt, Deye, and Solis solar inverters. For more detailed information, feel free to contact our team directly.
Technical Data
- Components

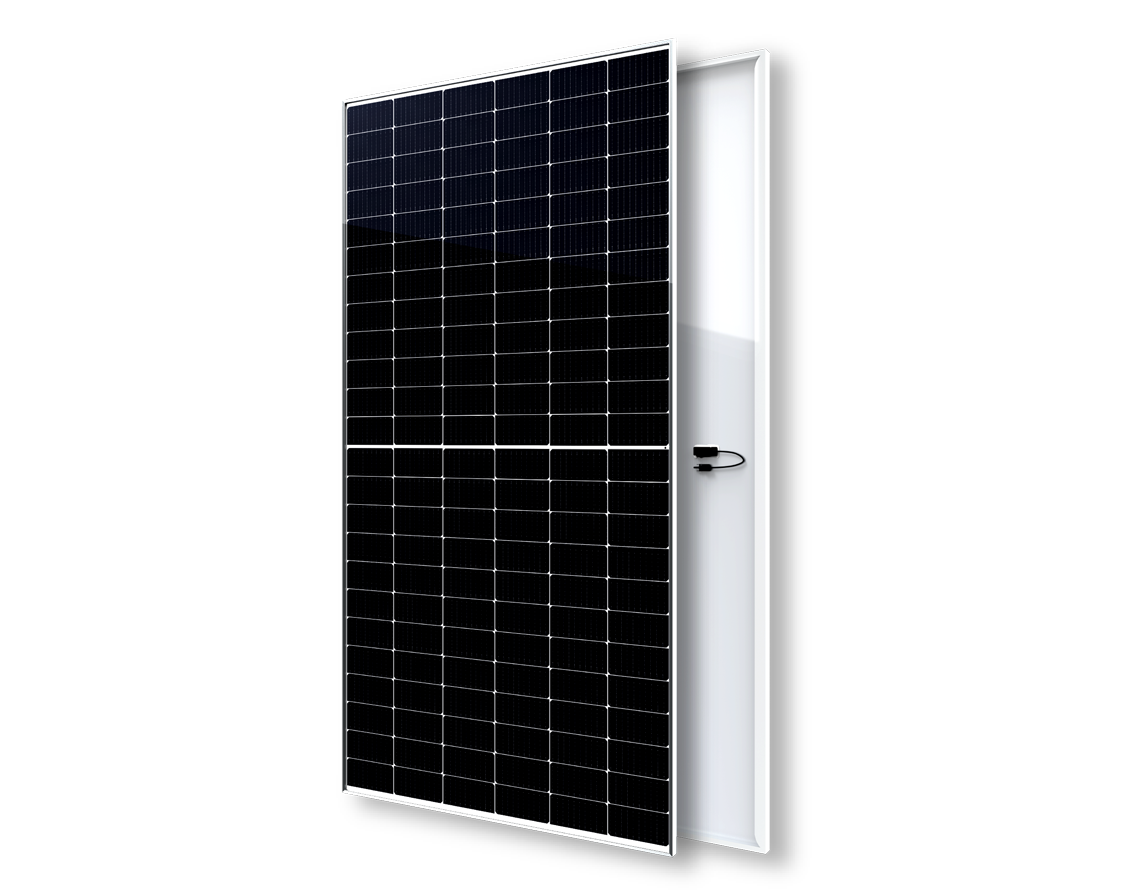

- Solar Panel

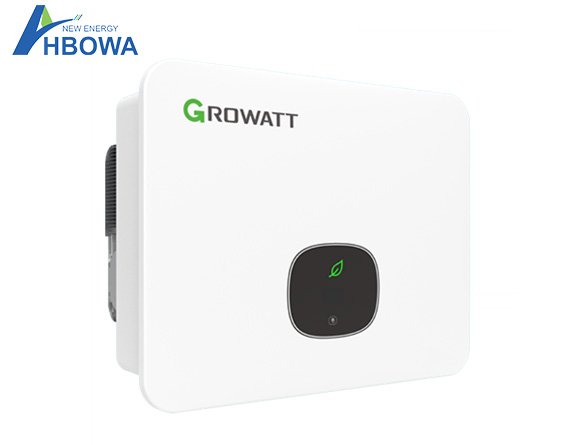

- Growatt On Grid Inverter
| Model | 11000W-On | 15000W-On | 20000W-On | 25000W-On | 30000W-On |
| Bifacial solar panel 550W/41.95V |
20 pieces | 28 pieces | 38 pieces | 45 pieces | 56 pieces |
| Growatt Inverter | MID 11KTL3-XH * 1 | MID 15KTL3-XH * 1 | MID 20KTL3-XH * 1 | MID 25KTL3-XH * 1 | MID 30KTL3-XH * 1 |
| DC Combiner Box | Customized According to Solar System Configuration | ||||
| PV Cable 4 mm2 | 200 meter | 200 meter | 200 meter | 400 meter | 400 meter |
| Mounting Brackets | 1 set | ||||
| MC4 Connector | 10 pairs | 20 pairs | 20 pairs | 20 pairs | 20 pairs |
| Cell Type | Mono-crystalline |
| No. of Cells | 144(6*24) |
| Maximum Power | 550W |
| Maximum Power Voltage | 41.95V |
| Maximum Efficiency STC (%) | 21.29% |
| Dimensions | 2278*1134*30mm(89.69*44.65*1.18inch) |
| Weight | 27kg(59.52lbs) |
| Warranty | 25 years |
| Nominal power | 11000W | 15000W | 20000W | 25000W | 30000W |
| MPP voltage range | 160V-1000V | ||||
| Max. Input current Per MPP Tracker |
32A | ||||
| Number of MPPT Trackers | 2 | 2 | 2 | 3 | 3 |
| No of PV strings per MPP tracker | 2 | ||||
| Max. PV Power ( W ) | 22000W | 30000W | 40000W | 50000W | 60000W |
| Max Efficiency | 98.75% | 98.80% | |||
| Nominal Output Voltage ( V ) | 220V/380V, 230V/400V (340-440V) | ||||
| Communication | RS485/USB/(Wifi/GPRS/RF/LAN optional) | ||||
| Weight | 31kg | ||||
| Dimensions | 580/435/230mm | ||||
| Warranty | 5 years(10 years optional) | ||||
Advantages
Grid-Tied Systems
The electricity generated by the on-grid system can be used for households and commercial use, while the excess electricity does not need to be stored in additional energy storage batteries but can be directly back to the utility grid. The utility grid is a virtual energy storage system that stores excess electricity generated by solar panels, reduces electricity bills, and also obtains additional subsidies.

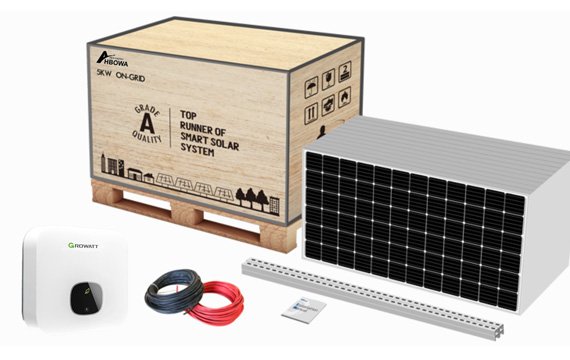

Packaging Service
All HBOWA solar system products are in standard wood box packaging, we also support customization for tailored packaging requirements. Each solar system component is in stock, we provide professional trade services for you to ensure a smooth purchasing experience with fast delivery and safe arrival.

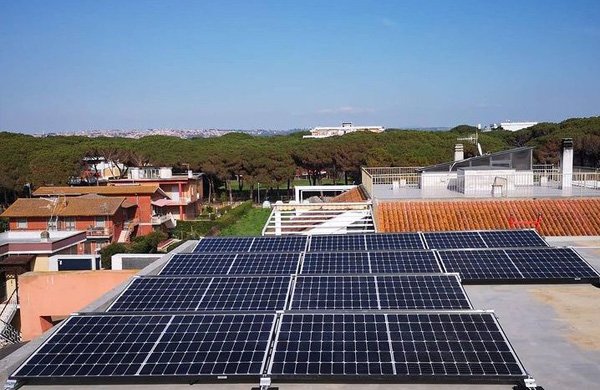

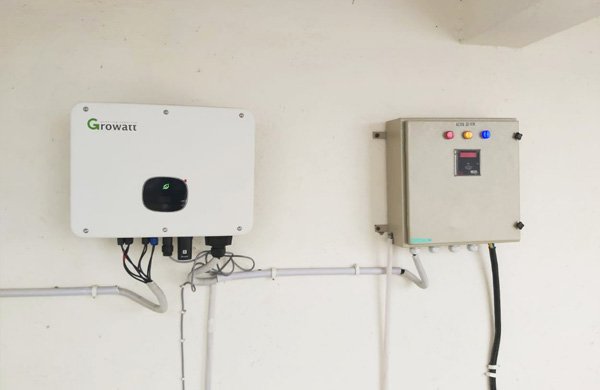

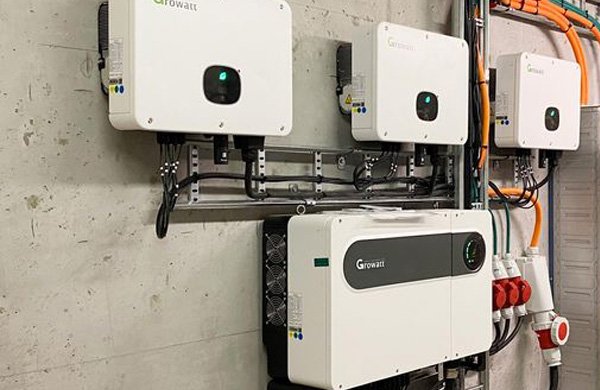

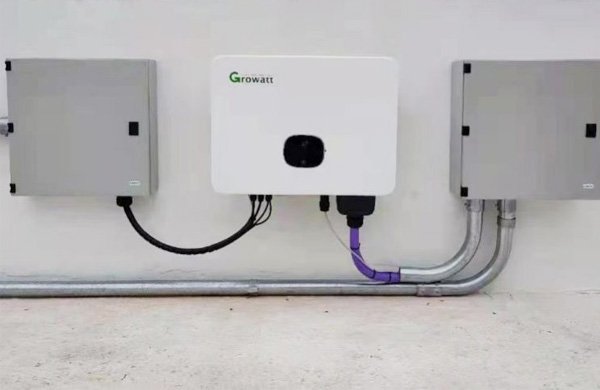

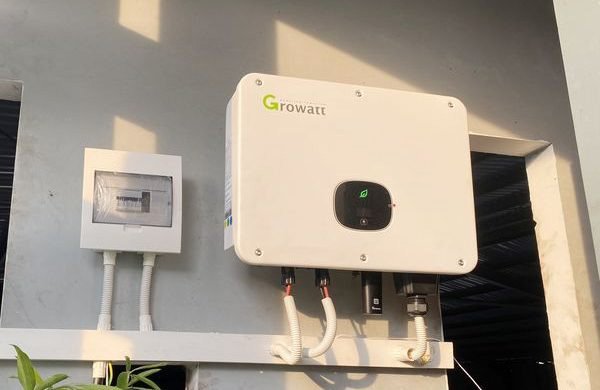

Application Cases (6)
What can HBOWA support you?
High-quality solar products;
Comprehensive certificates and reliable after-sales services;
Free on grid and off grid solar system solution design;
One stop solar panels, solar inverters, and solar batteries are available;
Payment: T/T, Credit Card, Paypal, Western Union
In this on grid 30kw solar system, we use bifacial solar panels 550w, and the total quantity of the solar panels needed is 56 pieces, and other types of the solar panels support customization, and the quantity of the solar panels may vary.
It depends on the place where you are, and the sunshine in your place. If you get 4 hours of effective sunlight per day, then a 30 kw solar system can generate about 56(quantity) * 550W(power of solar panel) * 4(hours) /1000= 123.2 KWh.
In this 30kw solar system, we have 56 pieces of 550W solar panels, each solar panel size is 2278*1134mm, then the space needed for the 30kw solar system is about: 2.278*1.134* 56=145 square meters.
