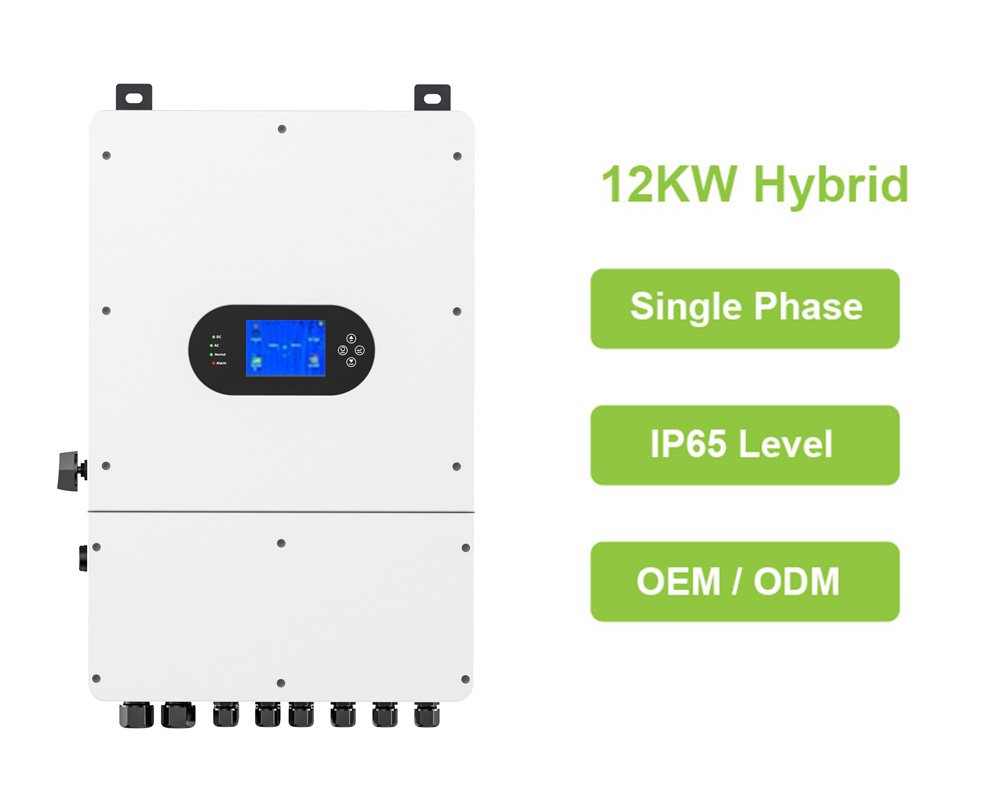

12KW Single Phase Low Voltage Hybrid Inverter
Model Number: 12KW
Output Voltage: L/N/PE 220V 230 VAC
Max Efficiency: 97.6%
Monitoring mode: WIFI, APP
Protection Degree: IP65
Warranty: 5 years (10 years optional)
Place of Origin: China, OEM/ODM support
Description
12KW hybrid solar inverter is compact in size and wall mounted type to install, its protection degree is IP65, and you can install it outside your house. It has a colorful touch LCD screen, is easy for you to operate, and can connect to your phone APP to monitor and control the solar system’s electricity status, optimize your solar system to the greatest extent to obtain more green electricity, save energy, and reduce carbon emissions. The hybrid solar inverter 12kw supports up to 12 in parallel for on off grid solar system use, the max efficiency is 97.6%.
HBOWA supports OEM and ODM services for single phase hybrid solar inverters, with favorable prices, fast delivery, and 5-year warranty. If you want to extend the warranty period, we also support customization, please inform us in advance before placing an order.
Technical Data
- PV String Input Data
- AC Output Data
- Battery Input Data
- Efficiency and Certificates
- General Data
Model | HB12K-SPM-EU |
Max. DC Input Power (W) | 15600 |
Rated PV Input Voltage (V) | 370 (125-500v) |
Start-up Voltage (V) | 125v |
MPPT Voltage Range (V) | 150-425 |
Full Load DC Voltage Range (V) | 200-425 |
PV Input Current (A) | 26+26+26 |
Max. PV I (A) | 34+34+34 |
No.of MPP Trackers | 3 |
No.of Strings per MPP Tracker | 2+2+2 |
Model | HB12K-SPM-EU |
Rated AC Output Active Power (W) | 12000 |
Max AC Output Active Power (W) | 13200 |
AC Output Rated Current (A) | 52.2 |
Max AC Output Current (A) | 57.4 |
Max. Continuous AC Passthrough (A) | 60 |
Peak Power (off grid) | 2 time of rated power, 10 S |
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
Power Factor | 1 |
Output Frequency and Voltage | 50/60Hz; L/N/PE 220/230Vac |
Grid Type | Single Phase |
Total Harmonic Distortion (THD) | <3% (of nominal power) |
DC Current Injection | <0.5% (Rated Current) |
Model | HB12K-SPM-EU |
Battery Type | Lead-acid or Lithium-ion |
Battery Voltage Range (V) | 40-60 |
Max. Charging Current (A) | 250 |
Max. Discharging Current (A) | 250 |
External Temperature Sensor | Yes |
Charging Curve | 3 Stages / Equalization |
Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
Model | HB12K-SPM-EU |
Max. Efficiency | 97.60% |
Euro Efficiency | 96.50% |
MPPT Efficiency | 99.90% |
Grid Regulation | IEC61727/EN50549-1 |
Safety EMC / Standard | IEC/EN 61000-6/2/4, IEC/EN 62109-1, IEC/EN 62109-2 |
Model | HB12K-SPM-EU |
Operating Temperature Range (℃) | -40-60℃, >45℃ Derating |
Cooling | Smart Cooling |
Noise (dB) | ≤30 dB |
Communication with BMS | RS485; CAN |
Weight (kg) | 31 |
Cabinet Size (WxHxD mm) | 330W*580H*232Dmm |
Protection Degree | IP65 |
Installation Style | Wall-mounted |
Warranty | 5 Years (10 Years Optional) |
Hybrid Inverters Details
![hybrid solar inverter lcd screen single phase low voltage](https://www.pretapower.com/wp-content/uploads/2024/08/8KW-hybrid-solar-inverter-lcd-screen-single-phase-low-voltage.jpg)
Hybrid Inverter Features
- Colorful touch screen LCD, IP65 protection degree;
- AC coupling to retrofit existing solar system;
- Max 12 in parallel for on-grid and off-grid operation, support multiple batteries parallel;
- Max charging/discharging current of 250A;
- 6 time periods for battery charging/discharging
- Support storing energy from diesel generator
Connection Guide

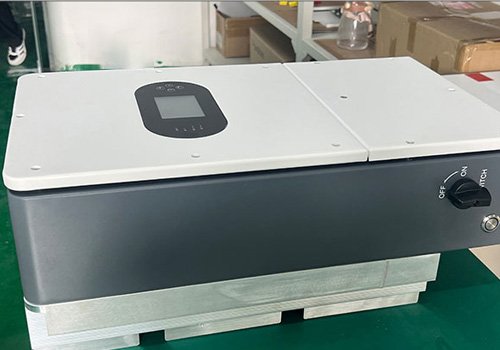

![hybrid solar inverter details](https://www.pretapower.com/wp-content/uploads/2024/08/hybrid-solar-inverter-details-1.jpg)
![wifi connection app show of hybrid solar inverter](https://www.pretapower.com/wp-content/uploads/2024/08/wifi-connection-app-show-of-hybrid-solar-inverter.jpg)
