12V 100Ah Lithium Ion Battery
HBOWA 12V 100Ah lithium ion battery is ideal for RV, camper, houseboat, etc. With features of high energy density, lightweight, long cycle life, safe, stable, and environment-friendly, the lithium battery is popular for lead acid replacement. As a professional premium battery manufacturer in China, we have exported lithium batteries to 40+ countries. Welcome to our factory, we look forward to the opportunity to collaborate with you.
MOQ: 50 pieces
Battery Cell: LiFePO4 Prismatic cell 3.2V 100Ah
BMS: Smart 4S BMS included
Capacity: 12.8V 100Ah
Warranty: 5 years, 10 years(Customization)
Gross Weight:11kg
Dimension: 380mm*225mm*281mm
Customization Support: Including voltage, capacity, current, size, appearance, LCD, Link Bluetooth, etc.
Description
Engineered with state-of-the-art 100 amp hour high energy density lithium cells, the 12V 100Ah lithium ion battery offers unparalleled performance and reliability with over 6000 cycles life. Our smart Battery Management System (BMS) incorporates cutting-edge technology to guarantee 100% charging safety. The bulit in BMS is compatiable with many brand inverters in the market such as Growatt, Sunplain, Deye, GoodWe, SRNE, etc.
Designed with portability and convenience in mind, our compact and lightweight design of the lead acid replacement lithium iron battery ensures easy transportation and installation wherever you need power. Experience the future of energy storage with our 100ah 12v lithium ion battery pack. Upgrade to superior performance, reliability, and safety today.
HBOWA lithium lifepo4 batteries 12V 100Ah have earned the trust of numerous wholesalers, distributors, and retailers, who have consistently enjoyed a mutually beneficial partnership with us due to our long lifespan, our 100% strict quality control, and 100% battery tested before shipping. We look forward to welcoming you aboard and fostering a fruitful collaboration. Feel free to consult for the factory price.
- ELECTRICAL SPECIFICATIONS
| Model | XPD-12100 |
| Capacity | 100 amp hour |
| Voltage | 12.8V |
| Charging Voltage | 14.6V |
| MAX Charge Current | 100A |
| MAX Discharge Current | 100A |
| Internal Impedance | ≤18mΩ |
| Cycle Life | 6000 times |
| Operating Charge Temperature | 0℃ – 55℃(32℉ – 131℉) |
| Operating Discharge Temperature | -20℃ – 55℃(-4℉ – 131℉) |
| Storage Temperature | 0℃ – 35℃(32℉ – 95℉) |

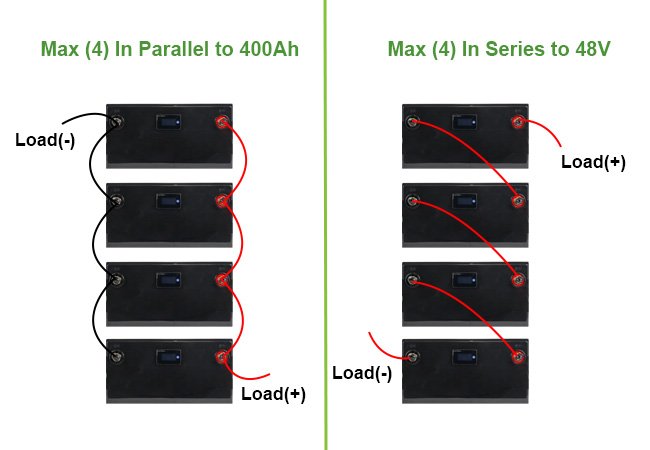

| Series | Parallel: | Max (4) in Series to 48V, Max (4) in Parallel to 400Ah |
| Over charge detection voltage | 3.75V |
| Over charge release voltage | 3.38V |
| Over discharge detection voltage | 2.2V |
| Over discharge release voltage | 2.7V |
| Detection temperature | 65±2℃(149±2℉) |
| Humidity | ≤80% |
| Cooling Way | air cooling |
| Waterproof level | IP65 |
| Life Span | 10 years |
| Certificates | CE, FCC, CCC, UN38.3, UN3480, Class9 |

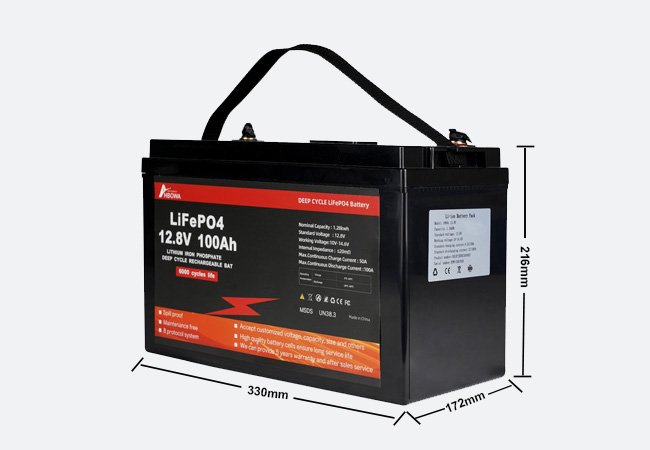

| Product Size | 330*172*216mm |
| Package Size | 380*225*281mm |
| Net Weight | 10kg |
| Gross Weight | 11kg |
12v 100ah Lithium ion Battery

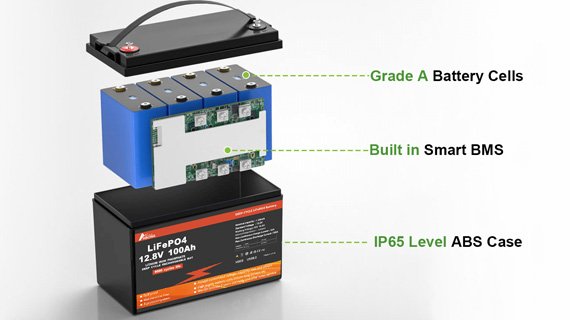

As a professional 12v lithium battery manufacturer for many years, HBOWA adopts grade A lithium cells, 4 pieces 3.2V 100Ah prismatic cells in series. Built in smart BMS software provides over charge protection, over discharge protection, over current protection, and temperature protection. And the optional LCD display panel and link blutooth can monitor the real time battery data of the lead acid replacement battery. The outer shell of the LiFePO4 lithium battery is made of ABS material, eliminating heavy metals and significantly reducing the battery’s weight. This makes it easier and more convenient for users to handle.

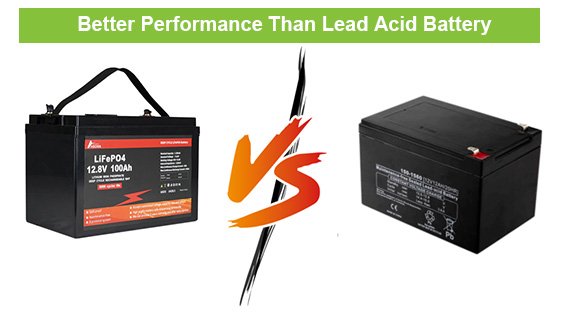

Lead Acid Replacement
Compared to traditional lead-acid batteries, HBOWA 12V 100Ah lithium ion batteries offer superior performance across various aspects.
- Long cycle life; With over 6000 cycles of life, lead acid replacement lithium batteries outlast lead-acid counterparts by a significant margin, which typically only endure around 300 cycles.
- Light Weight; Lithium batteries weigh just 10 kilograms, while lead-acid batteries are three times heavier.
- Long lifespan; Lithium iron phosphate battery boast a lifespan of 10 years, compared to the mere 3 years of lead-acid batteries.
- Built-in smart BMS; Enhanced safety is ensured with the inclusion of intelligent BMS systems in 12v lithium ion batteries, a feature absent in lead-acid batteries.
- Faster Charging speeds; 12V 100ah lithium ion battery charging speed is notably faster than lead acid batteries;
- Environmental Friendly; They are composed of non-toxic materials, making them more environmentally friendly than lead-acid batteries.
- Wide range working temperature; The 12V 100ah lifepo4 batteries can be used in -20℃ to 55℃. The battery has a smart protection system, when the external environment temperature is below 0℃, the lifepo4 battery will stop charging, and if the temperature is below -20℃, it will stop discharging.

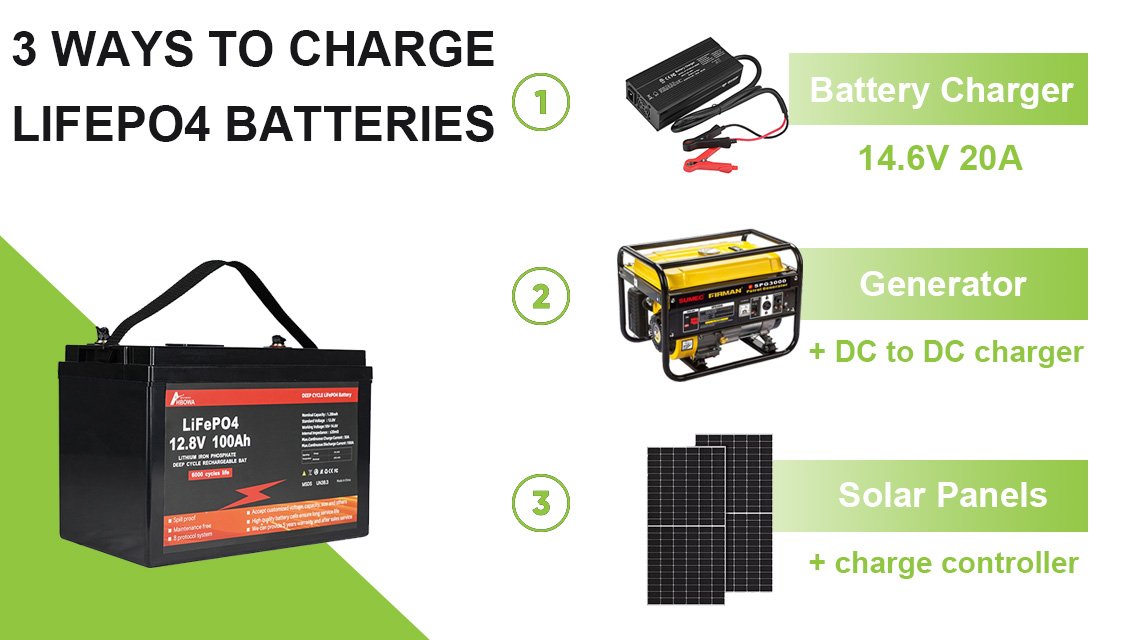

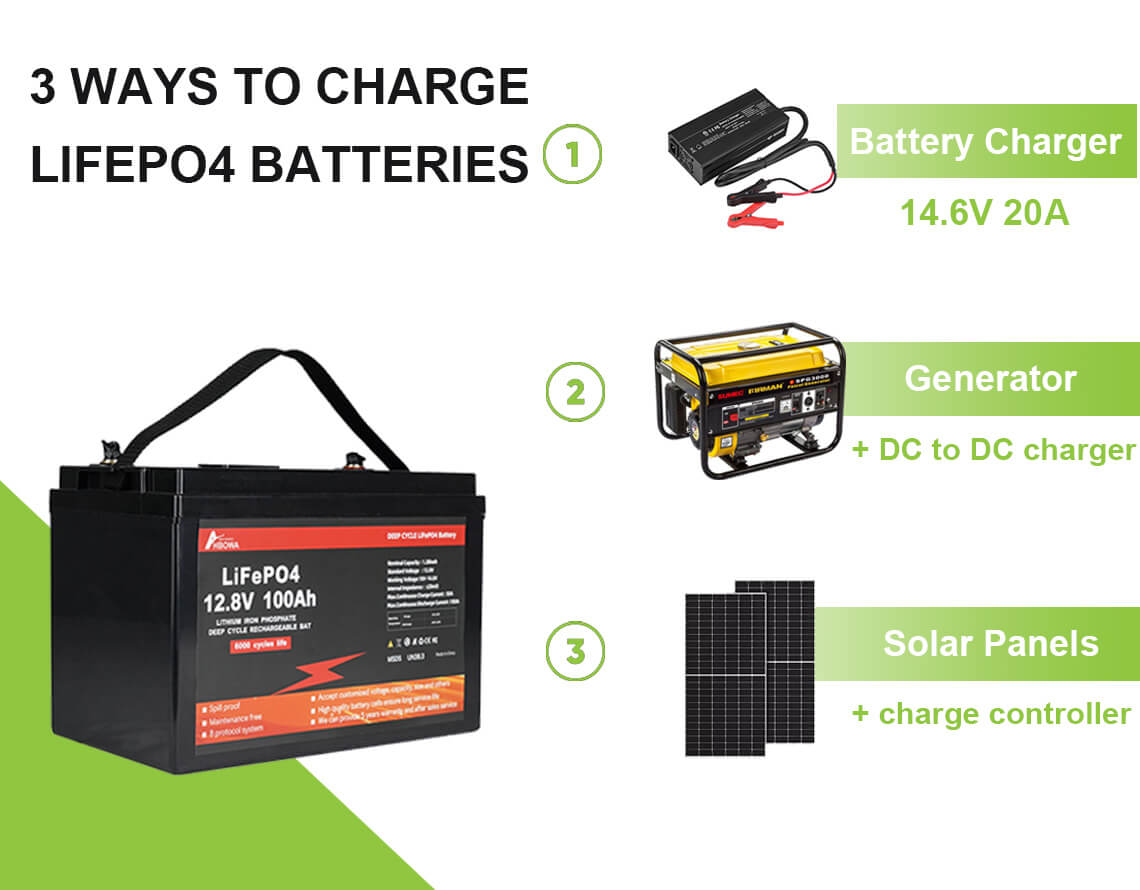

Charging Method
There are three charging methods for the 12v 100ah lithium ion battery.
- Battery charger 14.6V 20A. You can connect the lifepo4 battery charger to the utility grid to charge the lifepo4 lead acid replacement batteries.
- Generator. You can use the generator to generate electricity and connect it with a DC to DC charger 20A, then charge the lifepo4 batteries.
- Solar Panels. You can install the solar panel system, connect the solar array to the charge controller, and then charge the lifepo4 batteries.

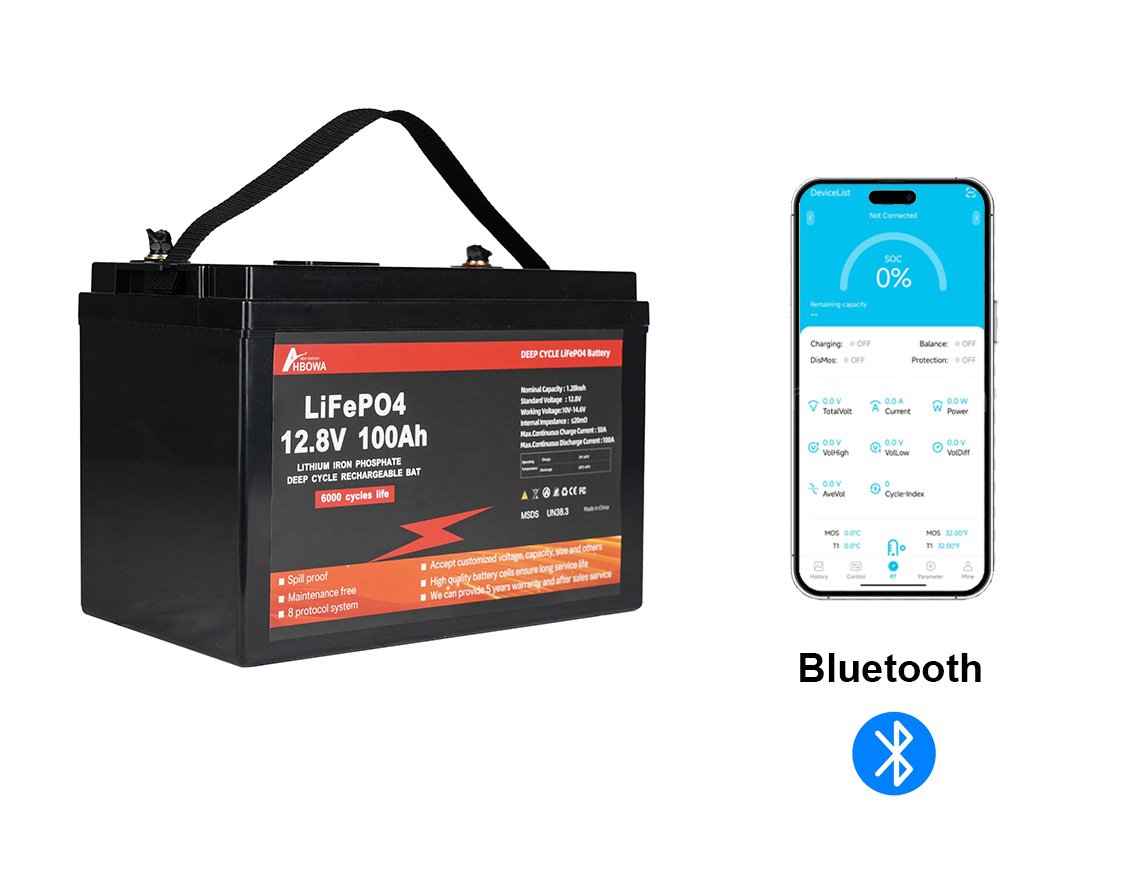

Link Bluetooth Optional
Through Bluetooth function, you can connect the 100ah 12v lithium ion battery via Bluetooth, to see the technical data of the battery by APP, such as voltage, current, BMS, each battery cells info, temperature, etc.

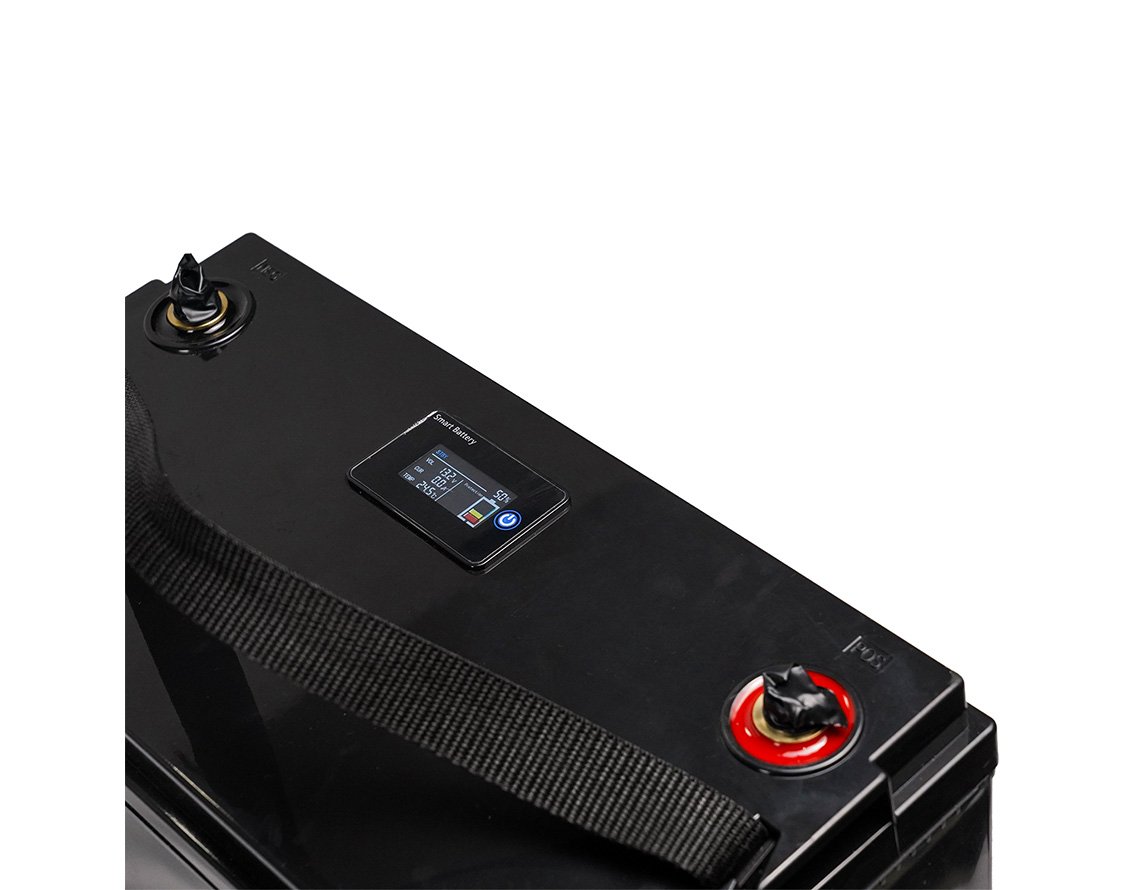

LCD Screen Optional
The LCD screen can monitor the data and status of the 100ah 12v lithium ion battery, it shows data including the voltage, current, temperature, SOC, etc. You can tell us your special needs that are shown on the screen for customization.
Wide Applications
As the lithium ion batteries are portable and of high energy storage, they are the perfect choice for many applications, such as RVs, Monitoring Systems, Traffic lights, Robot, EVs, Emergency Power Supply, Marine, boats, Yacht, Campers, Outdoor lighting, Spray machine, Solar System, energy storage systems, solar batteries for home, etc.
Package Details
We package our 100ah 12v lithium ion battery in double-layered thick cardboard boxes for optimal protection during transit. Each lithium ion battery is surrounded by foam boards inside the box to safeguard it from all sides.
The exterior of the box is adorned with battery symbols, as well as labels indicating fire resistance, water resistance, and crush resistance. To further reinforce the packaging, we use PVC film on the outermost layer of the cardboard box. We support OEM services, if you have special needs for the carton appearance, feel free to contact us.
Inside the cardboard box:
1 * 12.8V 100Ah Lithium ion Battery
1 * User Manual
1 * 100Ah lithium ion lifepo4 battery charger(optional)
Related Products
It depends on three factors below:
- Your refrigerator’s power consumption;
- Your storage lifepo4 battery capacity;
- The duration of the refrigerator you want to run;
For example, a refrigerator can use 1500 wh a day, and if you choose 100ah 12v lithium ion battery with 80% DOD, then the number of the battery needed will be
1500 wh/(12V * 100Ah * 0.8) = 1.6 so two lifepo4 batteries are needed.
