12V 150Ah Lifepo4 Battery
HBOWA 12V 150Ah lifepo4 battery is the replacement of lead acid battery, lithium ion battery 150ah, powered by lifepo4 technology, with over 6000 cycle life, suitable for home energy storage system, backup, RV, camper, outdoor activities, etc. OEM and ODM services are available. Feel free to contact us for bulk prices.
MOQ: 50 pieces
Battery Cell: LiFePO4 Prismatic cell 3.2V 150Ah
BMS: Smart 4S BMS included
Capacity: 12.8V 150Ah
Warranty: 5 years, 10 years(Customization)
Gross Weight:16kg
Dimension:380mm*225mm*281mm
Customization Support: Including voltage, capacity, current, size, appearance, LCD, Link Bluetooth, etc.
User Manual
Detailed Structure
HBOWA has been focused on premium lifepo4 battery solutions for many years. Our 12V 150Ah lifepo4 batteries adopt 4 grade A 3.2 volt 150 amp hour cells in series. We choose IP65 level ABS cases for the lifepo4 battery 12v 150ah ensuring waterproof and dust-free. The lithium iron phosphate batteries have high performance in harsh environments, the operating charge temperature is between 0℃ and 55℃(32℉ – 131℉), and the operating discharge temperature is between -20℃ and 55℃(-4℉ – 131℉). Choose HBOWA, your reliable lifepo4 batteries manufacturer in China.
Smart BMS
The built-in smart battery management system (BMS) of the lifepo4 battery 12v 150ah protects the battery in many aspects, it provides over-charge protection, over-discharge protection, over-current protection, and temperature protection to ensure the battery cells operate within safe limits. If any individual cell goes outside the limits, the system responds accordingly. The optional LCD display screen and Bluetooth function allow you to view the technical data intuitively. Regarding battery safety, you can rest assured.

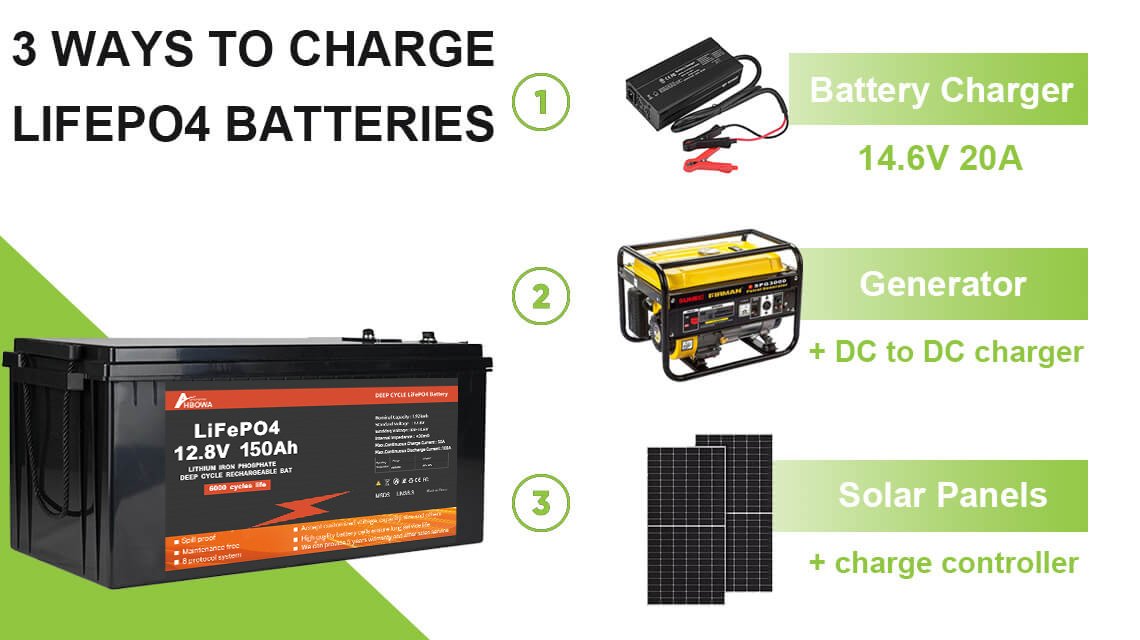

Charging Method
There are three charging methods for the lifepo4 lithium batteries.
- Battery charger 14.6V 20A. You can connect the charger to the utility grid to charge the lifepo4 lead acid replacement batteries.
- Generator. You can use the generator to generate electricity and connect it with a DC to DC charger 20A, then charge the 12V 150Ah lifepo4 batteries.
- Solar Panels. You can install the solar panel system, connect the solar array to the charge controller, and then charge the lifepo4 batteries.

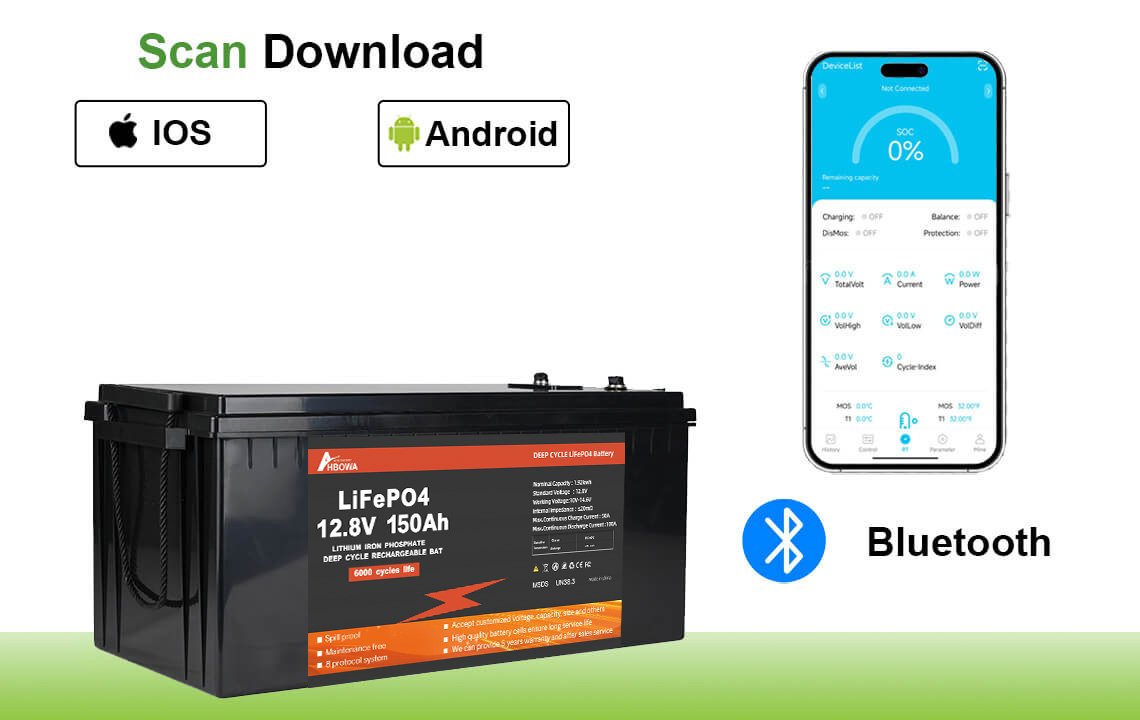

Link Bluetooth Optional
Through Bluetooth function, you can connect the battery via Bluetooth, to see the technical data of the battery by APP, such as voltage, current, BMS, each battery cells info, temperature, etc.

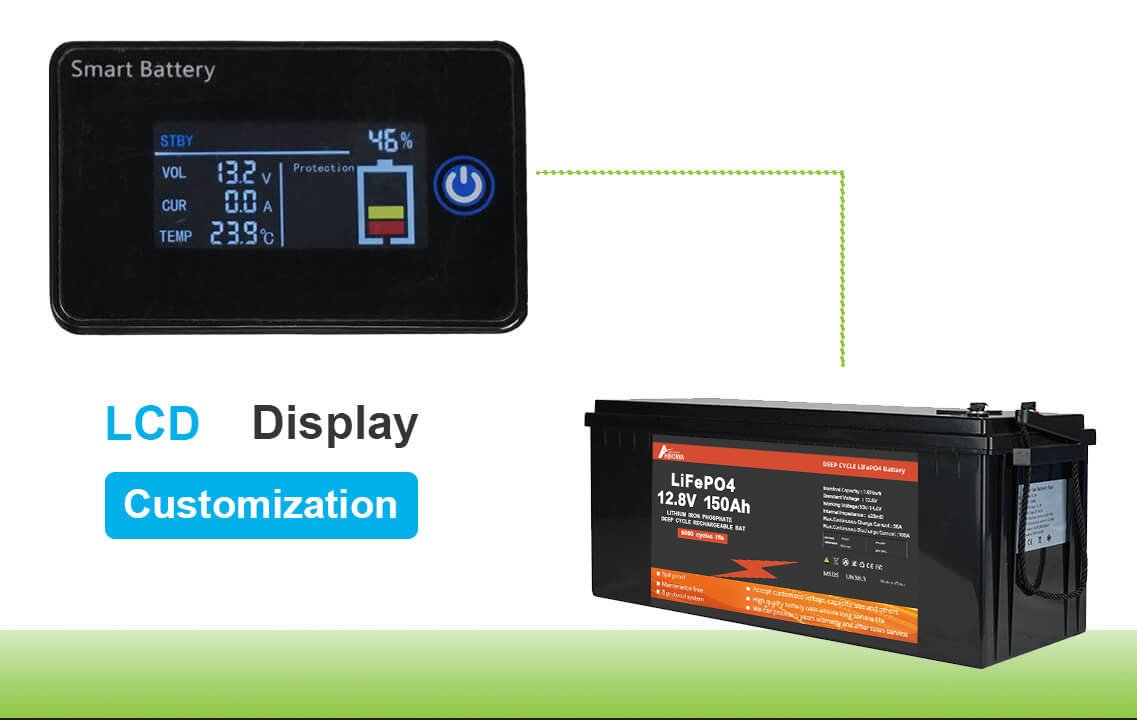

LCD Screen Optional
The LCD screen can monitor the data and status of the lead acid replacement battery, it shows data including the voltage, current, temperature, SOC, etc. You can tell us your special needs that are shown on the screen for customization.

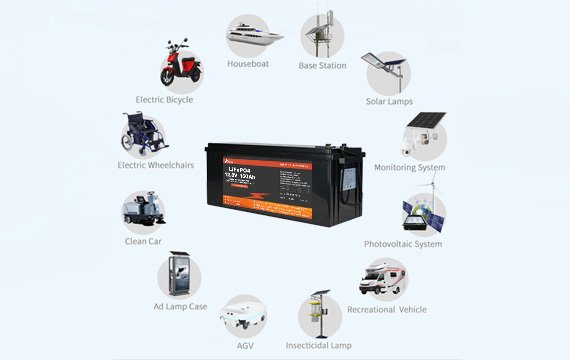

Wide Applications
The exceptional performance and durability of HBOWA lithium ion phosphate batteries make them a versatile choice for diverse scenarios, such as houseboat power, electric bicycles, electric wheelchairs, clean vehicles, advertising lamp cases, automated guided vehicles (AGVs), insecticidal lamps, recreational vehicles(RV), photovoltaic systems, monitoring systems, solar lamps, base stations, and more. You can place bulk orders of the lifepo4 battery 12v 200ah, and we will support you in boosting your business within your local markets. Our deep cycle high-quality, long-lasting lead acid replacement batteries can empower your products and help drive the adoption of sustainable energy solutions.
- ELECTRICAL DATA
| Model | XPD-12150 |
| Capacity | 150Ah |
| Voltage | 12.8V |
| Charging Voltage | 14.6V |
| MAX Charge/Discharge Current | 50A |
| Internal Impedance | ≤10mΩ |
| Cycle Life | over 6000 times |

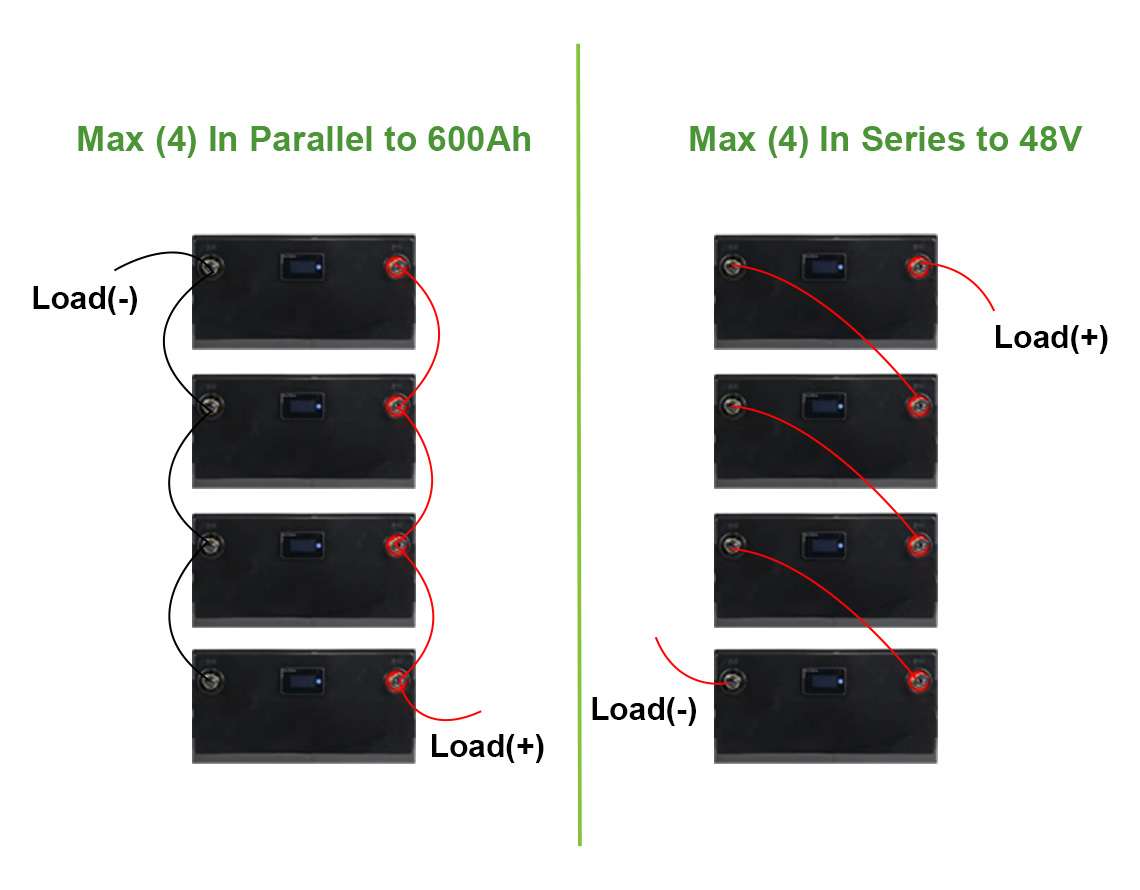

| Series | Parallel: | Max (4) in Series to 48V, Max (4) in Parallel to 600Ah |
| Humidity | ≤80% |
| Cooling Way | air cooling |
| Waterproof level | IP65 |
| Life Span | 10 years |
| Certificates | CE, FCC, CCC, UN38.3, UN3480, Class9 |
| Detection temperature | 65±2℃(149±2℉) |
| Operating Charge Temperature | 0℃ – 55℃(32℉ – 131℉) |
| Operating Discharge Temperature | -20℃ – 55℃(-4℉ – 131℉) |
| Storage Temperature | 0℃ – 35℃(32℉ – 95℉) |

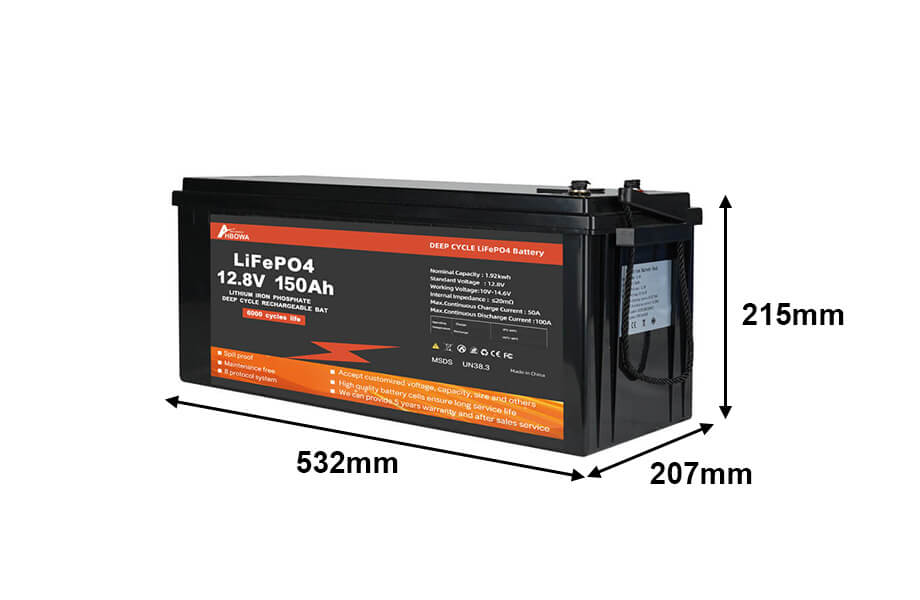

| Product Size | 532*207*215mm |
| Package Size | 582*260*275mm |
| Net Weight | 15kg |
| Gross Weight | 16kg |
