12v 200Ah Lithium Ion Battery
HBOWA 12V 200Ah lithium ion battery is compact and lightweight,powered by lifepo4 technology, with over 6000 cycle life, is the ideal energy storage choice for RV,camper, outdoor activities, etc.We support OEM and ODM service to boost your brand, if you have any special needs, feel free to contact us.
Battery Cell: LiFePO4 Prismatic cell 3.2V 100Ah
BMS: Smart 4S BMS included
Voltage: 12.8V
Capacity: 200Ah
Warranty: 5 years, 10 years(Customization)
Customization Support: Including voltage, capacity, current, size, appearance, LCD, Link Bluetooth, etc.
User Manual
Detailed Structure
With years of experience, HBOWA has been focused on premium lithium phosphate battery solutions. Our 12V 200Ah lifepo4 lithium batteries adopt 4 grade A 3.2 volt 100 amp hour cells in series and 2 groups in parallel. We choose IP65 level ABS cases for the lithium batteries ensuring waterproof and dust-free without leakage. The lifepo4 lithium ion batteries have high performance in harsh environments, the operating charge temperature is between 0℃ and 55℃(32℉ – 131℉), and the operating discharge temperature is between -20℃ and 55℃(-4℉ – 131℉).
Smart BMS

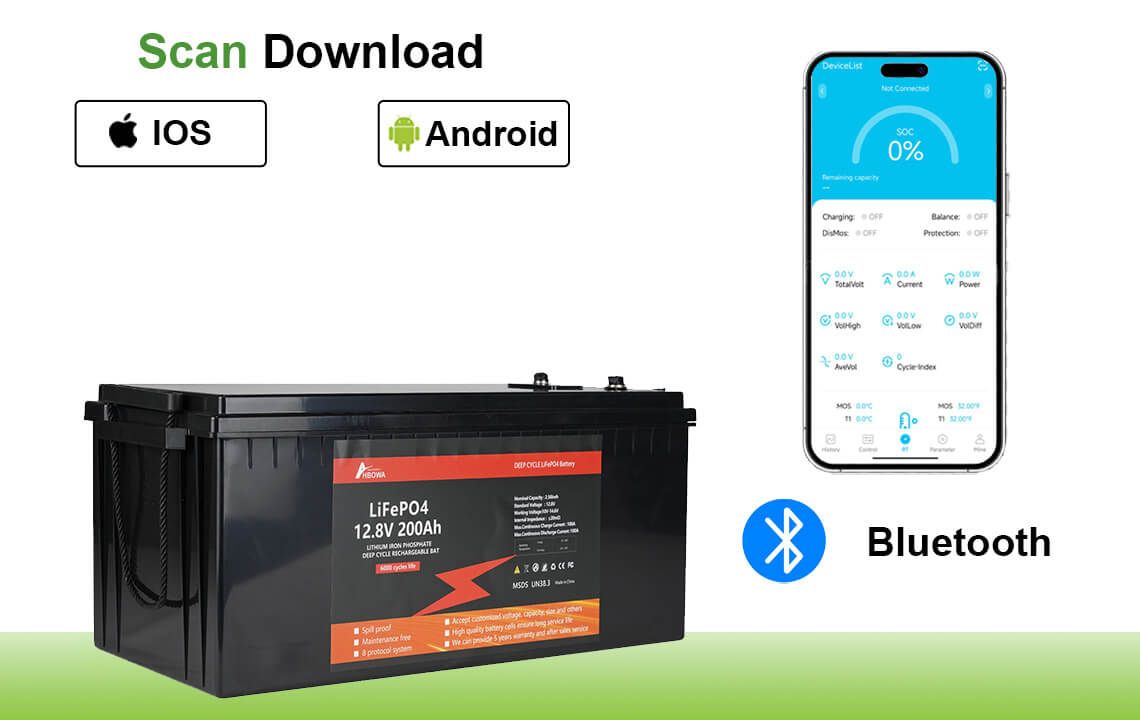

The built-in smart battery management system (BMS) helps you monitor the real-time status of the lithium ion battery. It provides over-charge protection, over-discharge protection, over-current protection, and temperature protection to ensure the battery cells operate within safe limits. If any individual cell goes outside the limits, the system responds accordingly. The optional LCD display panel and Bluetooth connectivity allow you to view the technical data intuitively. Regarding battery safety, you can rest assured.

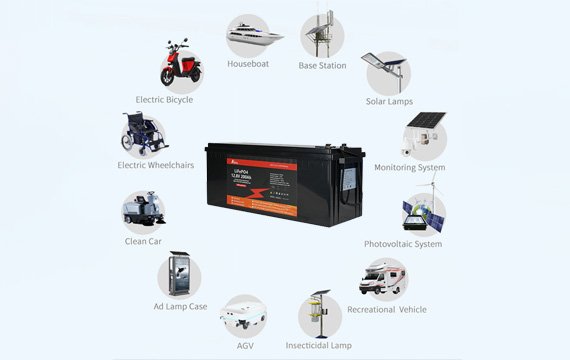

Wide Applications
The exceptional performance and durability of HBOWA lithium ion phosphate batteries make them a versatile choice for diverse scenarios, such as houseboat power, electric bicycles, electric wheelchairs, clean vehicles, advertising lamp cases, automated guided vehicles (AGVs), insecticidal lamps, recreational vehicles(RV), photovoltaic systems, monitoring systems, solar lamps, base stations, and more. You can place bulk orders, and we will support you in boosting your business within your local markets. Our deep cycle high-quality, long-lasting lead acid replacement batteries can empower your products and help drive the adoption of sustainable energy solutions.
- ELECTRICAL DATA
- MECHANICAL DATA
- TEMPERATURE DATA
| Model | XPD-12200 |
|---|---|
| Capacity | 200Ah |
| Voltage | 12.8V |
| Charging Voltage | 14.6V |
| MAX Charge/Discharge Current | 200A |
| Internal Impedance | ≤10mΩ |
| Cycle Life | 6000 times |
| Series | Parallel: | Max (4) in Series to 48V, Max (4) in Parallel to 800Ah |
| Product Size | 532*207*215mm |
|---|---|
| Package Size | 582*260*275mm |
| Net Weight | 21kg |
| Humidity | ≤80% |
| Cooling Way | air cooling |
| Waterproof level | IP65 |
| Life Span | 10 years |
| Certificates | CE, FCC, CCC, UN38.3, UN3480, Class9 |
| Detection temperature | 65±2℃(149±2℉) |
|---|---|
| Operating Charge Temperature | 0℃ – 55℃(32℉ – 131℉) |
| Operating Discharge Temperature | -20℃ – 55℃(-4℉ – 131℉) |
| Storage Temperature | 0℃ – 35℃(32℉ – 95℉) |
*The installation and debugging of the lithium ion batteries should be operated by technical personnel.
*Please do not stick your hands or other objects deep into the interior of the product.
*Please do not open the product without technical personnel.
*Please do not mechanically damage the battery module of the energy storage cabinet (perforation,
deformation, peeling, etc.).
*Please use a dry powder extinguisher as the extinguishing agent.
*Please do not let the storage cabinet battery module contact abnormal metals or conductors.
*Please do not use the product after a short circuit.
*Please do not expose the energy storage cabinet to flammable or hazardous chemicals or vapors.
