12v 280ah Lifepo4 Battery Bluetooth

CheckMOQ: 50 pieces

CheckCapacity: 12.8V 280Ah

CheckWarranty: 5 years, 10 years(Customization)

CheckGross Weight:34kg

CheckDimension: 590mm*310mm*300mm

CheckCustomization Support: Including voltage, capacity, current, size, appearance, LCD, Link Bluetooth, etc.

CheckCertificates: CE, MSDS, UN38.3, ISO, etc.

CheckPlace of origin: China

pdf documentUser Manual

Description

12.8V 280Ah lifepo4 battery has a high energy density with a capacity of 3.584KWh. The lifepo4 batteries have a long lifespan of over 6000 cycle times, with light weight and small size. The built-in battery management system supports monitoring and controlling the status of the lifepo4 batteries, such as voltage, current, charging and discharging status, temperature, etc. to ensure optimal operation of the 12.8V 280Ah battery. Through wifi and Bluetooth functions of the 12.8V 280Ah lifepo4, you can view the battery data via smartphone APP in real time. 280ah lifepo4 battery outer case is IP65 ingress protection rate, which is waterproof and dust-free, it is suitable for various applications such as RV, marine, fish fingers, and house boats, LED charging, residential house solar systems, and so on.

12V 280Ah lifepo4 features
Model XPD-12280
Capacity 280Ah
Voltage 12.8V
Charging Voltage 14.6V
MAX Charge Current 100A
MAX Discharge Current 100A
Internal Impedance ≤10mΩ
Cycle Life Over 6000 times
Operating Charge Temperature 0℃ – 55℃(32℉ – 131℉)
Operating Discharge Temperature -20℃ – 55℃(-4℉ – 131℉)
Storage Temperature 0℃ – 35℃(32℉ – 95℉)
Series | Parallel: Max (4) in Series to 48V, Max (4) in Parallel to 1120Ah
Over charge detection voltage 3.75V
Over charge release voltage 3.38V
Over discharge detection voltage 2.2V
Over discharge release voltage 2.7V
Detection temperature 65±2℃(149±2℉)
Humidity ≤80%
Cooling Way air cooling
Waterproof level IP65
Life Span 10 years
Certificates CE, FCC, CCC, UN38.3, UN3480, Class9
Product Size 490*220*260mm
Package Size 590*310*300mm
Net Weight 33kg
Gross Weight 34kg

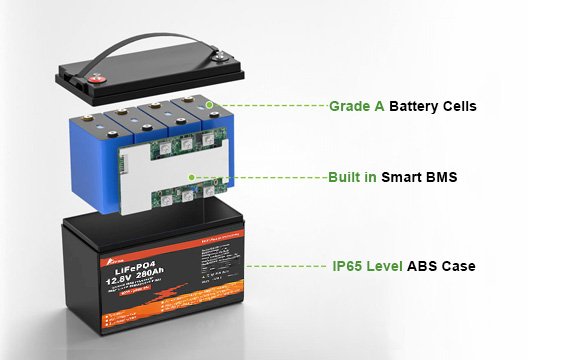

12.8V 280Ah Lifepo4 Battery Features

Check Grade A Lifepo4 Battery Cells

Check Over 6000 cycle times lifespan

Check Built-in battery management system

Check Lightweight and small in size

Check LCD/Bluetooth/Wifi functions

Check IP65 rated, waterproof and dust free

Check With support of warranty of 10 years

CheckSupport connection in series or in parallel

Check RV/Marine/Camping/Boat/Solar system

12.8 volt lithium battery

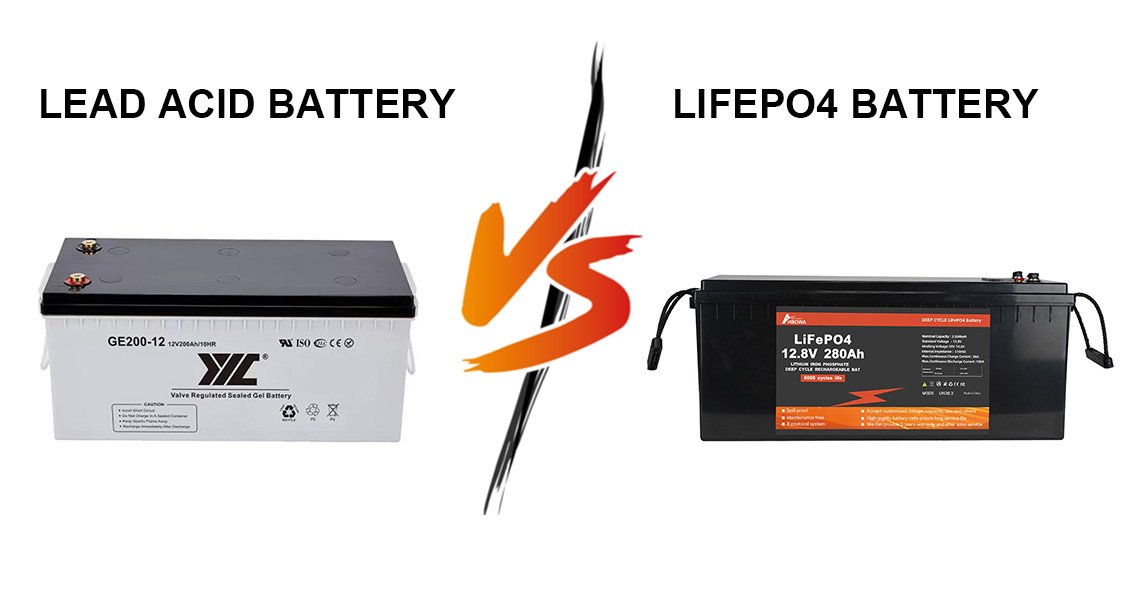

lead acid battery vs lifepo4 battery 280ah

Lifepo4 VS Lead Acid Battery

1. Cycles of life; 12V 280ah lithium batteries of over 6000 cycles, lead acid batteries typically only endure around 300 cycles.
2. Lightweight;  280Ah lithium batteries weigh 33 kilograms, and lead-acid batteries of the same capacity are three times heavier.
3. Enhanced safety; 12.8V 280Ah lifepo4 with BMS to protect against safety issues, a feature absent in lead-acid batteries.
4. Charging Speed; 12.8 volt lithium batteries are faster than lead acid batteries;

5. Environmental Friendly; 280Ah lithium lifepo4 batteries are composed of non-toxic materials, while lead-acid batteries are.

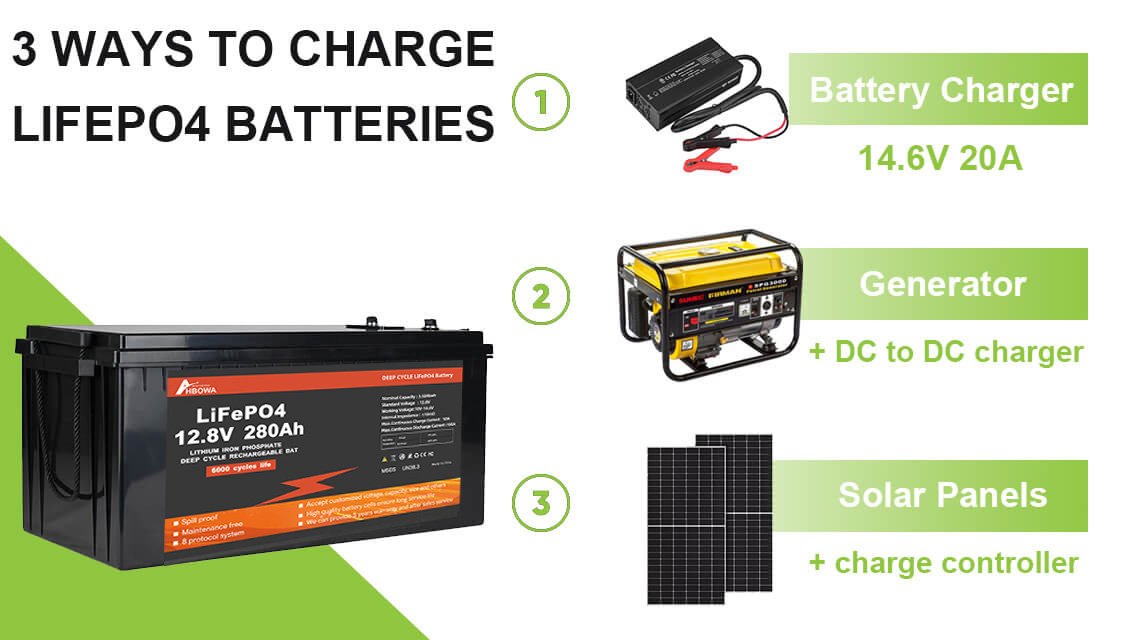

Charging Ways

280 amp hour lifepo4 lithium batteries charging way:

  1. Battery charger 14.6V 20A. You can use the lithium iron phosphate 4-string charger 14.6V to connect the grid to charge the 280ah battery;
  2. Diesel – generator.  The diesel generator can act as a power source to charge the lifepo4 batteries.
  3. Solar Panels With MPPT. The solar system can charge the lifepo4 batteries with MPPT.
12v 280ah lithium battery charging ways
280ah lithium battery customization service

Customization Service

HBOWA provide you with standard lifepo4 batteries with various capacities such as 12.8V 25.6V 30Ah, 50Ah, 100Ah, 150Ah, 200Ah,280Ah, 300Ah, 400Ah, etc. If you need special capacity lifepo4 batteries for your market, feel free to say, that we offer customization services for voltage, current, BMS, temperature, appearance, size, logo, Bluetooth, LCD display, etc. for the lifepo4 batteries.
