12V 300Ah Lithium Ion Battery
MOQ: 50 pieces
Battery Cell: LiFePO4 Prismatic cell 3.2V 100Ah
BMS: Smart 4S BMS included
Capacity: 12.8V 300Ah
Warranty: 5 years, 10 years(Customization)
Gross Weight:34kg
Dimension: 590mm*310mm*300mm
Customization Support: Including voltage, capacity, current, size, appearance, LCD, Link Bluetooth, etc.
Certificates: CE, MSDS, UN38.3, ISO, etc.
Place of origin: China
Description
12V 300Ah lithium-ion batteries are popular in the energy storage market. The 12V 300Ah LiFePO4 battery has become a leading replacement for traditional lead-acid batteries for applications such as RVs, campers, marines, Mining Lights, houseboats, LED backup, etc.
Features:
- Grade A lifepo4 battery cells;
- built-in BMS protection board;
- 10 years lifespan warranty;
- Support connecting in parallel for larger capacity;
- Alternative lead acid AGM Gel lifepo4 batteries;
- Light Weight and easy to carry;
- ABS case and IP65 ingress protection.
Lifepo4 Battery Customization Available
- Technical Data
| Model | XPD-12300 |
| Capacity | 300Ah |
| Voltage | 12.8V |
| Charging Voltage | 14.6V |
| MAX Charge Current | 300A |
| MAX Discharge Current | 300A |
| Internal Impedance | ≤10mΩ |
| Cycle Life | 6000 times |
| Operating Charge Temperature | 0℃ – 55℃(32℉ – 131℉) |
| Operating Discharge Temperature | -20℃ – 55℃(-4℉ – 131℉) |
| Storage Temperature | 0℃ – 35℃(32℉ – 95℉) |
| Series | Parallel: | Max (4) in Series to 48V, Max (4) in Parallel to 1200Ah |
| Over charge detection voltage | 3.75V |
| Over charge release voltage | 3.38V |
| Over discharge detection voltage | 2.2V |
| Over discharge release voltage | 2.7V |
| Detection temperature | 65±2℃(149±2℉) |
| Humidity | ≤80% |
| Cooling Way | air cooling |
| Waterproof level | IP65 |
| Life Span | 10 years |
| Certificates | CE, FCC, CCC, UN38.3, UN3480, Class9 |
| Product Size | 490*220*260mm |
| Package Size | 590*310*300mm |
| Net Weight | 33kg |
| Gross Weight | 34kg |
Detailed Structure
HBOWA selects grade A battery cells for lifepo4 lithium batteries. The deep cycle 12V 300 amp hour lithium battery has a long cycle life of over 6000 cycles and a warranty of 5 – 10 years, The built-in BMS protection monitors the key parameters during the charging and discharging process, you can view this data via the optional LCD and connect via Bluetooth using the accompanying phone app. The BMS of the 300 amp hour battery can protect the battery from overcharge, over-discharge, overcurrent, and temperature detection of the 12V 300 amp hour lithium ion battery. The IP65-rated ABS case outside ensures the lithium battery is waterproof, dust-free, and maintenance-free.
Lead Acid Replacement Battery
Compared to traditional lead-acid batteries, HBOWA lithium batteries offer superior performance:
1. With over 6000 cycles of life, 12V 300ah lithium ion batteries outlast lead-acid counterparts by a significant margin, which typically only endure around 300 cycles.
2. 300 amp hour lithium batteries weigh just 33 kilograms, while lead-acid batteries are three times heavier.
3. 300Ah lithium iron phosphate batteries boast a lifespan of 10 years, compared to the mere 3 years of lead-acid batteries.
4. Enhanced safety is ensured with the inclusion of intelligent BMS systems in lithium batteries, a feature absent in lead-acid batteries.
5. Charging speeds are notably faster with lithium batteries at cheaper prices;
6. Lithium lifepo4 batteries are composed of non-toxic materials, making them more environmentally friendly than lead-acid batteries.
Charging Method
There are three charging methods for the 300 amp hour lifepo4 lithium batteries.
- Battery charger 14.6V 20A. You can connect the charger to the utility grid to charge the lifepo4 lead acid replacement batteries.
- Generator. You can use the generator to generate electricity and connect it with a DC to DC charger 20A, then charge the lifepo4 batteries.
- Solar Panels. You can install the solar panel system, connect the solar array to the charge controller, and then charge the lifepo4 batteries.

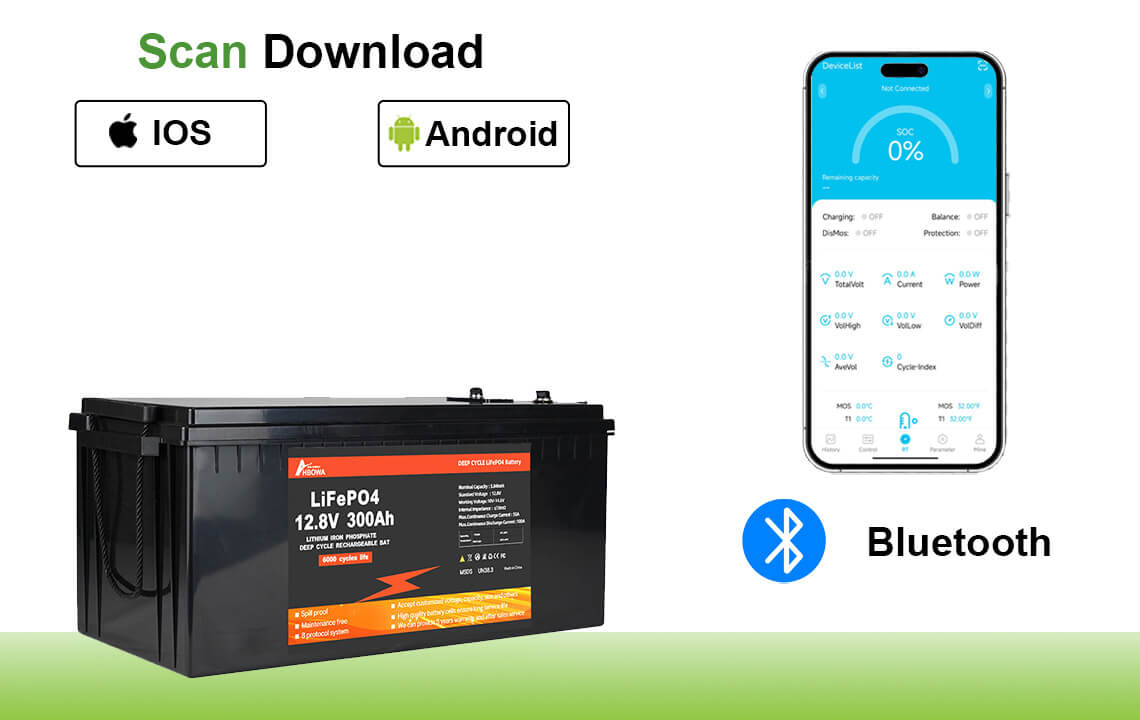

Link Bluetooth Optional
Through Bluetooth function, you can connect the 12V 300Ah lithium battery via Bluetooth, to see the technical data of the 300 amp hour lithium ion phosphate battery by APP, such as voltage, current, BMS, each battery cell info, temperature, etc.
LCD Screen Optional
The LCD screen of the 12V 300Ah lithium battery can monitor the data and status of the lead acid replacement lithium battery, it shows data including the voltage, current, temperature, SOC, etc. You can tell us your special needs that are shown on the screen for customization.
Package Details
We package our lithium lifepo4 batteries in double-layered thick cardboard boxes for optimal protection during transit. Foam boards inside the box surround each lithium ion lifepo4 battery to safeguard it from all sides.
The exterior of the box is adorned with battery symbols, as well as labels indicating fire resistance, water resistance, and crush resistance. To further reinforce the packaging, we use PVC film on the outermost layer of the cardboard box. We support OEM services, if you have special needs for the carton appearance, feel free to contact us.
Inside the cardboard box:
1 * 12.8V 300Ah Lead Acid Replacement Lithium LiFePO4 Battery
1 * User Manual
