15KW On Grid Solar System Three Phase
Brand: HBOWA or OEM/ODM Service
Type: On Grid
Max. Power: 15KW
Output Voltage: 220/380V, 230/400V 0.85Un-1.1Un
Certificate: CE/TUV/ISO
Lead Time:7-10 days
Payment: T/T, Credit Card, Paypal, Western Union
Warranty: 30 Years
Technical Data
- Components
- Solar Panel
- Inverter
| Model | 15000W-On |
| Bifacial solar panel 550W/41.6V |
28 pieces |
| Deye Inverter | SUN-15K-G05 |
| DC Combiner Box | Customized According to Solar System Configuration |
| PV Cable 4 mm2 | 200 meter |
| Mounting Brackets | 1 set |
| MC4 Connector | 10 pairs |
| Cell Type | N-Type Bifacial Mono-crystalline |
| No. of Cells | 144(6*24) |
| Maximum Power | 550W |
| Maximum Power Voltage | 41.58V |
| Maximum Efficiency STC (%) | 21.29% |
| Dimensions | 2278*1134*30mm(89.69*44.65*1.18inch) |
| Weight | 32kg(70.55lbs) |
| Warranty | 30 years |
| Nominal power | 15000W |
| MPP voltage range | 200-850V |
| Max. Operating PV Input current(A) | 13+26 |
| Number of MPPT | 2 |
| No. of PV strings per MPP tracker |
1+2 |
| Max. PV Input Power | 19500W |
| Max Efficiency | 98.50% |
| Nominal Output Voltage | 220/380V, 230/400V 0.85Un-1.1Un |
| Communication | RS485/RS232 |
| Weight | 15kg |
| Dimensions | 332×472×203 (Excluding Connectors and Brackets) |
| Warranty | 5 Years |
Advantages
Grid-Tied Systems
The electricity in the on-grid system can be used for residential and commercial use, while the excess electricity does not need to be stored in additional energy storage batteries but can be directly back to the utility grid. The utility grid is a virtual energy storage system that stores excess electricity generated by solar panels, reduces electricity bills, and also obtains additional subsidies.
High Efficiency Panel
SMBB technology to improve power output
Hot 2.0 Technology, lower LID/LETID
Higher Power Output, lower LCOE, and higher IRR
PID Resistance, materials control
Enhanced mechanical load

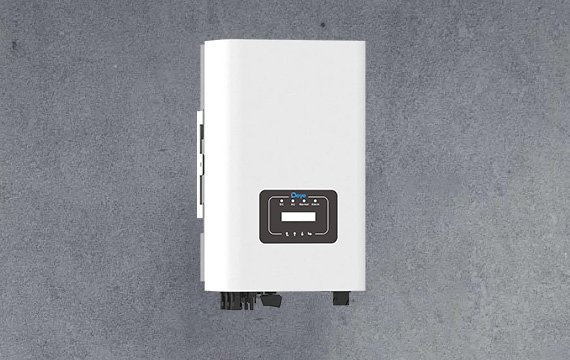

Deye Inverter
2 MPP trackers, Max. efficiency up to 98.5%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function (Optional)

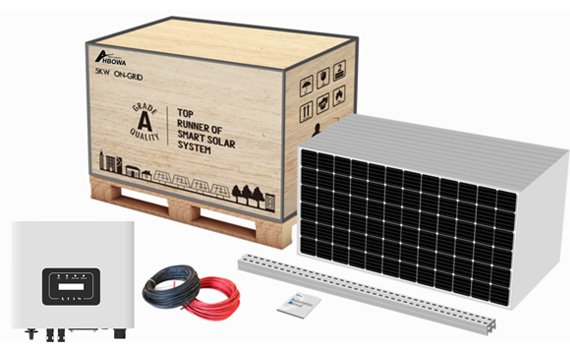

Packaging Service
All HBOWA solar system products are in standard wood box packaging, we also support customization for tailored packaging requirements. Each solar system component is in stock, we provide professional trade services for you to ensure a smooth purchasing experience with fast delivery and safe arrival.
