20KW 20KWh Off Grid Solar System

CheckSystem Type: 20KW 20KWh Off Grid Single phase

CheckInverter Brand: Growatt, Solis

CheckBattery: 51.2V 200Ah 10KWh wall mounted lifepo4 battery * 2

CheckOutput Voltage: 230VAC ± 5% @50/60Hz

CheckCertificate: CE/TUV/CSA/CEC/UL/ISO

CheckPayment: T/T, Credit Card, Paypal, Western Union

CheckPlace of origin: China

Description

20kw 20kwh off-grid solar power system consists of 550W PERC solar panels  36 pieces, four 5kw inverters, two 10kwh wall-mounted lifePO4 batteries, and solar accessories.

LifePo4 Battery:

The LiFePO4 phosphate lithium batteries have a high energy density and a lifespan of 10 years, exceeding 6000 cycles. It is lightweight, equipped with a smart BMS protection system, and offers easy installation with virtually maintenance-free operation. The lifepo4 battery become popular for home solar energy storage systems. In the 20kw off-grid solar system, we use two 10kwh wall-mounted lithium batteries for you. Rack-mounted lifepo4 batteries, stackable lifepo4 batteries, floor standing lifepo4 batteries are also available.

Solar Inverters:

High Efficiency: Off-grid inverters are designed to maximize energy conversion efficiency;

Battery Management: Off-grid inverters have advanced BMS systems to monitor and maintain battery health;

Pure Sine Wave Output: Off-grid inverters produce a clean, pure sine wave output, ensuring compatibility with various electronic devices and appliances;

Low Voltage Start-up: The inverters can start up and operate at low input voltage levels;

Overload and Short-circuit Protection: Off-grid inverters are equipped with built-in safety features;

User-friendly Interface: The off-grid inverters have an intuitive display and wifi function to monitor system status as needed.

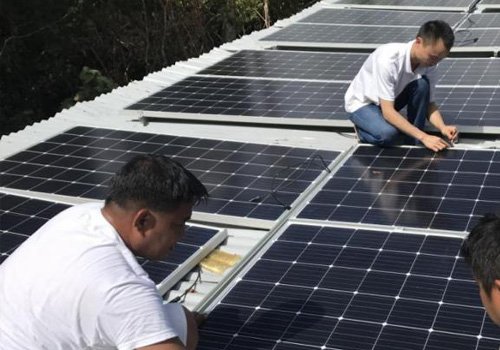

How to install a 20KW off grid solar system?

We provide after-sales services on WhatsApp/WeChat/email, assisting with installation and answering any questions you may have. For each solar system we sell, we have installation demo videos for you. Our engineer will also go overseas to help you if necessary.

You can also consult local solar installers. They all offer free home solar installation consultations and cost evaluations. We suggest that you get installation quotations from at least three companies to compare prices and be sure to inquire about any discounts and preferential activities they may offer.

Solar Products HBOWA Provide:

HBOWA offers off-grid, on-grid, and hybrid solar solutions, providing complimentary design services to bolster your solar business. HBOWA offers you related certificates of solar systems such as CE, TUV, CSA, CEC, UL, ISO, etc, we also support OEM and ODM services.
We not only produce our brand solar panels, and lifepo4 lithium batteries, but also provide other brand solar panels, such as Jinko, JA, Longi, and Canidian Trina solar panels, and inverters such as Growatt, Deye, Solis, Must, etc.

For more detailed information, feel free to contact our team directly.20kw off grid solar system details

Monitoring APP of solar system

Technical Data

Model 3KW-Off 5KW-Off 10KW-Off 15KW-Off 20KW-Off
Mono-facial solar panel
550W/41.95V
6 pieces 10 pieces 18 pieces 27 pieces 36 pieces
Growatt Inverter 3000es * 1 5000es * 1 5000es * 2 5000es * 3 5000es * 4
DC Combiner Box Customized According to Solar System Configuration
Energy Storage Battery Lithium Ion
Battery
20KWh Lithium
Ion Battery
PV Cable 4 mm2 100 meter 100 meter 200 meter 200  meter 400 meter
Mounting Brackets 1 set
MC4 Connector 8 pieces 12 pieces 20 pieces 30 pieces 40 pieces

Components

550W solar panel
Solar Panel

Mono-crystalline panel

Mono-crystalline panel

Maximum Power(Pmax): 550W

Maximum Power Voltage: 41.95V

Maximum Power Current: 13.11A

Open Circuit Voltage: 49.90V

Short Circuit Current: 14.09A

Maximum Efficiency: 21.29%

Dimension: 2278*1134*30mm

Weight: 26.4kg Total number: 36 pieces

Brand panel available: Longi/JA/Jinko/Trina

Communication

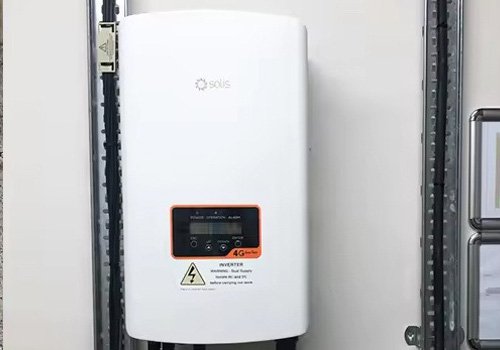

Off grid Solar System Inverter

15KW 15KWh Off grid solar System brand inverter available

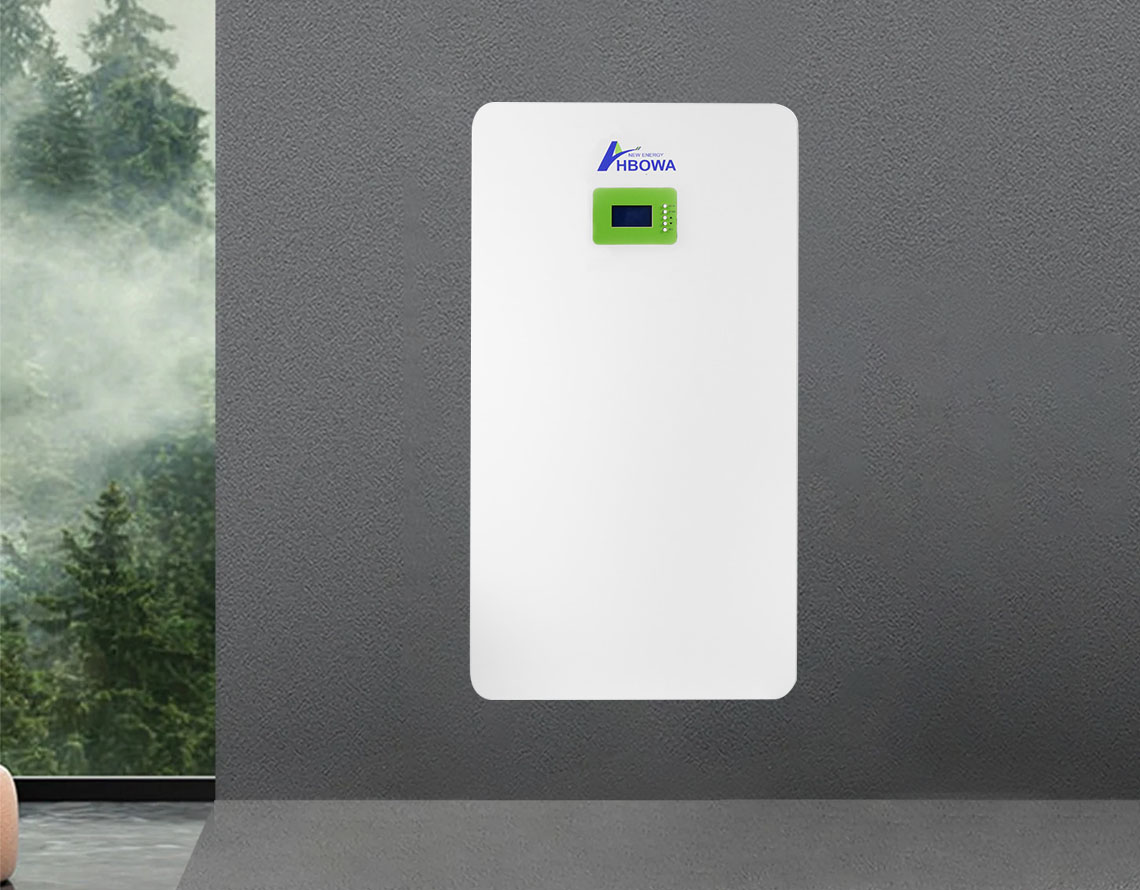

house solar battery pack 51V 200Ah
Lithium Battery

Powerwall LifePO4 Battery

Mounting Structure

Mounting Structure for Solar Panel

Our ground solar mounting system offers a robust and versatile solution for solar system installations. It is designed to withstand various environmental conditions, ensuring long-term stability and durability. The system’s lightweight design minimizes roof load, while its pre-assembled components significantly reduce installation time and labor costs.

solar mounting structure
PV Accessories(combiner box MC4 connector PV Cable)
Accessories

Solar System Accessories

* 3 in and 1 out, combiner box with voltage resistance of 500V;

* PV single core cable 4m㎡,6m㎡,10m㎡ etc;

* MC4 connectors, according to solar panels.

If your customers need any other accessories, feel free to contact us.

Whole Site New Solar Panels Price: USD 0.09-0.1 per watt
