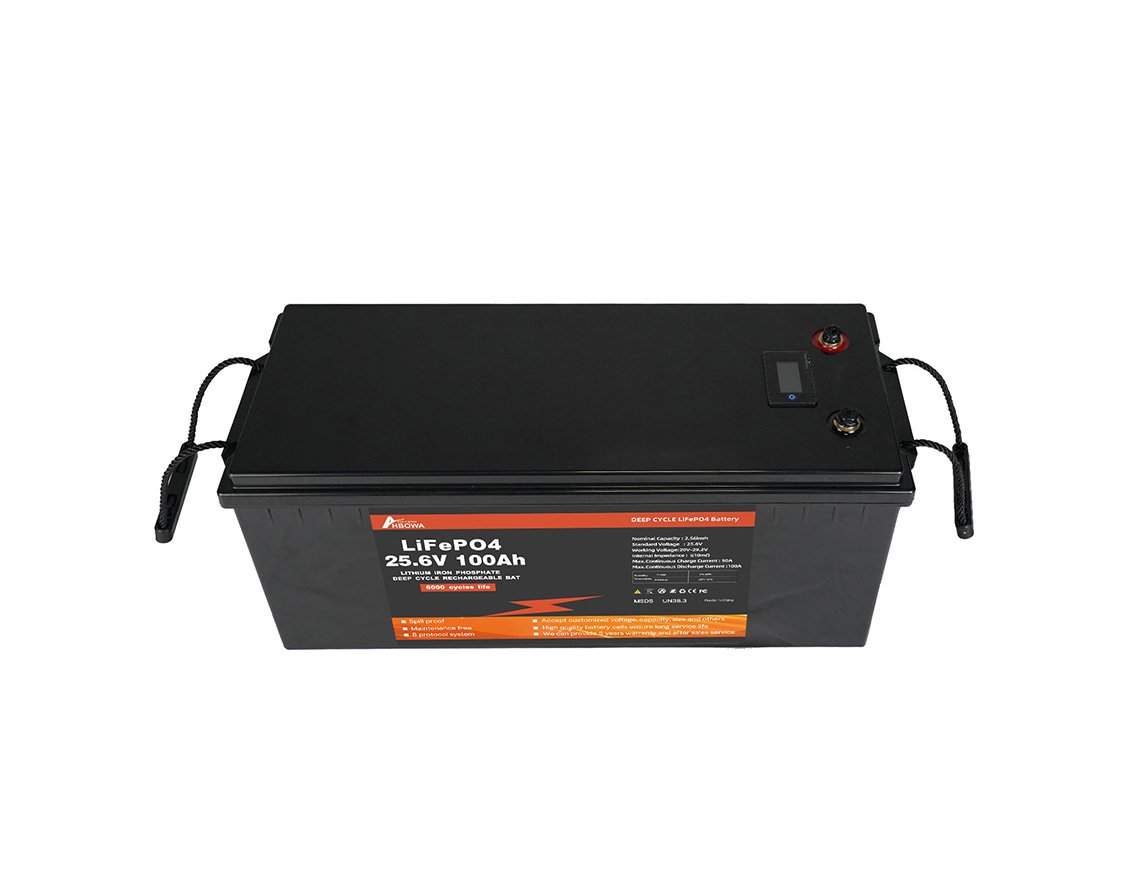

24V 100Ah Lithium Ion Battery

CheckMOQ: 50 pieces

CheckName: 24v 100ah lifepo4 battery

CheckBattery Cell: LiFePO4 Prismatic cell 3.2V 100Ah

CheckBMS: Smart 8S BMS included

CheckCapacity: li ion battery 24v 100ah

CheckWarranty: 5 years, 10 years(Customization)

CheckGross Weight:22kg

CheckDimension: 415mm*330mm*250mm

CheckCustomization Support: Including voltage, capacity, current, size, appearance, LCD, Link Bluetooth, etc.

CheckPlace of origin: China

pdf documentUser Manual  pdf documentDatasheet

24v 100ah Lithium ion Battery

These 24V 100Ah lithium batteries are valued for their high energy density, and long cycle life, making them suitable for a wide range of applications where reliable and efficient energy storage is needed, such as electric vehicles (EVs), marine, Torch, LED lights, Golf Carts Battery, Yachts, off-grid solar systems, or backup power systems, solar batteries for home, Telecom Base, Databases, schools, hospitals, military equipment, etc.

24V 100Ah Lithium Battery Pack Features
  • Long cycle life; HBOWA produced lifepo4 battery 24V life is 6000+ cycles. After 6000 times, the lifepo4 battery still has about 80% of the rated capacity for your load;
  • Grade A lifepo4 battery cells; HBOWA chooses REPT, Gotion, EVE lifepo4 battery cells to assemble the 24v lithium ion battery, which are around the top brand battery cells companies in China;
  • ABS Case; The case of the 24V 100Ah lithium battery is ABS plastic material with mo metal material, no heavy and easy to move and maintain, IP65 material, can resist wind, dust, rain and other harsh environments;
  • Wide Range Temperature; The 24v lithium ion battery can be used in temperatures ranging from -20℃ and 55℃;
  • Comprehensive Protection System; The battery management system(BMS) can protect the 24v 100ah lifepo4 battery from over-discharged, over-load, over-current, overheating, short circuit, etc.

Want to try HBOWA lifepo4 lithium battery before purchasing? We provide samples, and our batteries have achieved the most relevant certificates, feel free to order!

Note:

*The installation and debugging of the 24v 100ah lifepo4 battery should be operated by technical personnel;

*Please do not stick your hands or other objects deep into the interior of the 24 volt 100ah li ion battery;

*Please do not open the 24V 100Ah lithium ion battery without a technical personnel;

*Please do not mechanically damage the 24v lithium ion battery of the energy storage cabinet (perforation, deformation, peeling, etc;

*Please use a dry powder extinguisher as the extinguishing agent for the 24v lithium ion battery;

*Please do not let the energy storage battery module contact abnormal metals or conductors;

*Please do not use the 24v 100ah lithium ion battery after a short circuit;

*Please do not expose the 24v 100ah battery to flammable or hazardous chemicals or vapors.

lithium ion battery 24v 100ah
Model XPD-24100
Capacity 100Ah
Voltage 25.6V
Charging Voltage 29.2V
MAX Charge Current 100A
MAX Discharge Current 100A
Internal Impedance ≤20mΩ
Cycle Life 6000 times
Operating Charge Temperature 0℃ – 55℃(32℉ – 131℉)
Operating Discharge Temperature -20℃ – 55℃(-4℉ – 131℉)
Storage Temperature 0℃ – 35℃(32℉ – 95℉)
Over charge detection voltage 3.75V
Over charge release voltage 3.38V
Over discharge detection voltage 2.2V
Over discharge release voltage 2.7V
Detection temperature 65±2℃(149±2℉)
Humidity ≤80%
Cooling Way air cooling
Waterproof level IP65
Life Span 10 years
Certificates CE, FCC, CCC, UN38.3, UN3480, Class9

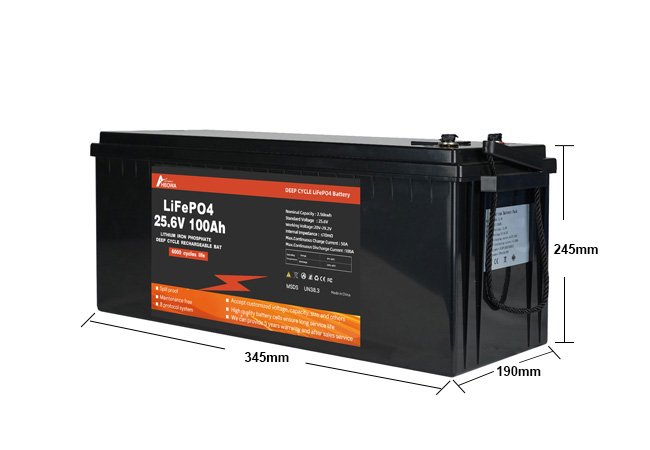

Product Size 345*190*245mm
Package Size 415*330*250mm
Net Weight 21kg
Gross Weight 22kg

Detailed Structure

The deep cycle 24V 100Ah lithium battery has over 6000 cycles life and a warranty of 5 – 10 years, The built-in BMS protection monitors the key parameters during the charging and discharging process, you can view these data of the 24v lithium ion battery via the optional LCD, and connect via Bluetooth using the accompanying phone app which is included in the user manual. The BMS can protect the lifepo4 battery from overcharge, over-discharge, overcurrent, and temperature detection of the 24V 100Ah batteries.

24 volt 200ah lithium ion battery
lifepo4_ion_battery_24v_100ah_charging_mode

Charging Method

There are three charging methods for the 24v lithium ion battery.

  1. Battery charger 14.6V 20A. You can connect the battery charger to the utility grid to charge the lifepo4 lead acid replacement batteries.
  2. Generator. You can use the generator to generate electricity and connect it with a DC to DC charger 20A, then charge the lifepo4 batteries.
  3. Solar Panels. You can install the solar panel system, connect the solar array to the charge controller, and then charge the lifepo4 batteries.

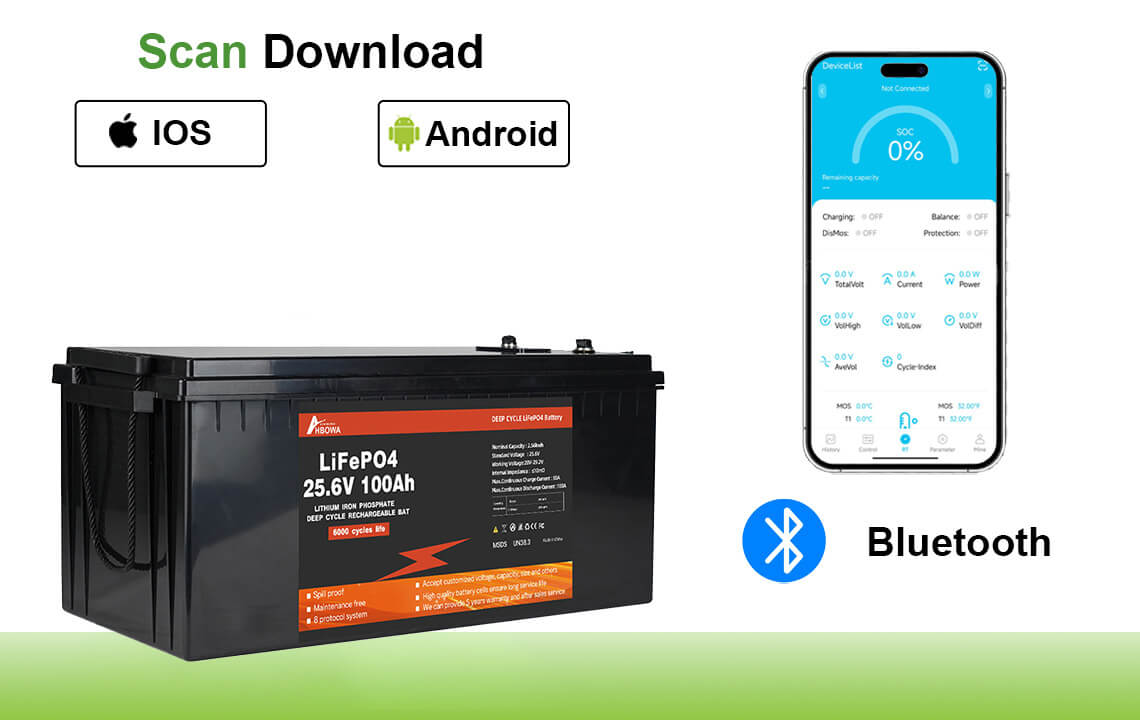

Link Bluetooth Optional

Through Bluetooth function, you can connect the 24v lithium ion battery via Bluetooth, to see the technical data of the battery by APP, such as voltage, current, BMS, each battery cells info, temperature, etc.

Bluetooth_optional_of_lead_acid_replacement_lithium_batteries_24V
LCD_display_for_24V_100Ah_lifepo4_battery

LCD Screen Optional

The LCD screen can monitor the data and status of the 24v lithium ion battery, it shows data including the voltage, current, temperature, SOC, etc. You can tell us your special needs that are shown on the screen for customization.

Package Details

We package our lithium batteries in double-layered thick cardboard boxes for optimal protection during transit. Each lithium ion battery is surrounded by foam boards inside the box to safeguard it from all sides.

The exterior of the box is adorned with battery symbols, as well as labels indicating fire resistance, water resistance, and crush resistance. To further reinforce the packaging, we use PVC film on the outermost layer of the cardboard box. We support OEM services, if you have special needs for the carton appearance, feel free to contact us.

Inside the cardboard box:
1 * 24V 100Ah Lead Acid Replacement Lithium LiFePO4 Battery;
1 * User Manual;

1 * 24V 100Ah lifepo4 battery charger.

Package of Lead Acid Replacement Battery - HBOWA New Energy
How Long is the lifespan of 24V 100Ah Lifepo4 Battery?

It depends on your application conditions for the 24v lithium ion battery. Generally speaking, it can be used for over 6000 cycle times at 80%DOD, 25­°C.

Are 24V 100Ah lifepo4 batteries suitable for marine applications?

The answer is yes. The 24v 100ah lifepo4 battery case material is ABS, and the ingress protection rate is IP65, which can resist moisture and corrosion for marine applications.

Can we connect the 24v 100ah lifepo4 batteries in series or parallel?

Yes, you can. The 24v 100ah lithium ion battery can be connected in series or in parallel for extending the capacity of the batteries. The maximum number in series or parallel is 4 units.
