24V 200Ah Lithium Ion Battery

CheckMOQ: 50 pieces

CheckBattery Cell: LiFePO4 Prismatic cell 3.2V 100Ah

CheckBMS: Smart 8S BMS included

CheckCapacity: 200Ah

CheckWarranty: 5 years, 10 years(Customization)

CheckGross Weight:37kg

CheckDimension: 520mm*267mm*220mm

CheckCustomization Support: Including voltage, capacity, current, size, appearance, LCD, Link Bluetooth, etc.

pdf documentUser Manual

Description

These 24V 200Ah lifepo4 lithium batteries are valued for their high energy density, and long cycle life, making the 24 volt 200ah lithium ion battery suitable for a wide range of applications where reliable and efficient energy storage is needed, such as electric vehicles (EVs), marine, off-grid, or backup power systems, etc.

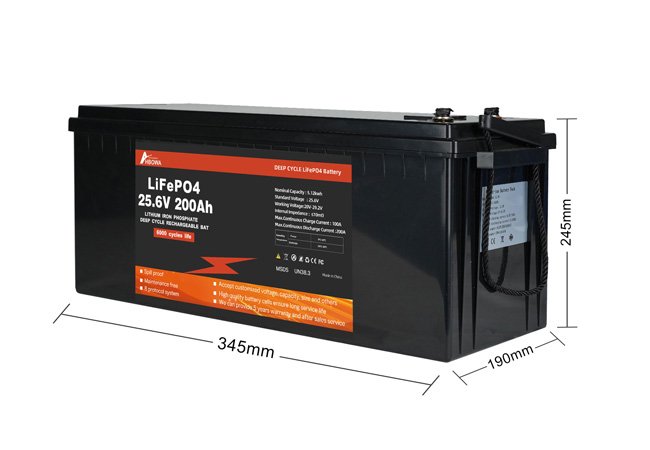

lithium battery 24V 200Ah - HBOWA
Model XPD-24200
Capacity 200Ah
Voltage 25.6V
Charging Voltage 29.2V
MAX Charge Current 200A
MAX Discharge Current 200A
Internal Impedance ≤20mΩ
Cycle Life 6000 times
Operating Charge Temperature 0℃ – 55℃(32℉ – 131℉)
Operating Discharge Temperature -20℃ – 55℃(-4℉ – 131℉)
Storage Temperature 0℃ – 35℃(32℉ – 95℉)
Over charge detection voltage 3.75V
Over charge release voltage 3.38V
Over discharge detection voltage 2.2V
Over discharge release voltage 2.7V
Detection temperature 65±2℃(149±2℉)
Humidity ≤80%
Cooling Way air cooling
Waterproof level IP65
Life Span 10 years
Certificates CE, FCC, CCC, UN38.3, UN3480, Class9
Product Size 520*267*220mm
Package Size 520*267*220mm
Net Weight 36kg
Gross Weight 37kg

Detailed Structure

The deep cycle 24V 200Ah lithium ion battery has a long cycle life of over 6000 cycles and a warranty of 5 – 10 years, The built-in BMS protection board monitors the battery status and main technical parameters during the charging and discharging process, and you can view via the optional LCD and phone app(Bluetooth and wifi optional). 24 volt lithium battery 200ah is a good replacement for lead acid battery type.

24 volt 200ah lithium ion battery
24v_200ah_lithium_battery_charging_mode

Charging Method

There are three charging methods for the lifepo4 lithium batteries.

  1. Battery charger 14.6V 20A. You can connect the lifepo4 battery charger to the utility grid to charge the lifepo4 lead acid replacement batteries.
  2. Generator. You can use the generator to generate electricity and connect it with a DC to DC charger 20A, then charge the lifepo4 batteries.
  3. Solar Panels. You can install the solar panel system, connect the solar array to the charge controller, and then charge the24v 200ah battery.

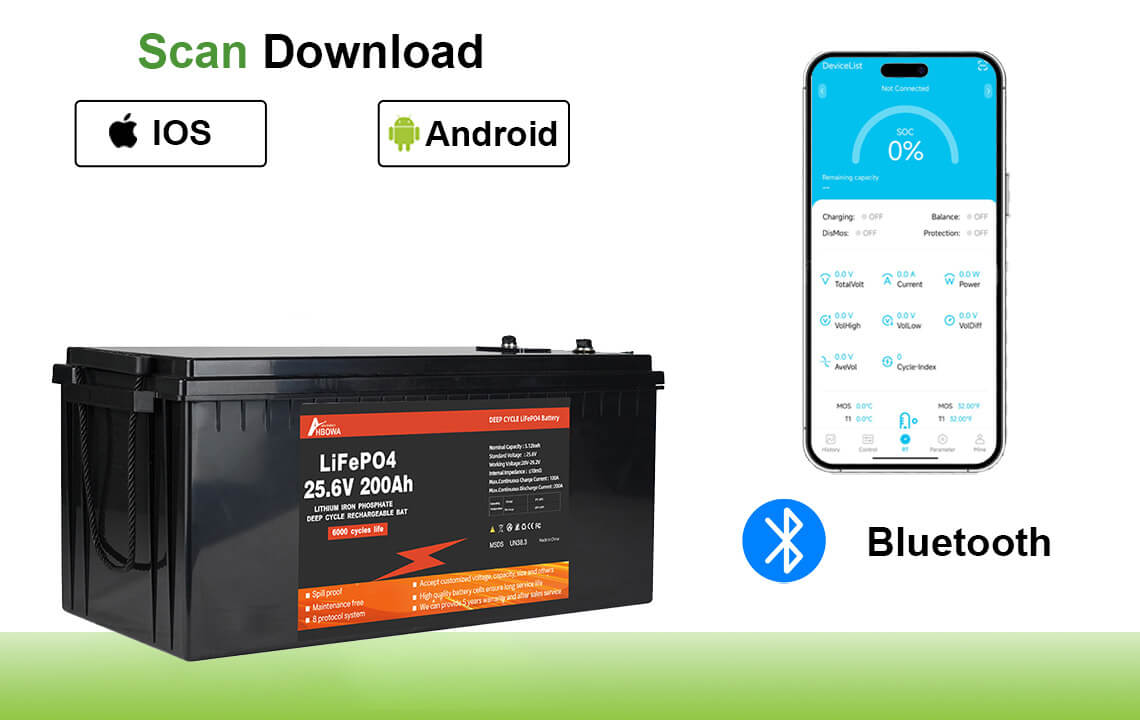

Link Bluetooth Optional

Through Bluetooth function, you can connect the 24v 200ah battery via Bluetooth, to see the technical data of the battery by APP, such as voltage, current, BMS, each battery cells info, temperature, etc.

Bluetooth_optional_of_lifepo4_batteries_24V_200Ah
LCD screen lifepo4 battery function

LCD Screen Optional

The LCD screen of the 24v 200ah lifepo4 can monitor the data and status of the lead acid replacement 24v 200ah battery, it shows data including the voltage, current, temperature, SOC, etc. You can tell us your special needs that are shown on the screen for customization.

Package Details

When packaging the 24v 200ah battery, we always adhere to strict standards and procedures to ensure that the batteries are protected well during transportation and storage, preventing any potential damage.

The exterior of the box is adorned with battery symbols, as well as labels indicating fire resistance, water resistance, and crush resistance. We support OEM services, if you have special needs for the carton appearance, feel free to contact us.

Inside the cardboard box:
1 * 25.6V 200Ah Lead Acid Replacement Lithium LiFePO4 Battery
1 * User Manual

Package of Lead Acid Replacement Battery - HBOWA New Energy
