25 KWh Battery LifePO4 Energy Storage
Model: XPC5KW+25.6kWh
Working voltage: 43.2-57.6V
All in one LiFePO4 battery and solar inverter
OEM & ODM available
Certificates: MSDS, CE, UN38.3, UL, IEC
Application: residential, small commercial
Place of origin: China
User InstructionDescription
This is the 25kwh battery stacked lithium LiFePO4 type with 5 battery layers and one off grid solar inverter on the top layer, each battery pack has a 5KWh capacity, you can also expand the battery to a larger capacity, and the 25kwh battery can support a parallel connection with a maximum of 15 units. 25kwh battery pack is compact in size and home appliance appearance design, suitable for residential and small commercial solar power system, power backups, and UPS power.
25KWh Battery Advantages:
- Long LifeSpan; 25kwh battery cells are domestic brand LiFePO4 cells, they have a long lifespan of over 6000 cycle times, which means the 25kwh battery can be charged and discharged for many years.
- Stackable Design; The 25kwh battery is stackable batteries, which saves space, and is easy to transfer and install, even when you have larger battery capacity needs, you can add more battery layers to it, very flexible to expand and maintain;
- All in One System; The 25kwh battery has both LiFePO4 batteries and off grid inverters in one system, end users no need to worry about the communication protocols between solar inverters and solar batteries, all in one, and plug and play,
- Comprehensive Protection;
- Fast Charging Rate; HBOWA 25KWh battery pack has a fast charging rate of 1C, which means it can be charged from 0% to 100% in one hour, these features make it popular for those who need power storage system and can store energy in a short time.
Application of 25kwh battery:
- Home Energy Storage System; For example, a 10kw solar system with a 25kwh battery can be a good power solution for rural areas with no grid available, the 25kwh battery can store energy from the 10kwh solar panels’ system during the day time, and provide uninterrupted power supply at night or when there is a power outage of the grid, 25kwh can supply power for about one or two days for a family.
- Small Commercial Facility; A 20kwh battery can be used as the UPS power for small commercial shops and offices. For example, the 20kwh battery can provide electricity power for a coffee house with 100 square meters of space for about one day.
- Power Bank for RV and Outdoor Activities; An RV equipped with one 25kwh battery system, can support daily activities such as lighting, communication, and air conditioners for about 3 days.
- Emergency Response Scenarios; a 25kwh battery system can provide continuous power supply to emergency lighting, medical equipment, and communication devices over the night in these emergency response scenarios.
Technical Data
- 25 kwh Battery Pack
| Model | XPC5KW+10.24KWh | XPC5KW+15.36KWh | XPC5KW+20.48KWh | XPC5KW+25.6KWh |
| Basic Parameters | Inverter layer ×1 | Inverter layer ×1 | Inverter layer ×1 | Inverter layer ×1 |
| Battery layer×2 | Battery layer×3 | Battery layer×4 | Battery layer×5 | |
| Nominal capacity(kWh) | 10.24 | 15.36 | 20.48 | 25.6 |
| Product Size(mm) | 550×500×603mm | 550×500×774mm | 550×500×945mm | 550×500×1116mm |
| Net Weight(kg) | 120.2 | 168.4 | 216.6 | 264.8 |
| Gross Weight(kg) | 145 | 197 | 249 | 301 |
| Nominal voltage (V) | 51.2 | |||
| Working Voltage(V) | 43.2-57.6 | |||
| DOD | 90% | |||
| PV Input | ||||
| Voltage (V) | 500VDC | |||
| Working voltage range (V) | 120-450VDC | |||
| Input Power | 5500W | |||
| AC Output/Input | ||||
| Rated Input Voltage | 220/230VAC | |||
| Rated Output Power | 5000W | |||
| Communicate | RS485/CAN/WIFI(optional) | |||
| Ingress Protection | IP20 | |||
Advantages

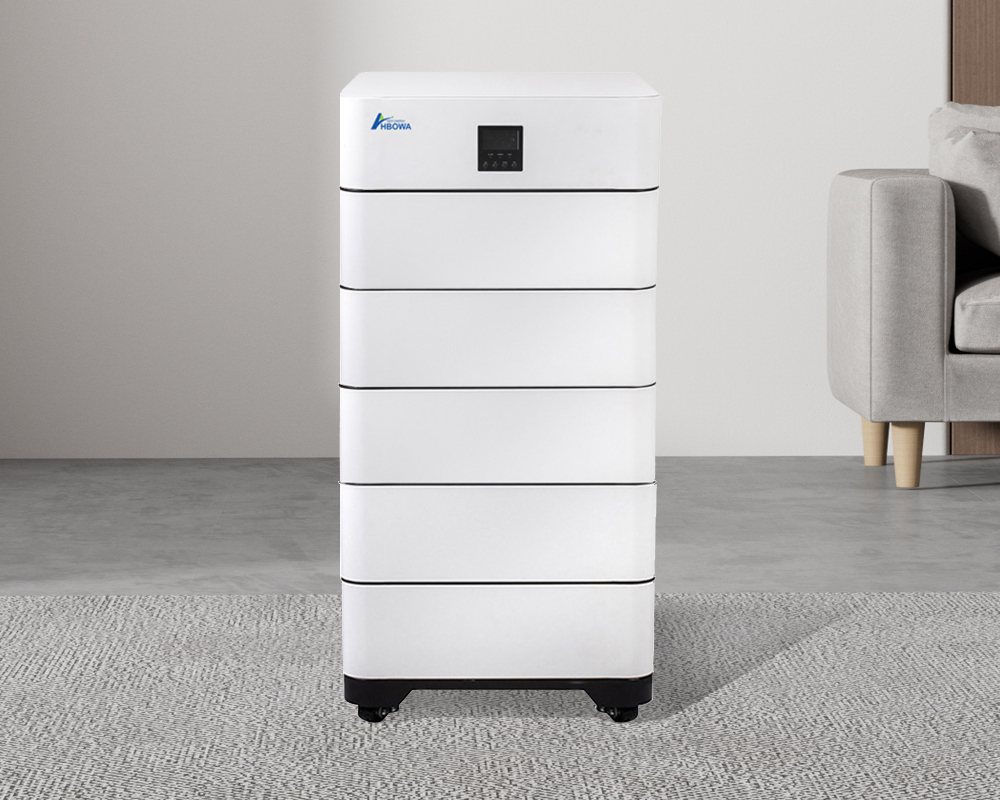

25kwh Battery & 5kw Inverter
The 20kwh battery is the all in one energy storage system, you can directly use it in your house, connecting to your home appliances on the top layer inverter. If you have access to utility grid, you can connect the grid and charge the 25jwh battery, and when there is power from the grid, you can use the 25kwh as an UPS power. And if you have no grid connection, you can install solar panels or diesel generators as the power source to charge the battery efficiently and easily.

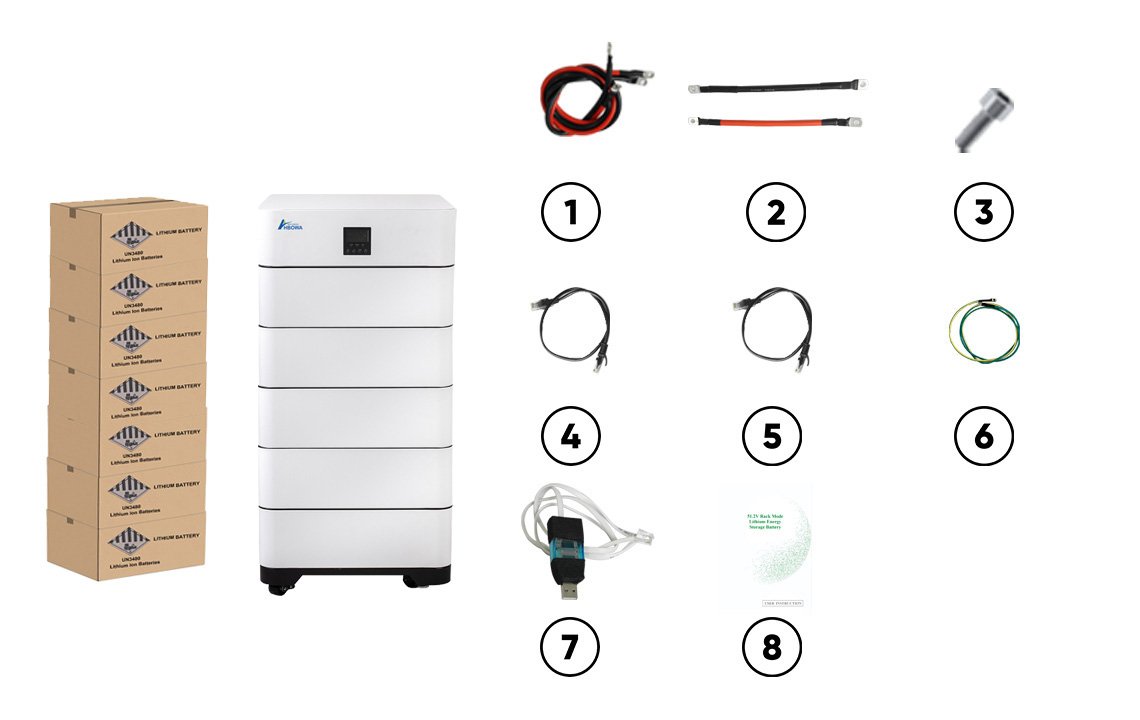

Inside the Package
1. Red 6AWG positive connection line, Black 6AWG negative connection line, the length will be different according to the battery capacity;
2. Red 6AWG parallel positive wireline, black 6AWG negative parallel wire line;
3. M6*10 Fix screws * 6;
4. RJ45 Inverter communication network cable 0.5m;
5. RJ45 Parallel communication network cable 0.5m;
6. Ground wire connection line;
7. RS232 network cable (optional for professional technicians)
8. User instruction
5KW solar inverter * 1, stacked lithium battery 5kwh *5.
Features
HBOWA 25 KWh Battery
- Process
- Certifications
Download Center
Related Product (9)
It depends on the solar panels power output, this 25kwh has a fast charging rate of 1C, and it can be fully charged within one hour if the output power of the solar modules is 25kw.
HBOWA stackable lithium battery 25kwh has a long service life of over 10 years.
The 25kwh battery size is 550×500×1116mm, the net weight is 264.8kg, and the gross weight is 301kg.
