30-36KW On Grid Solar System Three Phase
Name: On Grid 30kw – 36 kw solar system
Inverter:Deye Inverter on grid type
Max. Power: 30-36KW
Output Voltage: 220/380V, 230/400V 0.85Un-1.1Un
Certificate: CE/TUV/ISO
Lead Time:7-10 days
Payment: T/T, Credit Card, Paypal, Western Union
Warranty: 25 Years
Technical Data

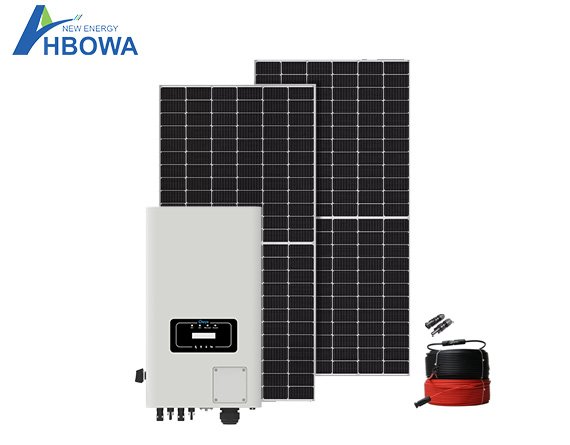

- 30-36KW On Grid Solar System
- Solar Panel
- Inverter
| Model | 30000W-On | 33000W-On | 35000W-On | 36000W-On |
| Bifacial solar panel 550W/41.95V |
52 pieces | 60 pieces | 65 pieces | 70 pieces |
| Deye Inverter | SUN-30K-G04 | SUN-33K-G04 | SUN-35K-G04 | SUN-36K-G04 |
| DC Combiner Box | Customized According to Solar System Configuration | |||
| PV Cable 4 mm2 | 200 meter | 200 meter | 200 meter | 200 meter |
| Mounting Brackets | 1 set | |||
| MC4 Connector | 20 pairs | 20 pairs | 20 pairs | 20 pairs |
| Cell Type | Mono-crystalline |
| No. of Cells | 144(6*24) |
| Maximum Power | 550W |
| Maximum Power Voltage | 41.95V |
| Maximum Efficiency STC (%) | 21.29% |
| Dimensions | 2278*1134*30mm(89.69*44.65*1.18inch) |
| Weight | 27kg(59.52lbs) |
| Warranty | 25 years |
| Nominal power | 30000W | 33000W | 35000W | 36000W |
| MPP voltage range | 200-850V | |||
| Max. Operating PV Input current(A) | 40+40 | |||
| Number of MPPT | 2 | |||
| No. of PV strings per MPP tracker |
3+3 | |||
| Max. PV Input Power | 39000W | 42900W | 45500W | 46800W |
| Max Efficiency | 98.60% | |||
| Nominal Output Voltage | 220/380V, 230/400V 0.85Un-1.1Un | |||
| Communication | RS485/RS232 | |||
| Weight | 23kg | |||
| Dimensions | 362×577×215 (Excluding Connectors and Brackets) | |||
| Warranty | 5 Years | |||
Advantages
Grid-Tied Systems
The electricity in the on-grid 36kw solar system can be used for residential and commercial use. In contrast, the excess electricity does not need to be stored in additional energy storage batteries but can be directly back to the utility grid. In this way, you do not need to buy the storage battery, and you can reduce the system fees, what’s more, you can obtain revenue from electricity sales.
High Efficiency Panel
SMBB technology to improve power output
Higher Power Output, lower LCOE, and higher IRR
PID Resistance, materials control
Enhanced mechanical load

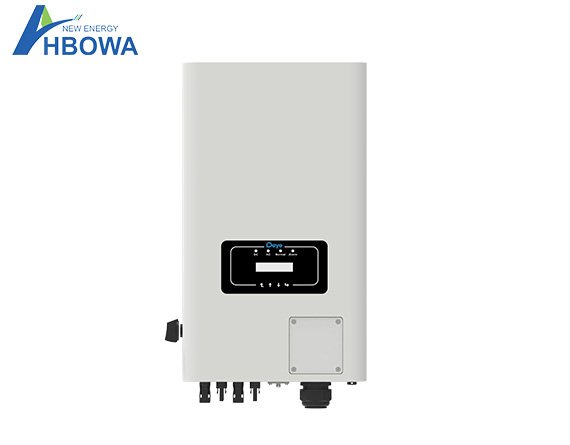

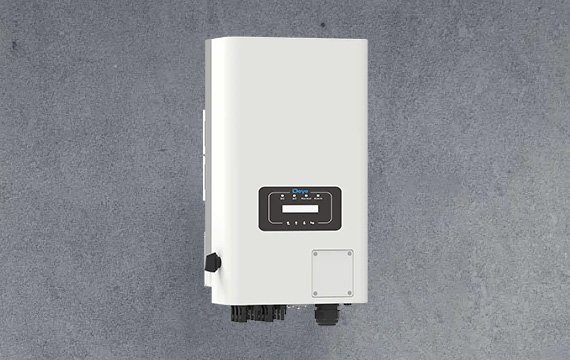

Deye Inverter
2 MPP trackers, Max. efficiency up to 98.6%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function (Optional)

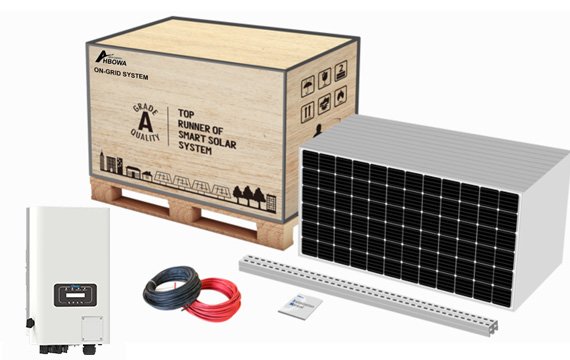

Packaging Service
36KW HBOWA solar systems are packed in standard wood box packaging, we also support customization for tailored packaging requirements. Each solar system component is in stock, we provide professional trade services for you to ensure a smooth purchasing experience with fast delivery and safe arrival.
Wide Range Application Scenarios

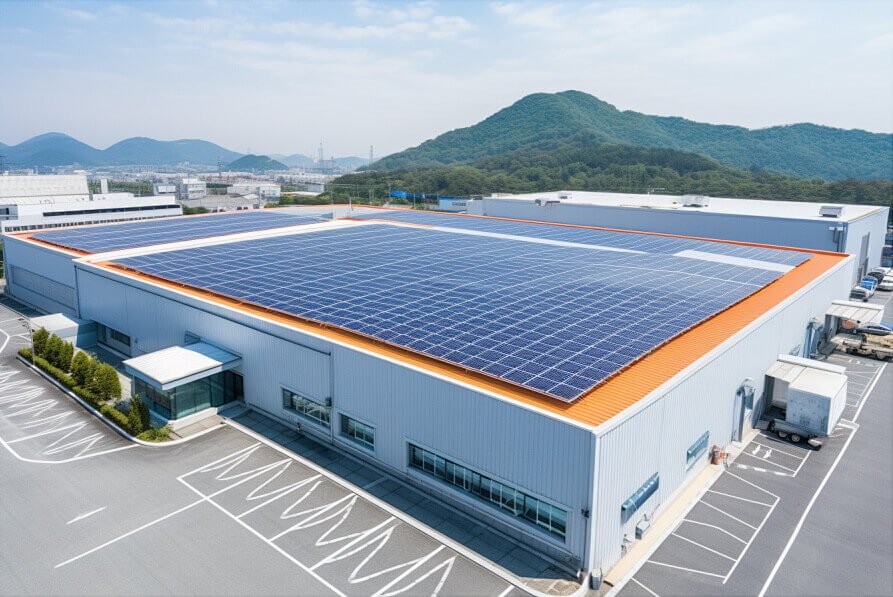

- Industrial Factories and Warehouses; In generally, the space of the factory roof is large and flat, which is suitable for installing 30KW to 36KW on grid solar panels and modules, the electricity generated by the solar system can meet the daily electricity requirements of the particial factories.
- Large swimming pools and exhibition halls; These venues have large flat space too, which is favorable for installing solar systems of 30KW and 36KW solar systems. The electricity generated by the solar system can be fed to the mains grid according to local policies.
- Commercial buildings such as restaurants and office buildings; They generally have higher electricity consumption during the day and lower consumption at night, which matches the characteristics of photovoltaic solar system stations. The installation of 36KW solar energy systems can provide continuous and stable power support for commercial buildings and reduce reliance on the municipal power grid.
