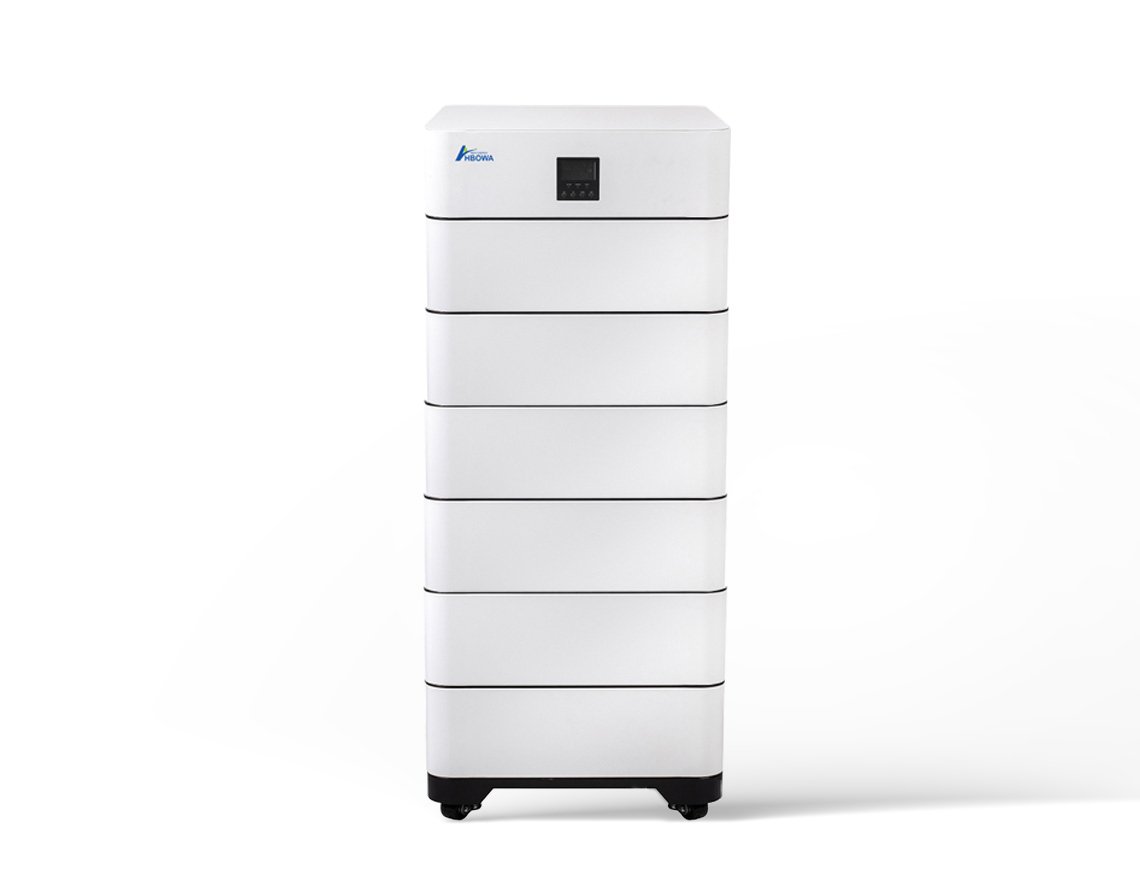

30 KWh Battery LifePO4 Home Energy Storage

CheckModel: XPC5KW+30.72kWh

CheckWorking voltage: 43.2-57.6V

CheckAll in one battery and off grid inverter 5KW

Check90%DOD, 30.72kWh capacity

Check Service life: over 10 years

Check Application: residential, small commercial

CheckProtection: IP20

CheckPlace of origin: China

pdf documentUser Instruction

Description

30kwh lithium battery features

30 kwH battery is the stackable battery pack with off grid inverter 5KW or 10kw on the top layer, all in one system plug and play, saves space, and is  easy to install and maintain. The battery cell is lifepo4 battery with high energy density, 90% DOD, the 30 KWh battery is suitable for residential and small commercial energy storage, and solar power systems.



Features of 30 kWh battery:

  • All in one design, battery and solar inverter in one system, plug and play;
  • Lifepo4 battery cell design, high energy density, 90% DOD;
  • Stackable design, light weight, 5KWh each battery layer, 5KW inverter layer, easy for capacity expansion;
  • LCD color screen for intuitive operation of 30 KWh battery;
  • IP20 ingress protection rate for indoor residential application;
  • Intelligent battery management system for comprehensive protection of 30 kwh battery;
  • Real time monitoring and management of smart APP for the 30kwh battery by WIFI and Bluetooth functions;
  • Certificates available: CE, UL, MSDS, UN38.3, etc.

Stackable battery detailed show for 30kwh battery

Application of 30kwh battery:

  • Residential home solar systems; The 30 kwh lifepo4 battery can store the surplus electricity generated by solar power during the day for use at night or on rainy and cloudy days, reducing the amount of electricity purchased from the power grid and cutting down on electricity bill expenditures. Alternatively, when there is a power outage in the power grid, the 30 kwh battery bank can serve as an emergency power source for households, providing power for basic electrical appliances such as refrigerators, lighting fixtures, televisions and computers.
  • Small commercial energy storage; When there is a failure in the power grid or a power outage occurs, the 30 kWh energy storage battery can quickly switch to serve as an emergency power source and provide power support for the key equipment and systems in small commercial premises, such as the cash register systems in supermarkets, the production equipment in small factories, and the elevators and lighting systems in office buildings.
  • Communication Base Energy Storage;  When the power grid is supplying electricity normally, the 30 kwh battery can be charged to store electrical energy. When there is a failure or power outage in the power grid, it can quickly switch to supply power to the communication base stations, ensuring the normal operation of the communication base stations and unobstructed communication.
  • Agricultural Irrigation; The 30 kwh battery storage can be connected to the intelligent irrigation system. It can automatically adjust the irrigation volume and irrigation time according to parameters such as soil moisture and crop growth cycle, thus realizing precise irrigation and improving irrigation efficiency.

30kwh lithium battery applications

Technical Data

Model XPC5KW+10.24KWh XPC5KW+15.36KWh XPC5KW+20.48KWh XPC5KW+30.72KWh
Basic Parameters Inverter layer ×1 Inverter layer ×1 Inverter layer ×1 Inverter layer ×1
Battery layer×2 Battery layer×3 Battery layer×4 Battery layer×6
Nominal capacity(kWh) 10.24 15.36 20.48 30.72
Product Size(mm) 550×500×603mm 550×500×774mm 550×210×945mm 550×500×1376mm
Net Weight(kg) 120.2 168.4 216.6 309.3
Gross Weight(kg) 145 197 249 341.7
Nominal voltage (V) 51.2
Working Voltage(V) 43.2-57.6
DOD 90%
PV Input
Voltage (V) 500VDC
Working voltage range (V) 120-450VDC
Input Power 5500W
AC Output/Input
Rated Input Voltage 220/230VAC
Rated Output Power 5000W
Communicate RS485/CAN/WIFI(optional)
Ingress Protection IP20

Advantages

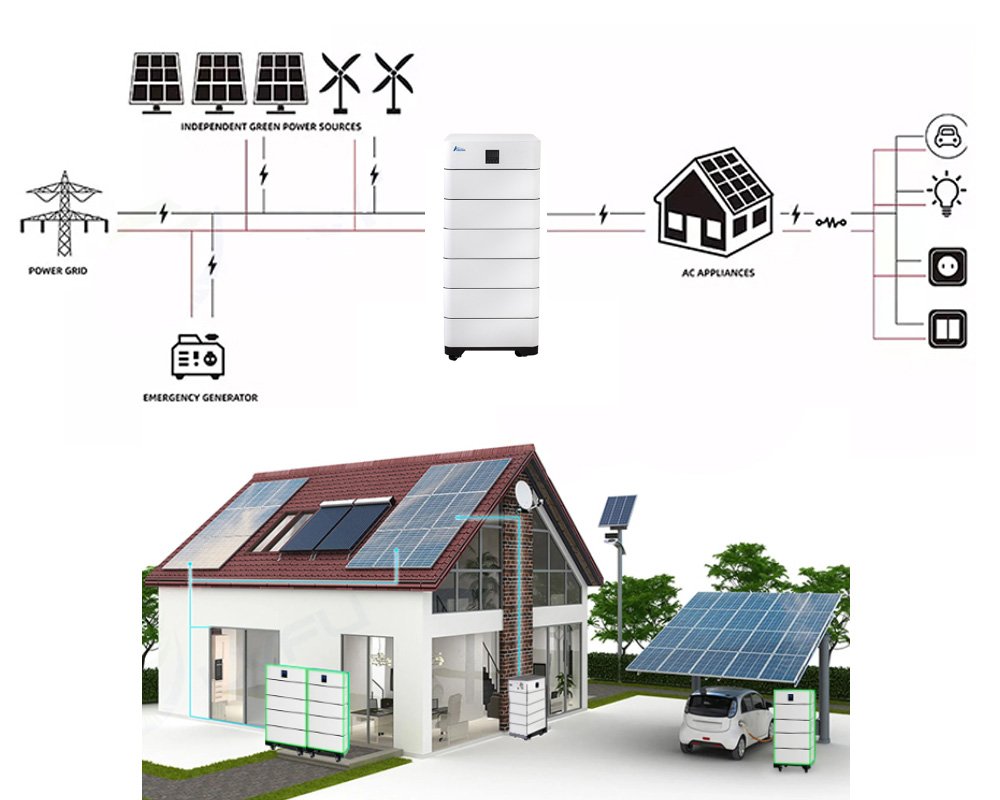

30 kwh lithium ion battery
All In One

Solar Battery and Inverter

The 30KWh battery has the off grid inverter on the top layer, all in one energy storage system, you can connect to your home appliances directly, plug and play, with no need to be concerned about the communication protocol between solar batteries and solar inverter yourself. And the off grid inverter is 5KW in standard, we can customize 10kw for you if you need more power consumption.

Packing List

Inside the Package

1. Red 6AWG positive inverter connection line 0.18m, Black 6AWG negative inverter connection line 0.42m;

2. Red 6AWG parallel positive wire line 0.15m, black 6AWG negative parallel wire line 0.15m;

3. M6*10 Fix screws * 6;

4. RJ45 Inverter communication network cable 0.5m;

5. RJ45 Parallel communication network cable 0.5m;

6. Ground wire yellow and green line 1.5M;

7. RS232 network cable (optional for professional technicians)

8. User instruction

5KW off grid inverter * 1, stacked lithium battery *6.

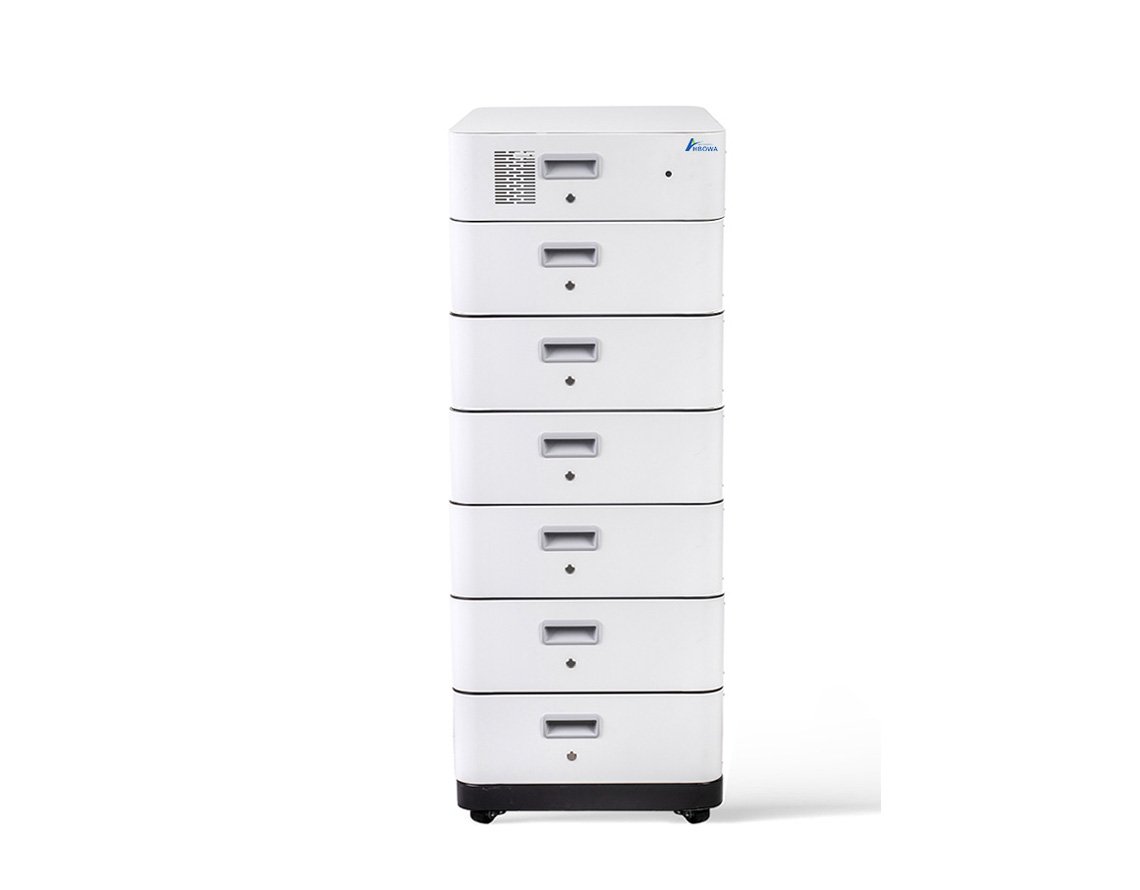

30 kwh solar battery

Features

check-mark-1
Uninterrupted Power
check-mark-1
Smart Protection System
check-mark-1
Plug and Play
check-mark-1
Long Lifespan
check-mark-1
Support OEM and ODM
check-mark-1
Smart BMS

HBOWA 30 kwh Battery Pack

Operation Guide for all in one LifePO4 Lithium Battery stacked type

What can HBOWA support you?

Check Solar Products with High Performance

Check Solar Lithium Batteries With Grade A Cells

Check Solar System Solution Free Design

Check Solar Panels, Solar Inverters, Solar Lithium Batteries Available

Check Comprehensive Certificates for Exportation Success

HBOWA support you with one stop services

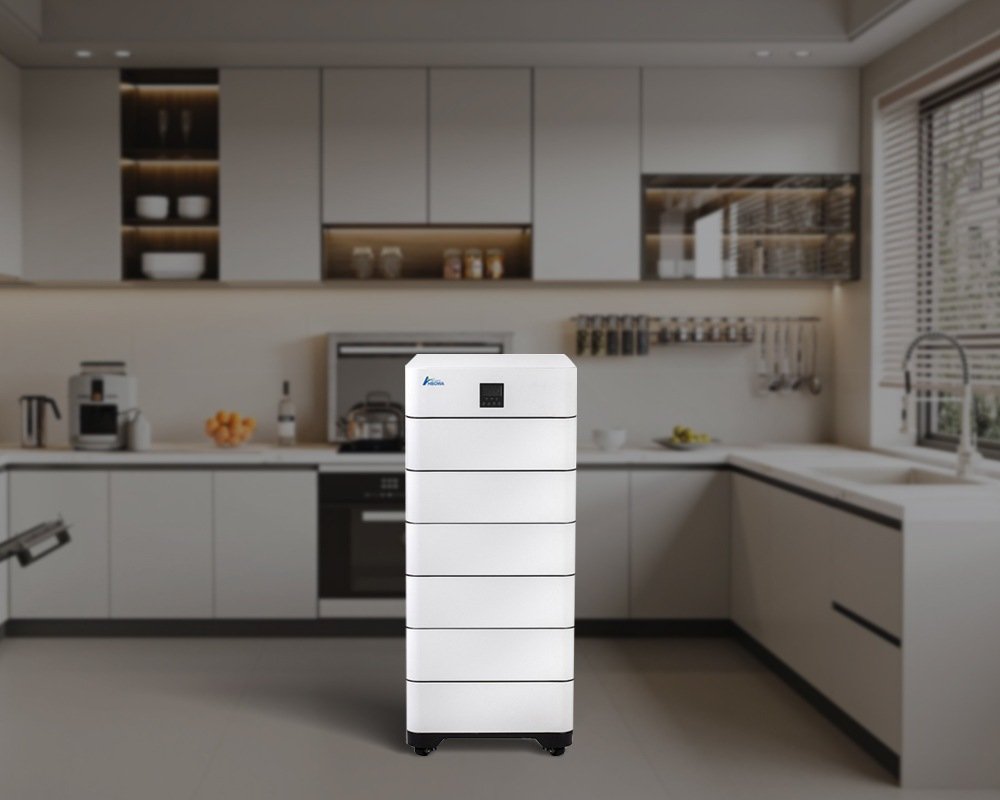

How long will 30 kwh battery last my house?

The duration a 30 kWh energy storage battery will last depends on your household’s energy consumption.  For example, if your house appliances consume 10kwh per day, and you only use the 30kwh battery for power, then it will last for 30/10 = 3 days.

But this may be related with the inverter you use and the DOD of the 30kwh battery. The solar inverter conversion rate from DC to AC may vary, typically around 90% to 95%, and HBOWA energy storage battery DOD is 90%, not 100%, which means only 27KWh of the solar battery’s capacity can be usable. So for precise calculating, you can use energy monitoring tools to assess your power consumption.

How many batteries to store 30 kwh?

HBOWA uses 5KWh battery pack to design the 30kwh battery, each battery pack is 5KWh, nominal standard voltage is 51.2V, standard charging current is 50A, and standard discharging current is 100A, we stacked the 6 battery packs in one system to get a 30KWh battery, and this can be customized, as we also have 10kwh for each battery pack, in this way, we only need 3 battery packs to get the 30 kwh battery.

How much does a 30 kwh lithium-ion battery weight?

The net weight of each 5kwh battery pack is 48.2kg, 6 battery pack to get 30kwh battery, and top layer is the 5 kw inverter, which is 18kg, and the bottom layer is the base, which is 9kg, so the net weight of the whole 30kwh battery is 316.2kg.
