3.6KW 6.2KW 120A MPPT On Off Grid Inverter
System Type: 3.6-6.2KW on off grid inverter Single phase
Model Number: VICTOR NM-ECO-3.6KW VICTOR NM-ECO-6.2KW
Output Voltage:220V 230 V 240V
Output power:3.6KW 6.2KW
Inverter: Pure sine wave AC output
Built-in 120A MPPT solar charger
Warranty: 1 year
Description
This is our on off grid solar inverter 3.6kw 4.2kw 6.2kw, with the built-in battery automatic activation function. The inverter can run without batteries. The hybrid inverter can convert DC into AC to supply the load and can be connected to the utility grid to send extra electricity to it. It also supports wifi and GPRS communication management for remoting view and control of the solar system status. We have large quantities of VICTOR NM-ECO series in stock. If you are interested or have any concerns, feel free to contact us for bulk prices.
Technical Data
- Specification
|
Model |
NM-ECO-3.6KW PLUS
|
NM-ECO-6.2KW PLUS
|
|
Phase
|
1-Phase
|
|
|
Maximum PV Input Power
|
6200W
|
6500W
|
|
Rated Output Power
|
3600W/3600VA
|
6200W/6200VA
|
|
Maximum Solar Charging Current
|
120A
|
|
On Off Grid Inverters Details

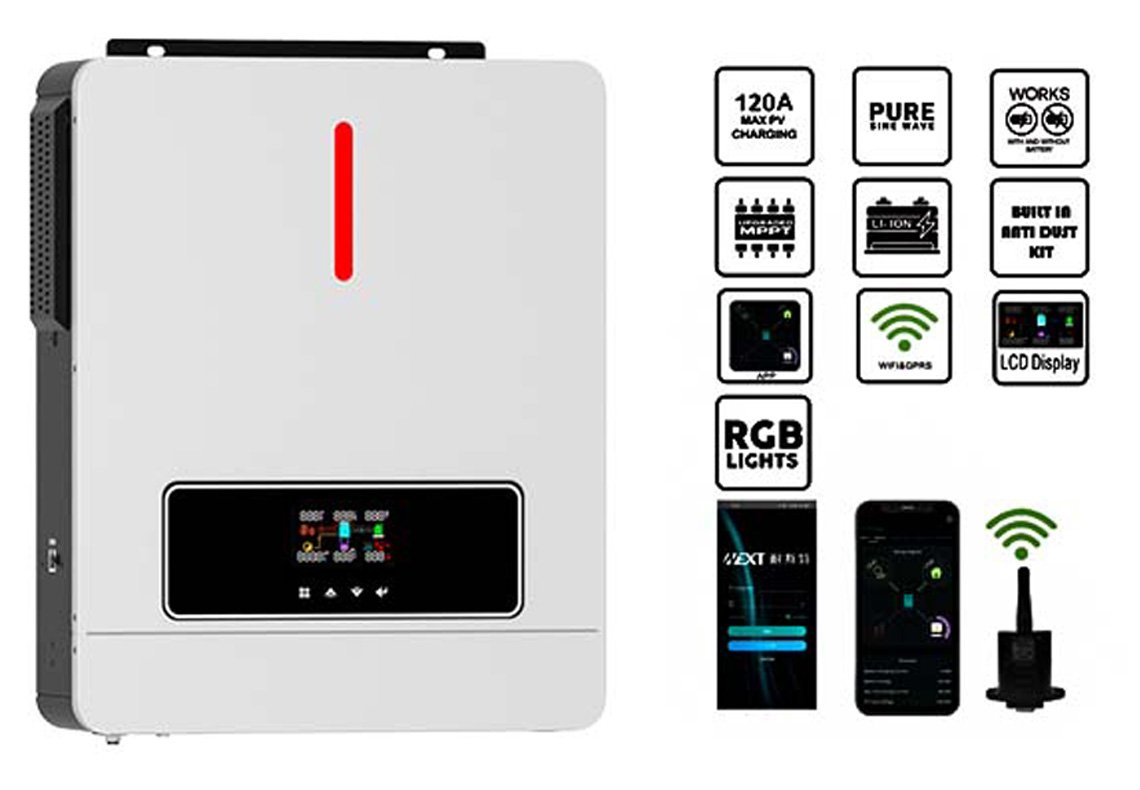

Features
1.Pure sine wave solar inverter(on/off Grid)
2.WIFI&GPRS available for IOS and Android

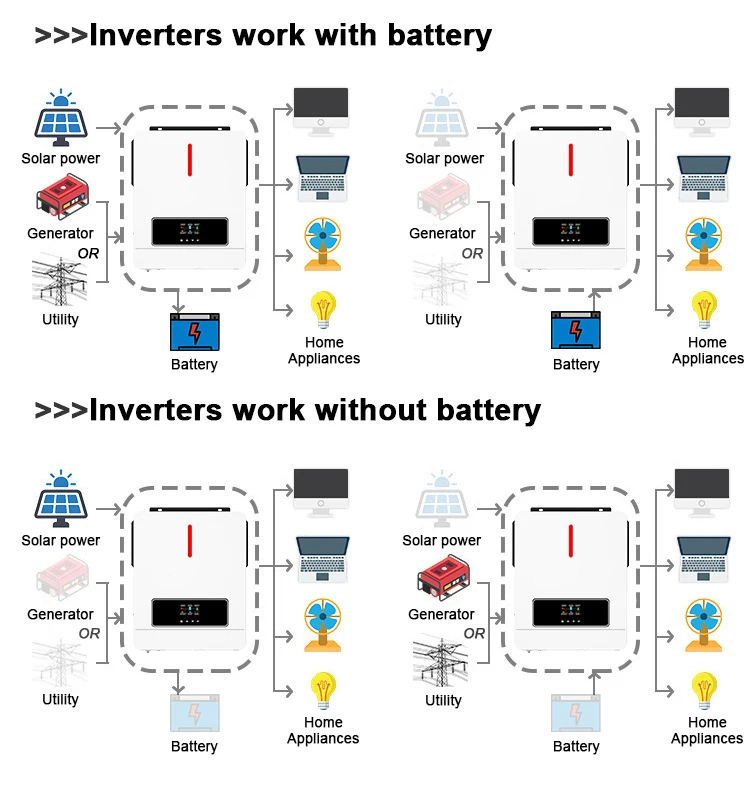

3.Inverter can run without batteries
4.One-key restoration to factory Settings
5.Built-in Lithium battery automatic activation
6.Dual Communication ports for battery communication and Wifi communication
7.MPPT: Max 6200W(for 3.6KW), max 6500W(for 6.2KW)solar charge
8.High PV input voltage range(60~500VDC)
9.Built-in anti-dust kit for harsh environment
10.Smart battery charge design to optimize battery life
11.Dual Output
