40-50KW On Grid Solar System Three Phase
Type: On Grid Three Phase With Deye Inverter
Max. Power: 40-50KW
Output Voltage: 220/380V, 230/400V 0.85Un-1.1Un
Certificate: CE/TUV/ISO
Lead Time:7-10 days
Payment: T/T, Credit Card, Paypal, Western Union
Warranty: 25 Years
Description

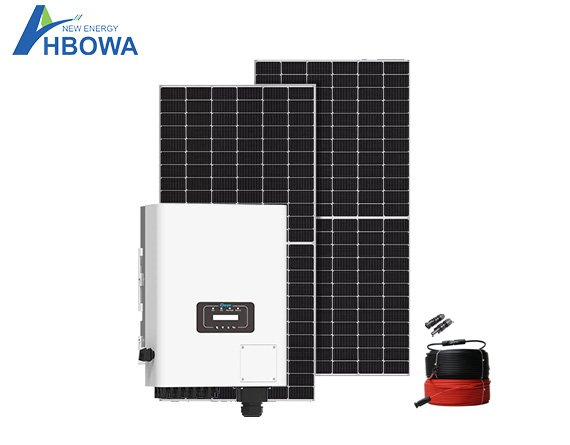

40KW on grid solar system with three phase electricity line features consists of Deye on grid solar inverter, P-type solar panels, and other solar accessories. The 40kw on grid solar power systems have many advantages:
- Economic Benefits: Significantly reduces electricity costs in the long run. You can earn income by selling excess electricity in your areas if the policy approves this.
- Environmental Protection: Zero carbon emissions, clean and renewable energy source.
- Energy Independence: The 40KW on grid solar system reduces dependence on external energy supply.
- System Stability: Mature technology with intelligent monitoring through apps via smartphone and computer.
- Application Flexibility: Can be installed in various locations and integrated with buildings.
- Long-Term Investment Value: Long service life with high return on investment.
Application Scenarios:
- Agricultural Fields; Agricultural planting fields and rural areas can get reliable support from on grid solar systems;
- Commercial Application; Commercial buildings can benefit from the on grid solar system to reduce the electricity cost and meet electricity consumption demands;
- Industrial Application; Factories, and industrial parks can install the on grid solar system to support their daily power needs;
- Public Fields; Schools, hospitals, and municipal facilities can benefit from the solar system on grid type for daily electricity use and backup power.
Technical Data
- Components
- Solar Panel
- Inverter
| Model | 40000W-On | 45000W-On | 50000W-On |
| Bifacial solar panel 550W/41.95V |
75 pieces | 84 pieces | 90 pieces |
| Deye Inverter | SUN-40K-G04 | SUN-45K-G04 | SUN-50K-G04 |
| DC Combiner Box | Customized According to Solar System Configuration | ||
| PV Cable 4 mm2 | 200 meter | 400 meter | 400 meter |
| Mounting Brackets | 1 set | ||
| MC4 Connector | 20 pairs | 20 pairs | 20 pairs |
| Cell Type | Mono-crystalline |
| No. of Cells | 144(6*24) |
| Maximum Power | 550W |
| Maximum Power Voltage | 41.95V |
| Maximum Efficiency STC (%) | 21.29% |
| Dimensions | 2278*1134*30mm(89.69*44.65*1.18inch) |
| Weight | 27kg(59.52lbs) |
| Warranty | 25 years |
| Nominal power | 40000W | 45000W | 50000W |
| MPP voltage range | 200-1000 | ||
| Max. Operating PV Input current(A) | 40+40+40 | 40+40+40+40 | |
| Number of MPPT | 3 | 4 | |
| No. of PV strings per MPP tracker |
3+3+3 | 3+3+3+3 | |
| Max. PV Input Power | 52000W | 58500W | 65000W |
| Max Efficiency | 98.70% | ||
| Nominal Output Voltage | 220/380V, 230/400V 0.85Un-1.1Un | ||
| Communication | RS485/RS232 | ||
| Weight | 37.1kg | ||
| Dimensions | 434×570×243 (Excluding Connectors and Brackets) | ||
| Warranty | 5 Years | ||
Advantages
Grid-Tied Systems
The electricity in the on-grid system can be used for residential and commercial use, while the excess electricity does not need to be stored in additional energy storage batteries but can be directly back to the utility grid. The utility grid is a virtual energy storage system that stores excess electricity generated by solar panels, reduces electricity bills, and also obtains additional subsidies.
High Efficiency Panel
SMBB technology to improve power output
Higher Power Output, lower LCOE, and higher IRR
PID Resistance, materials control
Enhanced mechanical load

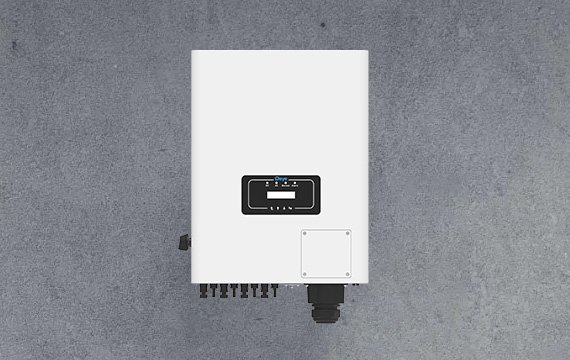

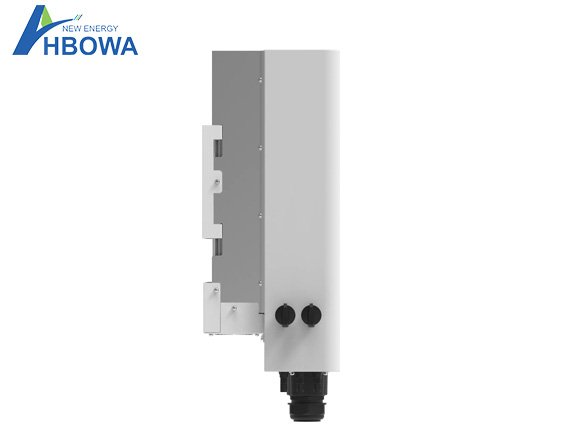

Deye Inverter
2 MPP trackers, Max. efficiency up to 98.7%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function (Optional)

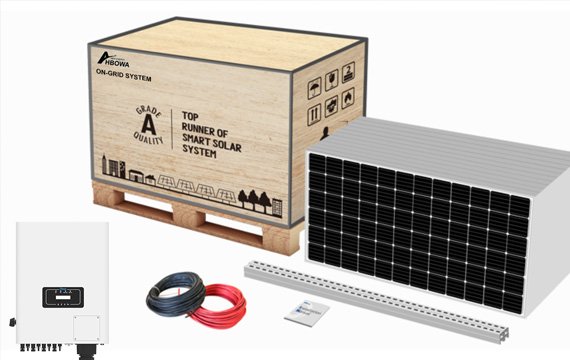

Packaging Service
All HBOWA solar system products are in standard wood box packaging, we also support customization for tailored packaging requirements. Each solar system component is in stock, we provide professional trade services for you to ensure a smooth purchasing experience with fast delivery and safe arrival.
