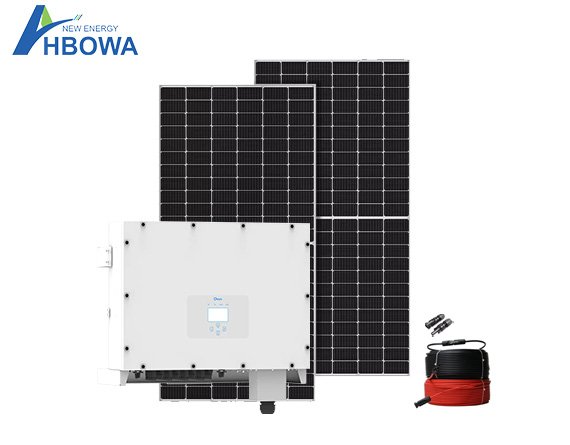

60-80KW On Grid Solar System Three Phase
Name: On Grid Three Phase Solar System
Inverter:Deye On Grid Inverter
Max. Power: 60KW-80KW
Output Voltage: 220/380V, 230/400V 0.85Un-1.1Un
Certificate: CE/TUV/ISO
Payment: T/T, Credit Card, Paypal, Western Union
Warranty: 25 Years
Technical Data
- Components
- Solar Panel
- Inverter
| Model | 60000W-OnGird | 70000W-OnGird | 75000W-OnGrid | 80000W-OnGrid |
| Bifacial solar panel 550W/41.95V |
108 pieces | 130 pieces | 132 pieces | 144 pieces |
| Deye Inverter | SUN-60K-G | SUN-70K-G | SUN-75K-G | SUN-80K-G |
| DC Combiner Box | Customized According to Solar System Configuration | |||
| PV Cable 4 mm2 | 200 meter | 400 meter | 400 meter | 400 meter |
| Solar Mounting Brackets | 1 set | |||
| MC4 Connector | 20 pairs | 20 pairs | 20 pairs | 20 pairs |
| Cell Type | Mono-crystalline |
| No. of Cells | 144(6*24) |
| Maximum Power | 550W |
| Maximum Power Voltage | 41.95V |
| Maximum Efficiency STC (%) | 21.29% |
| Dimensions | 2278*1134*30mm(89.69*44.65*1.18inch) |
| Weight | 27kg(59.52lbs) |
| Warranty | 25 years |
| Nominal power | 60000W | 70000W | 75000W | 80000W |
| MPP voltage range | 200-850V | |||
| Max. Operating PV Input current(A) | 40+40+40+40 | |||
| Number of MPPT | 4 | |||
| No. of PV strings per MPP tracker |
3+3+3+3 | 4+4+4+4 | ||
| Max. PV Input Power | 78000W | 91000W | 97500W | 104000W |
| Max Efficiency | 98.60% | 98.70% | ||
| Nominal Output Voltage | 220/380V, 230/400V 0.85Un-1.1Un | |||
| Communication | RS485/RS232 | |||
| Weight | 60kg | |||
| Dimensions | 700×575×297 (Excluding Connectors and Brackets) | |||
| Warranty | 5 Years | |||
Advantages
On Grid
Grid-Tied Systems
60KW to 80KW on grid solar systems can generate a larger sum of electricity for commercial and industrial users, and have many advantages:
- The solar system has no energy storage batteries, which can reduce the amount of system cost;
- The on grid solar system produces green energy by absorbing the energy from the sun, which can reduce the electricity bills,
- The excessive electricity from the 60KW on grid solar system can also be sent to the utility grid to gain revenue.
- Easy Installations for different application scenarios, such as roofs, ground, and parking lots, etc.
- The on grid solar system structure is easy and needs lower maintenance than those large equipment, no need for frequent maintenance.
Solar Panel
High Efficiency Panel
SMBB technology to improve power output
Higher Power Output, lower LCOE, and higher IRR
PID Resistance, materials control
Enhanced mechanical load

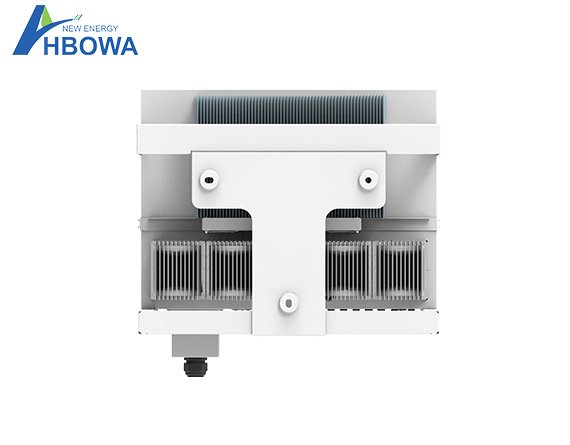

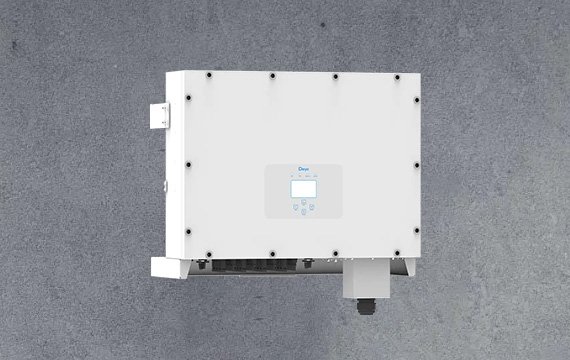

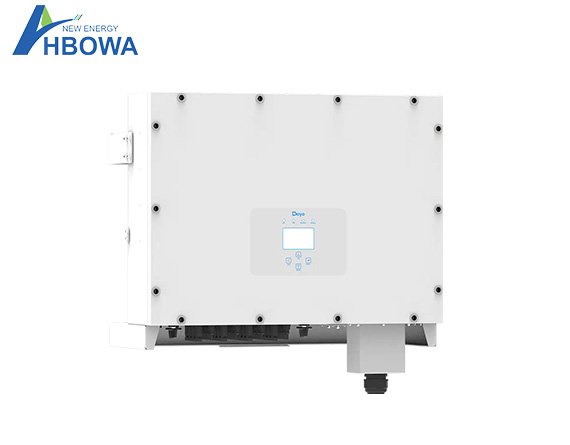

Inverter
Deye Inverter
2 MPP trackers, Max. efficiency up to 98.7%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function (Optional)
Type II DC/AC SPD
Application
Application Scenarios
- Agricultural Production: Built on the land, it can be used in agricultural production links such as agricultural irrigation and agricultural product processing.
- Rural Residential Electricity Consumption: For the residents of a village, a 60kW grid-connected system can provide abundant power for this village and is reliable without power outages, improving their quality of life.
- Factory Buildings: Installing a 60kW grid-connected solar energy system on the factory roof can provide partial power for the factory and reduce electricity costs.
- Industrial Parks: There are many enterprises in the industrial park. A grid-connected solar energy system of 60kW or above can be centrally constructed to provide power support for enterprises in the park.
- Commercial Buildings: Commercial places such as large shopping malls and large restaurants have large roof areas and are suitable for installing 60kw solar energy systems.
