7-10KW On Grid Solar System Single Phase

CheckName: On Grid Single Phase Solar System

CheckInverter: Growatt On grid Inverter

CheckMax. Power: 7-10KW

CheckOutput Voltage: 240V split-phase

CheckCertificate: CE/TUV/ISO

CheckLead Time:7-10 days

CheckPayment: T/T, Credit Card, Paypal, Western Union

CheckWarranty: 25 Years

pdf documentSolar Panel Data pdf documentInverter Data

Description

As a professional solar power system supplier, HBOWA provides off-grid, on-grid, and hybrid solar systems with free design to support your solar business.

HBOWA on-grid solar system consists of 550W PERC solar panels, an on-grid single-phase Growatt inverter, and system accessories. We have certificates such as CE, TUV, UL, ISO, etc. to ensure high quality and performance. OEM and ODM services are supported.

We not only produce our own brand solar panels, but also provide other brand solar products, such as Jinko, JA, Longi, Canadian, Trina, tier 1 solar panels, and Growatt, Deye, and Solis inverters.

For more detailed information, feel free to contact our team directly.

7KW-10KW on grid solar system with growatt inverter - HBOWA

growatt inverter 7-10KW single phase on grid system

Technical Data

Model 7000W-On 8000W-On 9000W-On 10000W-On
Mono-facial solar panel
550W/41.95V
14 pieces 16 pieces 18 pieces 21 pieces
Growatt Inverter MIN7000TL-X*1 MIN8000TL-X*1 MIN9000TL-X*1 MIN10000TL-X*1
DC Combiner Box Customized According to Solar System Configuration
PV Cable 4 mm2 200 meter 200 meter 200  meter 200  meter
Mounting Brackets 1 set
MC4 Connector 10 pairs 10 pairs 20 pairs 20 pairs
Cell Type Mono-crystalline
No. of Cells 144(6*24)
Maximum Power 550W
Maximum Power Voltage 41.95V
Maximum Efficiency STC (%) 21.29%
Dimensions 2278*1134*30mm(89.69*44.65*1.18inch)
Weight 27kg(59.52lbs)
Warranty 25 years
Nominal power 7000W 8000W 9000W 10000W
MPP voltage range 60-550V
Max. Input current
Per MPP Tracker
13.5A/27A 13.5A/13.5A/27A
No. of MPP trackers 2 3
No. of PV strings per MPP tracker 1/2 1/1/2
Max. PV Power ( W ) 12000W 12000W 13500W 15000W
Max Efficiency 98.10%
Nominal Output Voltage ( V ) 240V split-phase, optional:208V & 240V single phase , 183-228@208V 211-264V@240V
Communication RS485/USB/(Wifi/GPRS/RF/LAN optional)
Weight 18.2kg
Dimensions 425/387/180mm
Warranty 5 Years(10 years optional)

Advantages

3-6KW on grid solar system advantages
On Grid

Grid-Tied Systems

The 7KW 8KW 9KW on grid solar system includes 550W mono solar panels and a Growatt on grid solar inverter, which can generate the electricity by absorbing the power from the sun by solar panels. And what’s more, the solar system supports feeding the excessive electricity into the mains grid to earn the revenue and no need to buy the storage battery to store energy, which also reduce the invest cost of the on grid solar system.

Application

Various Application Scenarios

  • Houses: For houses with a moderate roof area, a 7kW grid-connected solar system can meet the daily electricity needs of families.
  • Small offices: The electricity consumption is relatively small. A 7kW grid-connected solar energy system can meet the electricity needs of office equipment such as computers, printers, and copiers.
  • Barbershops: The main electrical equipment in such stores is hair dryers, perm machines, lighting, etc., and the electricity load is relatively stable. A 7kW grid-connected solar energy system can provide most of the electricity for the store
  • Small parking lots: In these places, solar sunshades can be installed, and the 7kW grid-connected solar energy system can be equipped. These systems can provide electricity for the lighting and toll collection systems of the parking lot and realize green energy utilization.

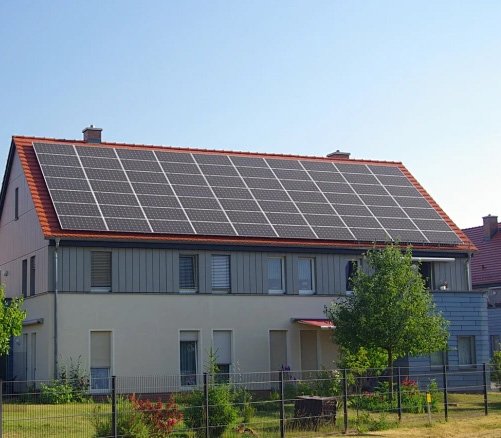

7KW on grid solar system application
