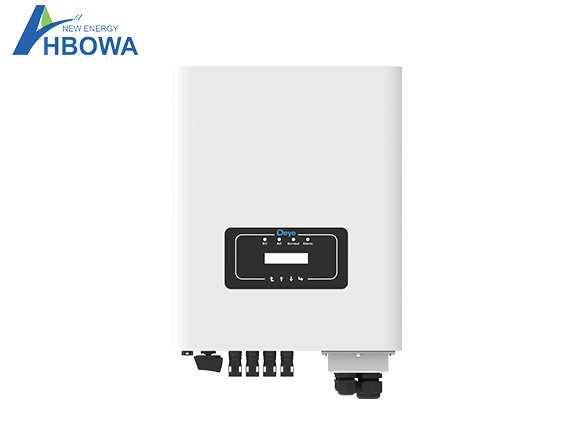

  • Deye inverter 9-11KW
  • 550W Mono-facial solar panel from HBOWA
  • MC4 Connector
  • PV cable

9KW 10KW 11KW On Grid Solar System Single Phase

CheckName: On Grid Single Phase Solar System

CheckInverter: Deye 9KW-11KW on grid Inverter

CheckMax. Power: 9KW 10KW 11KW

CheckOutput Voltage: 220/230V 0.85Un-1.1Un

CheckCertificate: CE/TUV/ISO

CheckLead Time:7-10 days

CheckPayment: T/T, Credit Card, Paypal, Western Union

CheckWarranty: 25 Years

pdf documentSolar Panel Data pdf documentInverter Data

Technical Data

Model 9000W-On 10000W-On 11000W-On
Mono-facial solar panel
550W/41.95V
16 pieces 18 pieces 20 pieces
Deye Inverter SUN-9K-G02P1-EU-AM2 SUN-10K-G02P1-EU-AM2 SUN-11K-G02P1-EU-AM2
DC Combiner Box Customized According to Solar System Configuration
PV Cable 4 mm2 100 meter 200 meter 200 meter
Mounting Brackets 1 Set
MC4 Connector 10 pairs 10 pairs 10 pairs
Cell Type Mono-crystalline
No. of Cells 144(6*24)
Maximum Power 550W
Maximum Power Voltage 41.95V
Maximum Efficiency STC (%) 21.29%
Dimensions 2278*1134*30mm(89.69*44.65*1.18inch)
Weight 27kg(59.52lbs)
Warranty 25 years
Nominal power 9000W 10000W 11000W
MPP voltage range 70-500V
Max. Operating PV Input current(A) 26+26
Number of MPPT 2
No. of PV strings
per MPP tracker
2+2
Max. PV Input Power 11700W 13000W 13700W
Max Efficiency 97.70%
Nominal Output Voltage 220/230V 0.85Un-1.1Un
Communication RS485/RS232
Weight 14.8kg
Dimensions 330×410×213.5 (Excluding Connectors and Brackets)
Warranty 5 Years

Advantages

on grid solar system with deye inverter 9KW 10KW 11KW
On Grid

Grid-Tied Systems

The electricity in the 9KW on-grid solar kit can be used for residential and commercial use, while the excess electricity does not need to be stored in additional energy storage batteries but can be directly back to the utility grid. The utility grid is a virtual energy storage system that stores excess electricity generated by solar panels, reduces electricity bills, and also obtains additional subsidies.

Solar Panel

High Efficiency Panel

solar panel feature1Multi busbar technology to improve power output

solar panel feature2Reduced hot spot loss, better temperature coefficient

solar panel feature3Longer lifetime power yield, 25-year warranty

solar panel feature4Durability against extreme environmental conditions

solar panel feature5Enhanced mechanical load

550W solar panel

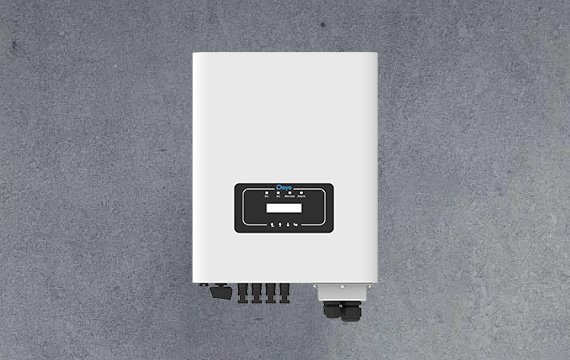

9-10Kw on grid solar inverter deye
Inverter

Deye Inverter

9KW 10KW 11KW On Grid Solar Inverter

deye inverter12 MPP trackers, Max. efficiency up to 97.7%

deye inverter2Zero export application, VSG application

deye inverter3String intelligent monitoring (optional)

deye inverter4Wide output voltage range

deye inverter5Anti-PID function (Optional)

deye inverter6Low start-up voltage of 80V

Packaging

Packaging Service

The 9KW 10KW on grid solar system kits are in standard sized woodbox packaging, we also support customization for tailored packaging requirements. Each solar system component is in stock, we provide professional trade services for you to ensure a smooth purchasing experience with fast delivery and safe arrival.

package of 9-11kw on grid solar system

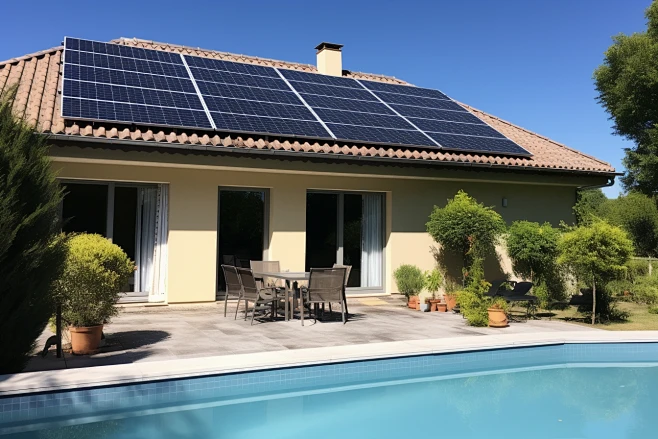

9KW 10KW on grid solar system application
Application

Various Application Scenarios

Villas: It can meet the daily electricity needs of villas families and reduce electricity bill expenditures. During periods of low electricity consumption, excess electricity can be fed back into mains grid to obtain a certain amount of income.

Small Commercial Stores: Such as small supermarkets, small restaurants, etc. These stores have relatively large electricity consumption during the day. Installing a 9KW or 11KW grid-connected solar energy system can meet the electricity needs of the store during the day and reduce commercial electricity costs.

Small Factories: In manufacturing workshops, the electricity consuming equipment is relatively concentrated, and the electricity consumption is stable and high during the day. The 9KW or 11KW grid-connected solar systems can provide partial power support for these small factories and reduce the energy cost of enterprises.

Whole Site New Solar Panels Price: USD 0.09-0.1 per watt
