All-In-One Energy Storage System 2.5KWh With 3KW Inverter
Battery Cell: LiFePO4 prismatic cell 3.2V 100Ah
Nominal Voltage: 25.6V
Service Life: 10 years
Inverter: 3KW off-grid inverter
Communication way: WIFI/RS485
Cycle Life: More than 6000 cycles (80% EOL)
Warranty: 5 years, 10 years(Customization)
Safety certification: CE, FCC, CCC
Transport safety certification: UN38.3, UN3480, Class 9
Customization: Including voltage, capacity, current, size, appearance, etc.
User Manual Description
This 25.6V 100Ah 2.5KWh 3KW all-in-one energy storage system consists of a 2.5kwh lifepo4 lithium battery and a 3kw off grid inverter. The lithium battery can be installed as a wall-mounted type or an on-floor type, which is space-saving and a top choice for home energy power backup. HBOWA uses a brand new grade A lithium iron phosphate battery with a long cycle life of more than 6000 times, the built BMS system expands the lifespan of the battery to 10 years, and we support 5 to 10 years warranty. The battery equipped with the inverter eliminates the need to worry about battery pairing and inverter protocols, making home energy storage more convenient and faster.
HBOWA is an experienced lithium battery manufacturer with over 8 years. Now we have cooperated with home battery factories with OEM and ODM services, solar battery distributors, contractors, retailers, etc all around the world. Welcome to inquiry for a bulk price.
Technical Data
- ELECTRICAL DATA
- INPUT AND OUTPUT
- OVERALL PARAMETERS
| Module Model | 25.6V100Ah |
| Battery Type | LFP 1P8S |
| Nominal Capacity | 2.5 kWh |
| Nominal Voltage | 25.6V |
| Working Voltage | 21.6-28V |
| Communication | RS485 ,WiFi |
| Working Altitude | ≤2000m |
| Cooling method | natural cooling |
| Installation method | Wall-hung/On floor |
| Protective Class | IP20 |
| SOLAR CHARGER | |
| Maximum PV Array Open Circuit Voltage | 160VDC |
| PV Array MPPT Voltage Range(TYP.) | 30~128VDC |
| Maximum PV Array Power | 1600W |
| Maximum Solar Charge Current | 60A |
| Maximum AC Charge Current | 60A |
| AC INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE) |
| Frequency Range | 50Hz / 60Hz (Auto sensing) |
| AC OUTPUT | |
| Rated Power | 3200W |
| AC Voltage Regulation | 220~240Vac |
| Inverter Efficiency | 90%~93% |
| Weight | 45kg |

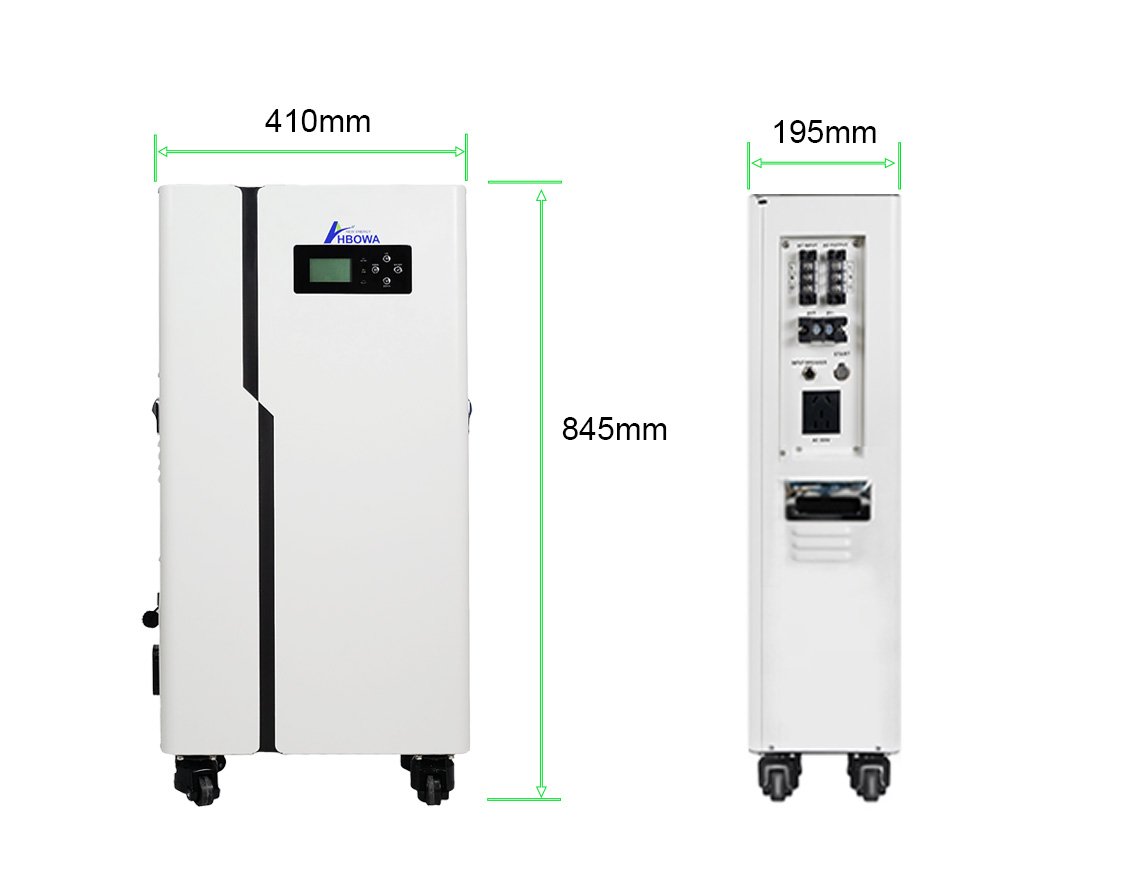

| Dimension | 410mm*845mm*195mm |
| Storage Temperature | -20℃～55℃（Recommended） |
| Working Humidity | ≤95%（RH） No Condensation |
| Working Temperature | 0℃～55℃ |
| Cycle Life | ＞6000（25℃）,80% EOL |
| Design Life | 10 Years（25℃） |
Advantages
25.6V 100Ah Lithium Ion Battery

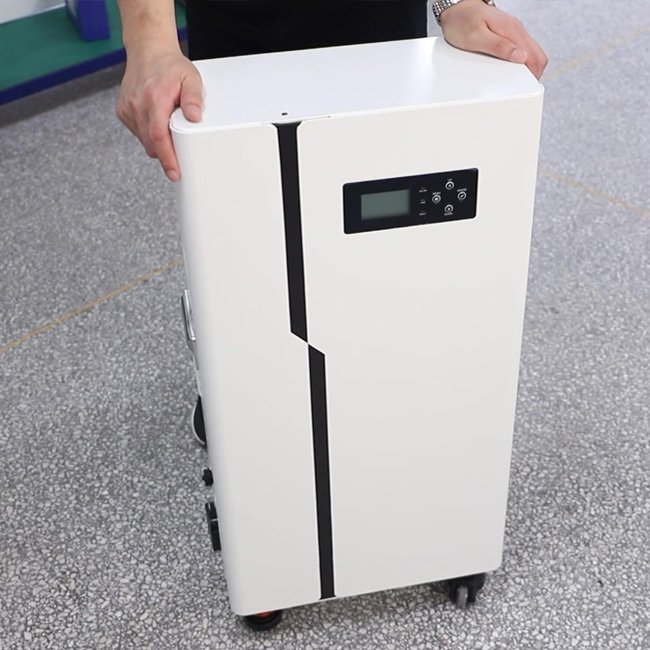

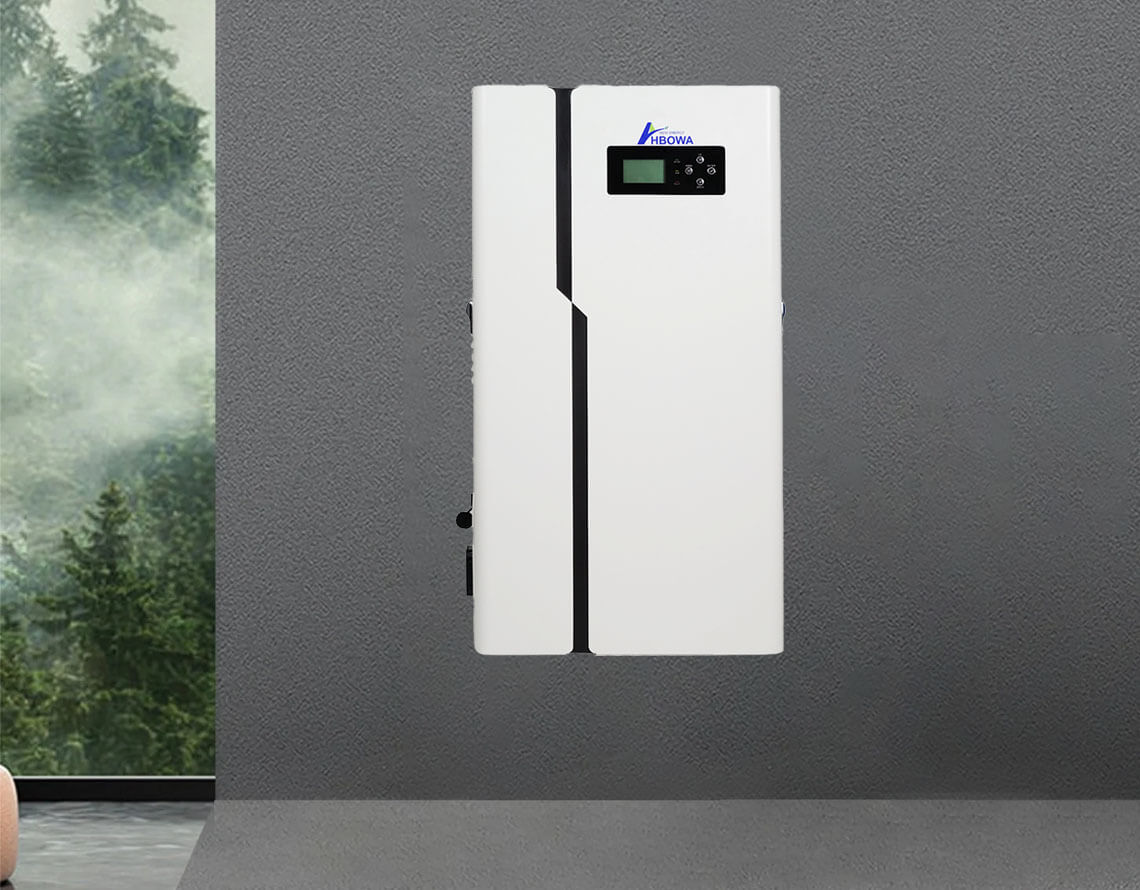

* Floor-standing movable or wall-mounted 2.5KWh lifepo4 battery;
* With a built-in off-grid 3kw inverter;
* Grade A prismatic battery cells, cycle life of more than 6000 times at 80% DOD;

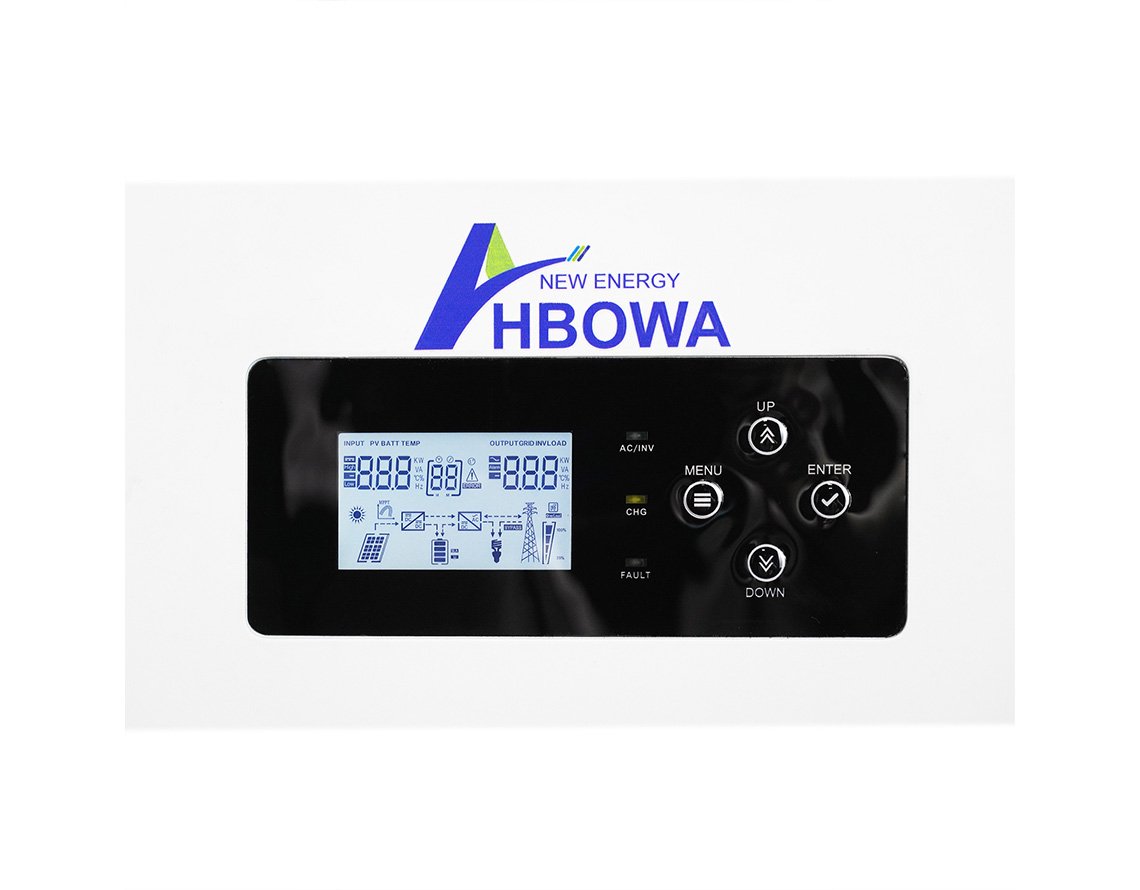

* Smart LCD display of the energy storage system shows the working status in real-time;
* Support customization of different voltage, power, current, appearance, accept OEM/ODM.
All-in-one Energy Storage System Parts List
1. A pair of red and black 1meters 8AGW silicone cables;
2. 1meters network line;
3. User instruction;
All-in-one energy storage system *1.
