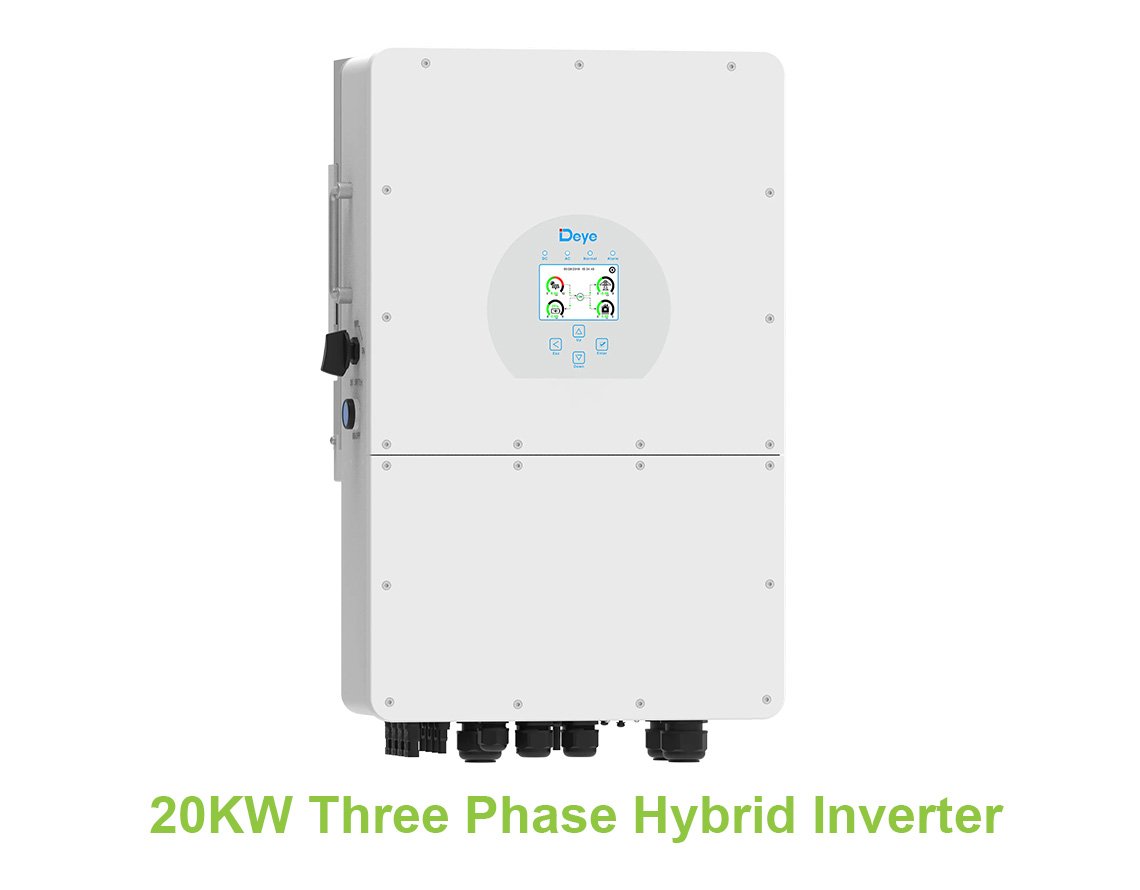

Deye Hybrid Inverter SUN-20K-SG01HP3-EU-AM2 HV 20KW
Model Number:SUN-20K-SG01HP3-EU-AM2 20KW
Number of MPPT Tracker: 2 MPPTs
Max DC input Voltage: 1000V
Output Voltage: 220/380V, 50/60Hz
Battery Voltage Range: 160 – 700V
Max Charging/Discharging Current: 37A
Inverter Efficiency: 97.6%
Warranty: 5 years (10 years optional)
Inverter DatasheetDescription
SUN-20K-SG01HP3-EU-AM2 hybrid solar inverter is Deye three phase inverter that support connecting high voltage batteries of 160 – 700V, with a compact design, and IP65 rated ingress protection rate, the hybrid inverter can be installed easily indoors or outdoors. The SUN-20K-SG01HP3-EU-AM2 inverter can be connected to solar panels and diesel generators to convert the DC electricity into AC electricity to supply the load of various applications.
The maximum charging and discharging current of the hybrid solar inverter can be up to 37A. You can connect the same model SUN-20K-SG01HP3-EU-AM2 inverters in parallel for larger power requirements. What’s more, you can manage the Deye SUN-20K-SG01HP3-EU-AM2 inverter via the smart APP on your phone or desktop computers for real time monitoring and operating the whole power system to get the premium usage of the system energy.
Features of Deye SUN-20K-SG01HP3-EU-AM2:
- Highest energy efficiency from the sunshine;
- Compatible with various battery systems such as lead-acid and lifepo4;
- Intelligent control software for optimizing your energy system;
- Robust components ensure the durable and reliable hybrid solar inverter;
Advantages of solar systems with 20KW Deye inverter:
- Hybrid solar inverter for flexible systems
- Environmentally friendly power generation
- Lower your electricity costs
- Independence from the utility grid
Technical Data
- SUN-20K-SG01HP3-EU-AM2 20KW Inverter Deye
|
Model
|
SUN-15K-SG01HP3
-EU-AM2 |
SUN-20K-SG01HP3
-EU-AM2 |
SUN-25K-SG01HP3
-EU-AM2 |
|
Battery Input Data
|
|||
|
Battery Type
|
Lithium-ion
|
||
|
Battery Voltage Range (V)
|
160~700V
|
||
|
Charging/Discharging Current
|
37A/37A
|
37A/37A
|
50A/50A
|
|
PV String Input Data
|
|||
|
Max. DC Input Power (W)
|
19500W
|
26000W
|
32500W
|
|
PV Input Voltage (V)
|
600V (150V~850V)
|
||
|
Start-up Voltage (V)
|
180V
|
||
|
PV Input Current (A)
|
39A+39A
|
||
|
No.of MPPT Trackers
|
2
|
||
|
No.of Strings Per MPPT Tracke
|
2+1
|
2+1
|
2+2
|
|
AC Output Data
|
|||
|
Rated AC Output Active Power
|
15000W
|
20000W
|
25000W
|
|
Max. AC Output Active Power
|
16500W
|
22000W
|
27500W
|
|
AC Output Rated Current (A)
|
25A
|
33A
|
40A
|
|
Max. AC Current (A)
|
30A
|
45A
|
41A
|
|
Output Frequency and Voltage
|
50Hz/45-55Hz 60Hz/55-65H 220/380V, 230/400V (three phase)
|
||
|
Certifications and Standards
|
|||
|
Grid Regulation
|
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140,
UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
||
|
Safety / EMC Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
||
|
General Data
|
|||
|
Operating Temperature Range
|
-40 to +60℃, >45℃ Derating
|
||
|
Noise (dB)
|
<55dB
|
||
|
Communication with BMS
|
RS485; CAN
|
||
|
Weight (kg)
|
30.5KG
|
||
|
Size (mm)
|
408W*638H*237D mm
|
||
|
Protection Degree
|
IP65
|
||

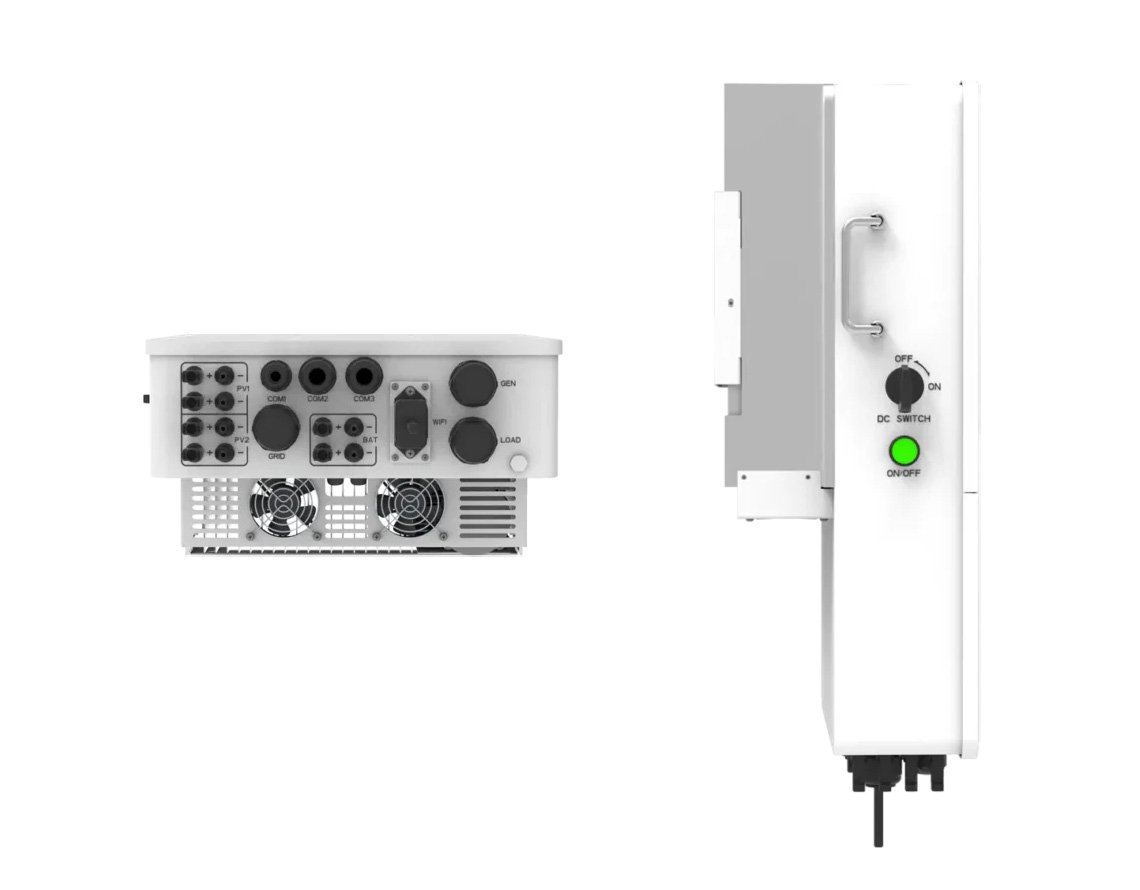

Hybrid Inverters Details
SUN-20K-SG01HP3-EU-AM2 Inverter
-
100% unbalanced output, each phase
-
AC couple to retrofifit existing solar system
-
*Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
-
Max. charging/discharging current of 50A
-
High voltage battery, higher effificiency
-
6 time periods for battery charging/discharging
-
Support storing energy from diesel generator
