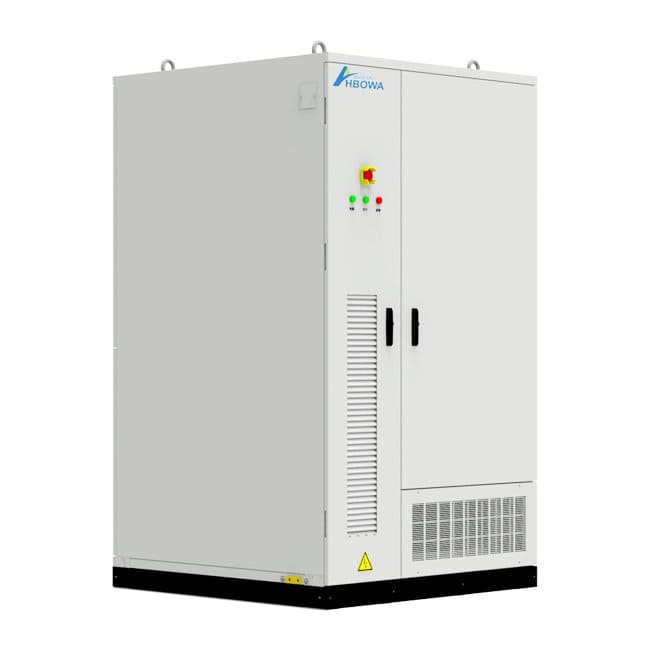

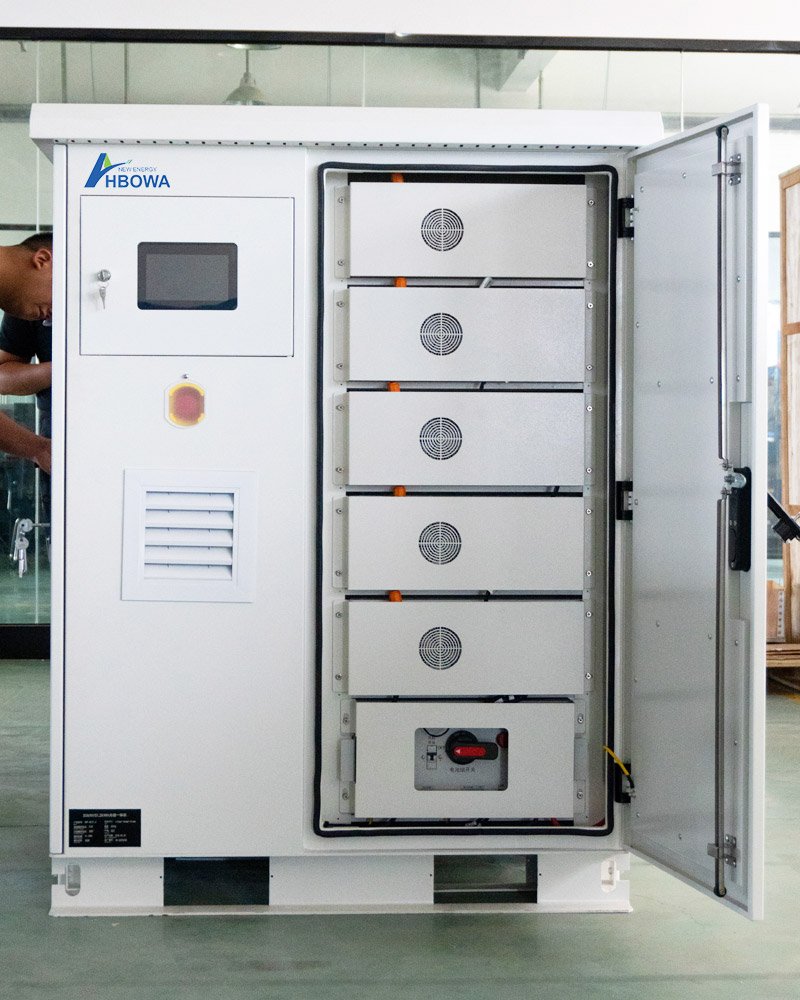

Energy Storage System Battery Cabinet
Nominal Voltage: 512V/614.4V
Module Model: 102.4V 100Ah
Inverter: 20KW/30KW
Cycle Life: More than 6000 cycles (@80% EOL)
Warranty: 5 years, 10 years(Customization)
Safety certification: CE, FCC, CCC
Transport safety certification: UN38.3, UN3480, Class 9
Communication: RS485/CAN(WiFi, Bluetooth optional)
Description
This energy storage system is an electrical energy storage solution that combines photovoltaic inverters and lithium iron phosphate energy storage battery packs. It integrates electrical units such as inverters, lithium battery packs, and monitoring into a modular cabinet system. Cooperate with photovoltaic power generation to form an energy-saving and green photovoltaic storage system.
HBOWA is an experienced lithium battery manufacturer, our energy storage system price is competitive with the factory price. Now we have cooperated with home battery factories with OEM services, solar battery distributors, contractors, retailers, etc. Welcome to inquiry for a bulk price.
Technical Data
- BATTERY PARAMETERS
- INPUT AND OUTPUT
- OVERALL PARAMETERS
Name | 20KW/50kWh Energy storage cabinet | 30KW/60kWh Energy storage cabinet |
Module Model | 102.4V 100Ah | |
Battery Type | LFP 1P160S | LFP 1P192S |
Nominal Capacity | 51.2 kWh | 61.4 kWh |
Nominal Voltage | 512V | 614.4V |
Working Voltage | 448~584V | 537.6~700.8V |
Inverter Power | 20KW | 30KW |
Name | 20KW/50kWh Energy storage cabinet | 30KW/60kWh Energy storage cabinet |
PV | ||
Max. DC Input Power | 26000W | 39000W |
Max. DC Input Voltage | 1000VDC | |
Start-up Voltage | 180V | |
MPPT Voltage | 150~850VDC | |
PV Input Current | 26+26A | 36+36+36A |
Max.PV Input Current | 39+39A | 55+55+55A |
AC Input/Output | ||
Rated AC Input/Output Power | 20000W | 30000W |
Input/Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac | |
AC Input/Output Rated Current | 30A | 45A |
Max.AC Input/Output Current | 33A | 50A |
Max. Continuous AC Pass through | 80A | 200A |
Name | 20KW/50kWh Energy storage cabinet | 30KW/60kWh Energy storage cabinet |
Communication | RS485, CAN (WiFi, Bluetooth optional) | |
Storage Temperature | -20℃~55℃(Recommended) | |
Working Humidity | ≤95%(RH) No Condensation | |
Working Temperature | 0℃~55℃ | |
Working Altitude | ≤2000m | |
Cooling method | forced air cooling/natural cooling | |
Protective Class | IP54 | |
Weight | 805kg | 942kg |
Dimension | 1170mm*1031mm*1636mm | |
Design Life | 10 Years(25℃) | |
Cycle Life | >6000(25℃),80% EOL |
Advantages

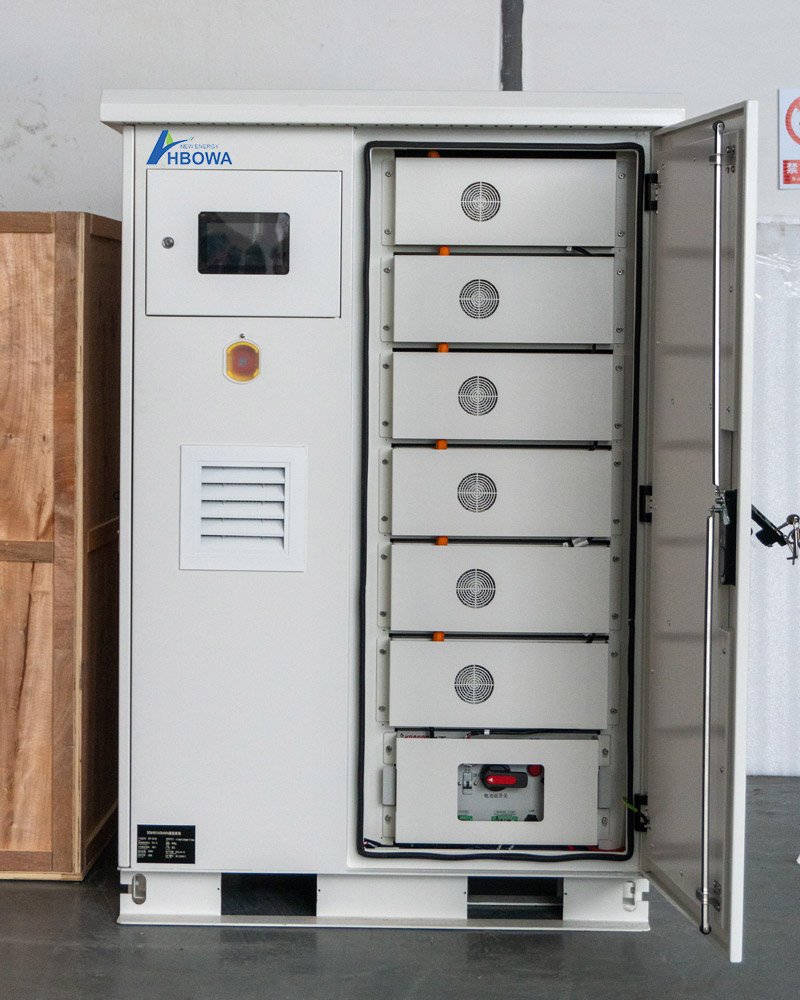

![energy storage cabinet structure](https://www.pretapower.com/wp-content/uploads/2024/05/energy-storage-cabinet-structure.jpg)

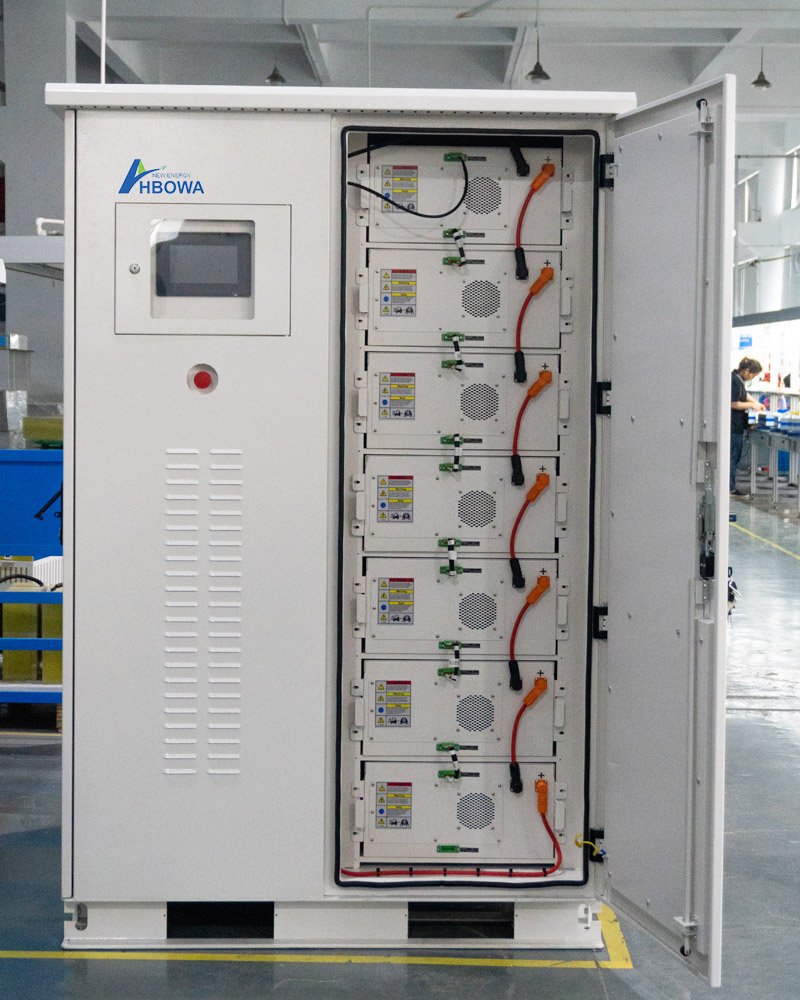

Lifepo4 Battery With BMS System
1) The lithium battery module is non-toxic, non-polluting, and environmentally friendly.
2) Cathode material is made from LiFePO4 with safety performance and long cycle life.
3) Built-in start function of the energy storage system cabinet to reduce current impact.
4) The battery management system (BMS) has protection functions including over-discharge, over-charge,over-current, and high/low temperature.
5) The system can automatically manage the charge and discharge state and balance voltage of each cell.
6) Adopted self-cooling mode rapidly reduced system entire noise.
All-in-one Energy System
1) When multiple battery modules are series connected, battery module addresses are set automatically.
2) Support for upgrading the battery module from the upper controller through CAN communication.
3) Suitable for load design of household appliances, communication base stations, optical storage devices, etc., easy to install and operate.

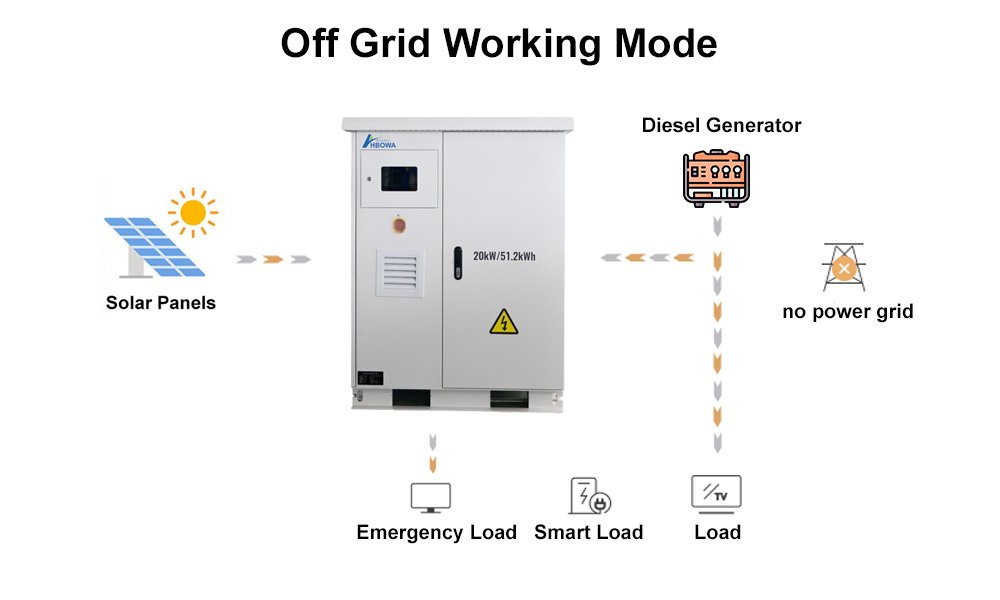

4) Self-consumption and feed-in to the grid, Programmable multiple operation modes: On-grid, off-grid, and UPS.
5) Supporting WiFi(optional) monitoring By smart APP and built-in 2 strings for 1 MPP tracker, 1 string for 1 MPP tracker.
![energy storage cabinet built-in inverter - HBOWA](https://www.pretapower.com/wp-content/uploads/2024/05/energy-storage-cabinet-built-in-inverter-HBOWA.jpg)
