Growatt SPF 5000 ES

Check 3KW 5KW off grid inverter Single phase

CheckModel Number: growatt SPF 3500-5000ES

CheckOutput Voltage:220/230/240VAC

CheckOutput power:3.5-5kw

CheckInverter: Pure sine wave AC output

CheckParallel Capacity: up to 6 units in parallel

CheckWarranty: 2 years

pdf documentGrowatt Inverter Datasheet

Description

This is a off grid PV growatt inverter 3KW 5KW available, it is high frequency pure sine wave inverter integrated with MPPT charging controller, small in size and light in weight, can be up to 6 units in parallel up to 30kw. The off grid inverter can work well with batteries or without batteries, which is suitable for home off grid solar system and small commercial and industrial solar systems, you can remotely view and control the solar system by WIFI and GPRS functions through the smart APP.

Gorwatt_off_grid_inverter_featuresgrowatt_off_grid_inverter_SPF_series_appearance_description

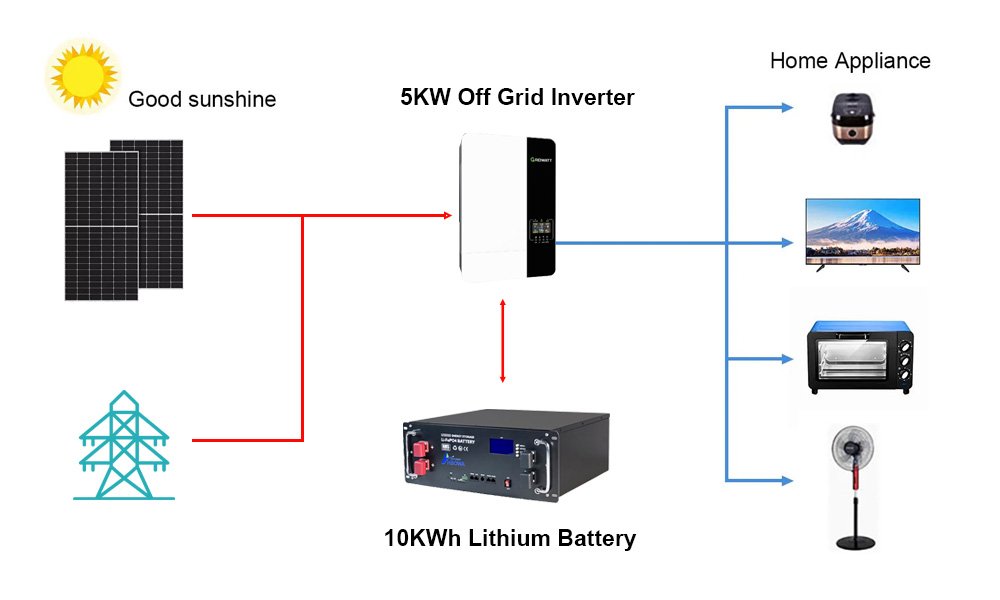

5KW off grid solar system with 10kwh lifepo4 lithium batterygrowatt off grid inverter 5kw connecting wires show

Technical Data

Datasheet SPF3500ES SPF5000ES
Battery Voltage 48VDC
Battery Type Lithium/Lead-acid
INVERTER OUTPUT
Rated Power 3500VA/ 3500W 5000VA/ 5000W
Parallel Capability Yes, 6 units maximum
AC Voltage Regulation (Battery Mode) 230VAC ± 5% @ 50/60Hz
Surge Power 7000VA 10000VA
Efficiency (Peak) 93%
Waveform Pure sine wave
Transfer Time 10ms typical, 20ms Max
Datasheet SPF3500ES SPF5000ES
Protection Degree IP20
Dimension (W/H/D) 330/485/135mm 330/485/135mm
Net Weight 11.5kgs 12kgs
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Altitude <2000m
Operating Temperature 0℃~55℃
Storage Temperature -15℃~60℃

Off Grid Inverters Details

Growatt inverter off grid solar system 3kw 5kw
Parameters

Parameters Show

1.Rated power 5KW, power factor 1 MPPT range 120V~430V,  450Voc;

2.Small size and light weight high frequency inverter pure sine wave AC output;

3. Battery charging mode and load working mode can be set;

4. Solar and utility grid can supply power to loads at the same time;

5. Can work with batteries or work without batteries;

6. Optional WIFI/ GPRS remote monitoring, BMS communication using CAN/RS485

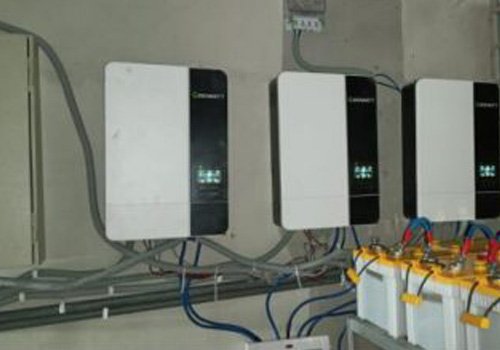

7. Support parallel operation up to 6 for capacity expansion up to 30kW.

8. Flexibly schedule the Inverter charging and discharging time.

Connection

Wiring Instructions

  1. Connect  the ground wire  to the  ground  terminal (be sure to connect the PE protective conductor first).
  2. Connect AC input  L1 to the input  L (hot)  terminal.
  3. Connect AC input  L2 to the Input  Neutral  terminal.
  4. Connect  output L (hot)  to AC output  L1 .
  5.  Connect  output neutral  to AC output  L2 .
  6. Do not connect AC input neutral or load neutral to the inverter.
Connection_cable_suggestion
growatt off grid solar inverter 5kw packing list
Packing

Packing List Show

  • 5000W ES unit x 1
  • User Manual x 1
  • Communication line x 1
  • Software CD x 1
  • Average line x 1
  • Parallel communication cable x 1
