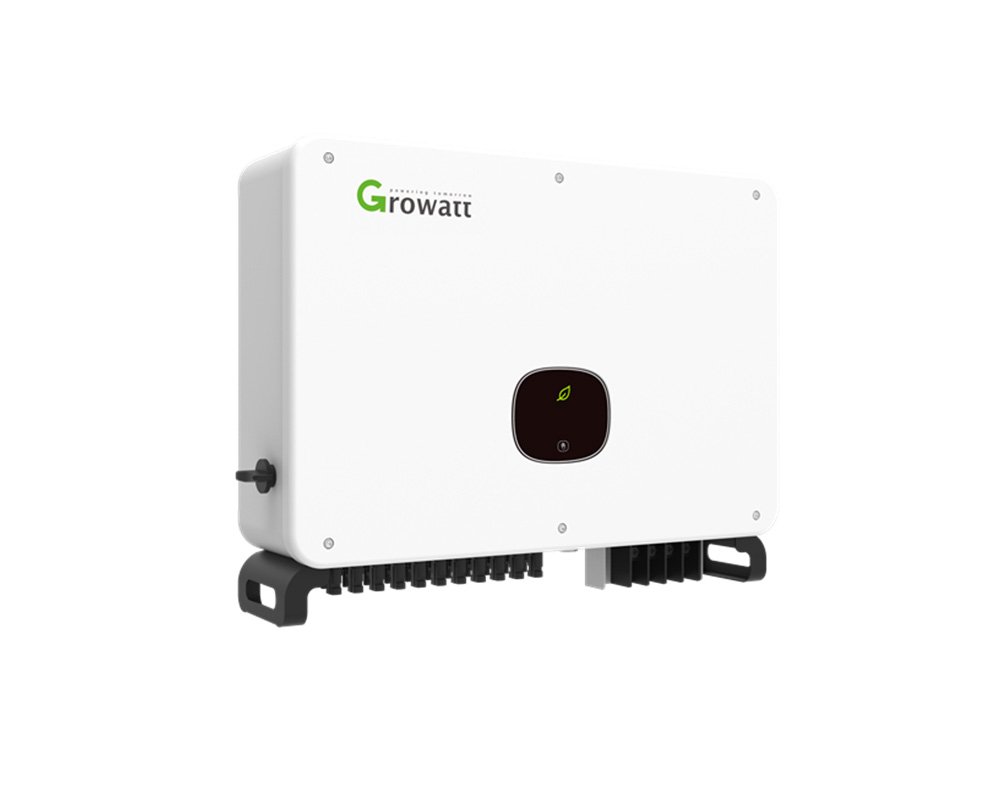

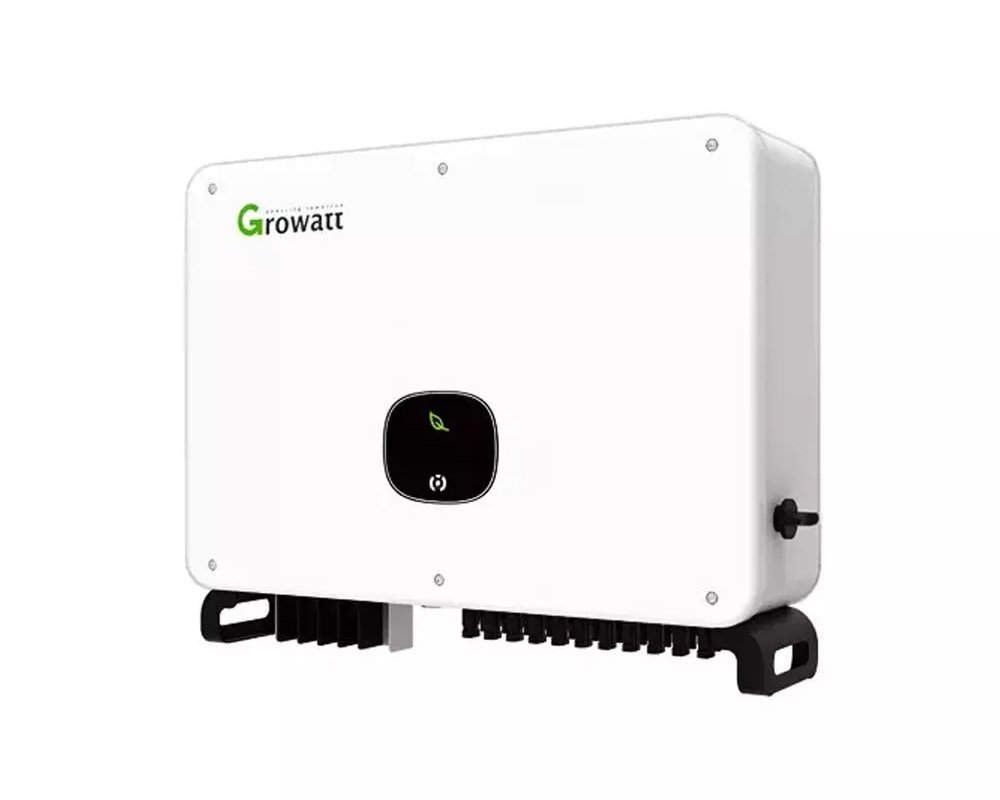

Growatt On Grid Inverter MAC 60KTL3-X LV 60KW

Growatt MAC 60KTL3-X LV series 60KW is the on grid three phase solar PV inverter, suitable for commercial buildings, industrial facilities, solar farms, and community projects. The MAC series on grid inverters have OLED display and touch screen button, the maximum PV voltage can reach up to 1100VDC, normal output voltage is 3W/N/PE 230/400 a.c.V, and the ingress protection rate is IP65, and you can install them outdoors. We have a 5-year warranty for the MAC 60KTL3-X LV, and after-sales services can be guaranteed by Growatt service sites around the world.

Working Principle of MAC 60KTL3-X LV:

• The PV panels gather sun power to generate DC electricity to the on grid inverter;
• With input current detection circuit of the solar inverter, it can monitor all the PV  panels’ working status and use MPPT to track the maximum power point;
• With inverter circuit change DC power to AC power, and feed the power back to grid per grid requirement;
• With output isolation relay of the solar on grid inverter can isolate AC output and grid, if anything goes wrong on either inverter side or grid side, the isolation relay can disconnect the inverter immediately.

On Grid Inverter MAC 60KTL3-X LV  Storage Attention:

• Do not unpack the inverter and store it in a ventilation dry place.
• Keep the storage temperature at -25 to +60 and humidity at 0-95%.
• A maximum of hour inverters with package can be stacked.
• If the inverter has been long term stored, inspections and tests should be conducted by qualified personnel before it is put into use.
