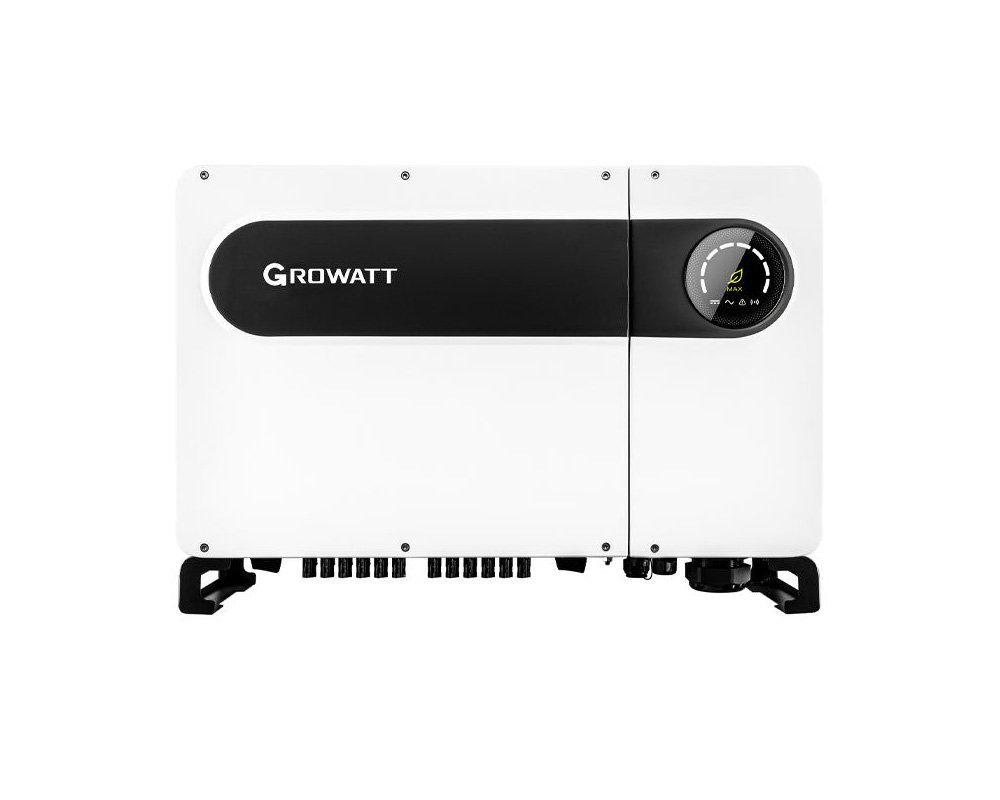

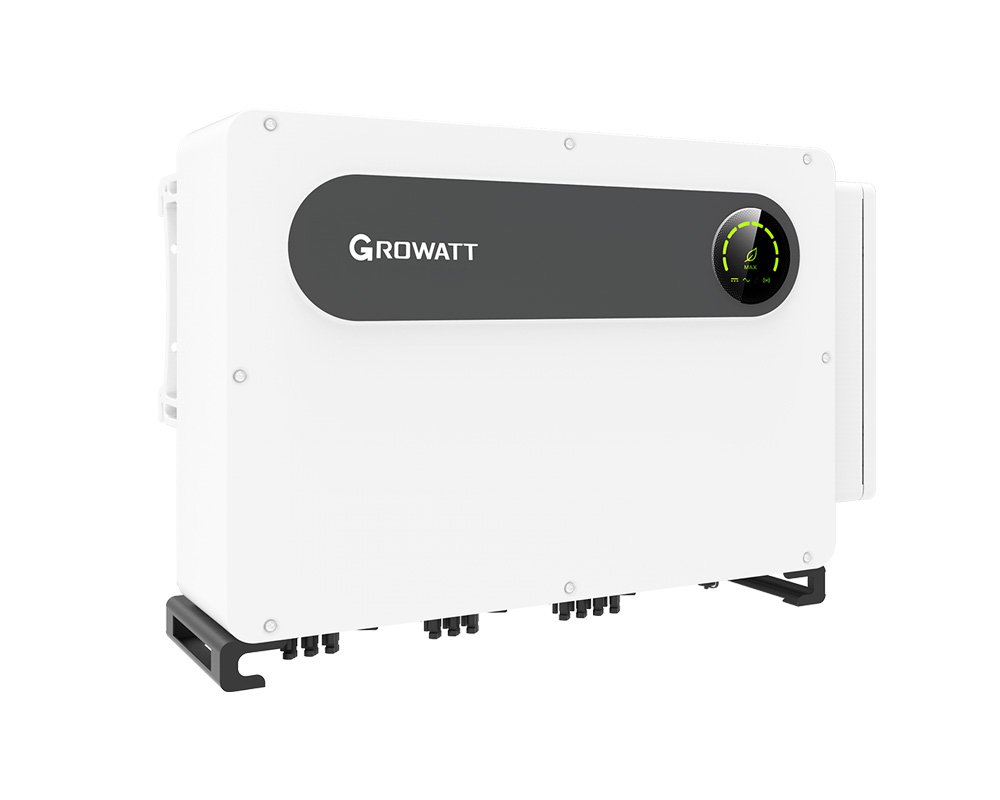

Growatt PV Inverter MAX 100KTL3-X LV 100KW On Grid
Model Number:Growatt MAX 100KTL3-X LV
Output Type: Triple
Brand Name: Growatt
MPPT Voltage Range: 180V-1000V
Number of MPPT trackers: 2MPPT
Max Efficiency:98.8%
Display: LED/WIFI+APP
Warranty: 5 years/(10 years optional)
Fast Shipping: from the warehouse in Germany
Place of Origin: China
Growatt Inverter DatasheetDescription

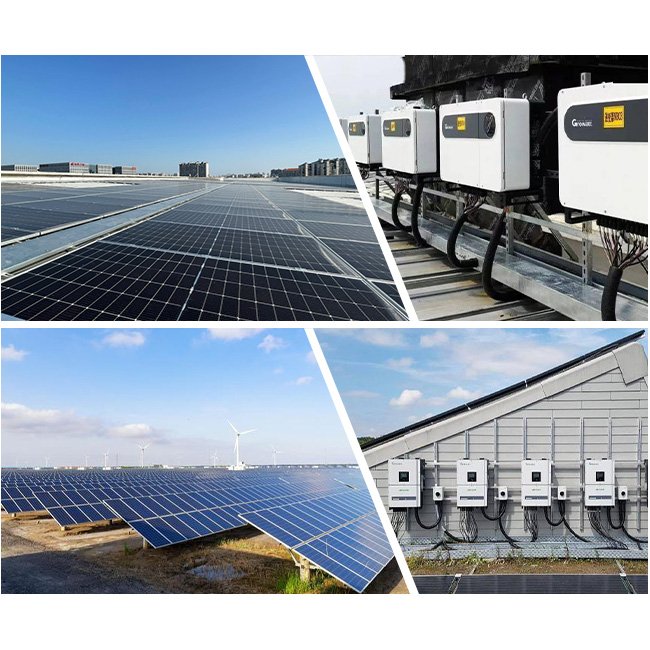

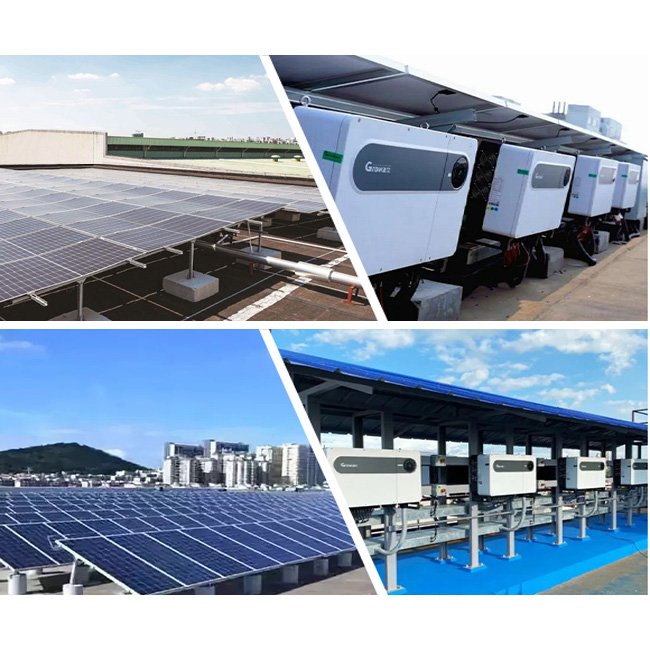

The Growatt MAX 100KTL3-X LV series on grid inverter is a three phase high-performance, grid-tied PV inverter designed for large-scale solar applications. It combines advanced technology, robust reliability, and high efficiency to deliver outstanding energy output and easy system integration. MAX 100KTL3-X LV on grid inverter is suitable for large farms, commercial buildings, power factories, warehouses, and production lines with significant electricity needs.
Technical Data
- Growatt MAX 100KTL3-X LV
|
Model Type
|
MAX 100KTL3 -X LV
|
|
Input Data(DC)
|
|
|
Max.DC voltage
|
1100V
|
|
Start voltage
|
195V
|
|
Nominal voltage
|
600V
|
|
MPP voltage range
|
180V-1000V
|
|
No.of MPP trackers
|
10
|
|
No.of PV string per MPP tracker
|
2
|
|
Max.input current per MPP tracker
|
32A
|
|
Max.short-circuit current per MPP tracker
|
40A
|
|
Output Data(AC)
|
|
|
AC nominal power
|
100000W
|
|
Max.AC apparent power
|
111000VA
|
|
Nominal AC voltage range
|
400V/380V(340-440VAC)
|
|
AC grid frequency range
|
50/60Hz(45-55Hz/55-65Hz)
|
|
Max.output current
|
158.8A@400V;167.1A@380V
|
|
Adjustable power factor
|
0.8 leading…0.8 lagging
|
|
THDi
|
﹤3%
|
|
AC grid connection type
|
3W/N/PE
|
|
Efficiency
|
|
|
Max.efficiency
|
98.80%
|
|
European efficiency
|
98.40%
|
|
MPPT efficiency
|
99.90%
|
|
Protection Devices
|
|
|
DC reverse polarity protection
|
yes
|
|
DC switch
|
yes
|
|
AC/DC surge protection
|
Type II/Type II
|
|
Insulation resistance monitoring
|
yes
|
|
AC short-circuit protection
|
yes
|
|
Ground fault monitoring
|
yes
|
|
String detection
|
yes
|
|
AFCI protection
|
Optional
|
|
Anti-PID function
|
Optional
|
|
General Data
|
|
|
Dimensions(W/H/D)
|
970x640x345mm
|
|
Weight
|
84kg
|
|
Operating temperature range
|
-30℃-+60℃
|
|
Self-Consumption (night)
|
﹤1W
|
|
Topology
|
Transformerless
|
|
Cooling
|
Smart Cooling
|
|
Protection degree
|
IP 66
|
|
Relative humidity
|
0-100%
|
|
Altitude
|
4000m
|
|
DC connection
|
H4/MC4 (Max.6mm²)
|
|
AC connection
|
OT Terminal(Max.240mm²)
|
|
Display
|
LED/WIFI+APP
|
|
Interfaces:RS485/USB/PLC/GPRS/4G/WIFI
|
Yes/Yes/Optional/Optional/Optional/Optional
|
|
Warranty:5 years/10 years
|
Yes/Optional
|

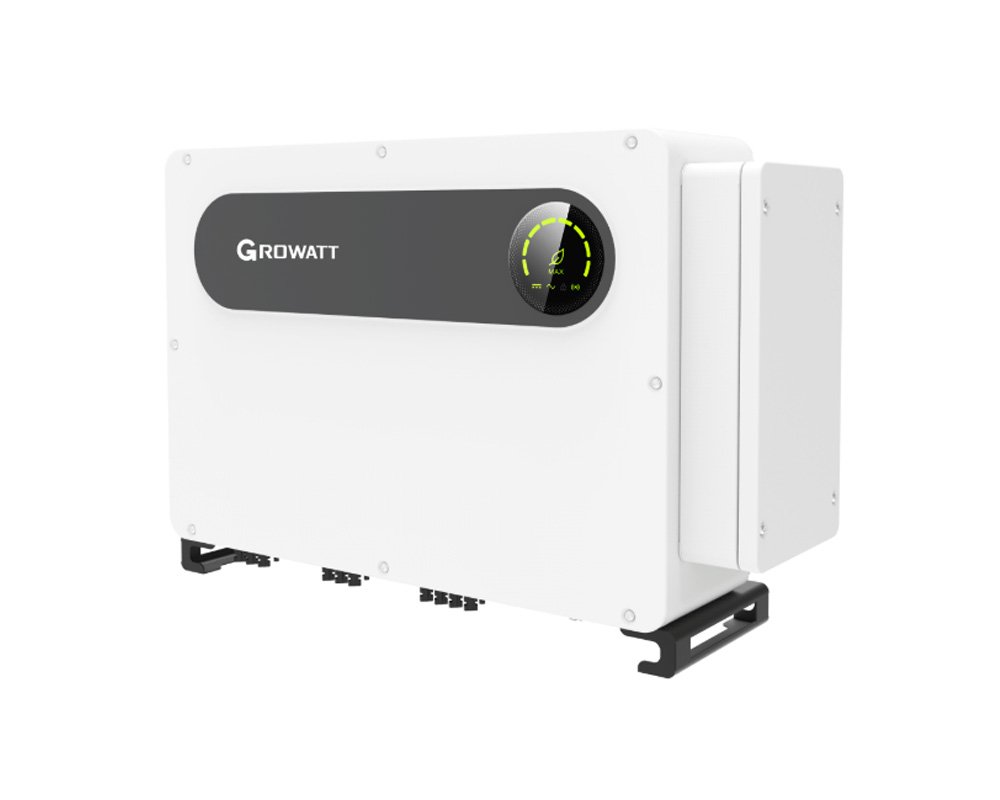

Growatt MAX 100KTL3-X LV
Features

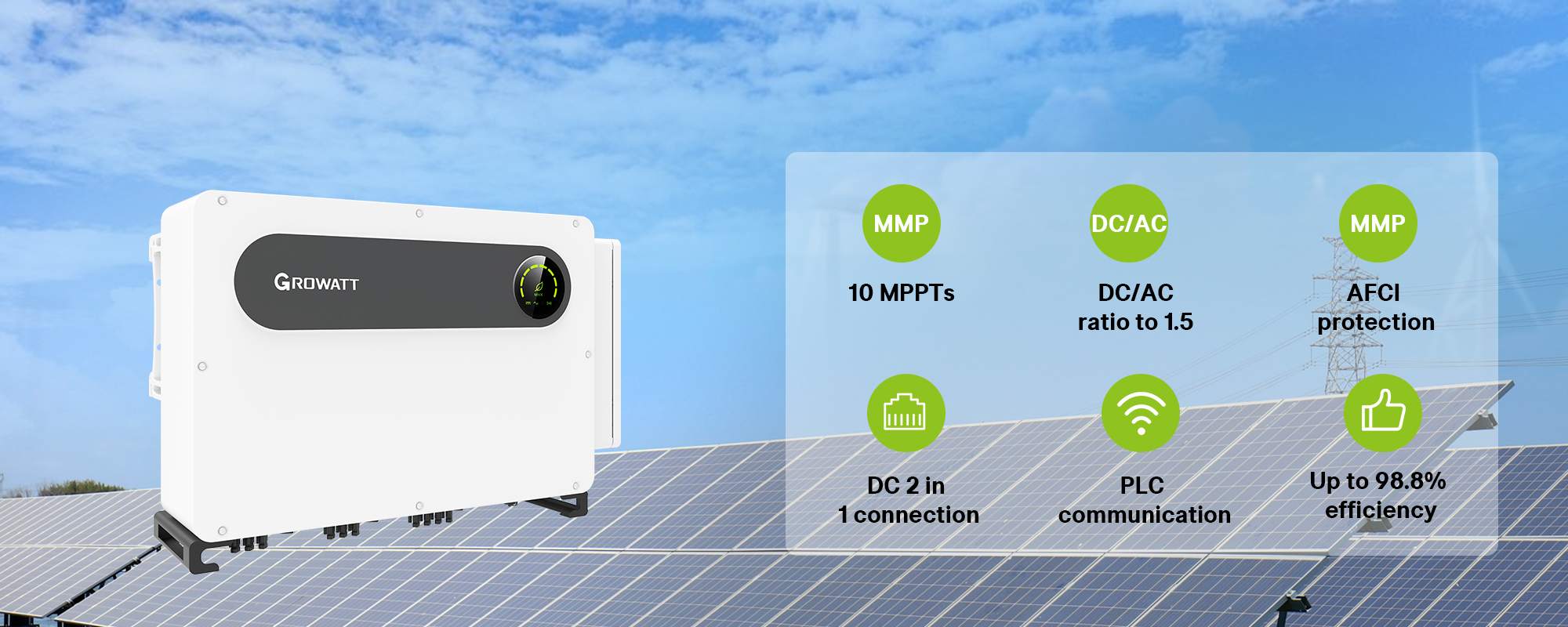

- 10 MPPTs fuse-free design
- Smart I/V scan and diagnosis
- Intelligent string monitoring
- AC&DC Type II SPD
- IP66 protection rate
- Maximum efficiency 98.8%
- Interfaces: RS485/USB/PLC/GPRS/4G/WIFI
- Self-consumption: < 1W
- Compatible with AI and Cu AC cables
- Growatt Monitoring Plateform

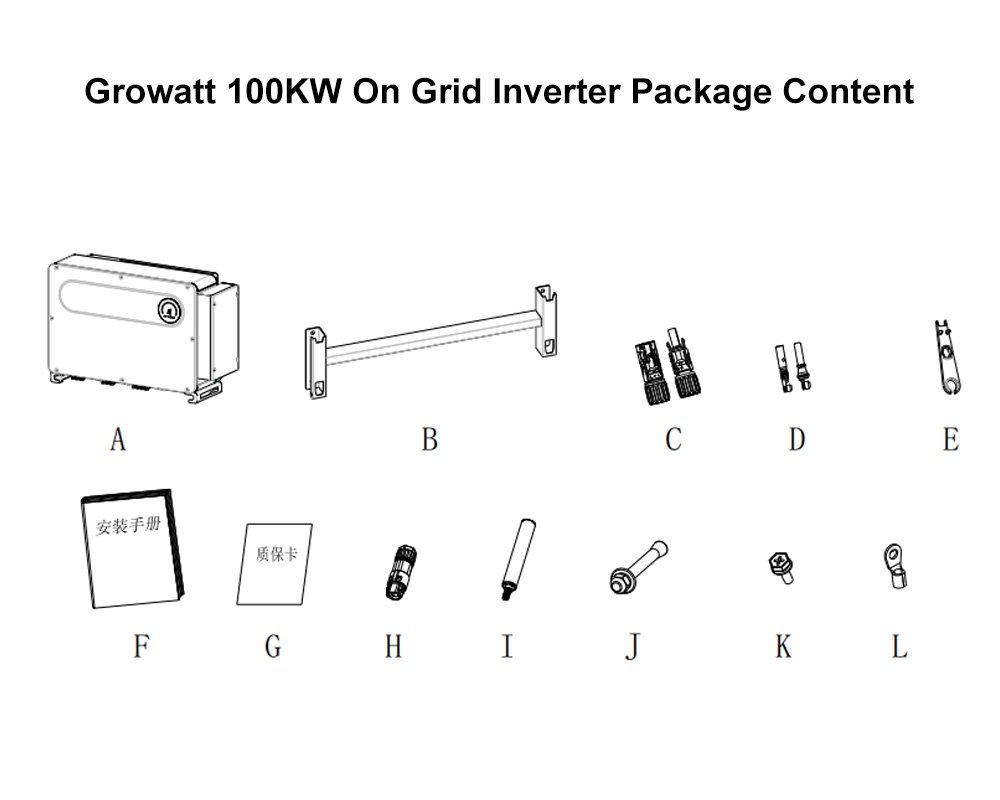

On Grid Inverter Package
A: MAX 100KTL3-X LV Inverter * 1
B: Wall mount *1
C: PV + terminal, PV – terminal *20/20
D: PV terminal metal core * 20/20
E: Removal tool of PV terminals * 1
F: Installation manual * 1
G: Warranty card * 1
H: Communication terminal * 1
I: Removal handle(opt) * 2
J: M10*90 Expansion screw * 4
K: M6 * 28 stainless steel screw * 2
L: AC wiring copper terminal(opt) * 4 or 5
