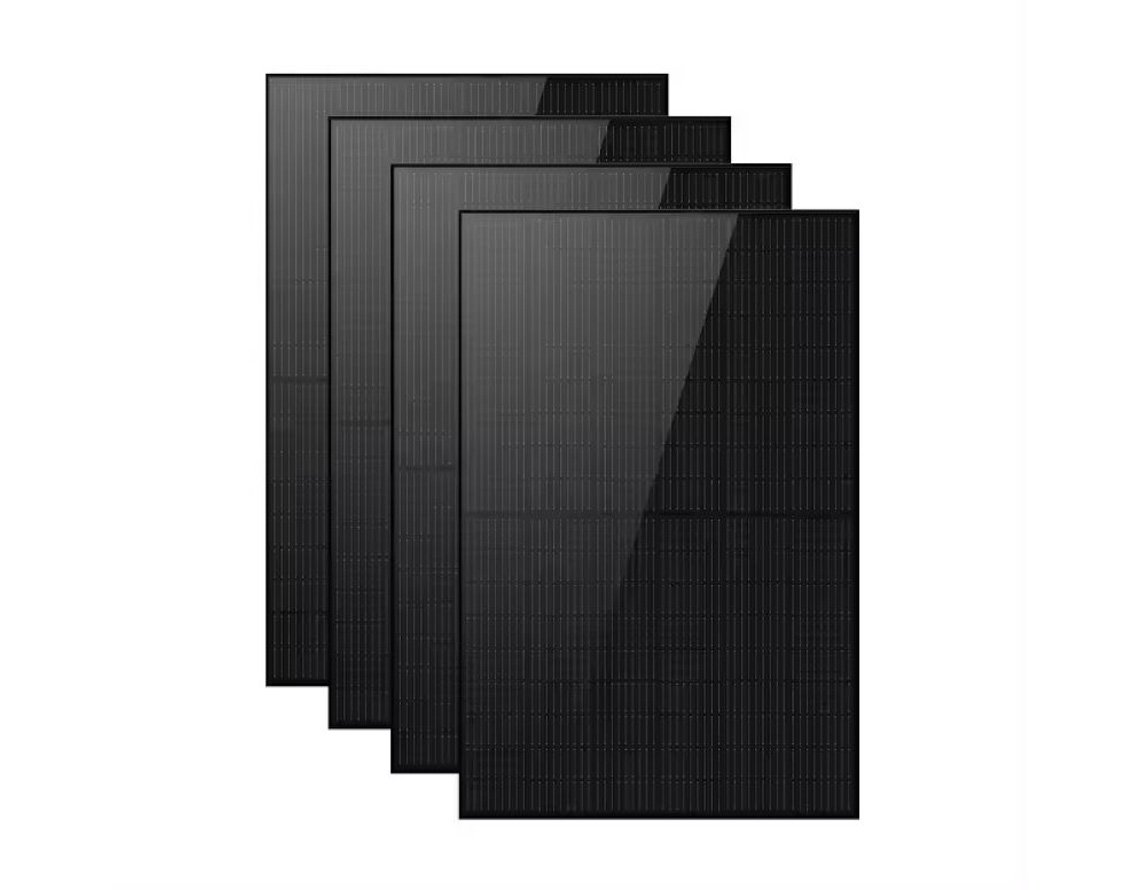

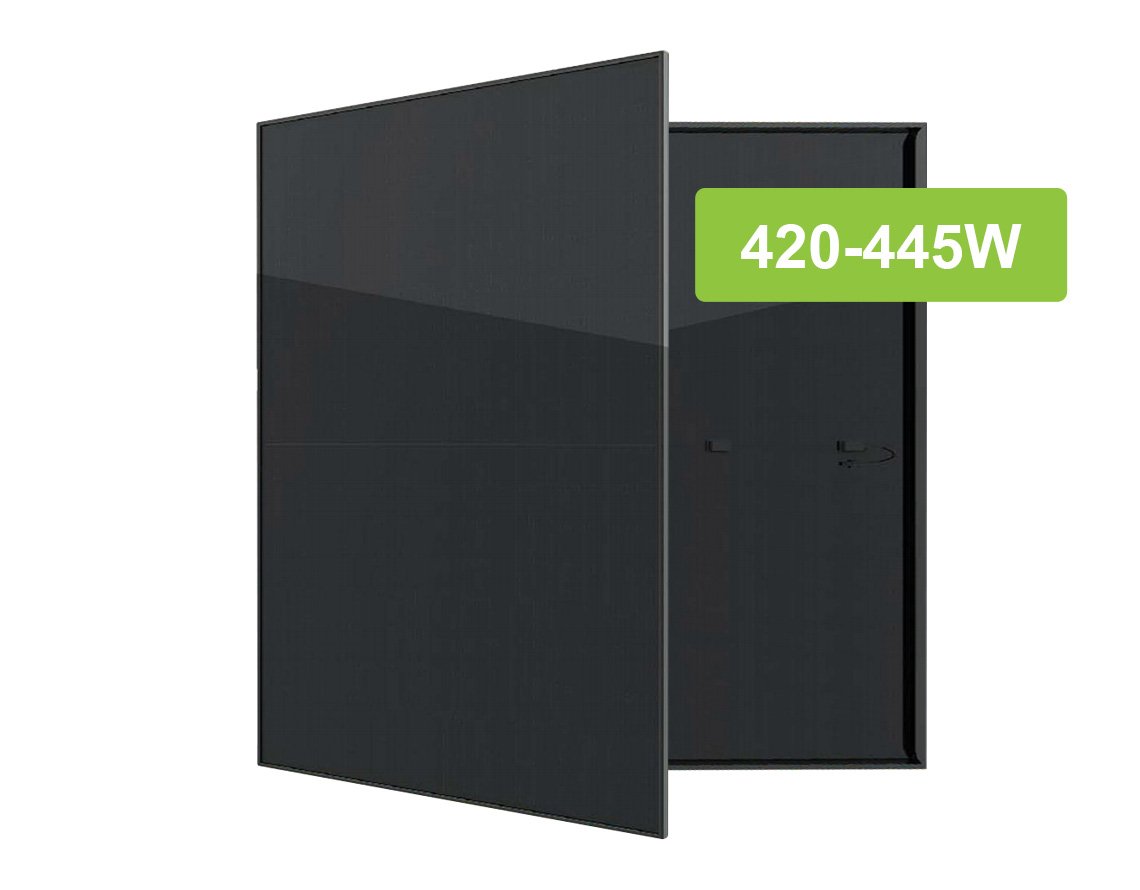

HBOWA 420-445W N Type Full Black Bifacial Solar Panel
MOQ: One pallet of 36 pieces
Brand: HBOWA or OEM service
Solar cell: N-Type 182mm
Color: Full black
Maximum Efficiency: 22.79%
No. of cells: 108 cells
Power range: 420-445 watt
Weight: 23.5kg
Lead Time:7-10 days
Warranty: 30 Years
Datasheet
Description
420W – 445W N-type 182 mono-bifacial full black N type solar panels are suitable for clients who value architectural aesthetics with high efficiency, the max module efficiency is up to 22.79% of 445w solar panels. The power tolerance is between 0 and 3%, and the maximum system voltage is 1500VDC, and max series fuse rating is 25A.
The N-type module with Hot 2.0 technology has better reliability and lower LID and LETID.The excellent Anti-PID performance guarantee via optimized mass production process and materials control.
This type of solar panel is entirely black in color. Its design, with an emphasis on aesthetics, serves as a primary selling point, allowing it to blend more seamlessly with the appearance of roofs or buildings. It is especially popular in residential or commercial buildings where the appearance is a significant consideration for off-grid solar systems and hybrid solar systems.
HBOWA provide you with various solar panels, grade A,B, and second hand solar panels for your diverse needs, customization is available, if you need any requirements, feel free to contact us any time.
Technical Data
- ELECTRICAL DATA
| Maximum Power (Pmax) | 420 | 425 | 430 | 435 | 440 | 445 |
| Maximum Power Voltage (Vmp) | 31.37 | 31.49 | 31.61 | 31.73 | 31.85 | 31.97 |
| Maximum Power Current (Imp) | 13.39 | 13.5 | 13.6 | 13.71 | 13.81 | 13.92 |
| Open-circuit Voltage (Voc) | 37.43 | 37.55 | 37.67 | 37.79 | 37.91 | 38.03 |
| Short-circuit Current (Isc) | 14.12 | 14.23 | 14.34 | 14.45 | 14.56 | 14.67 |
| Module Efficiency STC (%) | 21.51 | 21.76 | 22.02 | 22.28 | 22.53 | 22.79 |
| Power Tolerance | 0-+3% | |||||
| STC: Iradiance 1000W/m²,Cell Temperature 25°C, Air Mass AM1.5 | ||||||
Advantages
Multi BusBar
Not the conventional five busbar soldering process, we produce N-type modules using 16 main busbars, which greatly increase the output power of PV modules, resulting in more effective energy capture and increased reliability.
Higher Power Than PERC
Compared to PERC, the TOPCon technology enables higher photoelectric conversion efficiency in solar panels, offers a better temperature coefficient, longer lifespan, and maintains higher performance even after prolonged exposure to light.
