High Voltage Stackable Lifepo4 Battery
Battery Cell: LiFePO4 soft cell 3.2V 50Ah
Nominal Voltage: 102.4V
Scalability: Module: Max. 3 to 15.36KWh
Service Life: 10 years
Cycle Life: More than 6000 times (@25℃ 80% DOD)
Working Temperature:0℃ – 55℃(32℉ – 131℉)
Warranty: 5 years, 10 years(Customization)
Safety certification: CE, FCC, CCC, UN38.3, UN3480, Class 9
Customization: Including voltage, capacity, current, size, appearance, Link Bluetooth, Wifi, etc.
Description

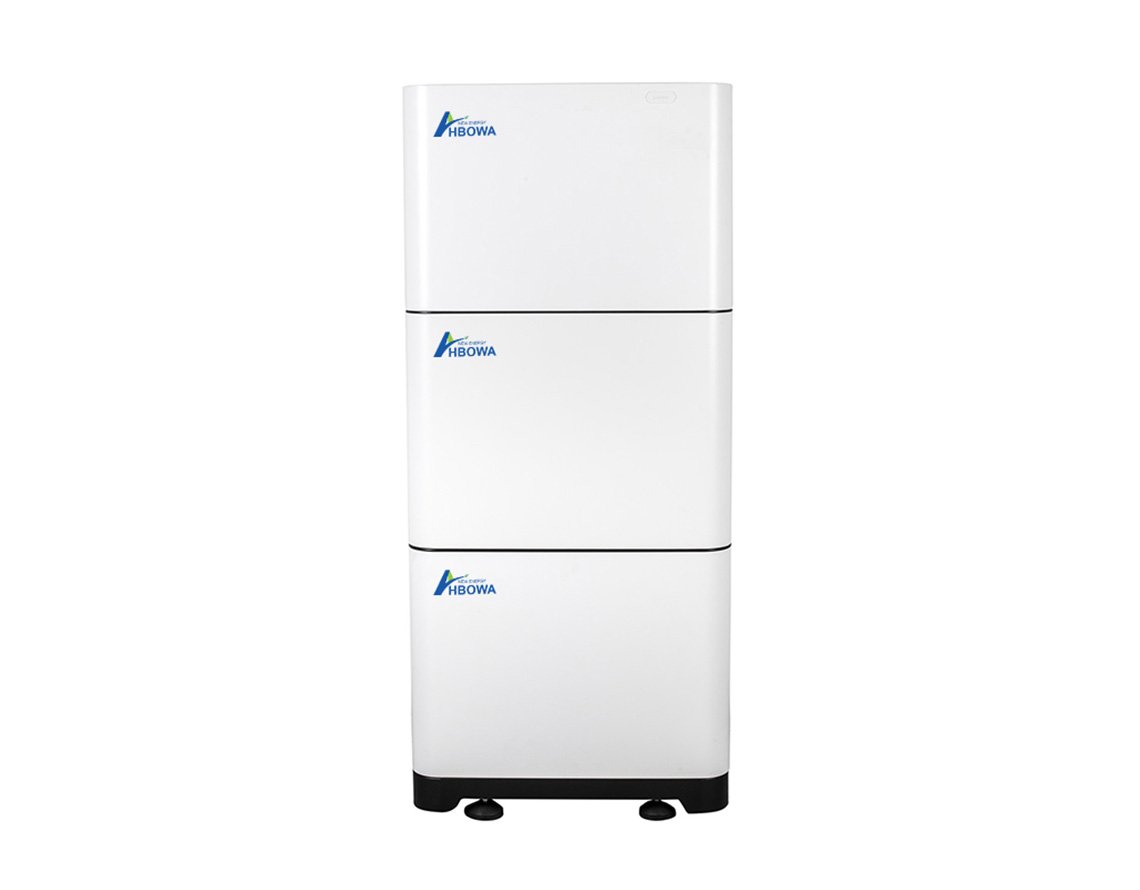

The high voltage stackable lifepo4 lithium battery is designed with modular, each unit is 102.4V 50Ah 5KWh, light in weight, and easy to install. The smart BMS supports the battery to communicate with more than 30 brands of inverters by CAN RS485 terminals. The movable and stackable features make the high voltage lifepo4 lithium battery a premium choice for home energy power storage systems, villas, and solar Power systems. If you want to get the bulk price, feel free to contact us for more details.
Technical Data
- ELECTRICAL DATA
- MECHANICAL DATA
- TEMPERATURE DATA
Model | HVXP-P10250 |
Battery Type | Lifepo4 Prismatic Cell |
Nominal Capacity | 5.12KWh(* Modular Quantity) |
Usable Capacity | 4.6KWh (* Modular Quantity,90% DOD) |
Nominal Voltage | 102.4V (* Modular Quantity) |
Working Voltage | 92.8 – 115.2V (* Modular Quantity) |
Charging Voltage | 112V (* Modular Quantity) |
Max. Charge Current | 25A(* Modular Quantity) |
Max. Discharge Current | 40A(* Modular Quantity) |
Design Life | 10 Years(25℃) |
Cycle Life | >6000(25℃),80% EOL |
Scalability | Module: Max. 3 Capacity: 15KWh |
Model | HVXP-P10250 |
Weight | 45kg (* Module Quantity) |
Dimension | 530mm*450mm*190mm(1 Module) |
Communication | RS485,CAN |
Working Altitude | <=2000m |
Ingress Protection | IP54 |
Detection temperature | 65±2℃(149±2℉) |
Operating Temperature | Charging:0℃~50℃(32℉ – 122℉) Discharging:-20℃~50℃(-4℉ – 113℉) |
Storage Temperature | 0℃~45℃(Recommended)(32℉ –113) |
Storage Humidity | ≤85%(RH) |
Working Humidity | ≤95%(RH) No Condensation |
High Voltage Lithium Battery Details
![High voltage stackable lithium battery structure](https://www.pretapower.com/wp-content/uploads/2024/05/High-voltage-stackable-lithium-battery-structure.jpg)
High Voltage Box Structure
1. Positive terminal: battery positive output
2. Negative terminal: battery negative output
3. Breaker: control circuit output, turn the switch to ON when using

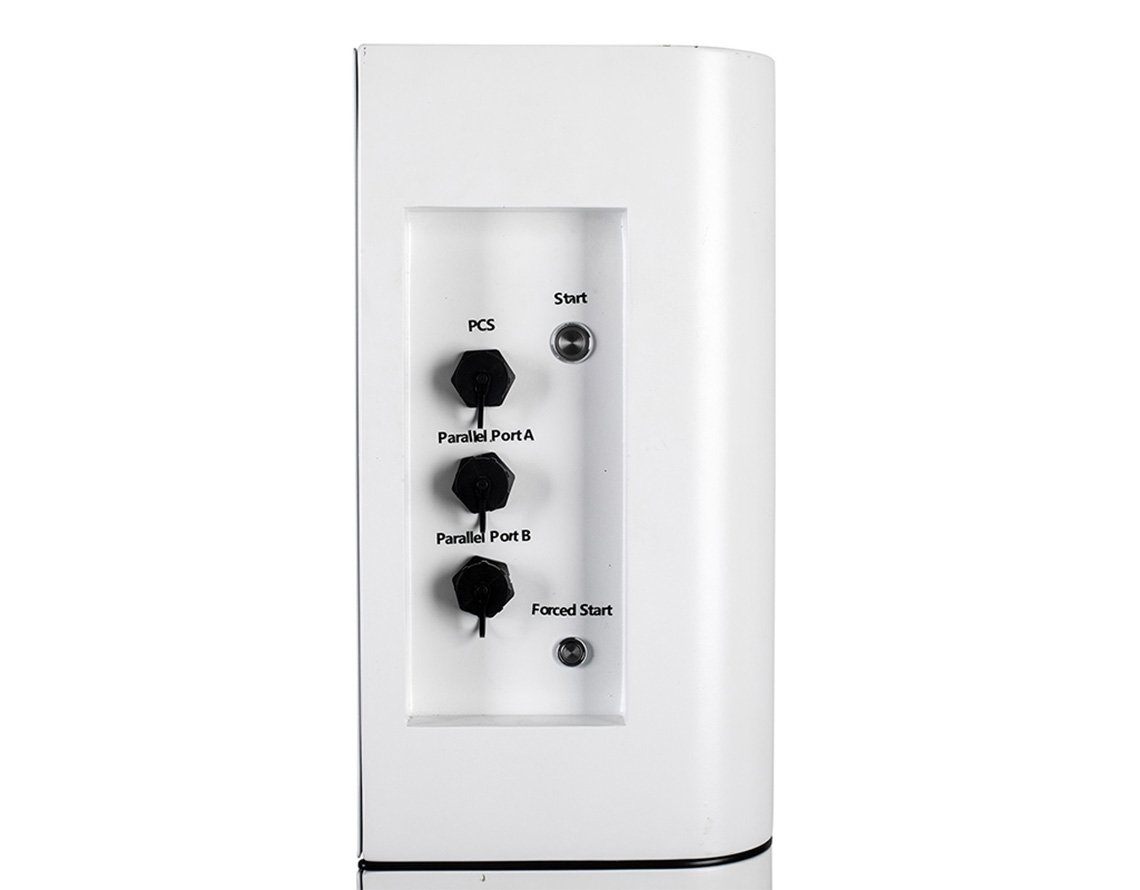

4. PCS: battery communication with PCS by RJ45 8P8C
5. Parallel port A: Battery cluster communication address input
6. Parallel port B: Battery cluster communication address output
7. Start button: System start switch, Press the button, BMS will work
8. Forced Start button: Press and hold the button for 5 seconds BMS will work and close relays, Power supply to PCS when it has no power supply
