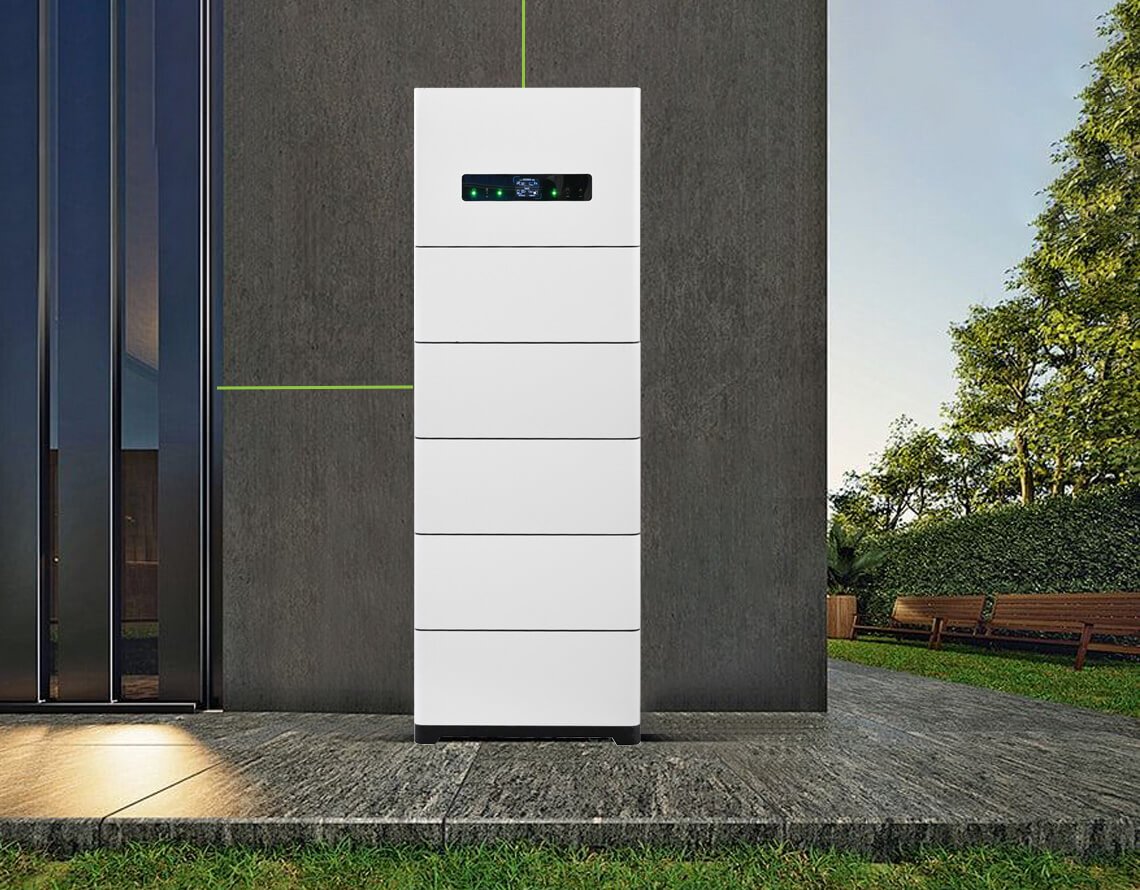

Stackable Lithium Battery With Hybrid Inverter
Battery Cell: LiFePO4 soft cell 3.2V 50Ah
Nominal Voltage: 102.4V
Inverter: 5KW/10KW three phase high voltage hybrid inverter
Cycle Life: More than 6000 times (@25℃ 80% DOD)
Working Temperature:0℃ – 55℃(32℉ – 131℉)
Warranty: 5 years, 10 years(Customization)
Max Parallel: Max 4 in series to 409.6V 20.48KWh
Safety certification: CE, FCC, CCC, UN38.3, UN3480, Class 9
Customization: Including voltage, capacity, current, size, appearance, Link Bluetooth, Wifi, etc.
User ManualDescription
HBOWA uses excellent safe lifepo4 lithium batteries with long service life to manufacture stackable batteries. This high voltage stackable lithium battery is designed with modular, easy to install, light in weight, and can be easily expanded to 5.12KWh, 10.24KWh, 15.36KWh, and 20.48KWh. The built-in soft start function of the battery can reduce the current impact. And the built-in on off grid inverter of the stackable energy storage battery eliminates the need to worry about communication protocols, allowing for seamless integration with your application system through a direct connection. It is suitable for household energy storage backup.
Monitoring System:

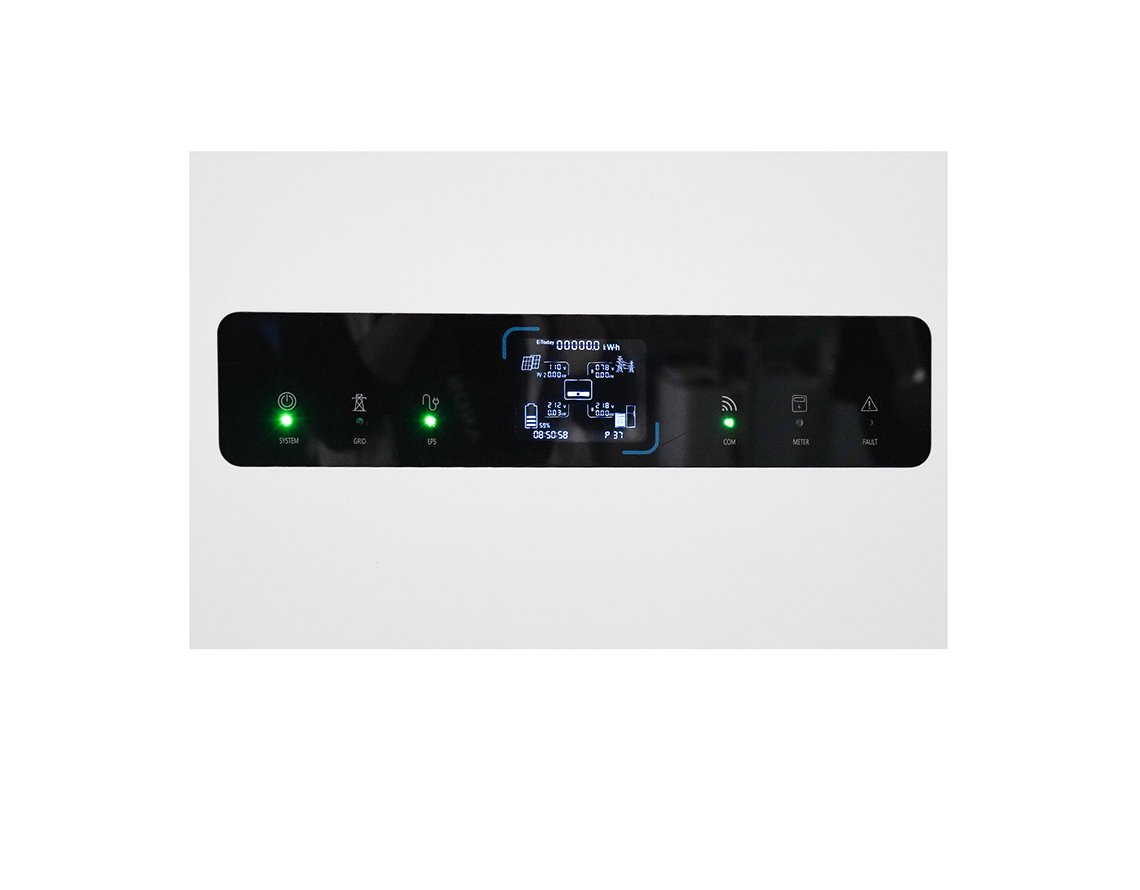

We support two monitoring platforms both App and Web monitoring way to view the running information of the stackable lithium battery, such as current, voltage, temperature, etc, please refer to our user manual for more details.
How to Use The Home Stackable Lithium Battery
Dimension of the high voltage lithium battery
Technical Data
- Electrical Data
- Input(PV) Parameters
- AC Parameters
| Model | HPIXP-P5KW | HPIXP-P10KW |
| Battery Type | Lifepo4 Soft Battery Cell | |

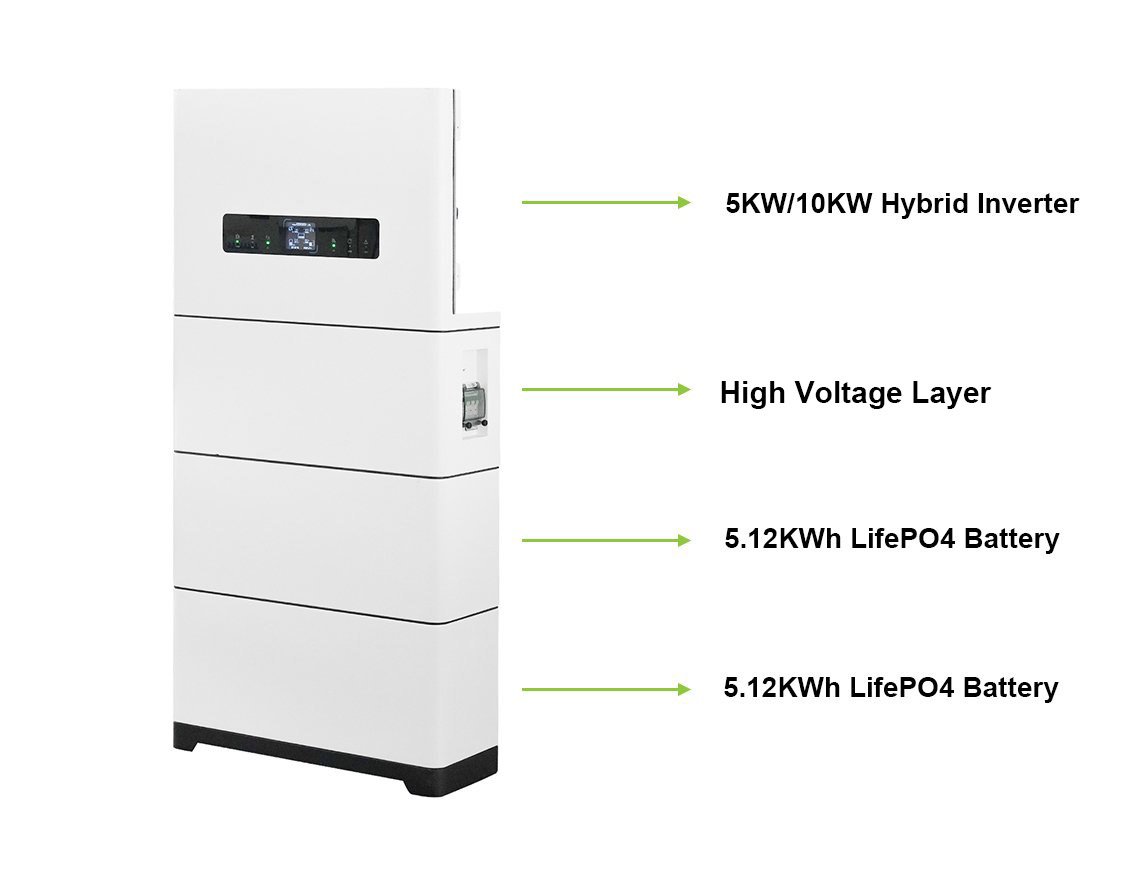

| Basic Parameters | Inverter layer * 1 High Pressure layer * 1 Battery Layer * Modular Quantity |
|
| Nominal Capacity | 5.12KWh(* Modular Quantity) | |
| Nominal Voltage | 102.4V(* Modular Quantity) | |
| Working temperature range | 0～55℃(32℉ – 131℉) | |
| Degree of protection | IP54 | |
| Cooling way | Natural convection | |
| BMS Communication | CAN/RS485/WIFI | |
| Design Life | 10 Years(25℃) | |
| Model | HPIXP-P5KW | HPIXP-P10KW |
| Max PV Power | 7500W | 15000W |
| Max PV Voltage | 1000V d.c | |
| MPPT Voltage Range | 200-850V d.c | |
| Max input current/per string | 13A/13A | |
| Battery Input | ||
| Battery Voltage Range | 130-700V | |
| Max charge/discharge current | 25A/25A | |
| AC Output(on-Grid) | ||
| Model | HPIXP-P5KW | HPIXP-P10KW |
| AC nominal power | 5000VA | 10000VA |
| Max AC apparent power | 5500VA | 11000VA |
| Max output current | 10 | 17 |
| Nominal AC Output | 50/60Hz;400/350 | |
| AC Output Range | 45/55Hz;280~490Vac(Adj) | |
| AC Output Back-up | ||
| Max AC apparent power | 5000VA | 1000VA |
| Nominal Output Voltage | 400/380 | |
| Nominal Output Frequency | 50/60Hz | |
Features
