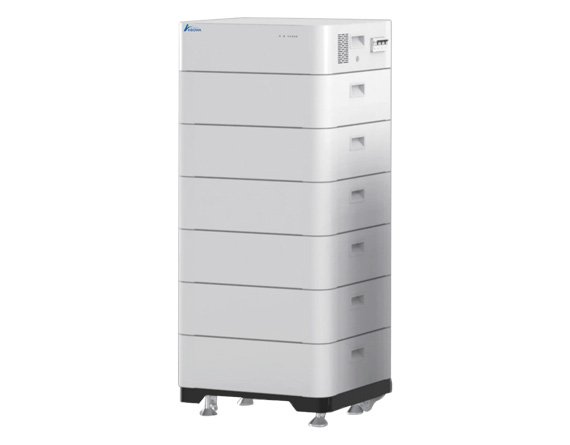

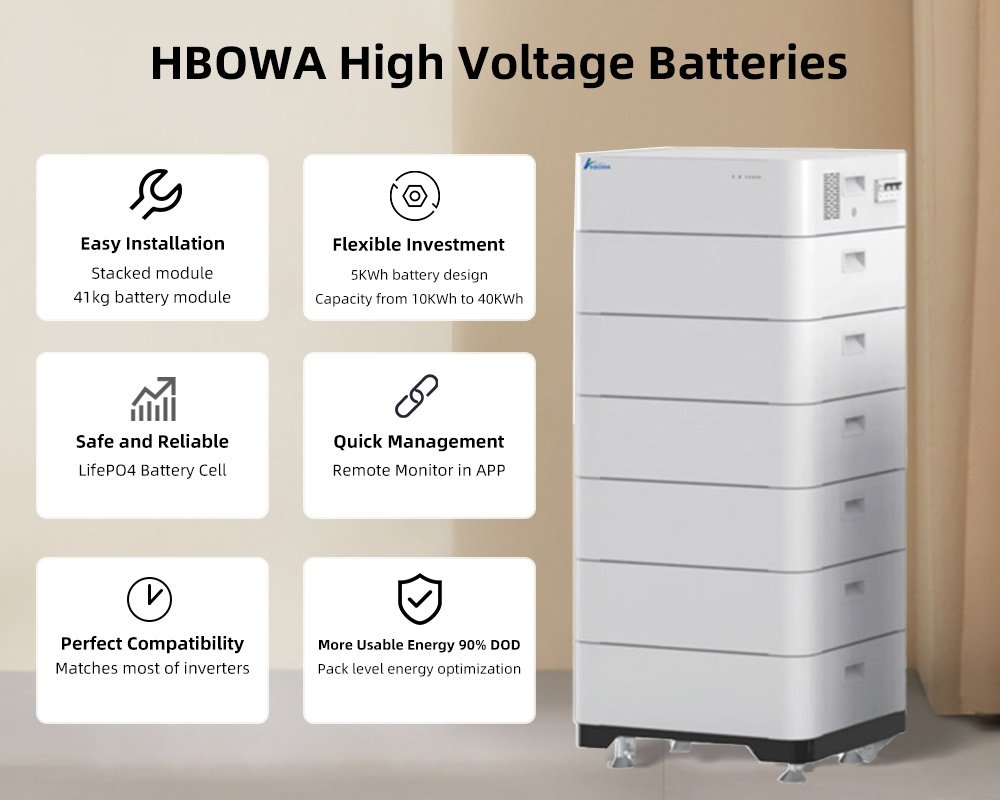

High Voltage Stacked Lithium Battery
Battery Cell: LiFePO4 prismatic cell 3.2V 100Ah
Nominal Voltage: 51.2V
Scalability: Module: Max. 8 to 409.6V 40.96KWh
Service Life: 10 years
Cycle Life: More than 6000 times (@25℃ 80% DOD)
Working Temperature:0℃ – 55℃(32℉ – 131℉)
Warranty: 5 years, 10 years(Customization)
Safety certification: CE, FCC, CCC, UN38.3, UN3480, Class 9
Customization: Including voltage, capacity, current, size, appearance, Link Bluetooth, Wifi, etc.
User ManualDescription
HBOWA chooses grade A prismatic battery cells to produce high-voltage energy storage which can provide reliable power supply for all kinds of equipment or systems. The stackable lithium battery is designed with modular, easy for expansion, reaching up to 40.96KWh. HBOWA uses cutting-edge lifepo4 technology to provide you with stable and reliable high-voltage energy storage systems.
Features:
1) Built-in start function to reduce current impact.
2) When multiple modules are series connected, module addresses are set automatically.
3) Support for upgrading the battery module from the upper controller through CAN communication.
4) The module is non-toxic, non-polluting, and environmentally friendly.
5) Cathode material is made from LiFePO4 with safety performance and long cycle life.
6) Battery management system has protection functions including over-discharge, over-charge, over-current, and high/low temperature.
7) The system can automatically manage the charge and discharge state and balance voltage of each battery cell.
8) Flexible configuration, multiple battery modules can be connected to expand capacity and power.
9) Adopted self-cooling mode rapidly reduced system entire noise.
10) The module has less self-discharge, up to 6 months without charging it on the shelf, no memory effect, and excellent performance of shallow charge and discharge.
Technical Data
- ELECTRICAL DATA
- MECHANICAL DATA
- TEMPERATURE DATA
| Model | XPHVD-512100 |
| Battery Type | Lifepo4 Prismatic Cell |
| Nominal Capacity | 5.12KWh(* Modular Quantity) |
| Usable Capacity | 4.6KWh (* Modular Quantity,90% DOD) |
| Nominal Voltage | 51.2V (* Modular Quantity) |
| Working Voltage | 46.4 – 57.6V (* Modular Quantity) |
| Charging Voltage | 56V (* Modular Quantity) |
| Max. Charge Current | 50A(* Modular Quantity) |
| Max. Discharge Current | 100A(* Modular Quantity) |
| Design Life | 10 Years(25℃) |
| Cycle Life | ＞6000（25℃）,80% EOL |
| Scalability | Module: Max. 8 to 409.6V 40.96KWh |
| Model | XPHVD-512100 |
| Weight | 46kg (* Module Quantity) |
| Dimension | 550mm*500mm*171mm(1 Module) |
| Communication | RS485,CAN |
| Working Altitude | <=2000m |
| Ingress Protection | IP20 |
| Detection temperature | 65±2℃(149±2℉) |
| Operating Temperature | Charging：0℃～50℃(32℉ – 122℉) Discharging：-20℃～50℃(-4℉ – 113℉) |
| Storage Temperature | 0℃～45℃（Recommended）(32℉ –113) |
| Storage Humidity | ≤85%（RH） |
| Working Humidity | ≤95%（RH） No Condensation |

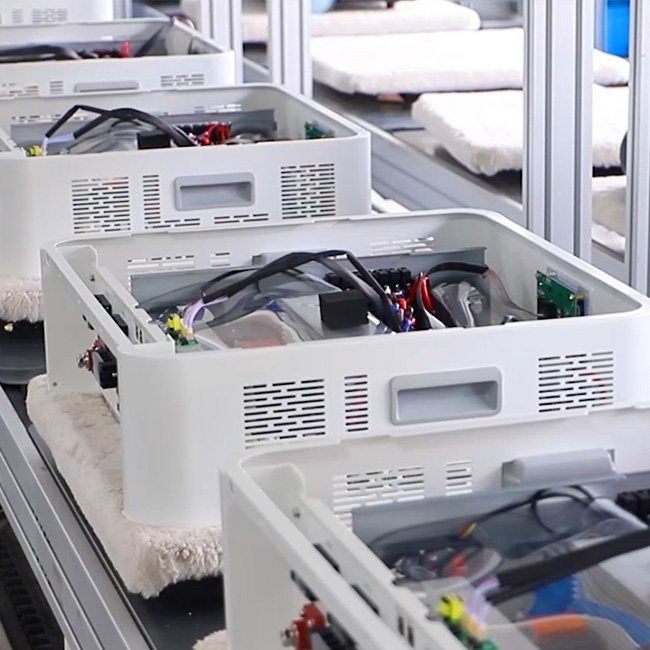

High Voltage Lithium Battery Details
High Voltage Box Structure
1 Positive terminal: battery positive output
2 Negative terminal: battery negative output
3 PORT: Slave communication

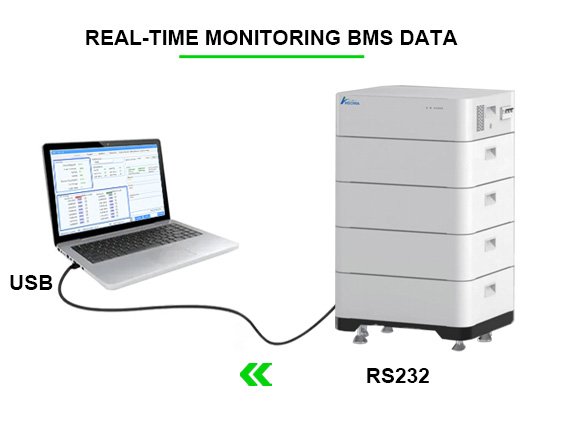

4 PCS: battery communication with PCS by RJ45 8P8C
5 DBUG: Maintenance inspection port
6 Breaker: control circuit output, turn the switch to ON when using
7 Start button: System start switch, Press the button, and BMS will work

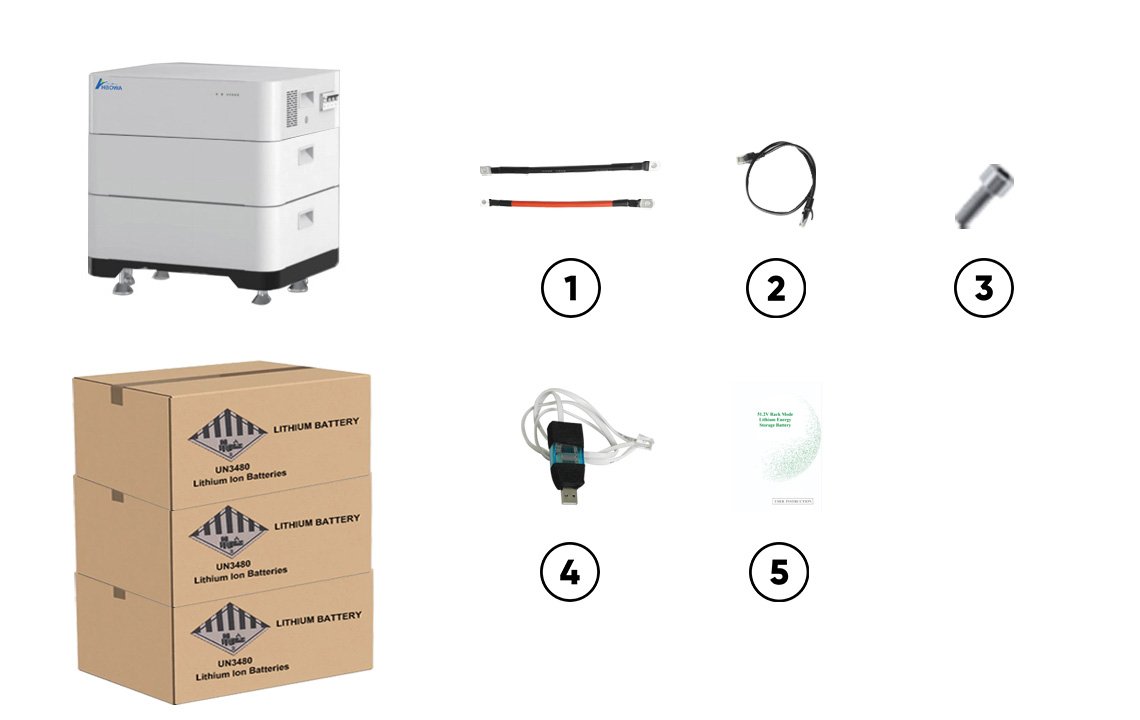

Two Battery Pack Parts List
1. Battery power cable 6AWG red * 2; Battery power cable 6AWG black * 1;
2. Battery series connection communication cable * 2;
3. Hexagon screw M6* 14;
4. RS232 BMS communication network cable (optional)
5. User instruction
High voltage layer * 1, stacked lithium battery *2.
