Floor Standing Home Energy Storage Battery 51.2V 280Ah
Battery Cell: LiFePO4 prismatic cell 3.2V 280Ah
Nominal Voltage: 51.2V
Service Life: 10 years
Cycle Life: More than 6000 cycles (@80% DOD)
Warranty: 5 years, 10 years(Customization)

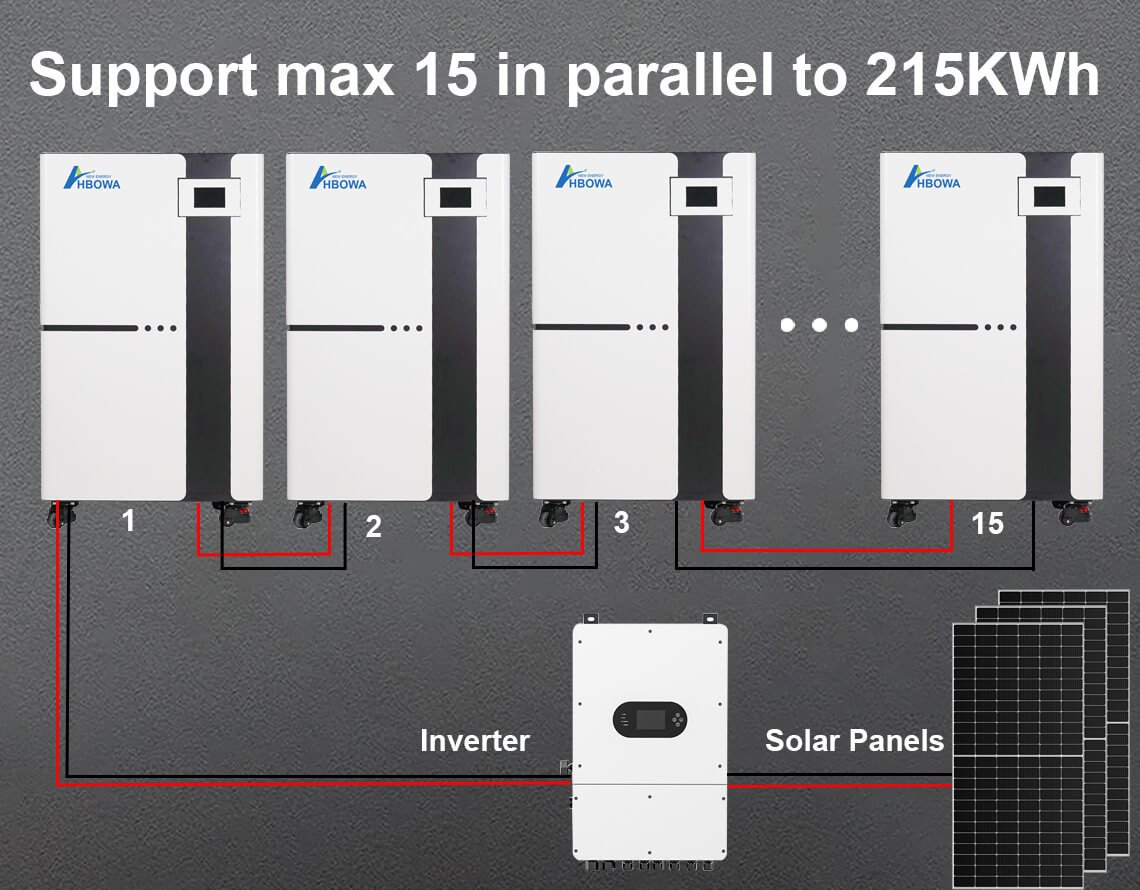

Max Parallel: Max 15 in Parallel to 4200Ah 215.04KWh
Safety certification: CE, FCC, CCC
Transport safety certification: UN38.3, UN3480, Class 9
Customization: Including voltage, capacity, current, size, appearance, Link Bluetooth, Wifi, etc.
User Manual Description

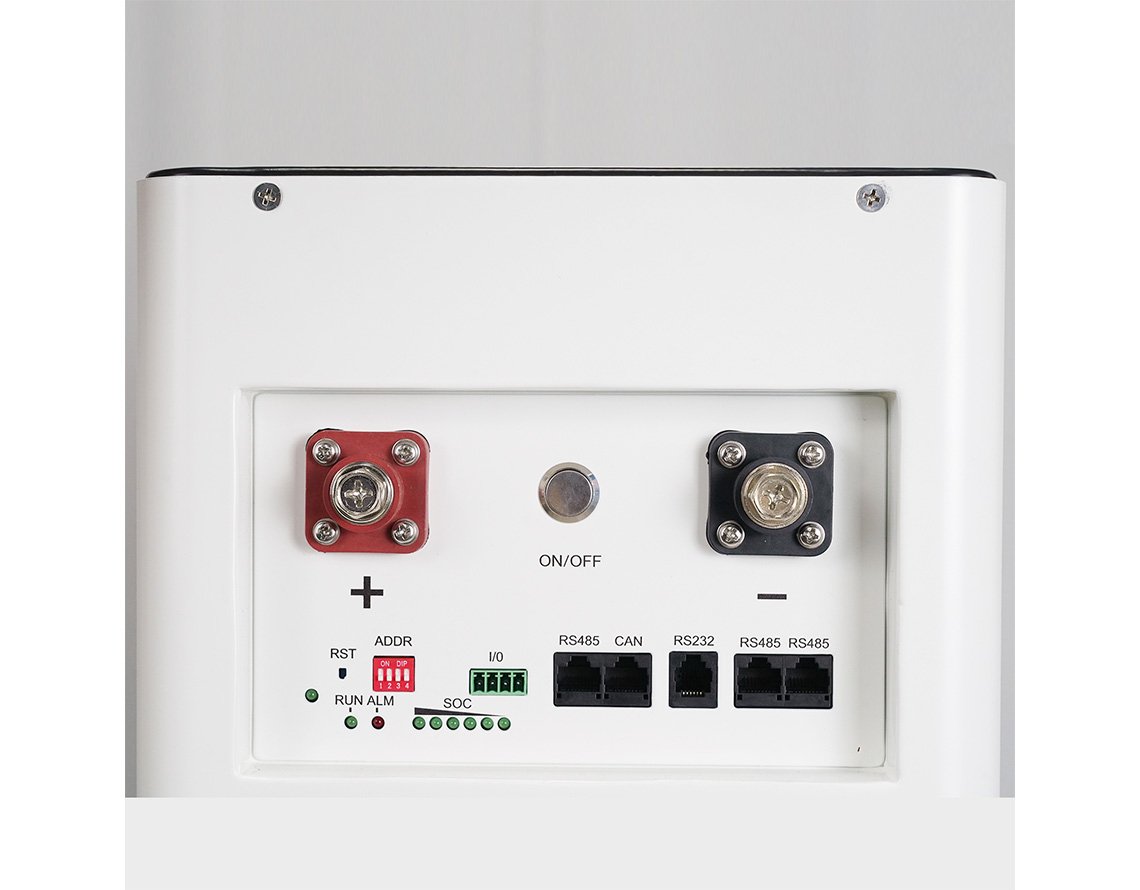

This lithium battery series is the floor standing type with pushable universal wheels added at the bottom, HBOWA uses all new grade A lithium ion phosphate battery cells to produce the home energy storage system for customers all around the world. The 51.2V 280Ah floor standing lithium battery has a long lifespan of 10 years, is convenient to use, and is the top choice for household power storage backup and home solar energy systems. The built-in BMS board makes the battery compatible with more than 30 brands of inverters by CAN and RS485 terminals. The RS232 port enables the connection to a computer for real-time monitoring of battery status and configuring battery data.
HBOWA is an experienced lithium battery manufacturer, our home energy storage system is competitive with the factory price. Now we have cooperated with home battery factories with OEM services, solar battery distributors, contractors, retailers, etc. Welcome to inquiry for a bulk price.
Technical Data
- ELECTRICAL DATA
- MECHANICAL DATA
- TEMPERATURE DATA
| Model | XPE-51280 |
| Nominal voltage | 51.2VDC |
| Voltage range | 43.2-57.6VDC |
| Nominal capacity | 280Ah |
| Rated energy | 14.35kWh |
| Communication protocol | CAN / RS485 /WIFI/Bluetooth |
| Charge and discharge efficiency (0.5C) | 90% |
| Cell self-discharge | <5%/month |
| Max supported number of parallel connections | 15 (215.04kWh) |
| Discharge depth | 90% |

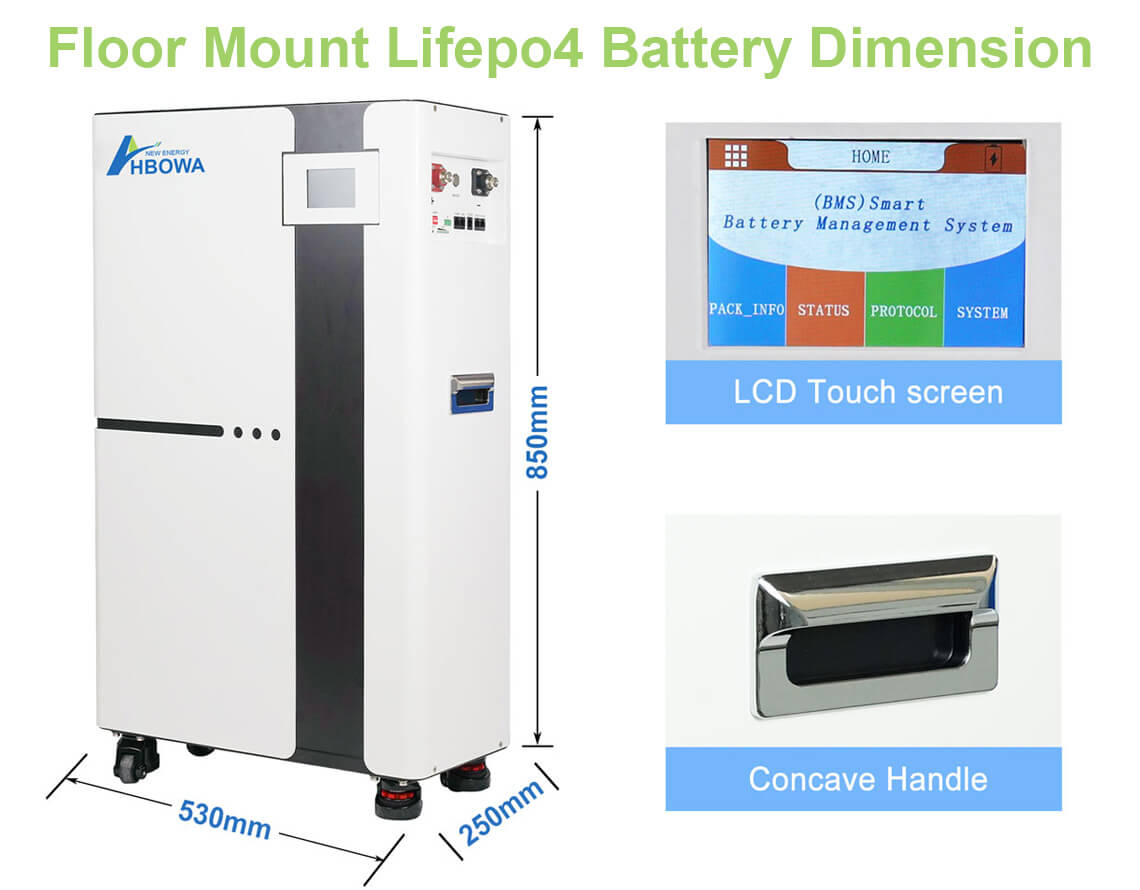

| size | 850*530*250mm |
| weight | 125kg |
| Terminal type | M8 |
| Case material | Industrial Grade Iron |
| Protection level | IP20 |
| Installation | Floor-standing |
| Cell type | LFP |
| Detection temperature | 65±2℃(149±2℉) |
|---|---|
| Charging temperature | 0℃ – 55℃(32℉ – 131℉) |
| Discharge temperature | -20-60℃(-4℉ – 140℉) |
Advantages
51.2V 280Ah Lithium Ion Battery
* House designed, movable, and save space;
* Built-in BMS, RS485/CAN(Bluetooth, WiFi optional);
* Clear LCD display of system working status;
* Support for parallel connection, max capacity: 4200Ah 215.04KWh;
* High energy density grade A battery cells, over 6000 cycles life;
Inverter compatible
The built-in BMS of the floor standing lithium battery support connects with various inverters of different brands, such as PYLON, Luxpowertek, Sorotec, Voltronic, Sunplain, Growatt, WOW, Victron, GoodWe, SofarSolar, GINLONG, DANENG, Sungrow, SMA, Studer, TBB, Deye, Sunsynk, Afore, Sacolar, RENAC, SRNE, Techfine, etc. which are listed in each user manual. For other communication protocols, we also support debugging and OEM matching, if you are not sure about your inverter communication information, feel free to contact us for support.
Floor Mounted Battery Parts List
1. A pair of red and black 0.8 meters parallel positive and negative electrode line 4;
2. 2 meters of inverter communication network cable;
3. 1-meter network line;
4. RS232 BMS communication network cable (optional)
5. User instruction
Floor standing lithium battery *1.
Features
Detailed Show (4)
