JA PERC Mono-facial 530-555W Solar Panel
MOQ: One pallet of 31 pieces
Model: JA JAM72S30
Cell: Mono-11BB
Power Range:530-555W
Glass: Single glass
Certification: CE, TUV, CQC, BIS
Lead Time:7-10 days
Payment: T/T, Credit Card, Paypal, Western Union
Warranty: 25 Years
JA Solar DatasheetDescription
555W MBB half-cell module JAM72S30 530-555/MR series the mono PERC solar module, offers the advantages of higher power output, better temperature-dependent performance, higher stability, and reliability. The maximum efficiency can reach 21.5%. With the power tolerance range between 0 and 5W, the maximum system voltage is 1500VDC, and the maximum series Fuse rating is 25A. We provide a warranty of 25 years for the solar module.
As the official authorized agent of JA solar panels, HBOWA provides you with JA solar panels for all models of grade A type with competitive prices. Our MOQ is one pallet and we provide comprehensive after-sales service, feel free to reach out.
- Mechanical Parameters
- Operating Parameters
| Cell | Mono-11BB |
| Junction Box | IP68, 3 diodes |
| Output Cable | Portrait:300mm(+)/400mm(-); Landscape:1300mm(+)/1300mm(-) |
| Cable Cross Section Size | 4mm2(IEC), 12 AWG(UL) |
| No. of cells | 144(6*24) |
| Weight | 28.1kg |
| Dimension | 2278±2mmx1134±2mmx35±1mm |
| OperationalTemperature | -40°C~+85°C |
| Safety Class | Class II |
| Maximum System Voltage | DC 1000V/1500V |
| Maximum Series Fuse Rating | 25A |
| Nominal Operating Cell Temperature | 45±2°C |
| Fire Performance | UL Type 1 |

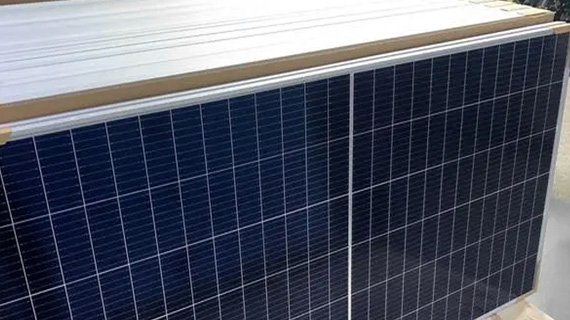

JA PERC Solar Panel
Assembled with 11BB PREC cells and half-cell configuration, these solar modules offer the advantages of higher power output, lower temperature coefficient, and less shading loss, as well as enhanced tolerance for mechanical loading.
