Introduction
Understanding the voltage of lithium-ion batteries is crucial to maximizing their performance, safety, and lifespan in consumer electronics, electric vehicles, and renewable energy applications. Voltage is an important parameter to consider when purchasing new batteries because it affects the performance and compatibility of batteries over the period.
The voltage determines the capacity of the battery such as how much potential a battery will hold before it is discharged. Voltage also tells you the state of charge (SoC) of the battery and indicates when to recharge the battery or avoid over-discharging.
This article discusses the details of lithium-ion batteries’ voltage and their characteristics to help you make an informed decision when choosing a battery to improve performance in your next application.
Basic Parameter of Lithium-Ion Battery Voltage: Nominal Voltage
The most important key parameter you should know in lithium-ion batteries is the nominal voltage. The standard operating voltage of the lithium-ion battery system is called the nominal voltage. For lithium-ion batteries, the nominal voltage is approximately 3.7-volt per cell which is the average voltage during the discharge cycle. The average nominal voltage also means a balance between energy capacity and performance.
Additionally, the voltage of lithium-ion battery systems may differ slightly due to variations in the specific chemistry. For example, the nominal voltage of LiFePO4 batteries (a lithium-based popular alternative) is 3.2V per cell which is significantly lower than Litium-ion batteries’ average voltage (3.7V). However, the cycle life of LiFePO4 is exceptional, and this chemical provides a good life due to the stable thermal nature of its chemical composition.
When comparing lithium-ion with other lithium-based chemistry, it becomes evident that these minuscule changes in voltage can significantly change their operations. For devices requiring compact designs and high energy densities, lithium-ion batteries with a higher nominal voltage of lithium-ion are used. For applications requiring low energy densities and higher safety along with long cycles, LiFePO4 cells with a slightly lower nominal voltage are thus used frequently.
Lithium-Ion Battery Voltage Range and Characteristics
Lithium ion battery voltage range is one of the key parameters which decides the lithium ion battery performance and its safe limits. Lithium-ion batteries function within a certain range at which their voltage operates optimally and safely.
The highest range where the fully charged voltage of a lithium-ion battery is approximately 4.2V per cell. The lowest range which is the minimum safe voltage for lithium-ion batteries is approximately 3.0V per cell. Staying within this range is quite critical because exceeding this range might lead to the chances of batteries getting permanently damaged. Moreover, anything downwards or upwards of this range can lead to decreased life or safety problems like overheating. Thus, in order to achieve a long battery lifespan and safer use, it is also crucial to understand the process and characteristics of these voltage limits.
The voltage of a lithium-ion battery system always fluctuates during charging or discharging. If you see the voltage during charge or discharge cycles, you will notice that the voltage remains constant initially and then varies over time.
In the discharge cycle, initially, the voltage will be 4.2V. When we continue to utilize the battery, the voltage may drop to the nominal rate of 3.7V. When used more, the voltage could drop to 3.0V and will eventually reach the cell’s limits. Throughout charging, the opposite will happen. The voltage of the cell will start to rise after a threshold.
When comparing the various lithium-ion voltage ranges, you should make sure to take note of its utilization. Conventional lithium-ion cells are efficient in their range of 3.0–4.2 V and are perfect for portable electronics and electric vehicles. Other chemistries like LiFePO4 have a narrow, less fluctuating range of 2.5V and 2.65V and therefore play an important role in the applications and tasks that prioritize constant voltage and enhanced safety. The lithium ion battery voltage range is a distinguishing property of the battery performance. Sticking to the perfect voltage limits means that the energy delivery is efficient, longer cycle life, and has minimum risk factors.
Voltage Charts and State of Charge (SoC)
The logical correlation between voltage and the state of battery charge level is visually reflected on the lithium-ion voltage chart. Most users generally refer to a lithium-ion voltage chart to have a clearer understanding of the voltage change based on the cell’s different levels of SoC (state of charge). Thus, it is crucial to understand this relationship and make the best use of your battery using the details explained in the battery SoC voltage chart.
The SoC voltage chart for lithium batteries shows the voltage values with respect to SoC percentage.
| State of Charge (SoC) (%) | Voltage (V) |
| 100% | 4.2V |
| 50% | 3.7V |
| 0% | 3.0V |
A Li-ion cell when fully charged at 100%SoC can have nearly 4.2V. As it starts to discharge itself, the voltage decreases, and the voltage remains to be 3.7V when the battery is at half charge, ie, 50%SoC. One can calculate the battery is to be discharged based on the voltage when the SoC is 0%. The voltage of a cell, in this case, is 3.0V.
For the battery system having multiple cells, we have the same relationship. Let’s say, the battery system with different cells, 12V, 24V, or 48V, its battery voltage value is based on aggregated values of all the cells connected in series.
The use of this chart helps the battery consumers to analyze the remaining energy capacity and the real-time voltage levels corresponding to the charge degree. With this information, users can monitor the battery systems and adjust battery system in accordance with efficiency, longevity, and safety.
LiFePO4 Voltage Characteristics
The LiFePO4 batteries are lithium-ion batteries with strong voltage characteristics. The nominal voltage of LiFePO4 is pretty stable. The fully charged voltage of a LiFePO4 battery is about 3.65-3.80V per cell, and the minimum safe voltage of a LiFePO4 battery is approximately 2.5V.
One of the impressive features of LiFePO4 batteries is that it normally shows a flat voltage value when it is close to a zero discharge rate. Also, its voltage remains relatively stable or gradual lower value throughout the process of charging and discharging cycles. Due to the stability of the voltage range, LiFePO4 is often continued to be used in green energy and off-grid oriented setups.
LiFePO4 State of Charge (SoC) chart shows voltage and SoC relation. The LiFePO4 battery practically outweighs a traditional lithium-ion battery in terms of its voltage performance on a different SoC. At 50%SoC, the voltage is held constant and near the nominal or higher volts per cell for LiFePO4 whereas a standard lithium-ion battery’s voltage performance is usually lower than its nominal value.
A multi-cell battery’s voltage of LiFePO4 simply scales up as per the number of cells. For instance, LiFePO4 12 voltage chart means four cells are connected in a series. The fully charged voltage of a 12V LiFePO4 battery is approximately 14.6 volts, whereas a fully discharged voltage is around 10 volts. Similarly, A 48V LiFePO4 battery’s voltage chart can also behave the same way. The fully charged voltage is around 58.4 volts, and the fully discharged voltage is around 40 volts. This voltage trend becomes useful when you want real-time data regarding the battery’s status.
Considering these key factors – a predictable behavior, long life, and safety – LiFePO4-based batteries are therefore a strong alternative to the standard lithium-ion batteries. This makes battery management methods more straightforward, making LiFePO4 batteries a reliable source of power for extreme applications.
Practical Applications of Lithium Battery Voltage
The understanding of lithium-ion battery voltage is important for the optimal performance of various practical applications such as:
- Renewable energy systems
- Electric vehicles (EVs)
- Consumer electronics
Also, learning the voltage characteristics of each of these important applications can provide you with some practical knowledge on how to achieve the efficiency, longer life, and safety of lithium-ion batteries.
Solar Energy System:

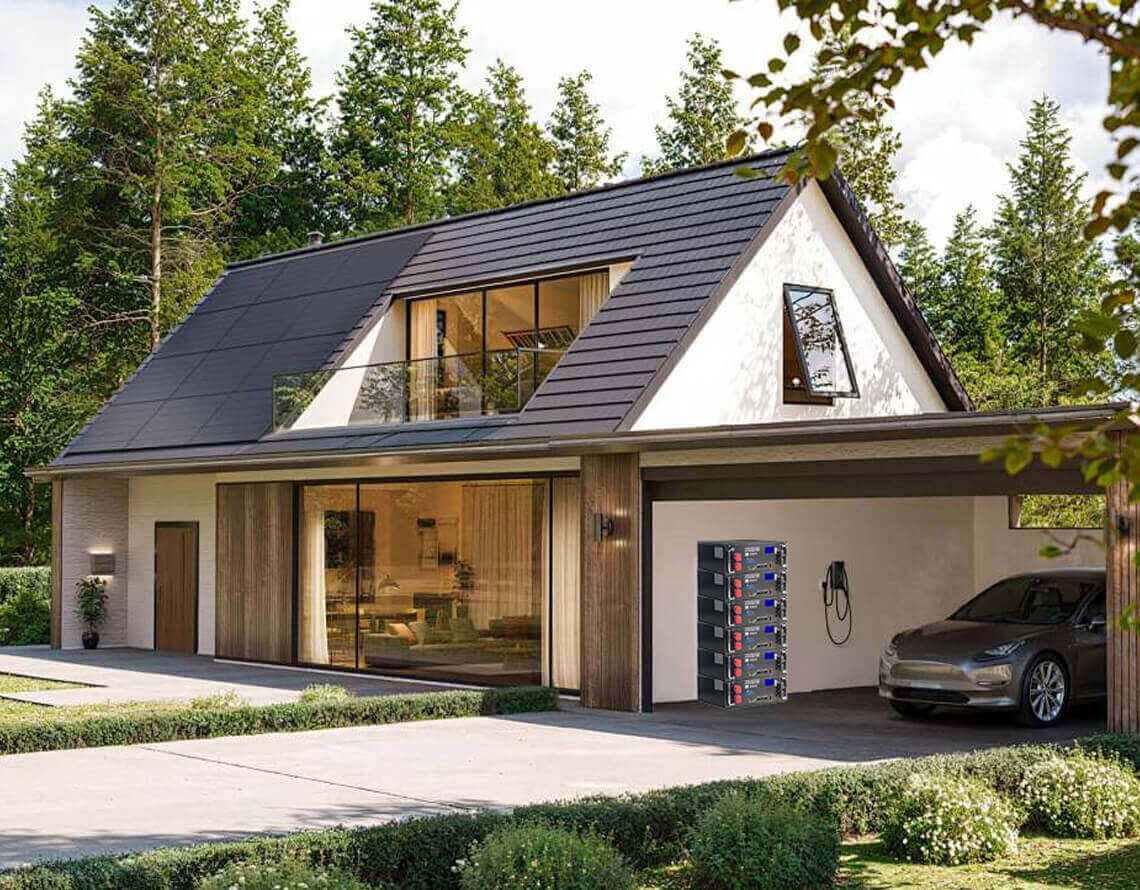

Lithium-ion batteries are quite popular for energy storage in solar energy systems, which include off grid solar system and hybrid solar system. A 12V 100Ah fully charged lithium ion battery reaches an approximate voltage between 12.6 to 12.8 volts. The standard 12V lithium-ion battery voltage allows the system to provide a regular supply of energy to household appliances or any other type of devices to which it is connected. For these systems to operate seamlessly, accurate monitoring of the voltage is essential. It deteriorates beyond a certain limit. For example, for a 12V battery, the minimum voltage of a Li-ion battery is typically 10.5 volts. When such a battery exhibits a low voltage level, damages occur by causing the system’s life to be shortened.
Electrical Vehicles (EVs)
For EVs, the lithium battery voltage must be at its maximum value after it is fully charged. In this state, the vehicle can get its highest range and performance. The voltage of the battery defines the range of an EV. When an electric vehicle shows a voltage exceeding a certain upper limit because it is charged too much, it starts to show signs of overheating. Overcharging of the battery can also result in the cycle life of the battery to wear out quickly.
For an EV, the voltage of the battery cannot drop below the value such that only 10% of the total power is consumed. The consequences of dropping the voltage lower than the EV manufacturer’s lowest possible limit lead to power loss and permanent destruction of the battery cells. Modern EVs have BMS a.k.a battery management systems to decide when to maintain or raise the voltage and when to charge the cells and regulate the voltage levels appropriately and safely.
| Application | Voltage Range | Critical Considerations | Safety Measures |
| Solar Energy System | 12.6V-10.5V | Consistent output for appliances, Prevention of over-discharge | ● Voltage monitoring systems
● Low voltage disconnect |
| Electrical Vehicles (EVs) | 400V-800V (Pack) | Range optimization, Performance efficiency | ● Battery Management System (BMS)
● Temperature monitoring |
| Consumers Electronics | 4.2V-3.0V | Operational time, Device performance | ● Automatic cutoff systems
● Charge controllers |
Consumers Electronics
In consumer electronics like laptops and smartphones, the size of lithium-ion battery voltage defines the time of operation between two charges. When the starting voltage (in a single lithium-ion cell) reaches close to 4.2 volts, then the battery is fully charged. If it discharges under a voltage of 3.0 volts, its life deteriorates automatically and also loses its capacity to support the device’s functions. Most devices have a battery that power supply cutoff system in them. They cannot supply any power when the battery reaches the voltage value closest to its minimum safe level.
Comparing Different Voltage Profiles
It is essential to understand voltage profiles of lithium-based chemistries to understand how they perform, how long they would last and their compatibility with the applications. Voltage profile is a parameter that impacts the efficiency, capacity, and charge/discharging rates of a battery. LiFePO4 batteries have the highest stability and hence are ideal to be used for safety-critical and consistent performance-critical applications. On the other hand, Li-ion batteries have the lowest voltage profile and hence provide a higher energy density.
The lithium ion battery voltage profile is very different from other types of lithium-based batteries such as LiFePO4 battery and Li-ion batteries. This is due to the difference in chemical structure and voltage characteristics.
We will see in this section how the voltage profiles influence the performance of the different types of batteries, their lifespan, and many other operational factors.
| Characteristic | Li-ion | LiFePO4 | LiPo |
| Nominal Voltage | 3.6V – 3.7V | 3.65V | 3.7V |
| Fully Charged Voltage | 4.2V | 3.65V | 4.2V |
| Safe Minimum Voltage | 3.0V | 2.5V per cell | 3.0V |
| Damage Threshold | Below 2.5V | 2.0V | Below 2.5V |
| Voltage Profile | Gradual decrease with sharp drop near end | Flat/stable throughout discharge cycle | Irregular discharge curve |
| Key Advantages | Higher energy density | – Stable voltage output
– Enhanced safety – Longer lifespan |
Similar to Li-ion |
| Primary Applications | – Consumer electronics
– Electric vehicles |
– Solar energy systems
– Applications requiring stable power output |
High-demand applications |
| Performance Characteristics | Requires careful management to avoid deep discharges | Consistent performance with reduced battery stress | Less stable performance compared to LiFePO4 |
As per the table above, for Li-ion batteries, the usual nominal voltage is approximately 3.6V to 3.7V per cell and the fully charged voltage should be around 4.2V. The voltage of the lithium ion battery drops gradually as it discharges, with a steep drop in voltage only towards the end. This rapid drop in voltage towards the end of the discharge cycle is the reason why Li-ion batteries need to be managed carefully to avoid deep discharges that can reduce their cycle life.
A LiFePO4 (Lithium Iron Phosphate) battery has a significantly different voltage curve than other batteries. In fact, the LiFePO4 cell voltage is flat for most of its discharge cycle, which means that the voltage profile is much more stable than a Li-ion battery. Therefore, a LiFePO4 battery provides a more consistent performance with less voltage fluctuation. This flat battery voltage curve of a LiFePO4 will be beneficial for applications that require stable output, such as solar energy systems.
Conclusion
Lithium ion battery voltage is crucial for gadgets such as electronics, EVs, and renewable energy systems. Proper voltage management improves performance, safety, and battery life. Learning the essence of nominal voltage, charging limits, and voltage ranges helps the user maintain and use batteries effectively.
Since a lithium battery voltage chart provides a clear guide on the relation of voltage to state of charge (SoC), it thus prevents overcharge and undercharge situations. Therefore, it suggests that adhering to the limits recommended by the manufacturer and using a battery management system (BMS) are important for the safety and efficiency of the battery.
By managing the Lithium ion battery voltage the right way, users can increase their battery life and enhance their performance while avoid making costly mistakes.

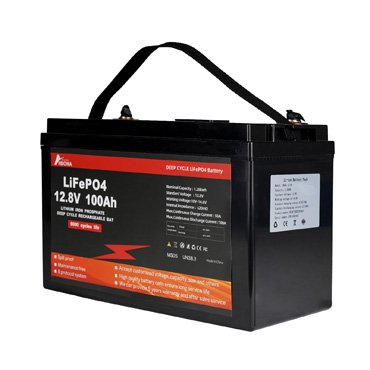

As a professional lithium battery manufacturer in China, we offer lifepo4 batteries with different voltages, such as
