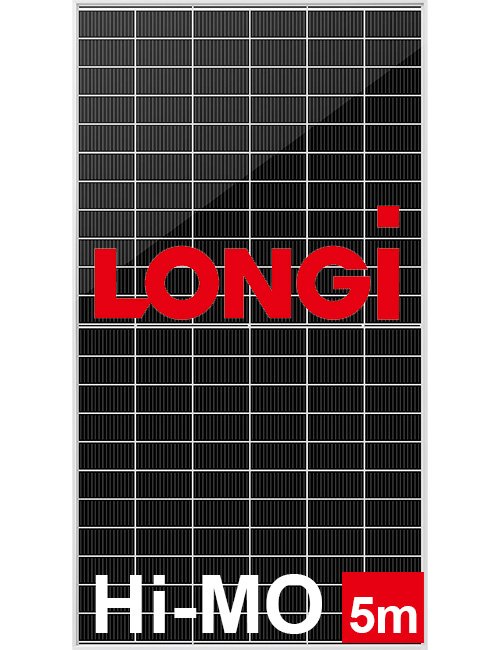

Longi LR5-72HPH 545-565W Solar Panel
Model: Longi LR5-72HPH
Cell Orientation: 144(6*24) cells
Power Range:545-565W
Glass: Single glass
Certification: CE, TUV, CQC, BIS
Lead Time:7-10 days
Payment: T/T, Credit Card, Paypal, Western Union
Warranty: 25 Years
Description
As the official authorized agent of Longi solar panels, HBOWA provides you with Longi solar panels for all models of grade A type with competitive prices. The string of numbers on the back of each solar panel is the barcode of the product, you can check and identify it on the authenticity page of the Longi official website. The warranty of each panel is 25 to 30 years. Our MOQ is one pallet and we provide comprehensive after-sales service, feel free to reach out.
- Mechanical Parameters
- Operating Parameters
| Cell Orientation | 144(6*24) |
| Junction Box | IP68, three diodes |
| Output Cable | 4mm2,+400,-200mm/±1400mmlength can be customized |
| Glass | Single glass, 3.2mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Weight | 27.5kg |
| Dimension | 2278x1134x35mm |
| Packaging | 31pcs per pallet/155pcs per 20’GP/620pcs per 40’HC |
| OperationalTemperature | -40°C~+85°C |
| Power Output Tolerance | 0~3% |
| Maximum System Voltage | DC1500V (IEC/UL) |
| Maximum Series Fuse Rating | 25A |
| Nominal Operating Cell Temperature | 45±2°C |
| Protection Class | Class II |
| Fire Rating | UL type 1 or 2 IEC Class C |
Longi A Type Solar Panel
Longi single glass solar panel based on M10 wafer is the best choice for ultra-large power plants, advanced 9-busbar half-cut cell module technology delivers superior module efficiency, high module quality ensures long-term reliability.
Delivery
Each solar panel will be packaged well into the wood pallet box. We support door-to-door delivery service, taking care of custom clearness for you. Before, during, and after shipment, we will closely track the status of the goods and give you feedback as soon as possible. Just sit back and relax while we handle these for you.
