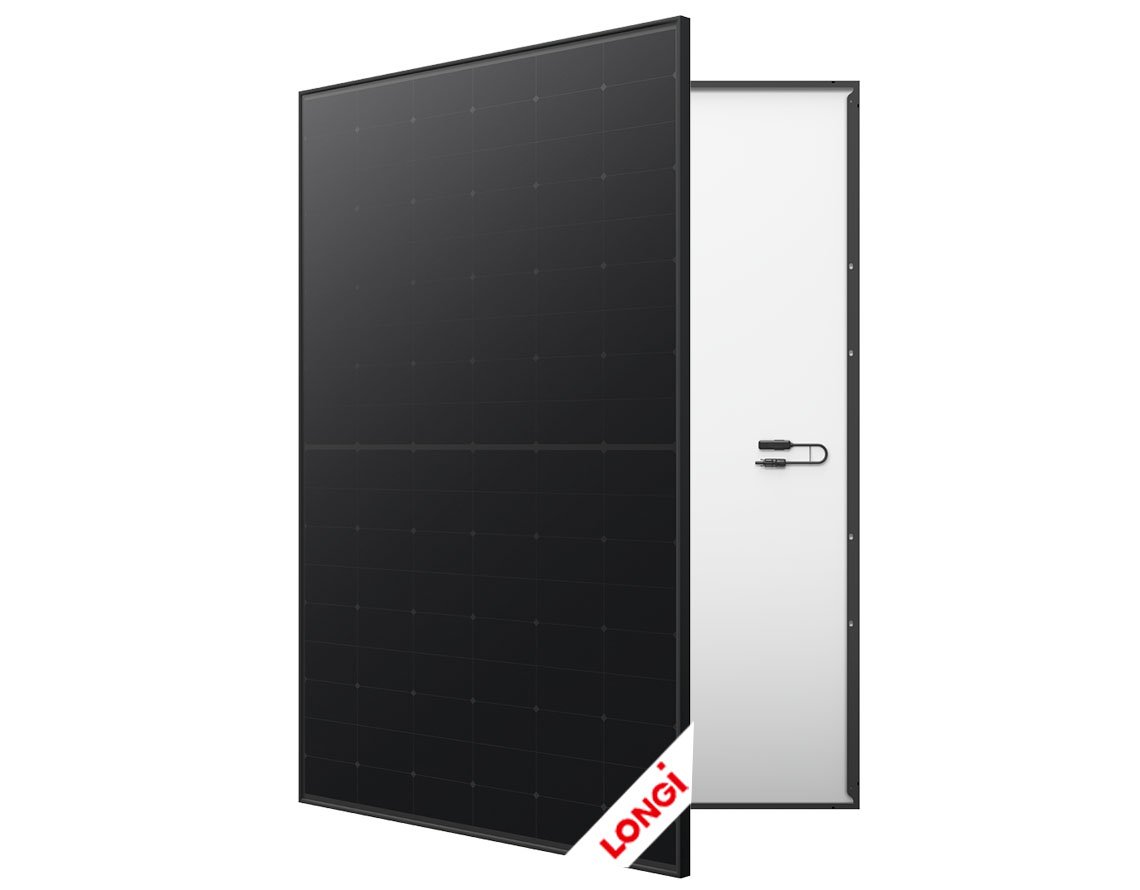

Longi LR5-72HTH 565-585W Solar Panel
MOQ: One pallet of 36 pieces
Name: Longi LR5-72HTH Solar Panel
Cell Orientation: 144(6*24) cells
Power Range:565-585W
Glass: Single glass
Certification: CE, TUV, CQC, BIS
Payment: T/T, Credit Card, Paypal, Western Union
Warranty: 25 Years
Longi Solar DatasheetDescription
As the official authorized agent of Longi solar panels, HBOWA provides you with Longi solar panels for all models of grade A type with competitive prices. The warranty of this solar panel is 25 years with high efficiency. And the module efficiency of the 585w solar panel can be up to 22.6%. The operational temperate is between -40°C and +85°C. The protection class is Class II. We have comprehensive certificates like TUV, CE, etc. to support exporting successfully to places all over the world. You can go to Longi after-sales service site for for after-sales services at your place. Our MOQ is one pallet and we provide comprehensive after-sales service, feel free to reach out.
- Mechanical Parameters
- Operating Parameters
| Cell Orientation | 144(6*24) |
| Junction Box | IP68 |
| Output Cable | 4mm2,+400,-200mm/±1400mmlength can be customized |
| Glass | Single glass, 3.2mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Weight | 27.2kg |
| Dimension | 2278x1134x30mm |
| Packaging | 36 pcs per pallet/180pcs per 20’GP/720pcs per 40’HC |
| OperationalTemperature | -40°C~+85°C |
| Power Output Tolerance | 0~3% |
| Maximum System Voltage | DC1500V (IEC/UL) |
| Maximum Series Fuse Rating | 25A |
| Nominal Operating Cell Temperature | 45±2°C |
| Protection Class | Class II |
| Fire Rating | UL type 1 or 2 IEC Class C |

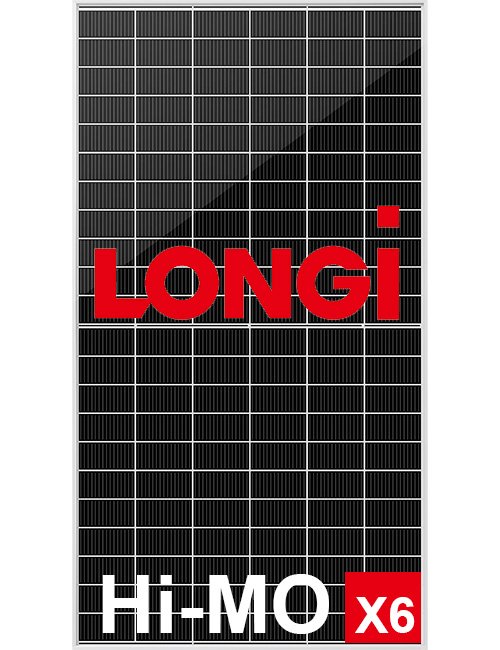

Longi A Type Solar Panel
Longi single glass solar panel hi-mo x6 explore 565W-585W is suitable for the distribution market with simple design, better energy generation performance, and high module quality ensures long-term reliability.
Delivery
Each solar panel will be packaged well into the wood pallet box. We support door-to-door delivery service, taking care of custom clearness for you. Before, during, and after shipment, we will closely track the status of the goods and give you feedback as soon as possible. Just sit back and relax while we handle these for you.
