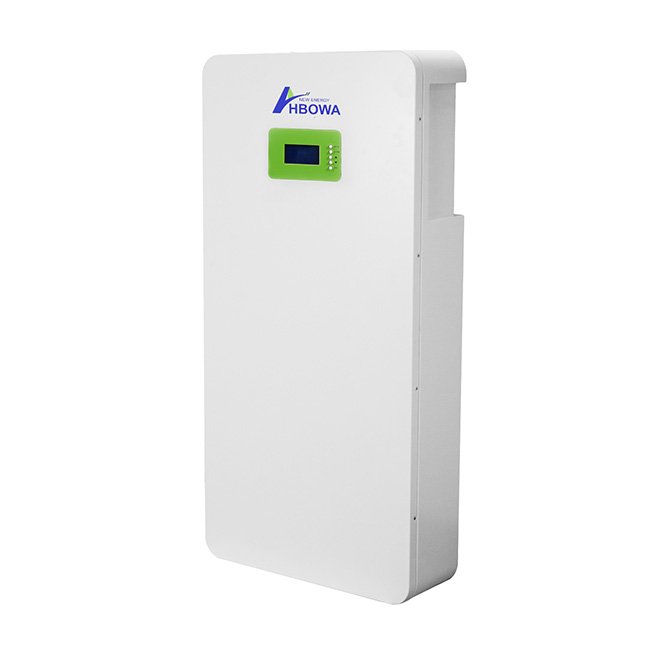

Powerwall Lifepo4 Battery 25.6V 200Ah
Name: Powerwall battery 25.6V 200Ah
Cycle Life: More than 6000 times (@25℃ 80% DOD)
Max Charge and Discharge Current: 100A
Warranty: 5 years, 10 years(Customization)
Certification: CE, FCC, CCC, UN38.3, UN3480, Class 9
Customization: size, appearance, Link Bluetooth, Wifi, etc.
Dimension: 680mm*495mm*280mm
Gross Weight:56kg
Place of origin: China
User InstructionDescription
Powerwall Lifepo4 Battery
- Technical Data
| Model | XPB-25.6200 |
| Capacity | 200Ah |
| Voltage | 25.6V |
| Charging Voltage | 28.8V |
| MAX Charge/Discharge Current | 100A |
| Nominal Energy | 5.12KWh |
| Available Energy | 4.6KWh |
| Cycle Life | Over 6000 times |
| Depth of Discharge | 90% |
| Parallel: | Max 15 in Parallel to 76.8KWh |
| Detection temperature | 65±2℃(149±2℉) |
| Operating Charge Temperature | 0℃ – 55℃(32℉ – 131℉) |
| Operating Discharge Temperature | -20℃ – 55℃(-4℉ – 131℉) |
| Cooling Way | air cooling |
| Waterproof level | IP20(IP54 available) |
| Life Span | 10 years |
| Communication Port | RS485, RS232, CAN, WIFI, Blue Tooth |
| Certificates | CE, FCC, CCC, UN38.3, UN3480, Class9,MSDS |
| Product Size | 590*405*160mm |
| Package Size | 680*495*280mm |
| Net Weight | 47kg |
| Gross Weight | 56kg |
Advantages
Powerwall Lifepo4 Battery
* Uninterrupted Power Backup: As a solar energy storage battery, it can storage power from solar panels, and utility grids, and supply your home appliance as a backup.
* Cost saving: During off-peak hours, charge the battery, and during peak hours, discharge the battery to supply power for household use, which can help you save on electricity bills.
* Powerwall Installation; The installation of the powerwall battery is easy, just install the lifepo4 battery on the wall, and it will not occupy your floor place;
* Warranty: 5 years warranty, 10 years warranty optional.
Inside the Powerwall Battery
* HBOWA powerwall battery 5.12KWh includes 16 prismatic lithium iron phosphate battery cells with built in BMS.
* The BMS has communication function, making the battery compatible with most brand inverters in the energy storage battery market.
* Powerwall batteries support 15 in parallel to expand the capacity to various types, from 5.12kwh to 76.8kwh.
* The powerwall battery has an LCD screen that you can view the battery data such as voltage, current, capacity, SOC, etc.
* Support Bluetooth/Wifi function to remote control the battery through your mobile phone.
For Your House Appliances
Powerwall lifepo4 batteries are designed for household energy storage systems, they can supply power to loads such as refrigerators, washing machines, TVs, ovens, lights, and so on of your house. Each of our wall mounted battery is 5.12KWh, and supports battery units in parallel, supporting a maximum of 15 to 76.8KWh, you can choose these batteries according to your daily power consumption.
Powerwall Battery Features
HBOWA Wall Mounted Battery
