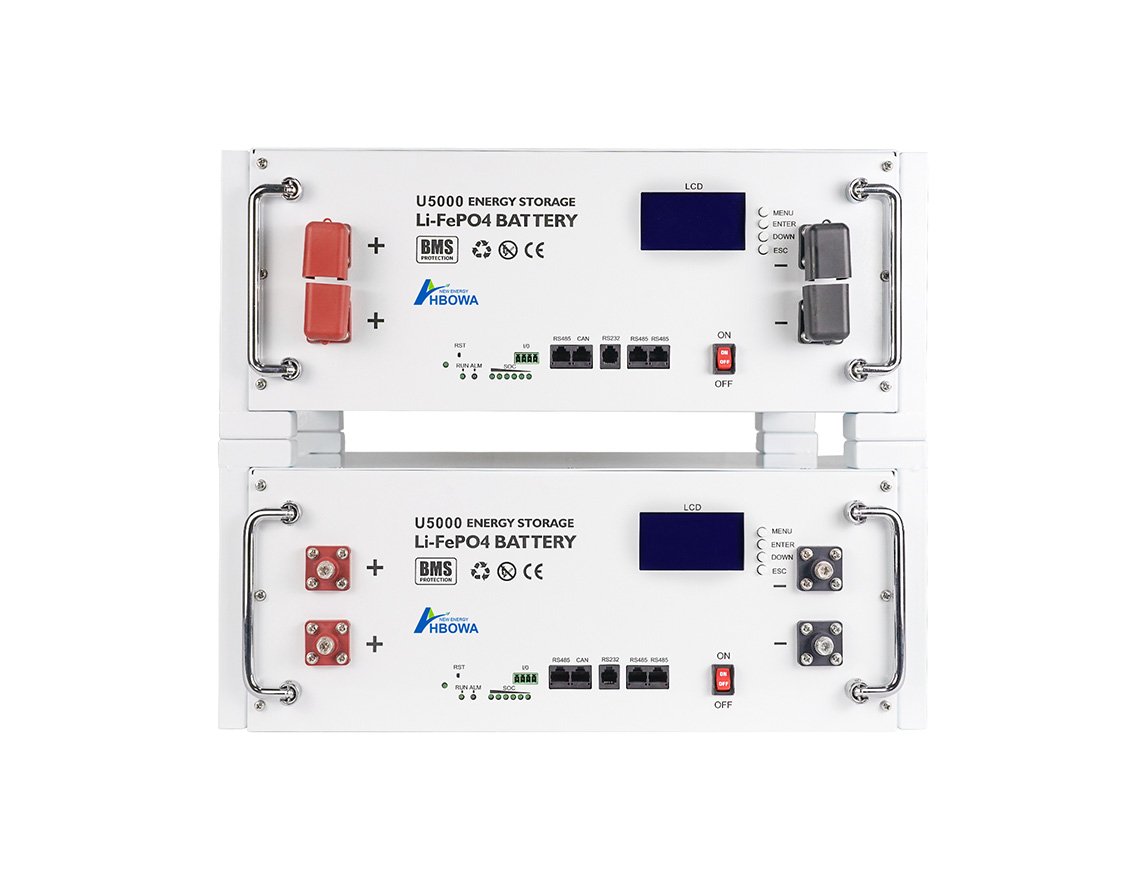

Server Rack Lithium Battery 51.2V 100Ah
Name: 51.2V 100ah Lifepo4 Battery
Cycle Life: Over 6000 times @ 25℃, 80% DOD
Max Charge and Discharge Current: 100A
Warranty: 5 years, 10 years(Customization)
Max Parallel: Max 15 in Parallel to 1500Ah 76.8KWh
Certifications: CE, FCC, CCC, UN38.3, UN3480, Class 9
Dimension: 545mm*510mm*300mm
Gross Weight:49kg
Place of origin: China
User Instruction51.2V 100ah Lifepo4 Battery
The server rack batteries feature over 6000 times cycle life as the batteries’ materials are lithium iron phosphate battery cells. HBOWA provides white and black colors for your convenience. Each lifepo4 battery pack has options of 100ah, 200ah, 280ah, and 300ah capacities. With wifi or Bluetooth functions, end users can check and monitor the 100ah lifepo4 battery data via the phone app. Designed for space-saving installation in server racks, the batteries are easy to install and connect in parallel to the capacity that you need, supporting a maximum of 15 units for parallel connection to reach 76.8Kwh, offering versatility, excellent ventilation, and high safety performance. They are suitable for household off-grid solar systems, energy storage backups, databases, schools, hospitals, etc.
Server Rack Lithium Battery 100Ah
- Technical Data
- Model Available
| Model | XPA-51100 |
| Capacity | 100Ah |
| Voltage | 51.2V |
| Charging Voltage | 57.6V |
| MAX Charge/Discharge Current | 100A |
| Nominal Energy | 5.12KWh |
| Available Energy | 4.6KWh |
| Cycle Life | 6000 times |
| Parallel: | Max 15 in Parallel to 1500Ah 76.8KWh |
| Cooling Way | air cooling |
| Waterproof level | IP20 |
| Life Span | 10 years |
| Communication Port | RS485, RS232, CAN, WIFI, Blue Tooth |
| Certificates | CE, FCC, CCC, UN38.3, UN3480, Class9 |
| Detection temperature | 65±2℃(149±2℉) |
| Operating Charge Temperature | 0℃ – 55℃(32℉ – 131℉) |
| Operating Discharge Temperature | -20℃ – 55℃(-4℉ – 131℉) |
| Product Size | 425*484*176.5mm |
| Package Size | 545*510*300mm |
| Net Weight | 41kg |
| Gross Weight | 49kg |
| Model | Dimension | Packaging Size | Net Weight | Gross Weight |
| XPA-48V50AH | 484*410*88.5 | 545*430*285 | 24.5kg | 33kg |
| XPA-25.6V100AH | 484*330*176.5 | 545*430*300 | 22kg | 30kg |
| XPA-48V100AH | 484*425*176.5 | 545*510*300 | 41kg | 49kg |
| XPA-51.2V100AH | 484*425*176.5 | 545*510*300 | 41kg | 49kg |
| XPA-48V 150AH | 680*440*178 | 545*770*400 | 65kg | 82kg |
| XPA-51.2V 150AH | 680*440*178 | 545*770*400 | 65kg | 82kg |
| XPA-48V200AH | 773*560*165 | 900*620*385 | 85kg | 102kg |
| XPA-51.2V200AH | 773*560*165 | 900*620*385 | 85kg | 102kg |
| XPA-51.2V280AH | 484*750*240 | 547*875*450 | 106kg | 123kg |
Advantages
Overview of Rack Battery
- Longer cycle times of over 6000
- BMS comprehensive protection system
- Higher power and energy density
- Wide working temperature range
- Lifepo4 Battery has no memory effect
51.2V 100ah Lifepo4 Battery
- LCD Display battery data
- lifepo4 battery, lead acid replacement
- compact light design, easy to install
- Maintenance-free, water-proof, IP20
- Max 15 units lifepo4 battery in parallel
- Can, RS485, RS232 Port Communication
- Compatible with various brand inverters

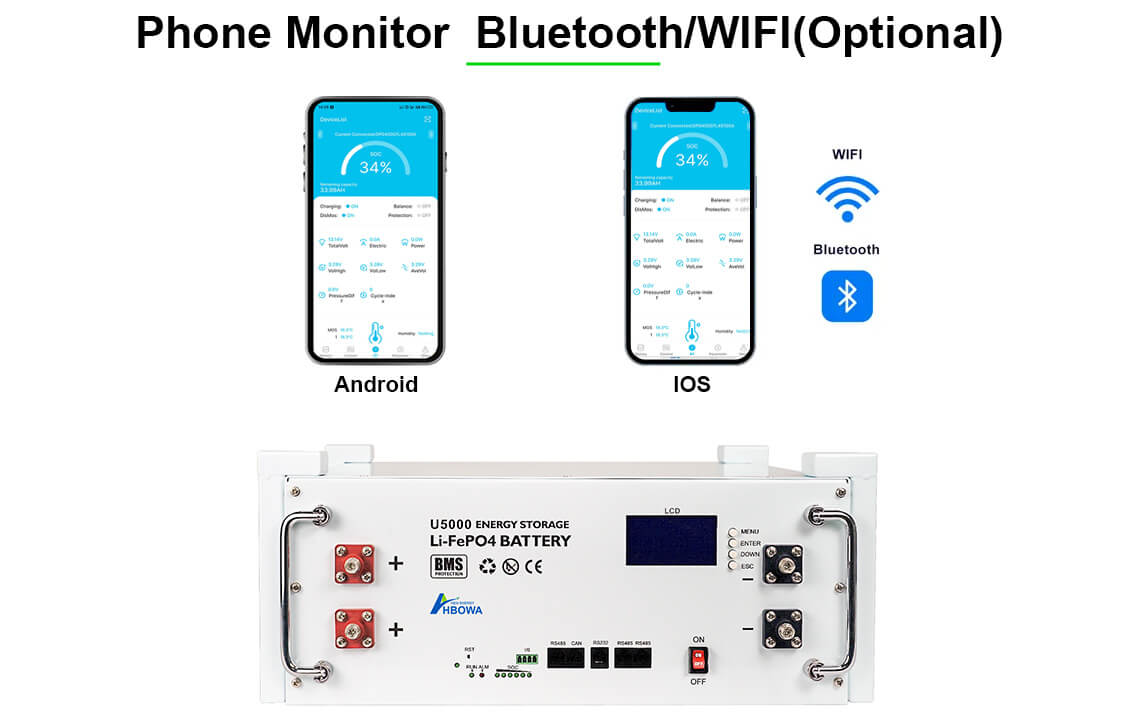

- Wifi, Bluetooth function managing data by APP
- 5 years warranty, 10 years warranty optional
Smart BMS Protection
- Over charge protection function
- Over discharge protection function
- Over current protection function
- Short protection function
- Over temperature protection function
- Automatic cell balance function
- Cell balance function
Packaging List
1. A pair of red and black 0.22 meters parallel positive and negative electrode line 6
2. 2 meters of inverter communication network cable
3. 0.3 meters network line
4. 1.5 meters grounding yellow and green line 12
5. RS232 BMS communication network cable (optional)
6. User instruction
server rack mount lithium battery * 1
Features
Wide Application Scenarios (6)
Download Center
Related Product (7)
1. Battery Leakage
If the battery pack leaks electrolyte, avoid contact with the leaking liquid or gas. If one is exposed to the leaked substance, immediately perform the actions described below.
1)Inhalation: Evacuate contaminated area and seek medical aid.
2)Contact with eyes: Rinse eyes with flowing water for 15 minutes and seek medical aid.
3)Contact with skin: Wash the affected area thoroughly with soap water and seek medical aid. Ingestion: Induce vomiting and seek medical aid.
2. On Fire
NO WATER!
Only the dry powder fire or carbon dioxide extinguisher can be used; if possible, move the battery
module to a safe area before it catches fire.
3. Wet Batteries
If the module is wet or submerged in water, do not let people access it, then contact us or an
authorized dealer for technical support. Cut off all power switches on the inverter side.
4. Damaged Batteries
Damaged batteries are dangerous and must be handled with utmost care. They are not fit for
use and may pose a danger to people or property. If the module seems to be damaged, pack it
in its original container, then return it to the authorized dealers.
It is required to charge the battery at least once every 6 months, for this charge maintenance, make sure the SOC is charged to higher than 85%.
Check the installation environment such as dust, water, insects,s, etc. Make sure it is suitable for the IP20 battery system. The connection of the power connector, grounding point, power cable, and screws are suggested to be checked every year.
