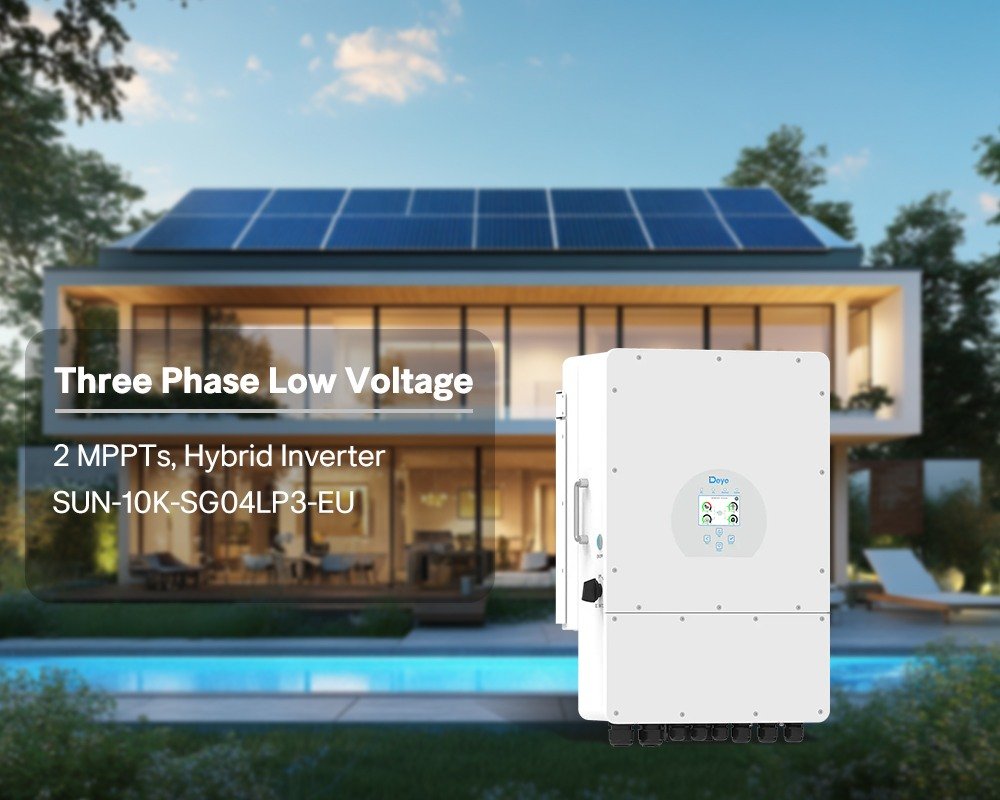

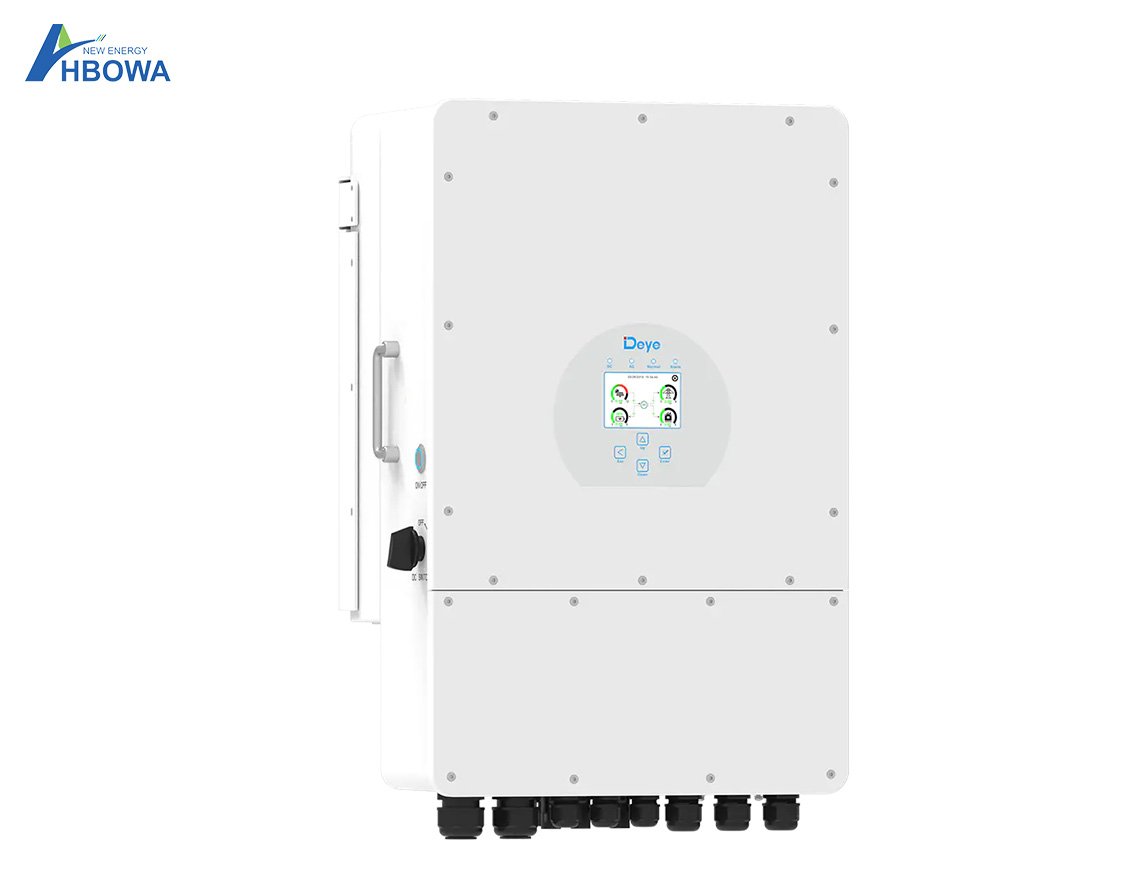

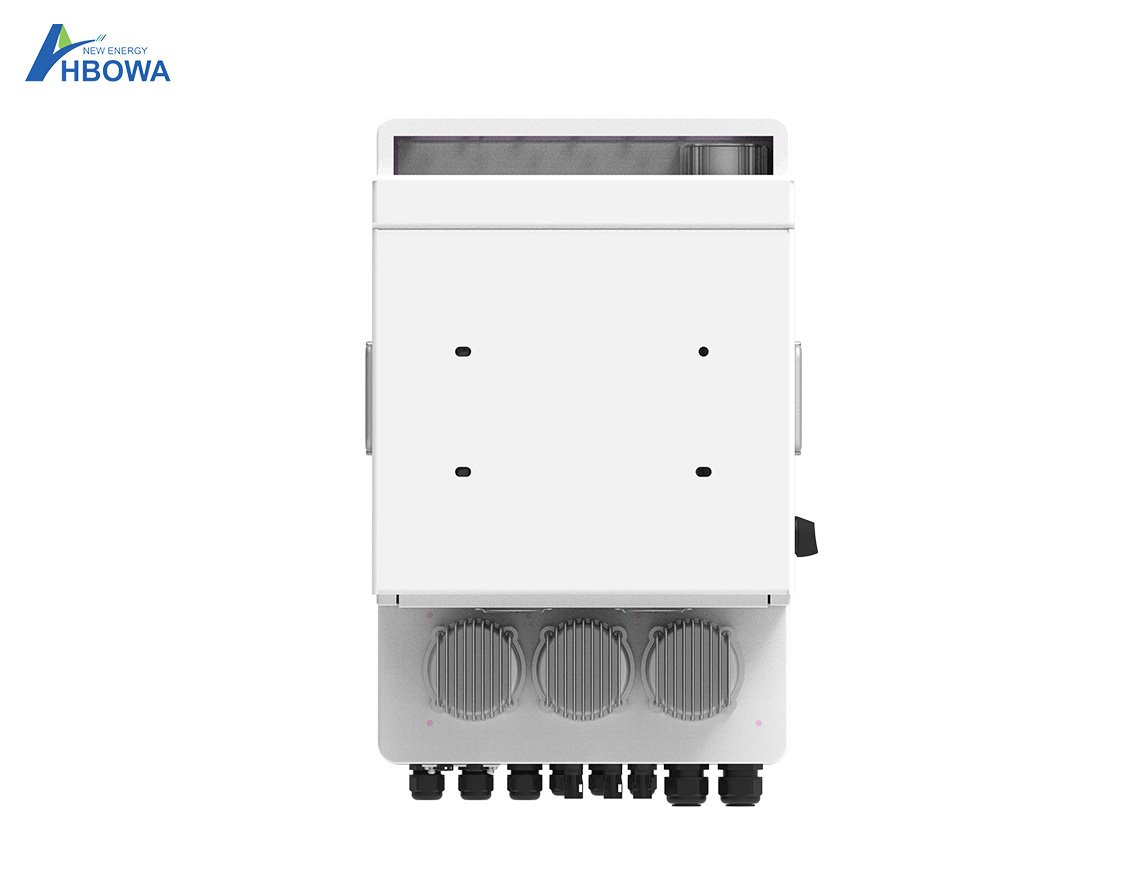

SUN-10K-SG04LP3-EU Deye Hybrid Three Phase Inverter
Model Number: 10KW SUN-10K-SG04LP3-EU
Number of MPPT Tracker: 2 MPPTs
Output Voltage: 220/380V, 50/60Hz
Battery Voltage Range: 40-60V
Max Charging/Discharging Current: 210A
Inverter Efficiency: 97.6%
Warranty: 5 years (10 years optional)
Place of Origin: China
Inverter DatasheetDescription
Deye SUN-10K-SG04LP3-EU series hybrid solar inverters are efficient, flexible, durable, and smart, they are suitable for residential and commercial power systems, and now have been sold to more than 50 countries around the world such as
Key Features of Deye SUN-10K-SG04LP3-EU series:
- The hybrid design of the hybrid inverter supports on grid, off grid, and hybrid operation modes, offering flexible energy management;
- Three phase output provides stable and balanced power, suitable for larger electricity needs;
- Work with low voltage energy storage batteries, can match lead acid batteries and lithium lifepo4 batteries;
- Dual MPPTs ensure the solar system gets the maximum energy generation from solar panels;
- Remote control and monitoring allow for real-time control via apps on mobile phones and desktop computers;
- IP65-rated ingress protection makes it suitable for indoor and outdoor installations;
- Multiple protections for overvoltage, overcurrent, short circuits, and anti-islanding to ensure safe and reliable operation.
Technical Data
- SUN-10K-SG04LP3-EU 10KW Inverter Deye
| Model | SUN-5K-SG04LP3-EU | SUN-6K-SG04LP3-EU | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3-EU | SUN-12K-SG04LP3-EU |
| Battery Input Data | |||||
| Battery Type | Lead-acid or Lithium-ion | ||||
| Battery Voltage Range(V) | 40-60 | ||||
| Max.Charging Current(A) | 120 | 150 | 190 | 210 | 240 |
| Max.Discharging Current(A) | 120 | 150 | 190 | 210 | 240 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||||
| Number of battery input | 1 | ||||
| PV String Input Data | |||||
| Max. PV Access Power (W) | 10000 | 12000 | 16000 | 20000 | 24000 |
| Max PV Input Power（W） | 7500 | 9000 | 12000 | 15000 | 18000 |
| MaxPV Input Voltage（V） | 800 | ||||
| Start-up Voltage（V） | 160 | ||||
| MPPT Voltage Range（V） | 200-650 | ||||
| Rated PV Input Voltage(V) | 550 | ||||
| Max. Operating PV Input Current (A) | 13+13 | 26+13 | |||
| Max. Input Short-Circuit Current (A) | 17+17 | 34+17 | |||
| No.of MPP Trackers/No.of String Per MPP Tracker | 2/1+1 | 2/2+1 | |||
| AC Input/Output Data | |||||
| Rated AC Input/Output Active Power（W） | 5000 | 6000 | 8000 | 10000 | 12000 |
| Max AC Input/Output Apparent Power （VA） | 5500 | 6600 | 8800 | 11000 | 13200 |
| Peak Power (off-grid)（W） | 2 times of rated power, 10s | ||||
| Rated AC Input/Output Current（A） | 7.6/7.2 | 9.1/8.7 | 12.1/11.6 | 15.2/14.5 | 18.2/17.4 |
| Max AC Input/Output Current（A） | 8.4/8 | 10/9.6 | 13.4/12.8 | 16.7/15.9 | 20/19.1 |
| Max Continuous AC Passthrough (grid to load)（A） | 45 | ||||
| Rated Input/Output Voltage/Range(V) | 220/380V，230/400V 0.85Un-1.1Un | ||||
| Grid Connection Form | 3L+N+PE | ||||
| Rated Input/Output Grid Frequency/Range | 50/45-55, 60/55-65 | ||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||||
| DC Injection Current | <0.5%ln | ||||
| Efficiency | |||||
| Max Efficiency | 97.60% | ||||
| Euro Efficiency | 97.00% | ||||
| MPPT Efficiency | ＞99% | ||||
| Equipment Protection | |||||
| Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, | ||||
| AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, | |||||
| Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), | |||||
| Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, | |||||
| DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level | |||||
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | ||||
| Interface | |||||
| Communication Interface | RS485/RS232/CAN | ||||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||||
| General Data | |||||
| Operating Temperature Range | -40 to +60℃, >45℃ Derating | ||||
| Permissible Ambient Humidity | 0-100% | ||||
| Permissible Altitude | 2000m | ||||
| Noise | ≤ 55 dB(A) | ||||
| Ingress Protection(IP) Rating | IP 65 | ||||
| Inverter Topology | Non-Isolated | ||||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||||
| Cabinet size（W*H*D）[mm] | 422×658×254（Excluding connectors and brackets） | ||||
| Weight[kg] | 38 | ||||
| Warranty | 5 Years/10 Years | ||||
| the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | |||||
| Type Of Cooling | Intelligent air cooling | ||||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, | ||||
| OVE-Richtlinie R25, G98,G99, VDE-AR-N 4105 | |||||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||

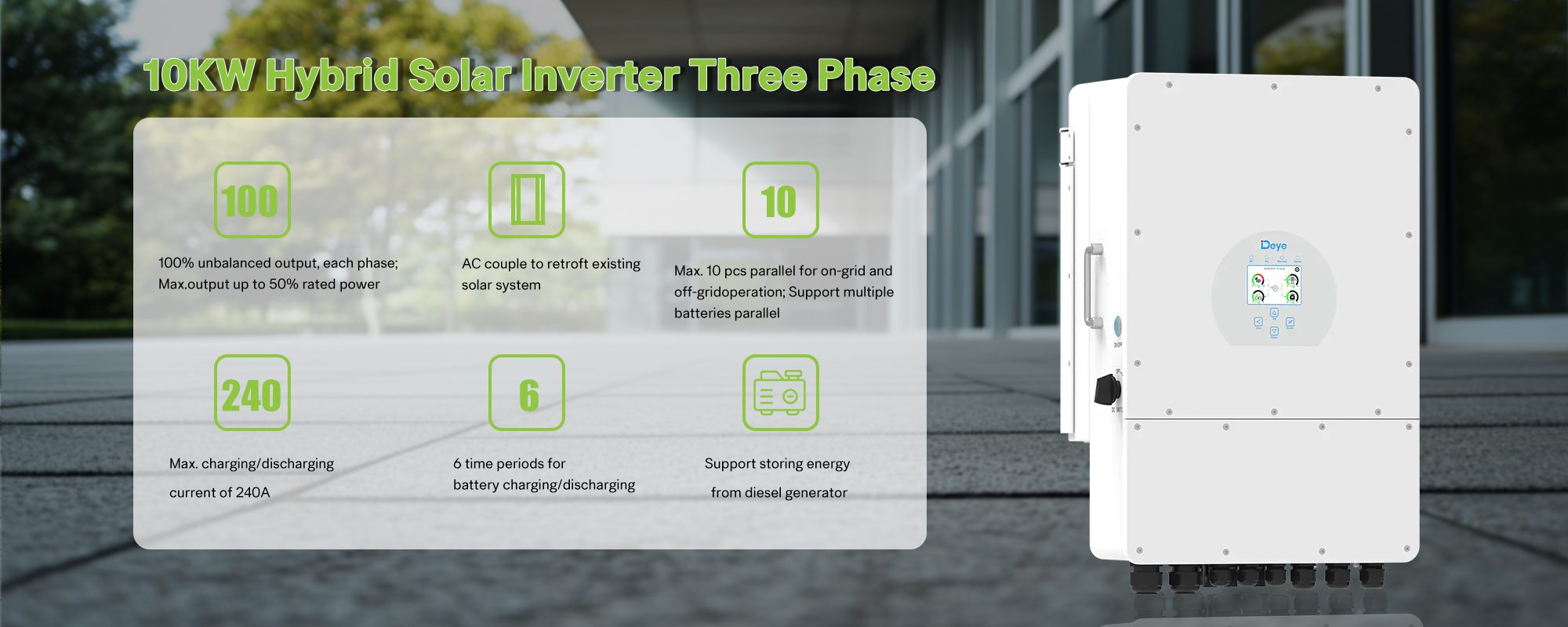

Hybrid Inverters Details
On Off Grid
SUN-10K-SG04LP3-EU Inverter
- Three phase low voltage hybrid inverter;
-
Max. output up to 50% rated power;
- SUN-10K-SG04LP3-EU Max efficiency to 97.6%;
-
AC couple to retrofifit existing solar system;
-
Max. 10 pcs parallel for solar power systems;
-
Support multiple batteries parallel connection;
-
Max. charging/discharging current of 240A;
-
Support storing energy from diesel generators;
-
48V low voltage battery, transformer isolation design;
-
6 time periods for battery charging/discharging.
