SUN-5K-SG04LP3-EU Deye Hybrid Three Phase Inverter
Model Number: 5KW SUN-5K-SG04LP3-EU
Number of MPPT Tracker: 2 MPPTs
Battery Voltage Range: 40-60V
Output Voltage: 220/380V, 50/60Hz
Inverter Efficiency: 97.6%
Grid Type: Three phase
Application: solar power system
Warranty: 5 years (10 years optional)
Inverter DatasheetDescription
Deye SUN-5K-SG04LP3-EU model is the low voltage three phase hybrid inverter ,which is suitable for markets such as European, Africa, Asia, etc. It has two MPPTs, offers a maximum charging and discharge current of 240A, and can support max. 10 pcs parallel for on grid and off grid solar systems.
SUN-5K-SG04LP3-EU Deye inverters support multiple time periods for battery charging and discharging to optimize green energy usage. The ingress protection rate is IP65, which means the hybrid inverter can be installed outdoors against dust, water, etc., in various environments. The smart monitoring platform of the SUN-5K-SG04LP3-EU Deye inverter ensures you can manage the parameters and FW updates of the power system remotely and in real-time.
SUN-5K-SG04LP3-EU Inverters Applications:
- Family solar systems and backup power support;
- Small commercial installations such as retail stores for stable power;
- Rural or remote areas with unreliable grid access such as off grid homes, small farms, or communication towers;
- Energy backup for clinics, schools, or small offices;

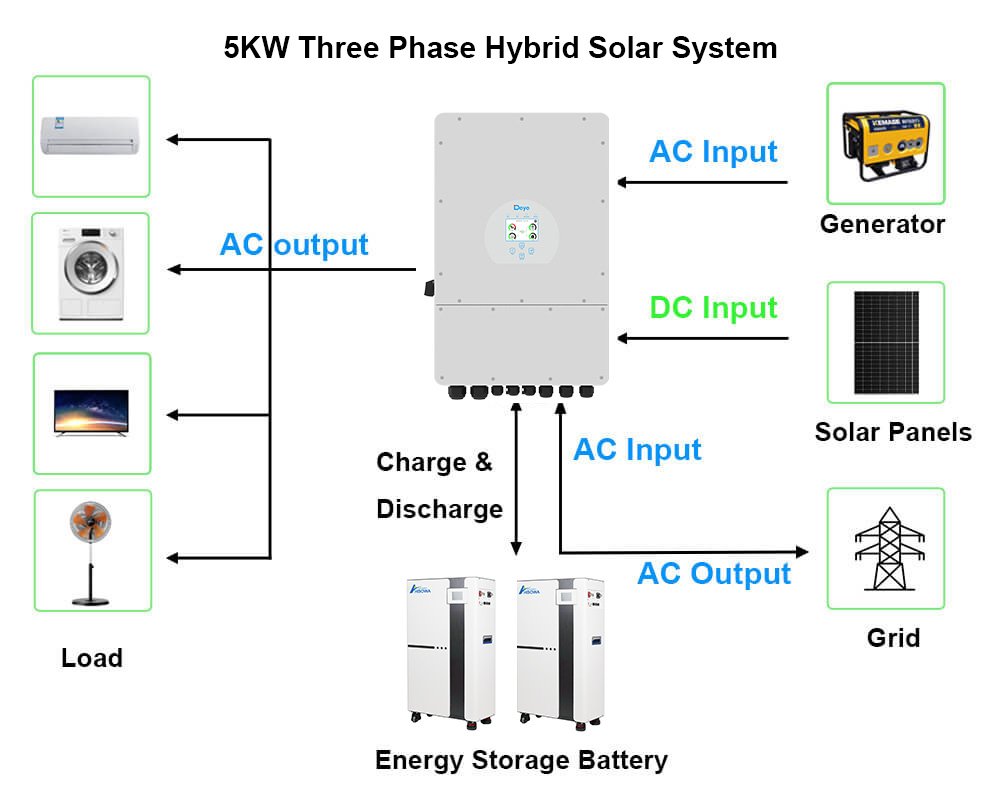

- Retrofitting existing on grid solar system via AC coupling;
- For small industrial setups, SUN-5K-SG04LP3-EU inverters can connect in parallel to handle large loads, such as high power equipment, motorized devices, and so on.
Technical Data
- SUN-5K-SG04LP3-EU 5KW Inverter Deye
| Model | SUN-5K-SG04LP3-EU | SUN-6K-SG04LP3-EU | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3-EU | SUN-12K-SG04LP3-EU |
| Battery Input Data | |||||
| Battery Type | Lead-acid or Lithium-ion | ||||
| Battery Voltage Range(V) | 40-60 | ||||
| Max.Charging Current(A) | 120 | 150 | 190 | 210 | 240 |
| Max.Discharging Current(A) | 120 | 150 | 190 | 210 | 240 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||||
| Number of battery input | 1 | ||||
| PV String Input Data | |||||
| Max. PV Access Power (W) | 10000 | 12000 | 16000 | 20000 | 24000 |
| Max PV Input Power（W） | 7500 | 9000 | 12000 | 15000 | 18000 |
| MaxPV Input Voltage（V） | 800 | ||||
| Start-up Voltage（V） | 160 | ||||
| MPPT Voltage Range（V） | 200-650 | ||||
| Rated PV Input Voltage(V) | 550 | ||||
| Max. Operating PV Input Current (A) | 13+13 | 26+13 | |||
| Max. Input Short-Circuit Current (A) | 17+17 | 34+17 | |||
| No.of MPP Trackers/No.of String Per MPP Tracker | 2/1+1 | 2/2+1 | |||
| AC Input/Output Data | |||||
| Rated AC Input/Output Active Power（W） | 5000 | 6000 | 8000 | 10000 | 12000 |
| Max AC Input/Output Apparent Power （VA） | 5500 | 6600 | 8800 | 11000 | 13200 |
| Peak Power (off-grid)（W） | 2 times of rated power, 10s | ||||
| Rated AC Input/Output Current（A） | 7.6/7.2 | 9.1/8.7 | 12.1/11.6 | 15.2/14.5 | 18.2/17.4 |
| Max AC Input/Output Current（A） | 8.4/8 | 10/9.6 | 13.4/12.8 | 16.7/15.9 | 20/19.1 |
| Max Continuous AC Passthrough (grid to load)（A） | 45 | ||||
| Rated Input/Output Voltage/Range(V) | 220/380V，230/400V 0.85Un-1.1Un | ||||
| Grid Connection Form | 3L+N+PE | ||||
| Rated Input/Output Grid Frequency/Range | 50/45-55, 60/55-65 | ||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||||
| DC Injection Current | <0.5%ln | ||||
| Efficiency | |||||
| Max Efficiency | 97.60% | ||||
| Euro Efficiency | 97.00% | ||||
| MPPT Efficiency | ＞99% | ||||
| Equipment Protection | |||||
| Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, | ||||
| AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, | |||||
| Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), | |||||
| Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, | |||||
| DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level | |||||
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | ||||
| Interface | |||||
| Communication Interface | RS485/RS232/CAN | ||||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||||
| General Data | |||||
| Operating Temperature Range | -40 to +60℃, >45℃ Derating | ||||
| Permissible Ambient Humidity | 0-100% | ||||
| Permissible Altitude | 2000m | ||||
| Noise | ≤ 55 dB(A) | ||||
| Ingress Protection(IP) Rating | IP 65 | ||||
| Inverter Topology | Non-Isolated | ||||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||||
| Cabinet size（W*H*D）[mm] | 422×658×254（Excluding connectors and brackets） | ||||
| Weight[kg] | 38 | ||||
| Warranty | 5 Years/10 Years | ||||
| the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | |||||
| Type Of Cooling | Intelligent air cooling | ||||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, | ||||
| OVE-Richtlinie R25, G98,G99, VDE-AR-N 4105 | |||||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
Hybrid Inverters Details
On Off Grid
SUN-5K-SG04LP3-EU Inverter
- Three phase low voltage hybrid inverter;
-
Max. output up to 50% rated power;
- SUN-5K-SG04LP3-EU Max efficiency up to 97.6%;
-
AC couple to retrofifit existing solar system;
-
Max. 10 pcs parallel for solar power systems;
-
Support multiple batteries parallel connection;
-
Max. charging/discharging current of 120A;
-
Support storing energy from diesel generators;
-
48V low voltage battery, transformer isolation design;
-
6 time periods for battery charging/discharging.
