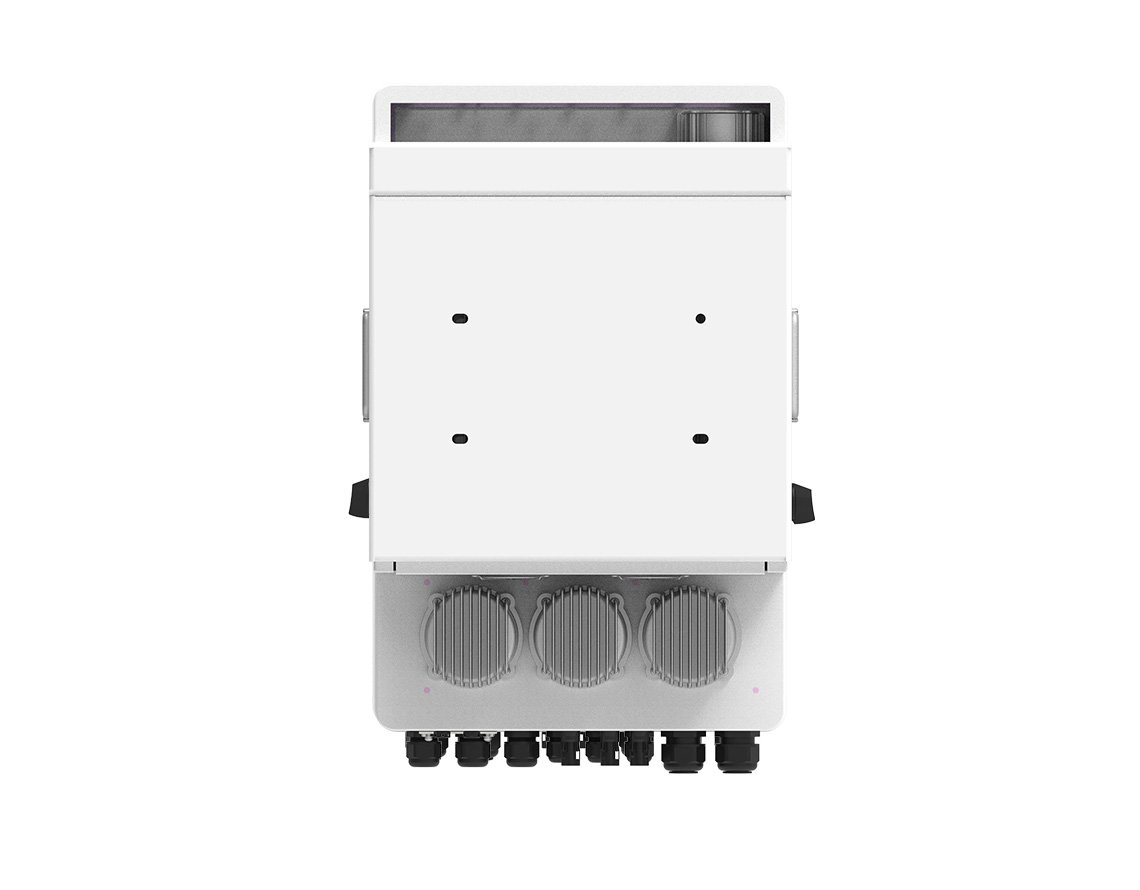

SUN-8K-SG04LP3-EU Deye Hybrid Three Phase Inverter
Model Number: 8KW SUN-8K-SG04LP3-EU
Number of MPPT Tracker: 2 MPPTs
Battery Voltage Range: 40-60V
Output Voltage: 220/380V, 50/60Hz
Inverter Efficiency: 97.6%
Max Charging Current: 190A
Warranty: 5 years (10 years optional)
Place of Origin: China
Inverter DatasheetDescription
SUN-8K-SG04LP3-EU series 8KW inverter is Deye hybrid solar inverter, it is easy to install and operate, it can be installed wall mount outdoors with the ingress protection rate of IP65, and the colorful touch screen of the inverter make it easy to operate and manage the data of the solar inverter, the communication interfaces include CAN, RS485, RS232, and the WIFI, Bluetooth, GPRS functions make it easy to manage the whole power system via APP on your phone, you can check and manage the system remotely.
SUN-8K-SG04LP3-EU 8KW inverters is a a versatile and efficient power conversion solution, tailored for homeowners and small businesses seeking sustainable energy solutions with advanced control and reliability.
Applications of SUN-8K-SG04LP3-EU:
- Residential solar systems with 3 phase electrical setups;
- Small commercial buildings such as offices, retial stores, and so on;
- Backup power solutions for utilizing stored energy from energy storage batteries;
- Remote off grid power system installations where grid access is limited.
Technical Data
- SUN-8K-SG04LP3-EU 8KW Inverter Deye
| Model | SUN-5K-SG04LP3-EU | SUN-6K-SG04LP3-EU | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3-EU | SUN-12K-SG04LP3-EU |
| Battery Input Data | |||||
| Battery Type | Lead-acid or Lithium-ion | ||||
| Battery Voltage Range(V) | 40-60 | ||||
| Max.Charging Current(A) | 120 | 150 | 190 | 210 | 240 |
| Max.Discharging Current(A) | 120 | 150 | 190 | 210 | 240 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||||
| Number of battery input | 1 | ||||
| PV String Input Data | |||||
| Max. PV Access Power (W) | 10000 | 12000 | 16000 | 20000 | 24000 |
| Max PV Input Power（W） | 7500 | 9000 | 12000 | 15000 | 18000 |
| MaxPV Input Voltage（V） | 800 | ||||
| Start-up Voltage（V） | 160 | ||||
| MPPT Voltage Range（V） | 200-650 | ||||
| Rated PV Input Voltage(V) | 550 | ||||
| Max. Operating PV Input Current (A) | 13+13 | 26+13 | |||
| Max. Input Short-Circuit Current (A) | 17+17 | 34+17 | |||
| No.of MPP Trackers/No.of String Per MPP Tracker | 2/1+1 | 2/2+1 | |||
| AC Input/Output Data | |||||
| Rated AC Input/Output Active Power（W） | 5000 | 6000 | 8000 | 10000 | 12000 |
| Max AC Input/Output Apparent Power （VA） | 5500 | 6600 | 8800 | 11000 | 13200 |
| Peak Power (off-grid)（W） | 2 times of rated power, 10s | ||||
| Rated AC Input/Output Current（A） | 7.6/7.2 | 9.1/8.7 | 12.1/11.6 | 15.2/14.5 | 18.2/17.4 |
| Max AC Input/Output Current（A） | 8.4/8 | 10/9.6 | 13.4/12.8 | 16.7/15.9 | 20/19.1 |
| Max Continuous AC Passthrough (grid to load)（A） | 45 | ||||
| Rated Input/Output Voltage/Range(V) | 220/380V，230/400V 0.85Un-1.1Un | ||||
| Grid Connection Form | 3L+N+PE | ||||
| Rated Input/Output Grid Frequency/Range | 50/45-55, 60/55-65 | ||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||||
| DC Injection Current | <0.5%ln | ||||
| Efficiency | |||||
| Max Efficiency | 97.60% | ||||
| Euro Efficiency | 97.00% | ||||
| MPPT Efficiency | ＞99% | ||||
| Equipment Protection | |||||
| Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, | ||||
| AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, | |||||
| Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), | |||||
| Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, | |||||
| DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level | |||||
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | ||||
| Interface | |||||
| Communication Interface | RS485/RS232/CAN | ||||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||||
| General Data | |||||
| Operating Temperature Range | -40 to +60℃, >45℃ Derating | ||||
| Permissible Ambient Humidity | 0-100% | ||||
| Permissible Altitude | 2000m | ||||
| Noise | ≤ 55 dB(A) | ||||
| Ingress Protection(IP) Rating | IP 65 | ||||
| Inverter Topology | Non-Isolated | ||||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||||
| Cabinet size（W*H*D）[mm] | 422×658×254（Excluding connectors and brackets） | ||||
| Weight[kg] | 38 | ||||
| Warranty | 5 Years/10 Years | ||||
| the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | |||||
| Type Of Cooling | Intelligent air cooling | ||||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, | ||||
| OVE-Richtlinie R25, G98,G99, VDE-AR-N 4105 | |||||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
Hybrid Inverters Details
On Off Grid
SUN-8K-SG04LP3-EU Inverter
- Three phase low voltage hybrid inverter;
-
Max. output up to 50% rated power;
- Max efficiency up to 97.6%;
-
AC coupled to retrofit existing solar system;
-
Max. 10 pcs parallel for solar power systems;
-
Support multiple batteries parallel connection;
-
Max. charging/discharging current of 240A;
-
Support storing energy from diesel generators;
-
48V low voltage battery, transformer isolation design;
-
6 time periods for battery charging/discharging.
- Communication Interface RS485/RS232/CAN
