China LifePO4 Powerwall Battery Manufacturer
With the advantages of rechargeable, high energy density, long service life of over 6000 cycle times, easy expansion and maintenance, environmental-friendly, and comprehensive protection mechanism, exquisite and beautiful, our cost effective power wall lithium batteries have won a great reputation among customers worldwide in industries such as household solar systems, home energy storage, off grid battery systems, power bank, photovoltaic battery backup, and so on.
HBOWA as the wall mounted battery producer, chooses grade A battery cells and lithium ion phosphate technology to provide you with reliable uninterrupted wall mount battery backup. We have 51.2V 100Ah, 51.2V 200Ah, and 51.2V 280Ah 5 kwh, 7kwh, 10kwh, 15kwh batteries available and support 48V customization to meet your diverse requirements. We have complete certificates such as MSDS, UN38.3, CE, etc. Many solar installers and energy storage system distributors, wholesalers, and retailers place bulk orders from us once and once again for the high performance of the powerwall lithium batteries. We invite you to be a part of these successful stories.

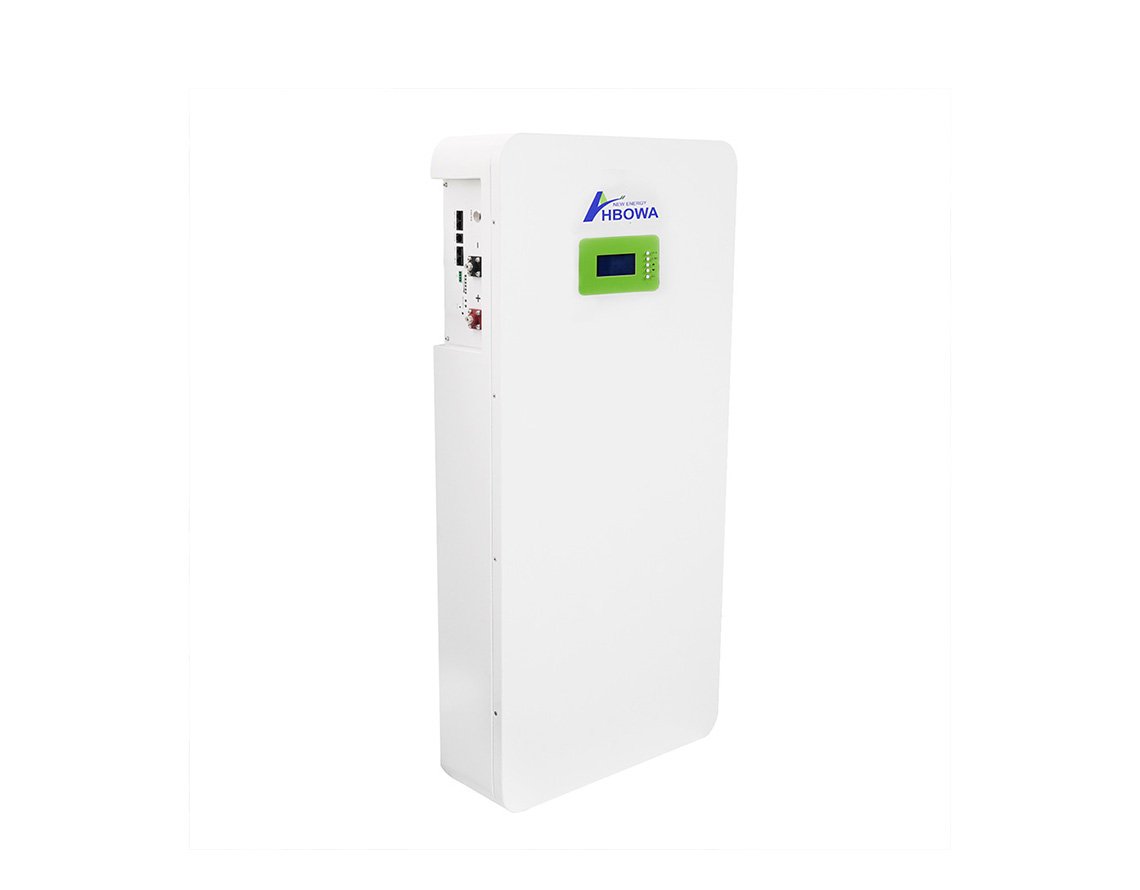

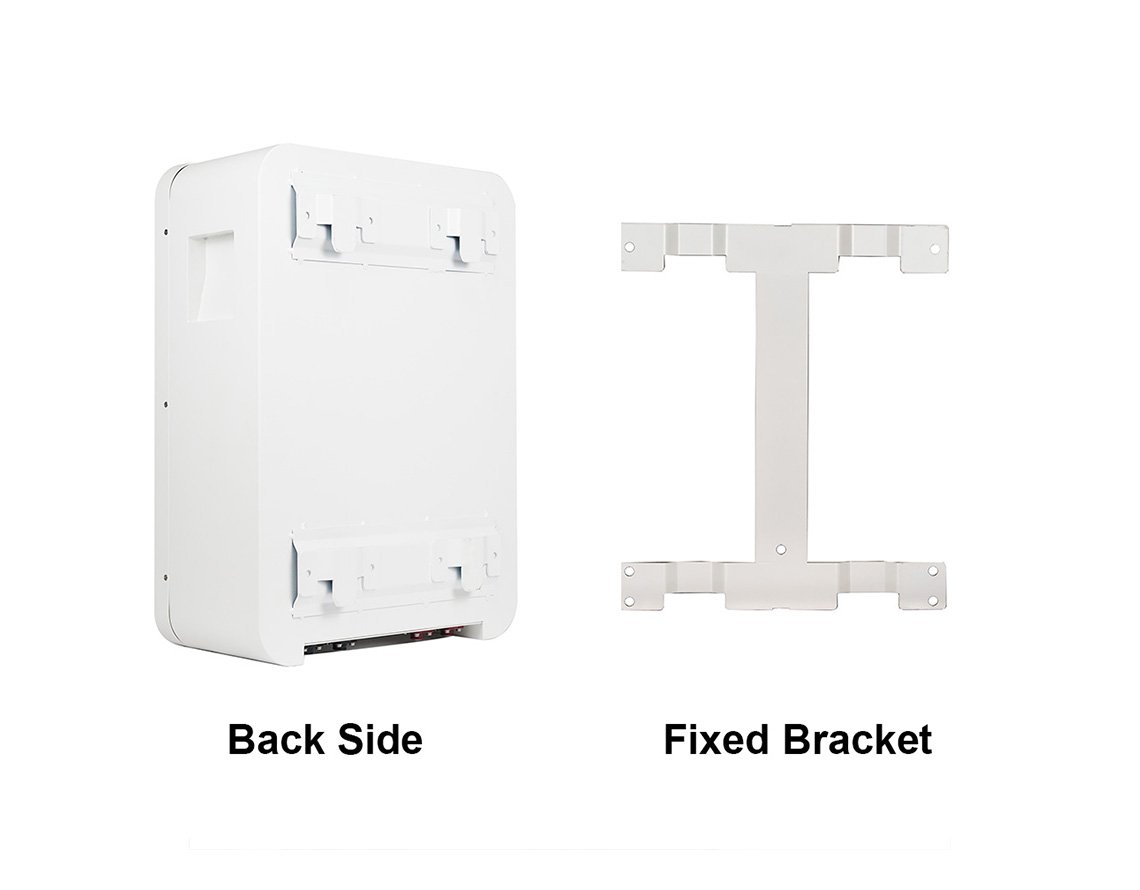

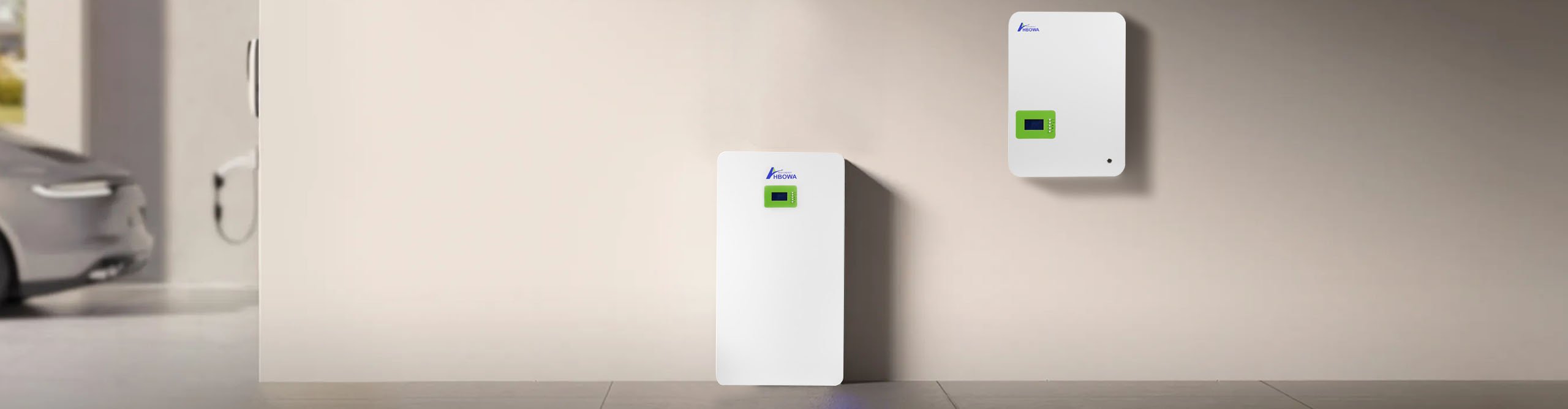

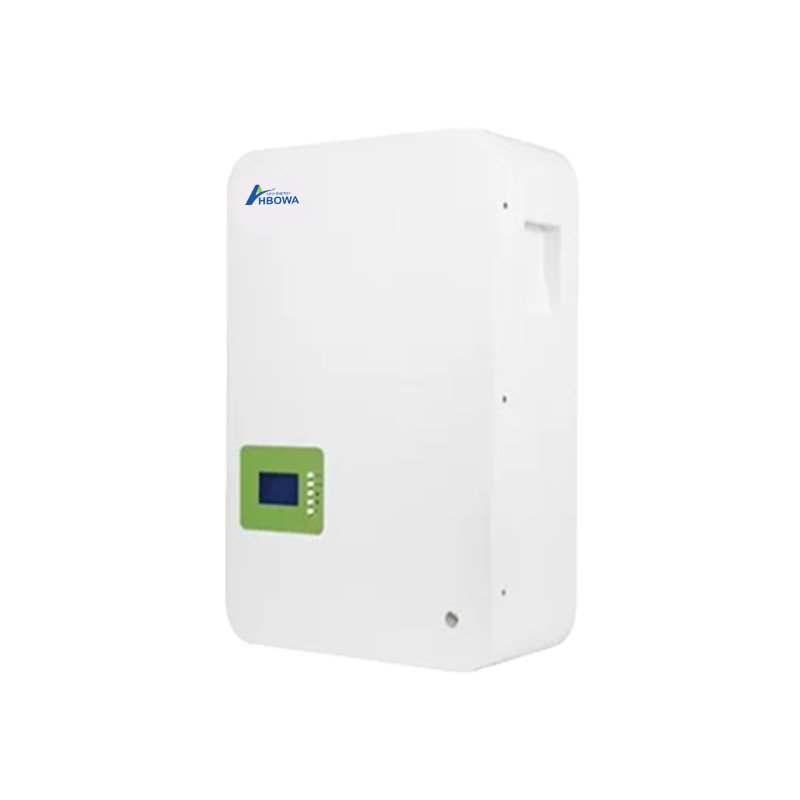

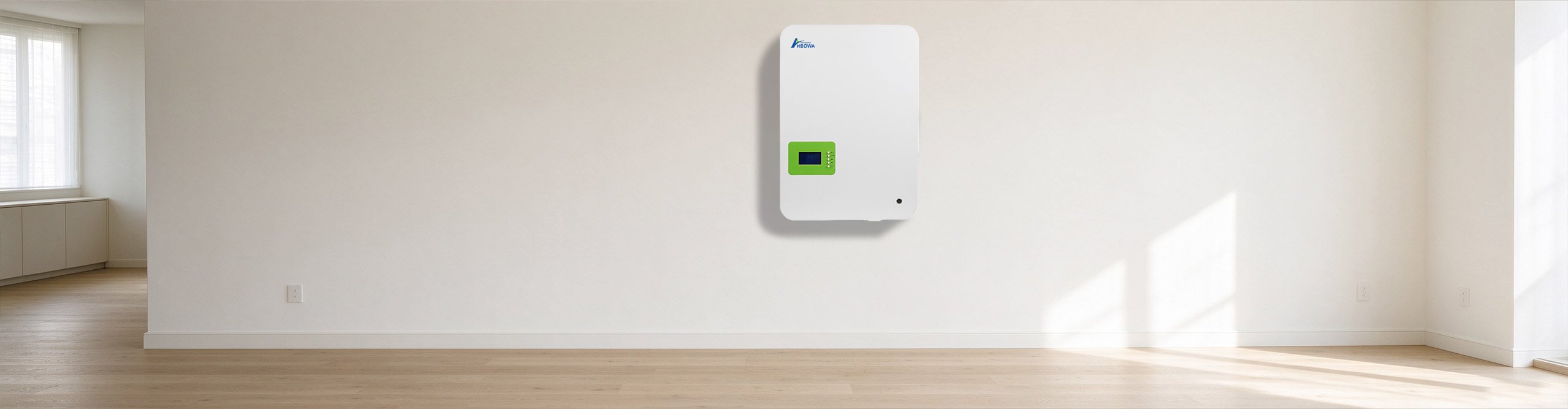

HBOWA Wall Mounted LifePO4 Battery
HBOWA Powerwall Lithium Battery Features
HBOWA chooses grade A EVE, Gotion, REPT lifepo4 battery cells to ensure safe and premium quality.
Our lifepo4 powerwall batteries have long charge and discharge cycles, with over 6000 times cycle life.
BMS provides comprehensive protection against overcharge, overdischarge, overcurrent, temperature, and balance detection.
Wall-mounted batteries can be set in parallel to expand the power and capacity to meet your home battery backup needs.
Residential Energy Storage Solution
HBOWA lifePO4 wall mounted battery is mainly for residential battery storage system solutions. Wall mounted batteries can be installed indoors and outdoors with the ingress protection rate of IP20 and IP54. Homeowners will benefit from the renewable lifePO4 battery of the solar power system by switching to the battery when grid power costs are high or the grid power is unstable.
Inverters Compatible

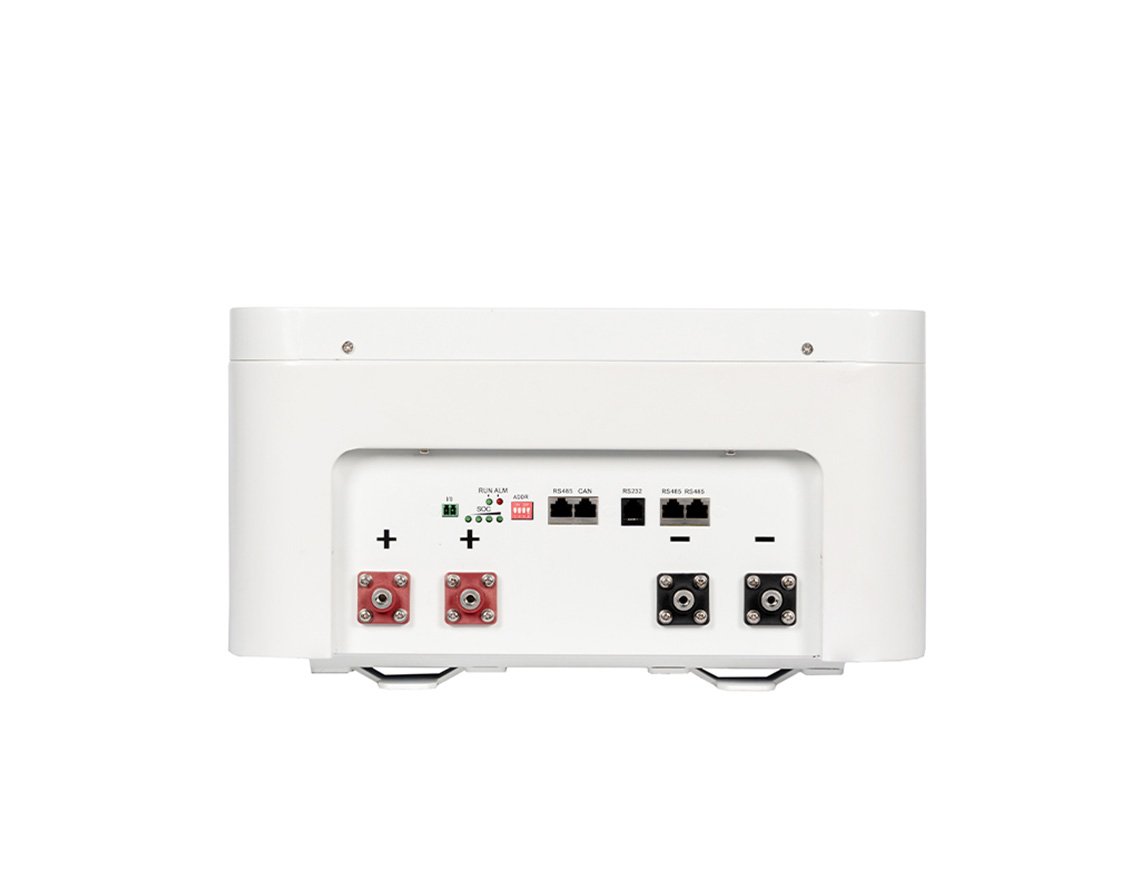

* Our powerwall lifepo4 batteries(Wall mounted battery) have built-in BMS protection board and can be compatible with most solar inverter brands (90%)by RS485 and CAN terminals, such as PYLON, Luxpowertek, Sorotec, Voltronic, Sunplain, Growatt, WOW, Victron, GoodWe, SofarSolar, GINLONG, Sungrow, SMA, Studer, TBB, Deye, Sunsynk, Afore, Sacolar, RENAC, SRNE, Techfine, etc.
* For inverters of other brands, we support free communication protocol debugging and OEM services. If you have no idea about this, feel free to contact our team directly for professional service.

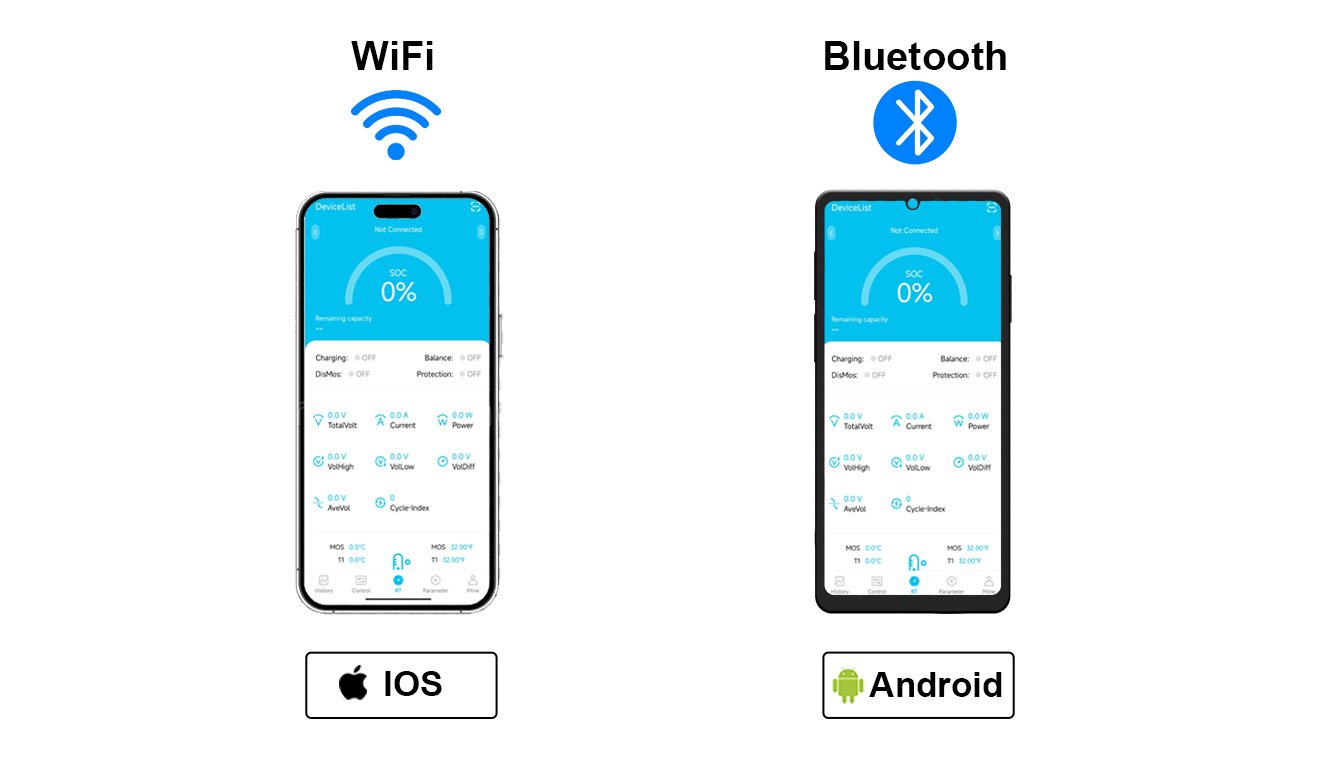

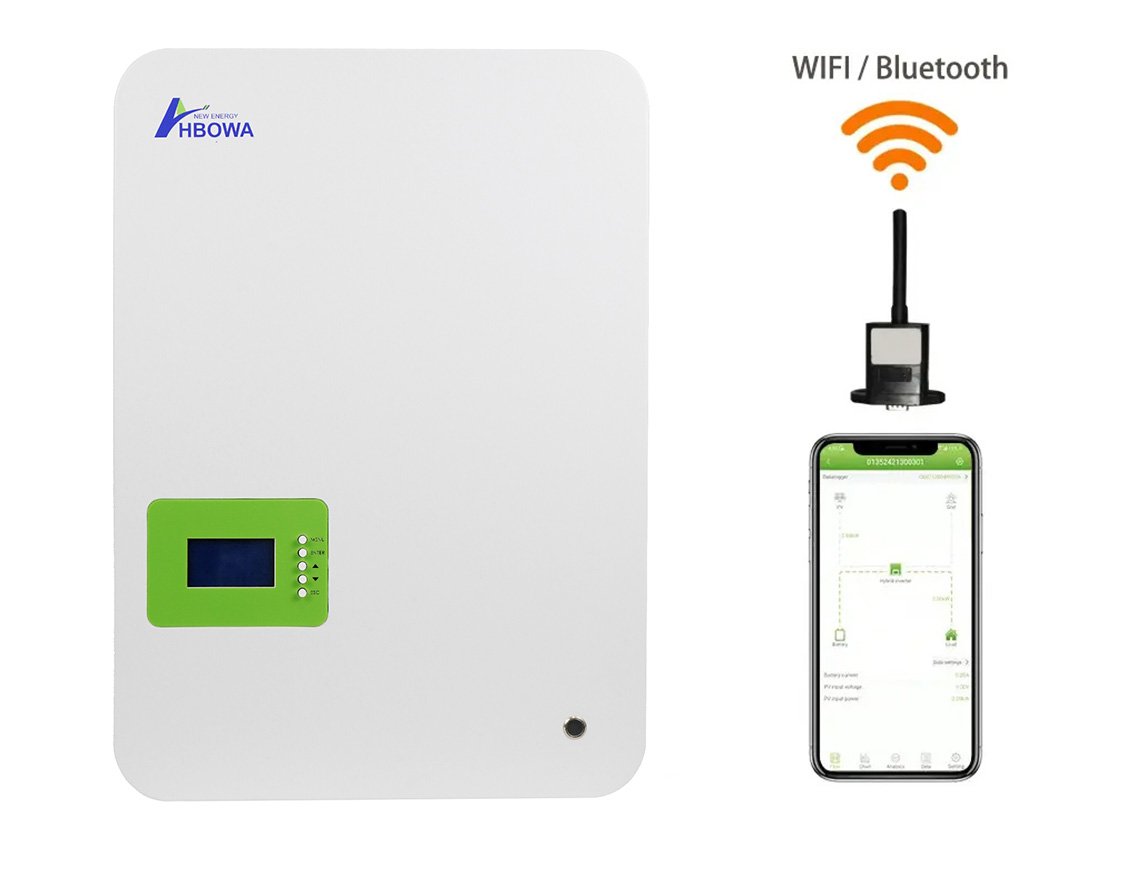

Monitor&Manage With Smart App
The solar wall battery supports WIFI and Bluetooth functions, so customers can monitor and manage the status of the battery in the home solar power system by phone with a smart app in real time. They can remotely control the power management of the whole home energy storage system and continuously optimize the electricity spending of the battery everywhere.
IP20 and IP54 Ingress Protection Available
IP20 and IP54 stand for the dust and water ingress protection rate.
The number 5 in IP54 means the dust protection level. It can protect the wall mount battery from dust touch;
The number 4 in IP54 means the water protection level. It can prevent water splashing from all directions from intruding into the wall mount battery and causing damage.
Generally, you can install the wall mount battery indoors with an IP20 rate, and install the wall mount lifepo4 battery outdoors with an IP54 rate.

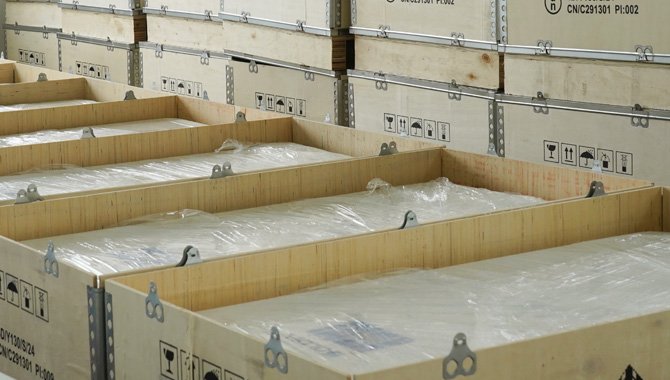

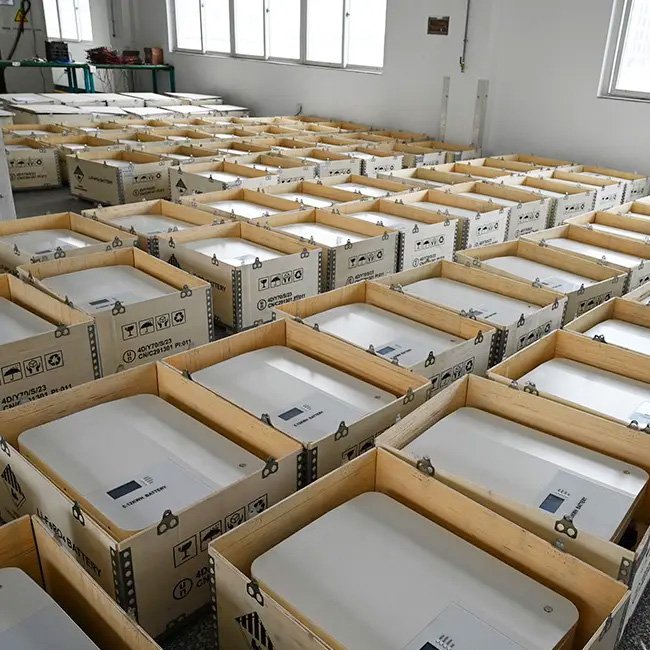

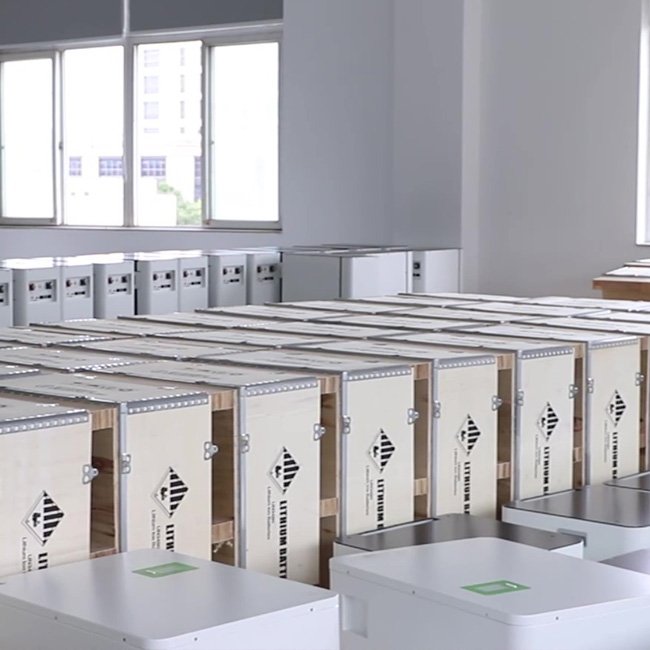

Remarkable Packaging
HBOWA standard packaging consists of wooden crates complemented by bubble wrapping. These packagings not only ensure the safety of our lithium iron phosphate powerwall batteries but also prevent leakage, stabilize stacking during transportation, and provide numerous advantages such as enhanced protection, effective insulation, and convenient stacking. Our meticulous attention to wall mounted battery packaging reflects our commitment to prioritizing safety concerns and alleviating any concerns you may have.

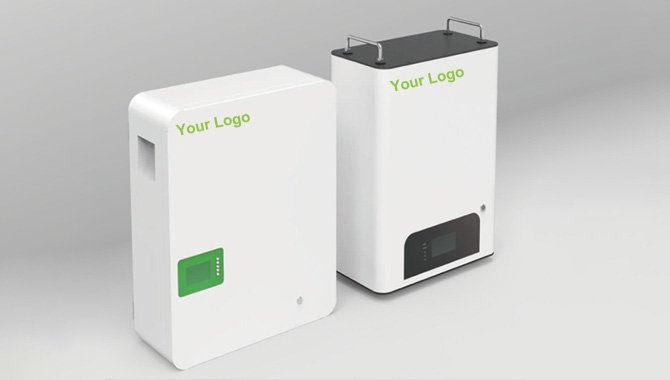

Customized Batteries Available
With years of expertise in the battery industry, HBOWA stands as a seasoned lithium battery factory, offering both standard and tailored wall mounted lifePO4 battery solutions to meet the specific demands of your market. Our customization services encompass voltage, capacity, current, size, as well as features like Wi-Fi, Bluetooth, and aesthetics, ensuring a perfect fit for your needs.
Powerwall Lithium Batteries Models
- Data Sheet

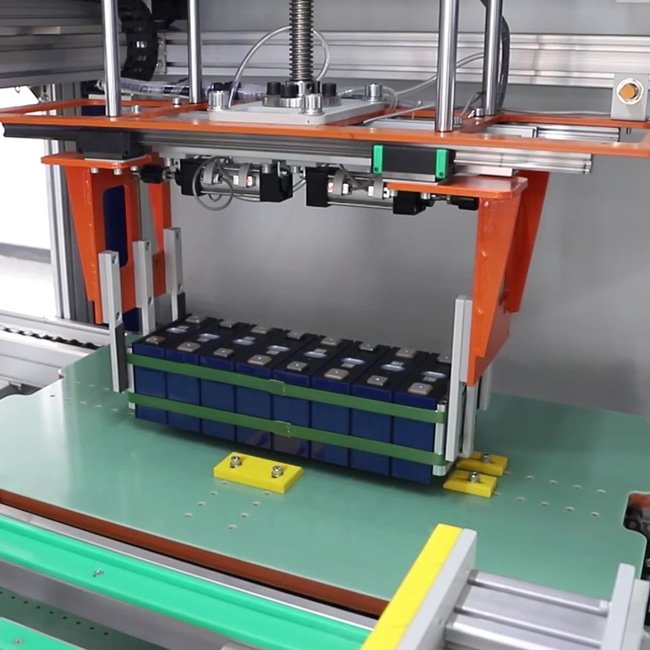

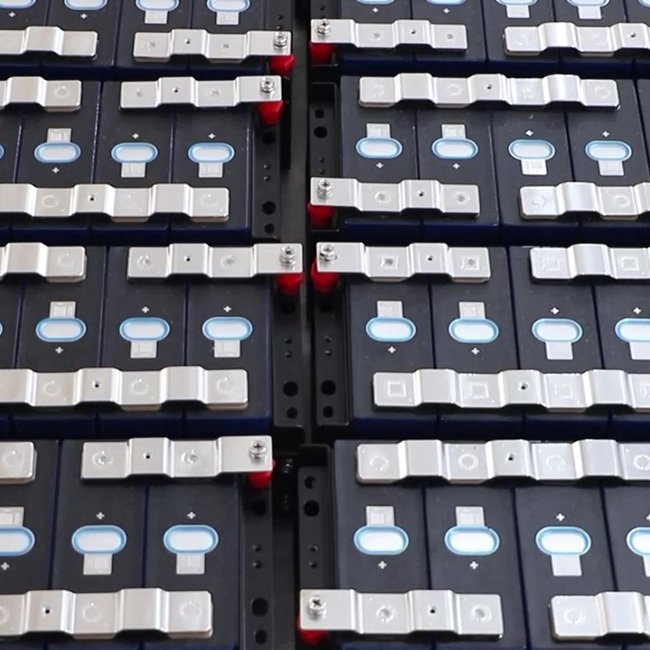

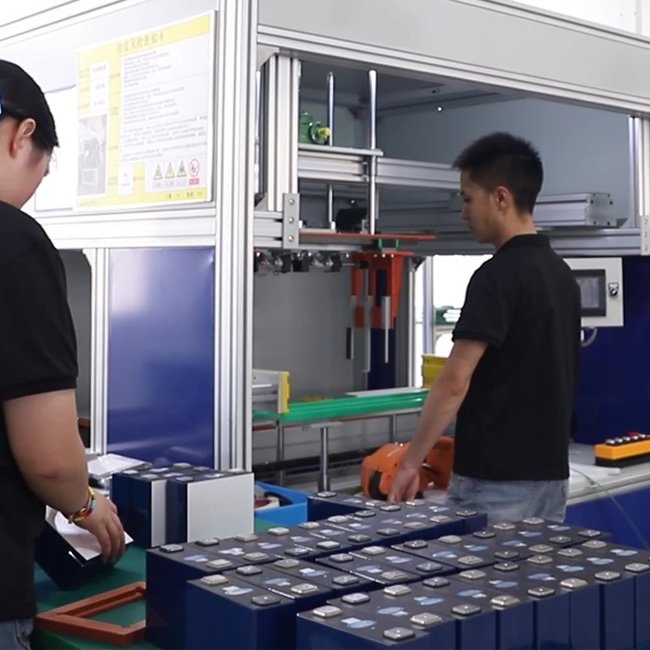

- Process
- Battery Display Video
- User's Guidance Video

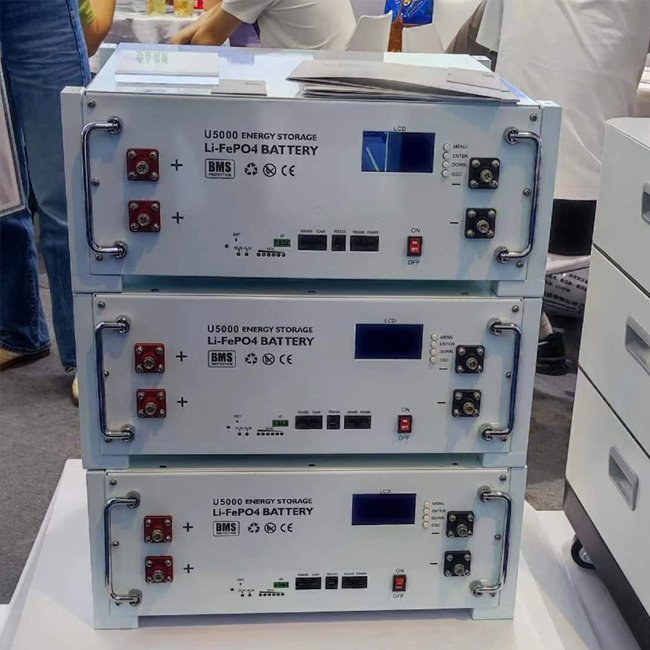

- Exhibition
| Model | XPB-51100 | XPB-51200 | XPB-51280 |
| Standard Voltage | 51.2VDC | ||
| Voltage | 43.2-57.6VDC | ||
| Nominal Capacity | 100Ah | 200Ah | 280Ah |
| Rated Capacity | 5.12kWh | 10.24kWh | 14.33kWh |
| Commumication Protocol | CAN / RS485 / WIFI / 4G / BlueTooth | ||
| Efficiency (at 0.5C) | 98% | ||
| Cell Self-Discharge | <5 % / Month | ||
| Maximum Allowed Modules in Parallel | 15PCS (76.8kwh) | 15 PCS(153.6kWh) | 15 PCS(215kWh) |
| Depth of Discharge | 90% | ||
| Useful Life | 8-10 Years | ||
| Cycle Life | 6000 (@ 80% DoD) | ||
| Ingress Protection | IP20(IP54) | ||
| Working Temperature | 0℃ – 55℃(32℉ – 131℉) | ||
| Storage Temperature | -20℃ – 55℃(-4℉ – 131℉) | ||
| Protection | Over temperature, overcurrent, short circuit, over-charging, over-discharging, Low voltage | ||

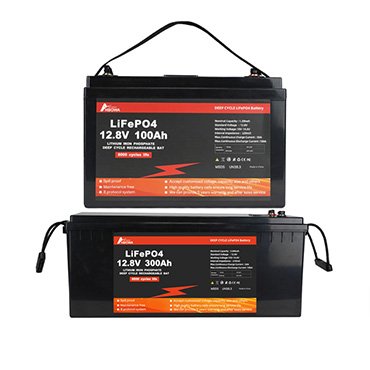

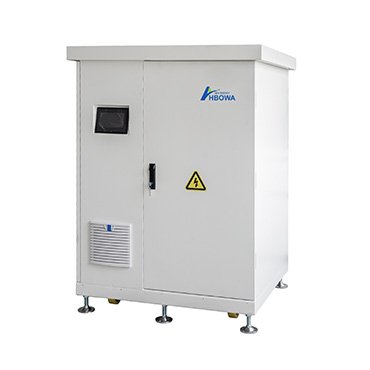

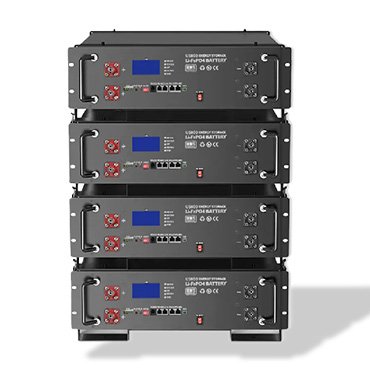

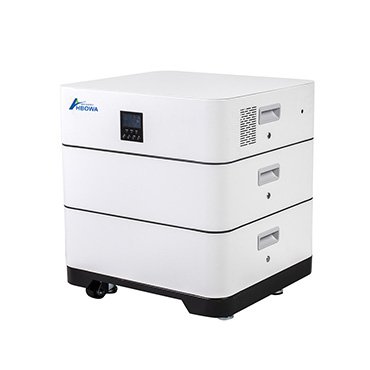

Related Product
People Also Ask
A wall mounted battery is the solar battery that can be installed on the wall and store energy for later use. For wall mounted solar batteries in a home solar system, the wall mounted battery will store the electricity generated from the solar panels, and supply the household appliances at night or in rainy days. They are compact in size, easy to install, and most of all, as they are powerwall type, they save your house space.
Wall mounted lithium lifepo4 batteries are generally safe and will not catch fire as the house battery backup, and adhering to the following steps will further enhance safety:
Firstly, when selecting a wall-mounted solar lithium battery, ensure procurement from reputable manufacturers offering reliable products. Verify that the wall batteries meet all pertinent safety standards and certifications. HBOWA holds safety certificates such as CE, FCC, CCC, as well as transportation safety certifications including UN38.3, UN3480, and class 9, etc.
Secondly, proper installation is paramount for safety. Adhere strictly to the manufacturer’s guidelines during installation and ensure adequate ventilation space for the lithium battery to facilitate airflow.
Thirdly, opting for a lithium battery with a built-in BMS protection system enables real-time battery monitoring and early detection of potential issues.
Wall batteries help you save valuable floor space and may blend well with the surroundings of your house, and considering the long-term energy saving, it is cost-effective.
It depends on the capacity of the wall batteries, for a 51.2V 100Ah wall battery, its capacity is 51.2V * 100Ah = 5.12Kwh, for a 51.2V 200Ah battery, the energy it has is 51.2V * 200Ah = 10.24KWh. So you can check the rated voltage and current of the wall battery, then you can get the energy of the battery it can store.
Factors Affecting the Energy Delivery of the Wall Battery:
- Depth of Discharge(DOD). HBOWA wall batteries are designed with a 90% usable capacity, for a 10.24kwh wall mounted battery, the energy that can be used is about 10.24kwh * 90% = 9.216KWh.
- Efficiency. The charging and discharging efficiency of the wall battery is 98%, so the net usable energy of the powerwall battery will be a little lower for the losses.
- Temperature and Aging. The wall battery can decrease in performance over time due to the aging issue and becomes more pronounced in extreme environments.
