Lifepo4 Lithium Battery 51.2V 200Ah
Cycle Life: More than 6000 times (@25℃ 80% DOD)
Max Charge and Discharge Current: 100A
Warranty: 5 years, 10 years(Customization)
Certification: CE, FCC, CCC, UN38.3, UN3480, Class 9
Customization: current, size, appearance, Link Bluetooth, Wifi, etc.
Dimension: 920mm*650mm*445mm
Gross Weight:114kg
Place of origin: China
User InstructionDescription
The 51.2V 200Ah 10kWh solar energy storage battery utilizes a LiFePO4 battery pack to ensure both safe performance and an extended deep cycle life of over 6000 times. The lifepo4 lithium battery can accommodate up to 15 units in parallel, catering to diverse capacity requirements. With a service life of 10 years, this 200ah solar battery offers reliability for the long term. The wall-mounted 200ah lithium batteries are widely used in solar systems, home energy storage systems, commercial, and small industries.
Lifepo4 Lithium Battery 51.2V 200Ah
- Techinal Data
| Model | XPB-51200 |
| Capacity | 200Ah |
| Voltage | 51.2V |
| Charging Voltage | 57.6V |
| MAX Charge/Discharge Current | 100A |
| Nominal Energy | 10.24KWh |
| Available Energy | 9.2KWh |
| Cycle Life | Over 6000 times |
| Depth of Discharge | 90% |

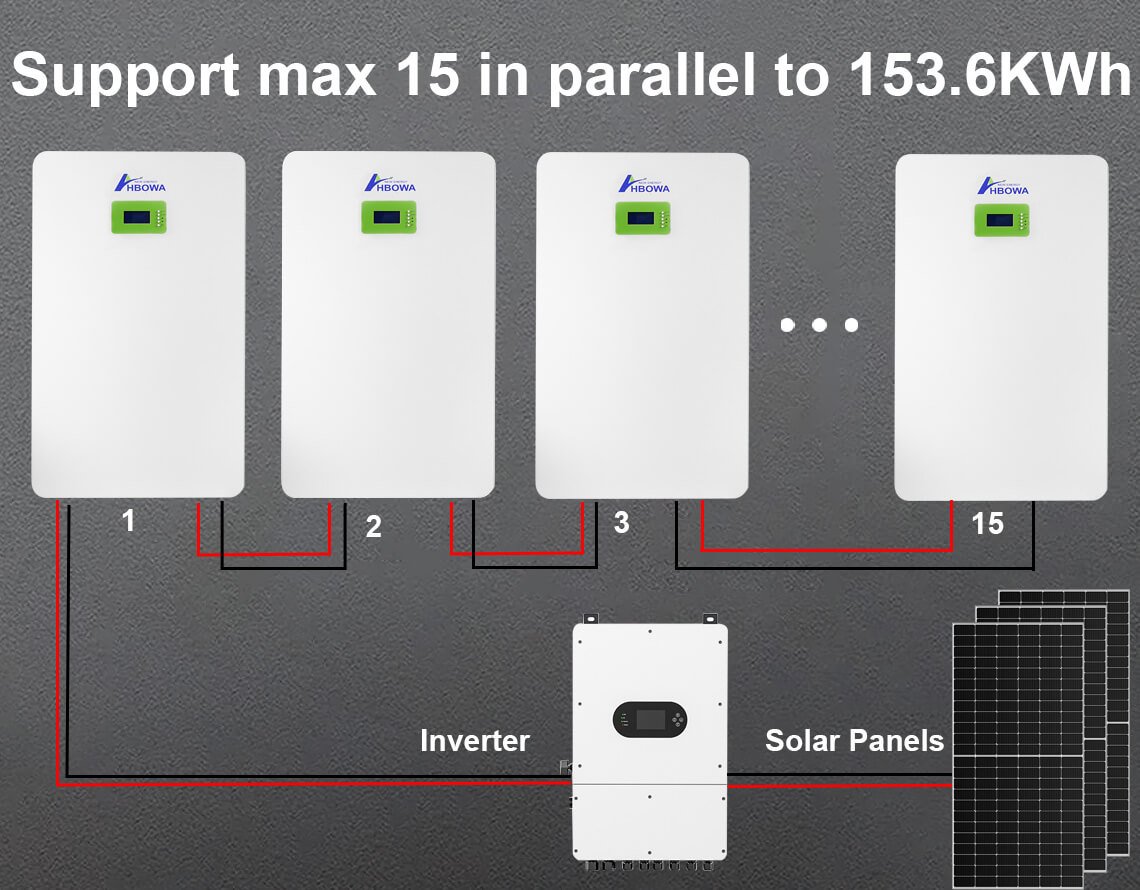

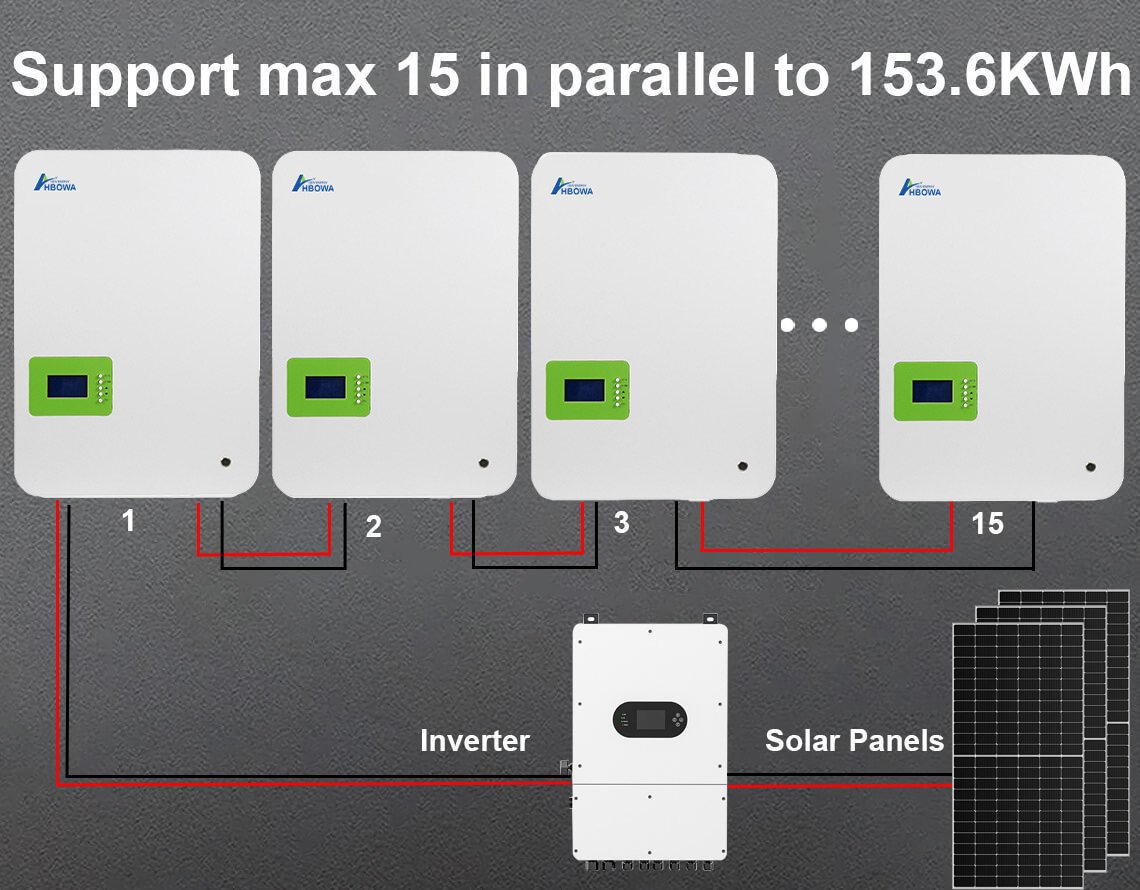

| Parallel: | Max 15 in Parallel to 3000Ah 153.6KWh |
| Detection temperature | 65±2℃(149±2℉) |
| Operating Charge Temperature | 0℃ – 55℃(32℉ – 131℉) |
| Operating Discharge Temperature | -20℃ – 55℃(-4℉ – 131℉) |
| Cooling Way | air cooling |
| Waterproof level | IP20(IP54 available) |
| Life Span | 10 years |

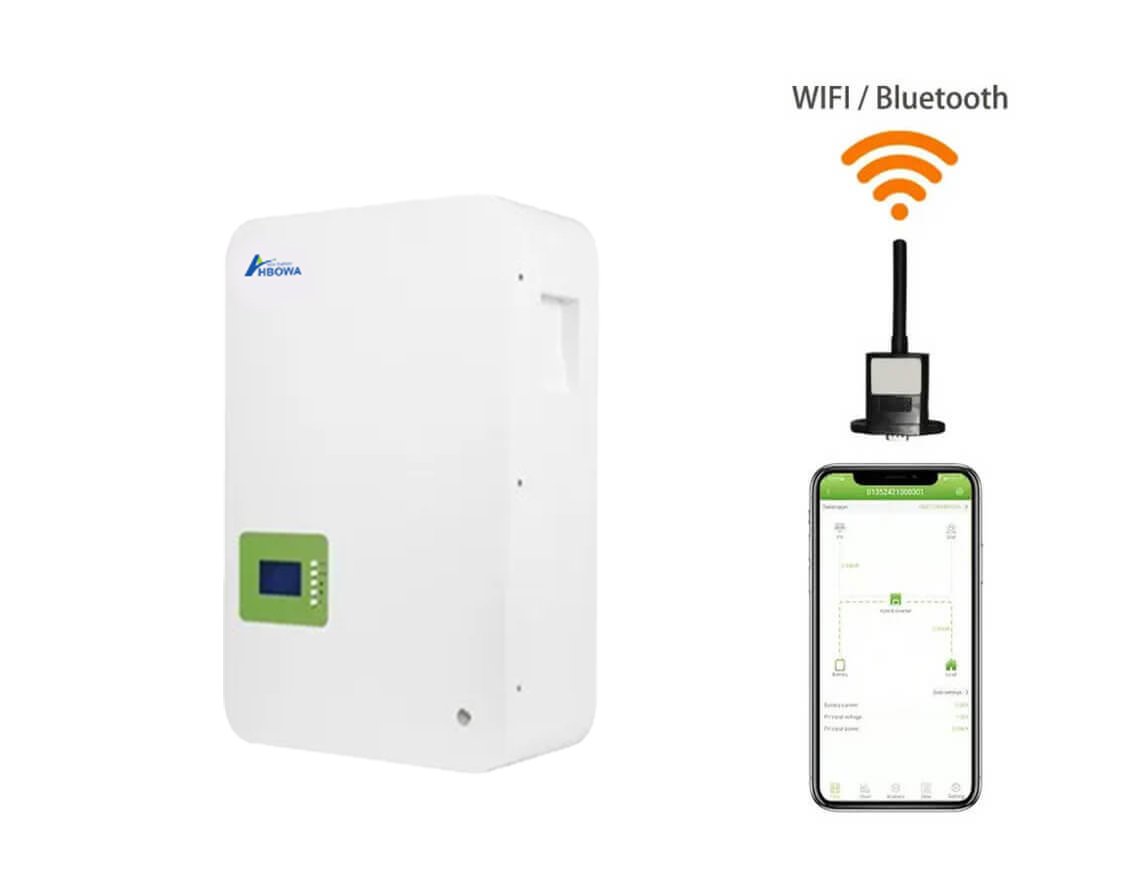

| Communication Port | RS485, RS232, CAN, WIFI, Blue Tooth |
| Certificates | CE, FCC, CCC, UN38.3, UN3480, Class9,MSDS |
| Product Size | 670*530*220mm |
| Package Size | 920*650*445mm |
| Net Weight | 96kg |
| Gross Weight | 114kg |
Advantages
51.2V Powerwall Lithium Battery

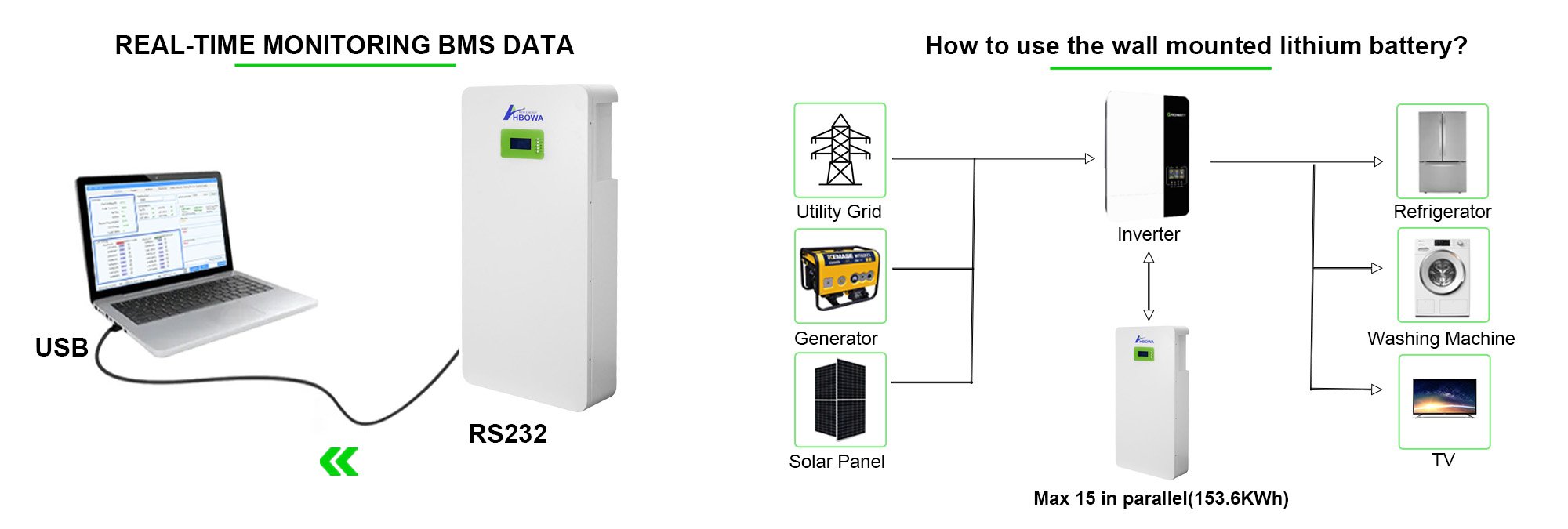

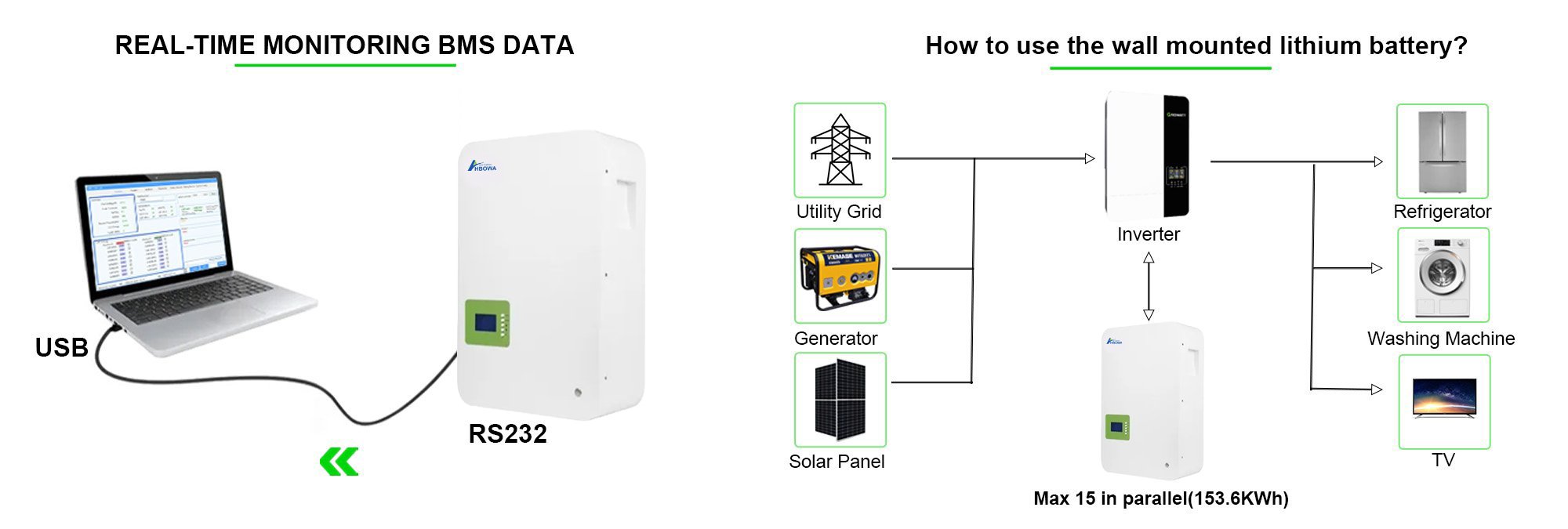

Weighing approximately one-third of an equivalent lead-acid battery, the powerwall lithium solar batteries significantly reduce transportation costs and simplify installation and relocation. The built-in LCD liquid crystal display enables real-time monitoring of battery data. The wall mounted lifepo4 battery can serve as a decorative element, providing beautiful scenery.
HBOWA consistently maintains stock of 5kWh and 10kWh wall-mounted lifepo4 lithium batteries at competitive prices. For large quantity orders, please don’t hesitate to contact us.
Smart BMS Protection
The battery management system provides comprehensive protections including overcharge protection, over-discharge protection, over-current protection, and temperature detection, and the BMS can balance each battery cell voltage to 3.5V to get the perfect working status.
Packaging List
1. A pair of red and black 0.8 meters parallel positive and negative electrode line 6
2. 2-meters of inverter communication network cable
3. 1-meter network line

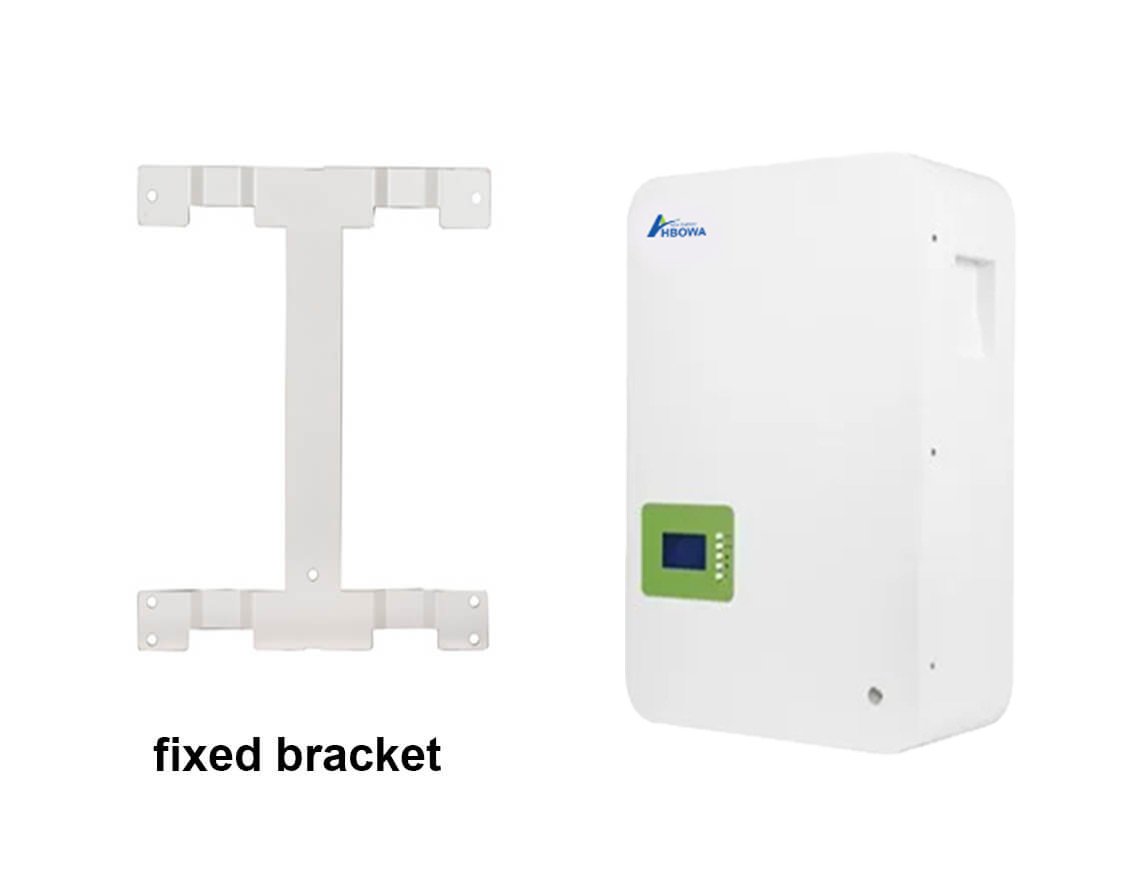

4. Expansion screws * 9
5. RS232 BMS communication network cable (optional)
6. User instruction
Powerwall lithium battery * 1
Features
HBOWA Wall Mounted Battery
- Certificates
Download Center
Related Product (8)
| No. | Item | 51.2V 100Ah | 51.2V 200Ah | |
| 1 | Power Consumption | Low power consumption mode | ≤ 100μA | ≤ 100μA |
| 2 | Over charge Protection | Over charge detection voltage | 3.65V | 3.65V |
| Over charge release voltage | 3.38V | 3.38V | ||
| 3 | Over discharge protection | Over discharge detection voltage | 2.7V | 2.7V |
| Over discharge release voltage | 2.95V | 2.95V | ||
| 4 | Over current protection | Charging over current detection current (detection time) |
110A (1S) | 110A (1S) |
| Discharging over current detection current 1 ( detection time) |
110A (1S) | 110A (1S) | ||
| Discharging over current Detection current 2 ( detection time) |
≥ 150A 100ms |
≥ 150A 100ms |
||
| 5 | Temp. Protection | Detection temperature | 65±2C | 65± 2C |
| 6 | Balance | Balance voltage | 3.5V | 3.5V |
1). It is important and necessary to read the user manual carefully (and the attachment) before installing or using the battery.
2). When the battery is stored for a long time, it is required to charge once every 6 months, and the SOC should be no less than 50%.
3). After the battery module cannot be discharged, it needs to be recharged within 12 hours.
4). Do not connect the power terminal reversely.
5). All power supplies must be disconnected during maintenance.
6). Please contact the supplier within 24 hours if there is something abnormal.
7). Do not use any liquid to clean the battery.
8). Do not expose the battery to flammable or irritating chemicals or vapor.
9). Do not paint any part of the battery, including any internal or external components.
10). Do not connect the battery with PV solar wiring directly.
11). Do not install or use this product beyond the provisions of the manual.
12). Direct or indirect damages caused by the above reasons are not covered by warranty claim.
