Lifepo4 Wall Mounted Battery 51.2V 280Ah
Battery Cell: LiFePO4 Prismatic cell 3.2V 280Ah
Nominal Voltage & Capacity: 51.2V 280Ah
Cycle Life: More than 6000 times (@25℃ 80% DOD)
Working Temperature:0℃ – 55℃(32℉ – 131℉)
Support: Wholesale, OEM, ODM
Warranty: 5 years, 10 years(Customization)

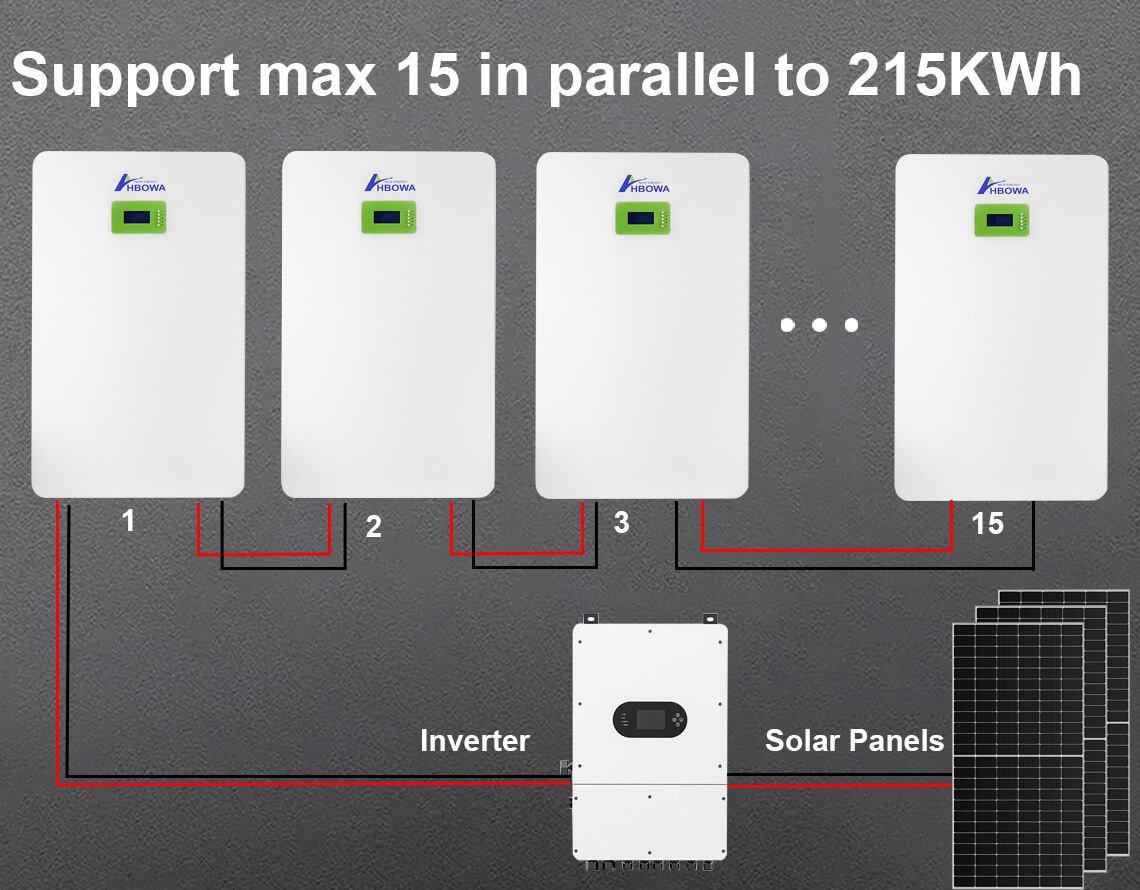

Max Parallel: Max 15 in Parallel to 4200Ah 215.04KWh
Safety certification: CE, FCC, CCC, UN38.3, UN3480, Class 9
Customization: Including voltage, capacity, current, size, appearance, Link Bluetooth, Wifi, etc.
Description
The 14.28kwh 51V 280Ah powerwall battery pack comes with a warranty of 5 to 10 years. HBOWA has obtained relevant battery certifications including CE, FCC, CCC, UN38.3, UN3480, and class 9. With lifepo4 technology, it shows features of high energy density, lightweight, long service life, and long cycle times, The wall mount rechargeable battery is your premium choice for house energy storage backup, and emergency battery for home, and residential solar systems.
Technical Data
- ELECTRICAL DATA
- MECHANICAL DATA
- TEMPERATURE DATA
Model | XPB-51280 |
---|---|
Capacity | 280Ah |
Voltage | 51.2V |
Charging Voltage | 57.6V |
MAX Charge/Discharge Current | 200A |
Nominal Energy | 14.336KWh |
Available Energy | 12.9KWh |
Cycle Life | 6000 times |
Terminal Type | M8 |
Parallel: | Max 15 in Parallel to 4200Ah 215.04KWh |
Product Size | 530*800*267mm |
---|---|
Net Weight | 125kg |
Cooling Way | air cooling |
Waterproof level | IP20(IP54) |
Life Span | 10 years |
Communication Port | RS485, RS232, CAN, WIFI, Blue Tooth |
Certificates | CE, FCC, CCC, UN38.3, UN3480, Class9, MSDS |
Detection temperature | 65±2℃(149±2℉) |
---|---|
Operating Charge Temperature | 0℃ – 55℃(32℉ – 131℉) |
Operating Discharge Temperature | -20℃ – 55℃(-4℉ – 131℉) |
Storage Temperature | -20℃ – 35℃(-4℉ – 95℉) |
Advantages

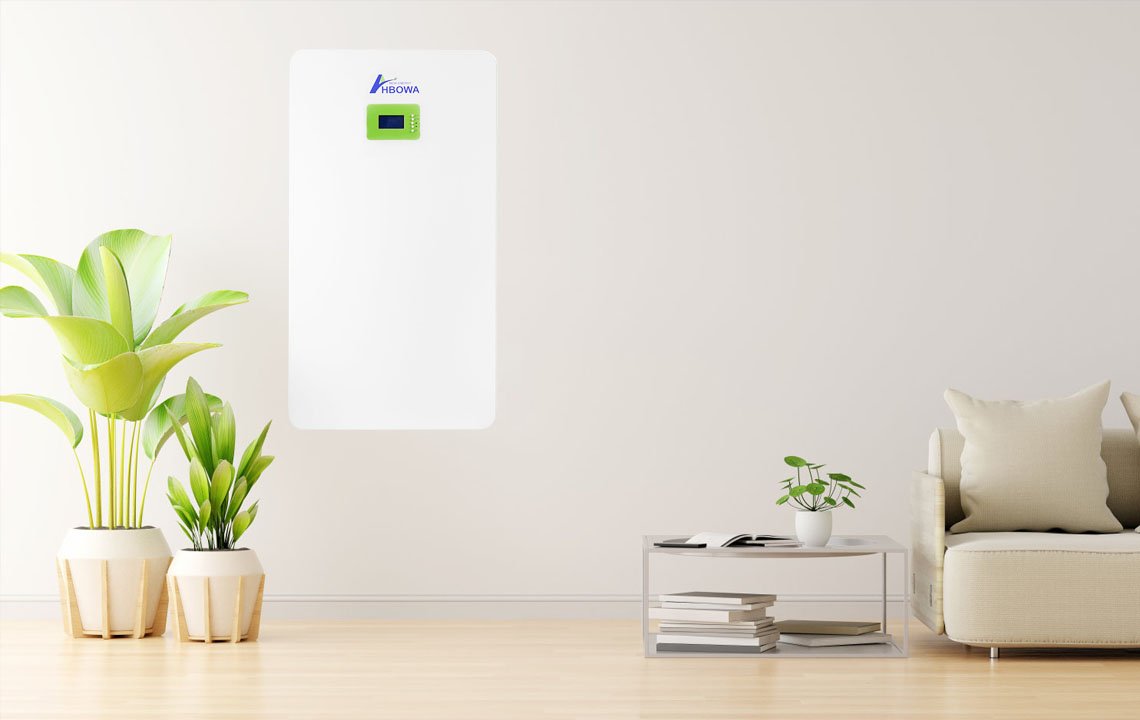

![51V wall mounted lithium lifepo4 battery - HBOWA](https://www.pretapower.com/wp-content/uploads/2024/06/51V-wall-mounted-lithium-lifepo4-battery-HBOWA.jpg)
51.2V Powerwall Lithium Battery
- Space-saving: The wall mount batteries are compact and can be mounted on walls, saving valuable floor space.
- Aesthetic appeal: The lithium batteries’s sleek design can enhance the visual appeal of any space.
- Easy installation: Mounting brackets simplify installation, making it quick and straightforward.
- Long lifespan: Lithium iron phosphate batteries typically have a longer lifespan compared to other battery chemistries.
- High energy density: They offer high energy density, providing efficient energy storage in a small footprint.
- Safety: Lifepo4 lithium batteries are known for their stability and safety, with a lower risk of thermal runaway compared to other lithium-ion batteries.
Smart BMS Protection
The built-in BMS provides RS485 and CAN terminals making the wall mount battery compatible with various brand inverters of more than 30 such as PYLON, Luxpowertek, Sorotec, Voltronic, Sunplain, Growatt, WOW, Victron, etc.
![BMS Board](https://www.pretapower.com/wp-content/uploads/2024/05/BMS-Board.jpg)
![wall mounted lithium battery package](https://www.pretapower.com/wp-content/uploads/2024/06/wall-mounted-lithium-battery-package.jpg)

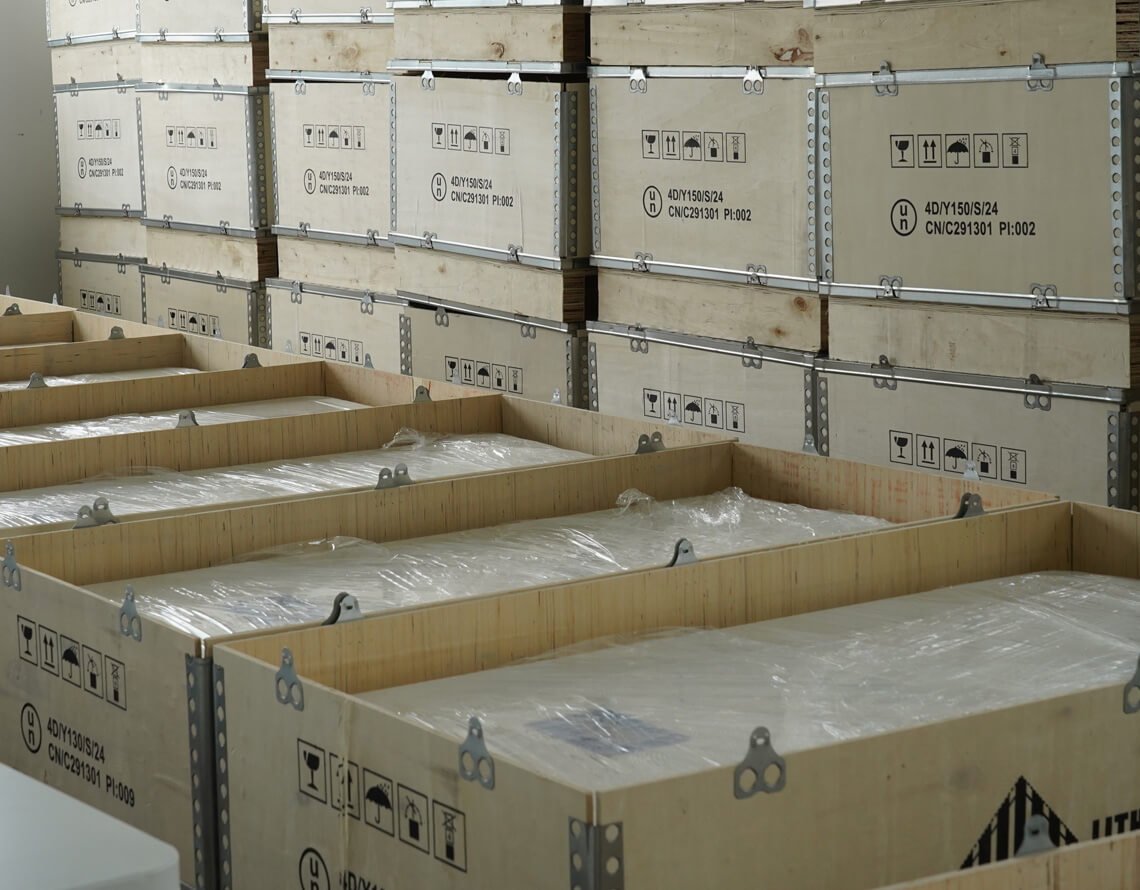

Packaging List
1. A pair of red and black 0.8 meters parallel positive and negative electrode line 6
2. 2-meters of inverter communication network cable
3. 1-meter network line
4. Expansion screws * 9
5. RS232 BMS communication network cable (optional)
6. User instruction
Powerwall lithium battery * 1
