1MW Battery Storage 3MWh Liquid Cooled Container
lithium iron phosphate battery cells with high thermal stability;
Lifespan can be over 6000 cycles times;
IP54 protection level meets the requirements of outdoor applications;
A multi-level fire protection strategy with prevention as the main focus;
Modular design(Battery and PCS) with high integration;
Flexible configuration supports multiple communication protocols;
Strict producing process and comprehensive certificates;
Reducing on-site installation and commissioning time.
Application: commercial energy storage, industrial energy solutions
Description
This is HBOWA 1MW battery 3MWh energy storage system container, the 1 megawatt battery storage is the liquid cooling type with excellent cooling performance, and it integrates lifepo4 battery packs, PCS, BMS, EMS, and safety system together, providing you with highly efficient, the high reliable experience of electricity consumption. We have comprehensive certificates for the 1 megawatt battery like CE, IEC, UL, GB-T, etc to ensure good quality and exportation success.
List of Internal Structures of 1MW Battery Storage Container:
- 3MWh Battery rack system
- 1MW Power Conversion System
- Battery Management System
- Air Cooling System
- Fire Suppression System
- Energy Management System
- Lighting and Ventilation System
Power Storage Solution:
New energies such as photovoltaic systems, wind power systems, and other types of energy are unstable for us to use due to many factors, 1 megawatt battery integrated with the new energies can solve the problem, and provide us with green, continuously, stable, and reliable energy, also can promote the development and wide application of new energy.
User side Stable Power Consumption:
For commercial and industrial users with larger electricity power requirements per day, this 1MW battery container storage system 3MWh can effectively meet their electricity needs and help them reduce electricity costs by effectively managing the power stored in the BESS. The 1MW battery storage can ensure normal daily operation and production of commercial and industrial applications.
1MW Battery Storage
- Technical Data
1.5MW/3.0MWh Commercial Energy Storage System (20ft) | |
Power Conversion System(PCS) | |
Product model | HW-FL1.5MW/3.0MWh |
Rated power (KW) | 1500KW |
Dc voltage operating range (V) | 850V-1500V |
Rated output current | 2200A |
Output rated voltage | 400Vac |
Rated output frequency | 50Hz/60Hz |
Charge and discharge conversion time | <20ms |
Overload energy | 110% to normal operation, 120% to 1 minute |
Communication interface | RS485/CAN/LAN |
Maximum efficiency | >99.05 |
Authentication | CE,UL,IEC62619,1EC63056,EN50549-1.EN50549-2.EN61000,1EC61727.IEC 62116 |
1MW Battery System | |
Battery type | Lithium iron phosphate |
Battery PACK group mode | 1P52S |
Battery cluster mode | 8*1P52S |
Battery system group mode | 8*1P52S*7 cluster (P) |
Nominal battery system voltage | DC 1331.2V |
Battery system voltage range | DC 1164.8V-1497.6V |
Rated charge and discharge ratio | <0.5CP |
Class of protection | IP54 |
Cooling mode | Liquid cooling |
Operating temperature | 30°C-50°C |
Operating relative humidity | 0-95% (No condensation) |
Authentication | IEC62619,1EC63056,EN50549-1.EN50549-2,EN61000,1EC61727,IEC 62116,UN38.3,CE-EMC,CE,UL,JET.G836276,GB4943.1 |
Fire protection type | Sevofluoropropane/perfluoro acetone |
System cycle life | Over 6000 |
Container size | 6096*2350*2390mm |
Total system weight (t) | About 30t |

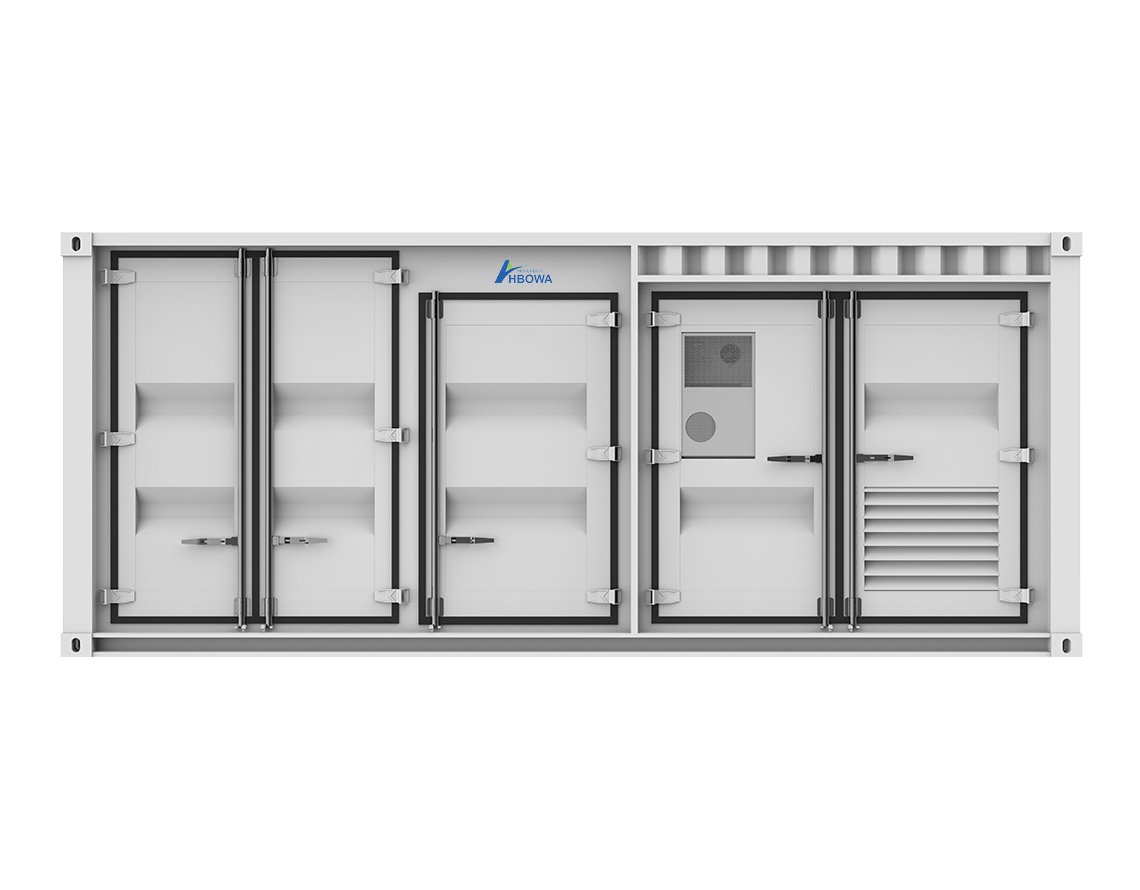

1MW Battery Storage Details
1MW Battery Storage
HBOWA 1MW battery storage system includes:
- A 3MWh Battery System(Lifepo4 battery cells);
- A 1500KW power conversion system(PCS-> DC to AC);
- Battery management system;
- 20 GP Battery container;
- Fire Control system;
- Liquid cooling system;
- 1MW Transformer(optional);
- Energy management system;
1MW Battery Storage Benefits
- All in one commercial energy storage system solution design;
- Store energy from the solar system and wind power system;
- The whole container generates zero hazard emissions;
- Support program customization for BESS container;
- Intelligent EMS monitoring and managing system with high efficiency;
- Provide power supply to residential, commercial, and industrial use;
- Ensure you get uninterrupted, stable, and reliable power sources.
Features of 1MW Battery Storage
HBOWA 1MW Battery Storage
- Certificates
