200kwh Battery Storage Lithium
Model: XPIC002D768280 200kwh battery
Battery Cell Type: LFP
Grid Type: Hybrid/Off Grid
Storage Energy: 215kWh
Cooling: Air cooling
Maximum Connections in Parallel: 5 units
Certificates: IEC62619 / CE / ROHS MSDS /UN38.3;
Pack: CE / FCC / MSDS / UN38.3
Place of origin: China
User Instruction
200kwh Lithium Battery
Our 200kWh energy storage system is designed to meet the energy demanding requirements of commercial and industrial areas. It integrates advanced components for maximum performance and safety, including:
- PCS (Power Conversion System): Efficiently manages energy conversion between DC and AC, optimizing the use of stored power in the 200kwh battery;
- LiFePO4 Batteries in Pack and Clusters: Known for their long lifespan of over 6000 cycle times, high safety, and excellent thermal stability, 90% DOD;
- Fire Safety Functionality: Equipped with advanced fire protection mechanisms to ensure the whole system safety during battery operation;
- EMS (Energy Management System): The intelligent EMS monitors and optimizes energy flow, balancing supply and demand in real time, ensuring efficient energy usage and cost savings.

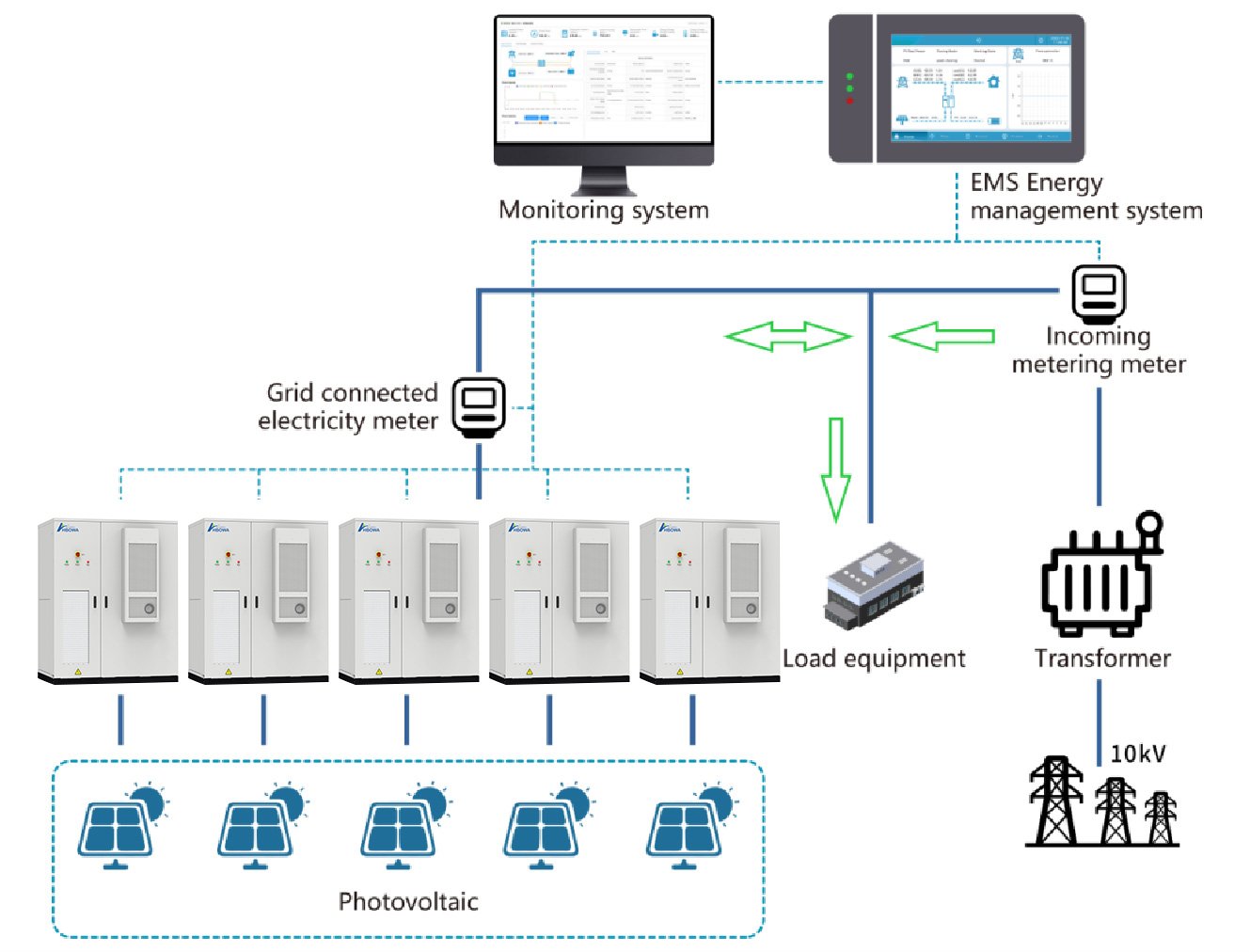

In the solar power system, the solar panels generate the electricity, and then store it in the 200kwh battery and the battery provides an uninterrupted power supply when great power is needed. This 200kWh battery storage system provides a robust, scalable solution for reducing energy costs and supporting renewable energy integration. Whether for peak shaving, backup power, or grid stabilization, it offers a reliable and safe way to store and release energy.
200kwh Battery Features:

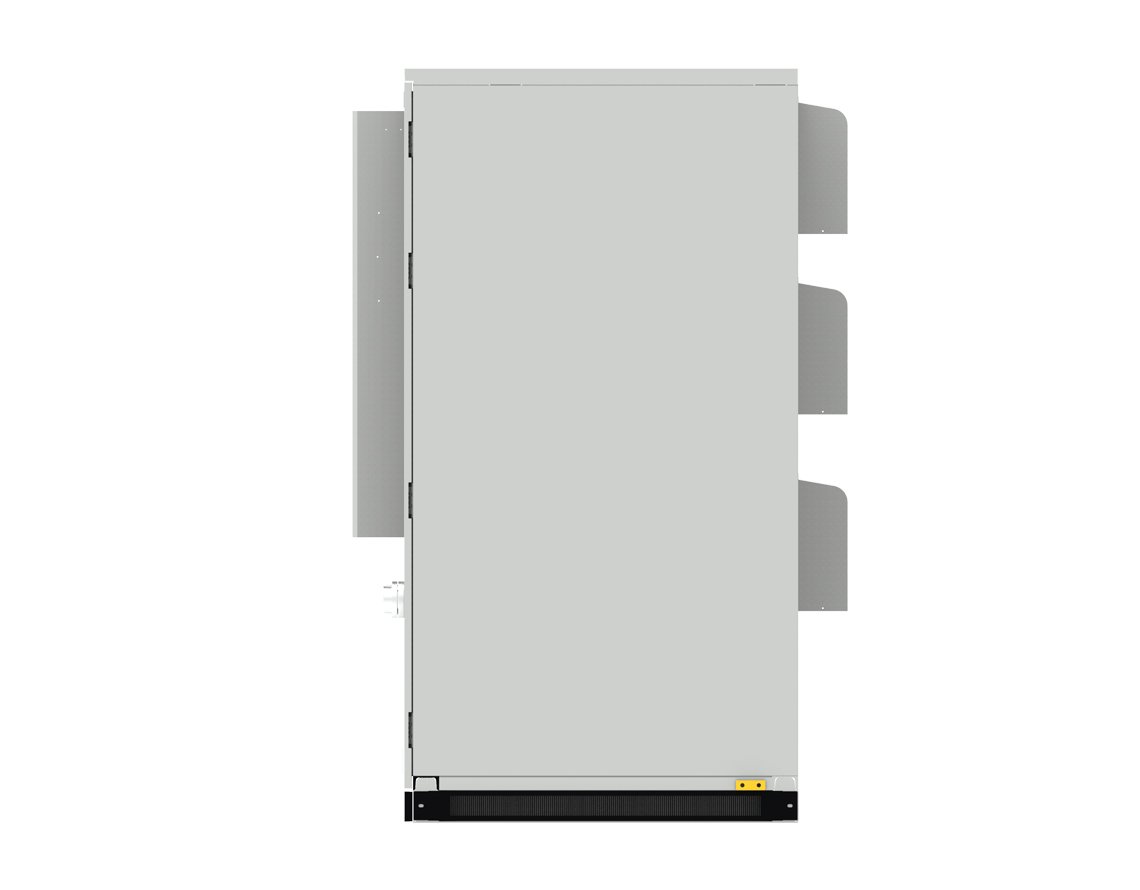

- All in one energy storage system(125KW PCS and 200kwh LiFePO4 battery are contained in a cabinet);
- The 200 kwh battery system is flexible, and supports hybrid on grid and off grid operation;
- 200kwh battery uses REPT brand battery cells, you can also choose EVE, CATL, BYD brands;
- 90% DOD of the 200kwh battery, and the built in BMS and protection system ensure safety;
- IP65-rated ingress protection cabinet structure safeguards against dust, rain, and sand;

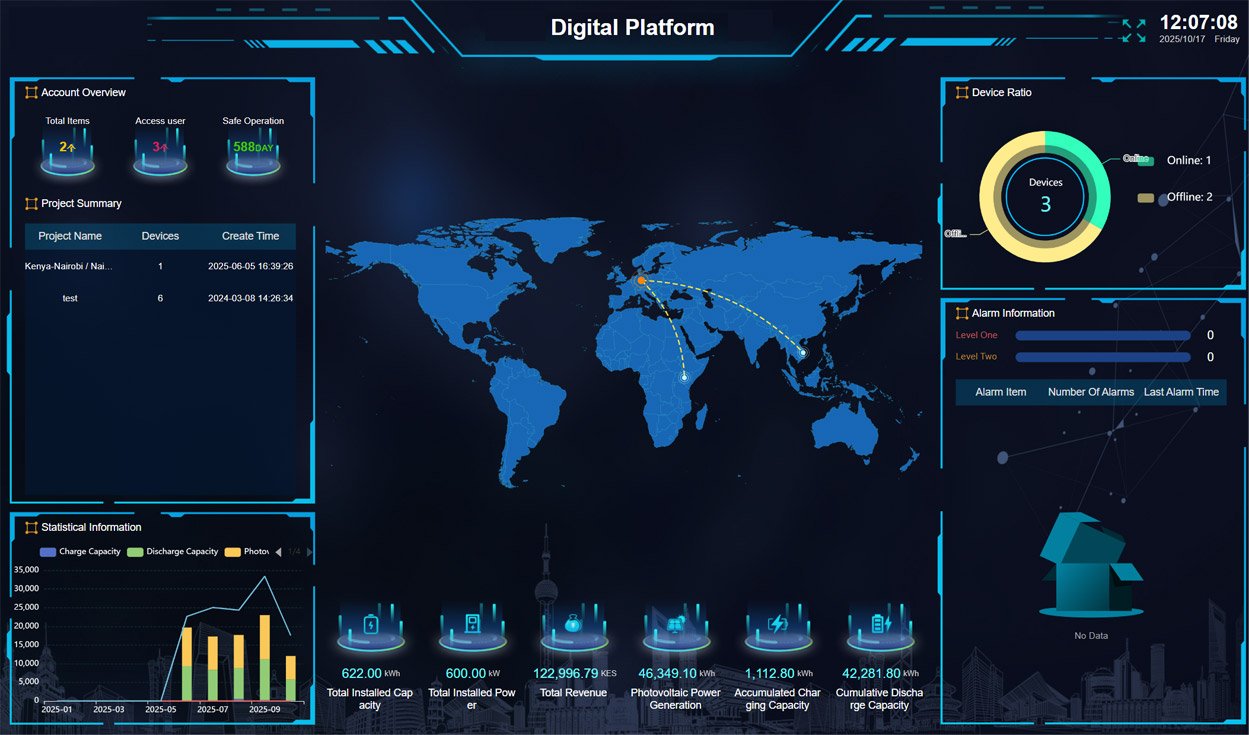

- An intelligent energy storage system supports data viewing, tracking, and management;
- Support 200kwh battery connection in parallel up to 5 units for power expansion such as 400kwh, 600kwh;
- The air conditioning system is installed in the battery cabinet door, which is space-saving and maximizes the storage capacity;
- Battery voltage, size, and design can be customized according to your detailed energy requirements and installation space;
200kwh Battery Storage Technical Data:
Technical Data | |
Model | XPIC002D768280 |
Nominal Capacity | 215KWh |
Battery Cell Chemistry | LiFePO4 |
Battery Cell Specification | 3.2V/280Ah |
Battery Cell Assembly | 1P40S*6 |
Battery Connections in a single cluster | 1P240S(6 Pack) |
Battery Voltage Range | 672V-972V |
Nominal Voltage | 864V |
Charge/Discharge Mode | 0.5P/0.5P |
Depth of Discharge | 90% |
Match PCS | 125KW |
Output voltage | 380V@AC |
General Parameters | |
Dimension(W*D*H) | 994*2600*1480mm |
Weight | 2800kg |
Protection Class | IP65 |
Operating Temperature Range | -30°C to 55°C |
Operating humidity range | ≤95%(No condensation) |
Altitude | <2000m ( 2000m~4000m Reduced operation) |
Noise | ≤75 dB @1m |
Communication protocol | Modbus TCP / Modbus RTU / CAN 2.0 |
Interface | Ethernet/RS485/CAN |
Cooling Way | Air Conditioner |
200kwh Battery Advantages
LiFePO4 Battery Packs
The LFP (Lithium Iron Phosphate) cells in this 200kWh industrial energy storage battery cabinet provide unmatched reliability, safety, and long-lasting performance. Known for their superior thermal stability and resistance to overcharging, LiFePO4 cells ensure safe and efficient energy storage. With a longer cycle life of over 6000 cycles compared to other lithium-based batteries, these cells significantly reduce maintenance and replacement costs.
Fire Protection System
The fire protection system in the 200kWh battery is designed for maximum safety and rapid response. The 200kwh battery system includes combustible gas detectors, ensuring early detection of potential hazards and allowing proactive prevention. Equipped with an advanced perfluorohexanone (FK-5112) fire suppression system, it effectively extinguishes fires while minimizing damage to the equipment. This comprehensive setup provides continuous monitoring and rapid intervention, safeguarding the battery cabinet from fire risks and enhancing operational reliability.
Energy Management System
The EMS (Energy Management System) integrated into the 200kWh battery system ensures intelligent and efficient battery operation. It enables precise energy flow management, balancing charge and discharge cycles to maximize efficiency and reduce operational costs. Additionally, the EMS supports advanced analytics and remote management, making it an indispensable tool for businesses seeking reliable and sustainable energy solutions.
Features
HBOWA Energy Storage System
- Certifications
Application Show
Related Product (5)
This 200kwh battery includes LFP batteries and the PCS system, the weight is 2800kg.
