3KW Off Grid Solar System
Brand: HBOWA or OEM/ODM Service
Type: Off Grid
Max. Power: 3KW
Battery: 51.2V 100Ah 5KWh lithium battery
Output Voltage: 230VAC ± 5% @50/60Hz
Certificate: CE/TUV/CSA/CEC/UL/ISO
Lead Time:7-10 days
Payment: T/T, Credit Card, Paypal, Western Union
Warranty: 25 Years
Description
As a professional solar power system supplier, HBOWA provides off-grid, on-grid, and hybrid solar systems with free design to support your solar business.
HBOWA 3kw solar system off grid consists of solar panels, an inverter, a lithium battery, and system accessories. The 3KW off grid solar system operates independently of the utility grid that provides electricity to homes, cabins, or remote facilities that are not able to connect to the main power grid. We have certificates such as CE, TUV, CSA, CEC, UL, ISO, etc. to ensure high quality and performance. OEM and ODM services are supported.
We not only produce our own brand solar panels, and lithium batteries, but also provide other brand solar products, such as Jinko, JA, Longi, Canidian Trina solar panels, and Growatt, Deye, GoodWe inverters.
For more detailed information, feel free to contact our team directly.
Technical Data
- DATA
Model | 3KW-Off | 5KW-Off | 10KW-Off | 15KW-Off | 20KW-Off |
Mono-facial solar panel 550W/41.6V |
6 pieces | 10 pieces | 18 pieces | 27 pieces | 36 pieces |
Growatt Inverter | 3000es * 1 | 5000es * 1 | 5000es * 2 | 5000es * 3 | 5000es * 4 |
DC Combiner Box | Customized According to Solar System Configuration | ||||
Energy Storage Battery | 5KWh Lithium Ion Battery |
Lithium Ion Battery |
|||
PV Cable 4 mm2 | 100 meter | 100 meter | 200 meter | 200 meter | 400 meter |
Mounting Brackets | 1 set | ||||
MC4 Connector | 8 pieces | 12 pieces | 20 pieces | 30 pieces | 40 pieces |
Components
![550W solar panel](https://www.pretapower.com/wp-content/uploads/2024/05/550W-solar-panel.jpg)
N Type Mono-crystalline panel
Maximum Power(Pmax): 550W
Maximum Power Voltage: 41.58V
Maximum Power Current: 13.23A
Open Circuit Voltage: 50.27V
Short Circuit Current: 14.01A
Dimension: 2278*1134*30mm
Weight: 32kg(70.55lbs)
Total number: 6 pieces

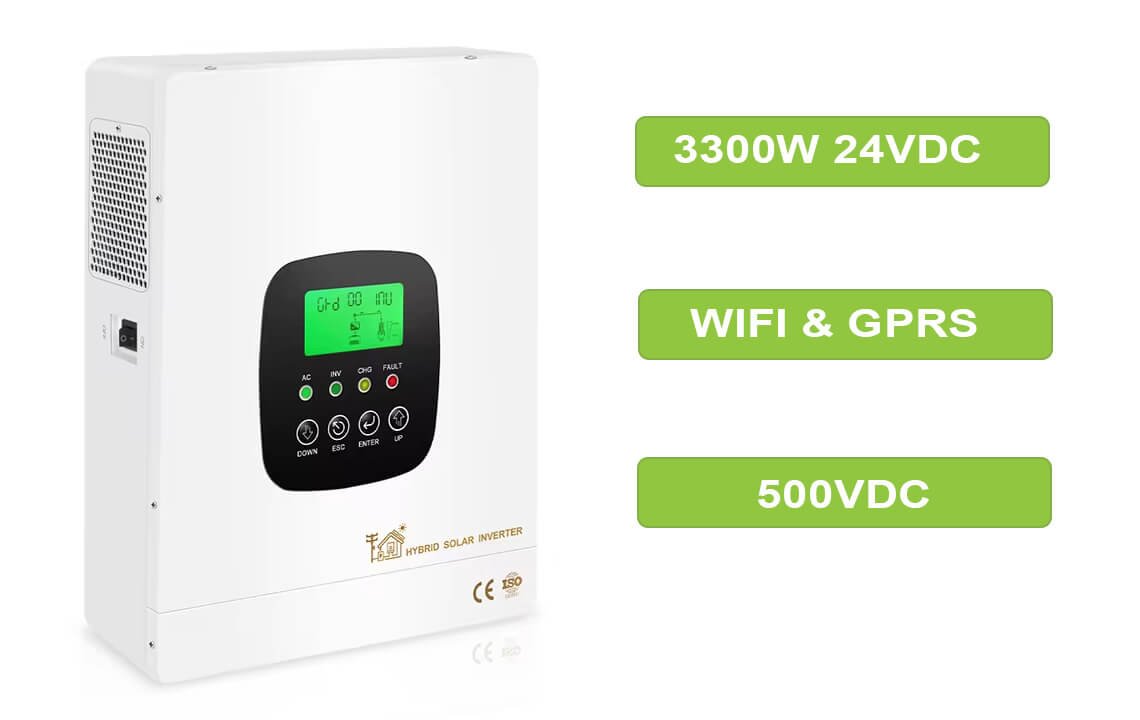

Off grid Solar System Inverter
We support you our brand or other popular off-grid inverters in the market. The inverters all have built-in MPPT solar charge controller, and are compatible to mains voltage and generator power. They are suitable for gel batteries and lithium batteries, can be connected in parallel with maximum value. For more details, feel free to contact us.
![off grid system inverter - HBOWA or Growatt](https://www.pretapower.com/wp-content/uploads/2024/05/off-grid-system-inverter-HBOWA-or-Growatt.jpg)
![lithium lifepo4 battery - HBOWA](https://www.pretapower.com/wp-content/uploads/2024/05/lithium-lifepo4-battery-HBOWA.jpg)
Grade A Lithium Battery
The LiFePO4 lithium battery boasts a high energy density and an extended lifespan, exceeding 6000 cycles. It is lightweight, equipped with a smart BMS protection system, and offers easy installation with virtually maintenance-free operation. The lifepo4 battery become popular for home solar energy storage systems in the market.
Mounting Structure for Solar Panel
Our ground solar mounting system offers a robust and versatile solution for solar system installations. It is designed to withstand various environmental conditions, ensuring long-term stability and durability. The system’s lightweight design minimizes roof load, while its pre-assembled components significantly reduce installation time and labor costs.
![Mounting structure for solar panel - HBOWA](https://www.pretapower.com/wp-content/uploads/2024/05/Mounting-structure-for-solar-panel-HBOWA.jpg)
![PV Accessories(combiner box MC4 connector PV Cable)](https://www.pretapower.com/wp-content/uploads/2024/05/PV-Accessoriescombiner-box-MC4-connector-PV-Cable.jpg)
Solar System Accessories
* 3 in and 1 out, combiner box with voltage resistance of 500V;
* PV single core cable 4m㎡,6m㎡,10m㎡ etc;
* MC4 connectors, according to solar panels.
If your customers need any other accessories, feel free to tell us.
