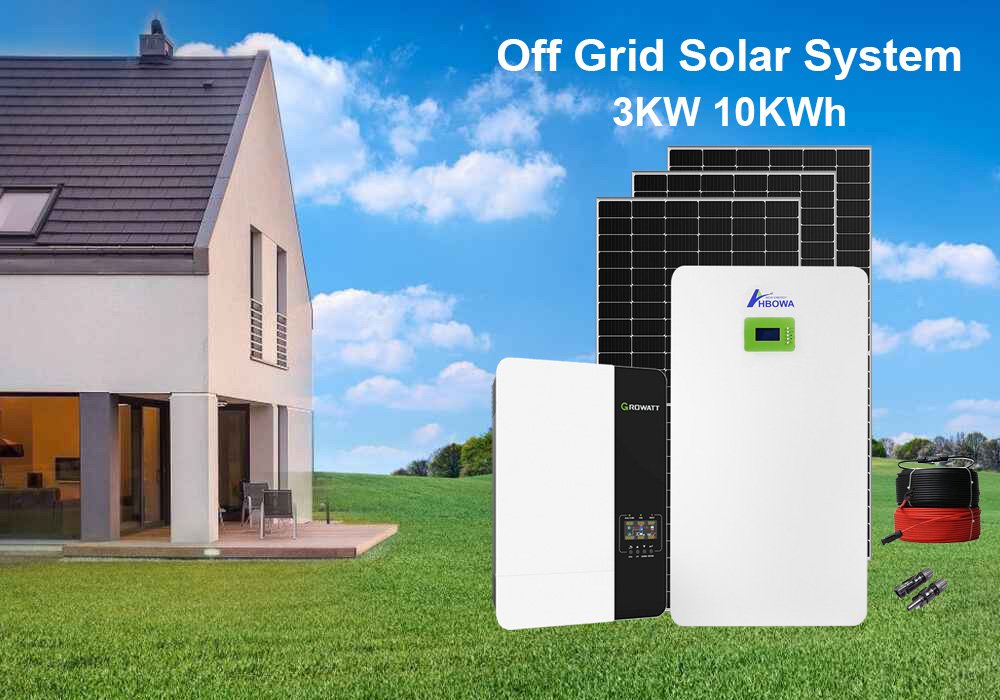

3KW 10KWH Off Grid Solar System
System Type: 3KW 10KWh Off Grid Single phase
Inverter Brand: Growatt, MUST
Battery: 10.24KWh lifepo4 powerwall battery
Output Voltage: 230VAC ± 5% @50/60Hz
Certificate: CE/TUV/CSA/CEC/UL/ISO
Lead Time:7-10 days
Payment: T/T, Credit Card, Paypal, Western Union
Place of origin: China
Description
How much power will the 3KW off grid solar system produce?
Generally speaking, if the effective sunlight time is 4 hours, the power generated by the solar system will be 550W*6 * 4 H = 13.2KWH. But this depends on many factors such as the place where you live, the weather in your place, and the installation direction of your solar panels, etc.
Is the 3KW 10KWH off grid solar system suitable for me?
The 3KW off grid soalr system has a 10kwh powerwall battery which is easy to install and save space as it can be installed on your house wall. If your family has 2-3 people and has a high need for electricity use at night or rainy days, it will be suitable for you.
How to install a 3kw off grid solar system?
HBOWA provides after sales services on WhatsApp/WeChat/Email, assisting with installation and answering any questions you may have. We have photos and installation demo videos for the operation instructions of the solar systems. Our engineer will also go overseas to help you if necessary. Of course, you can find the solar panel installers in your local place, they will help to check the conditions of your place to find the best solution for you, make sure to get inquiries from at least three installers before you make an informed decision.If you have any other concerns, feel free to contact us at any time, we are always here to support you.
Components
Mono-crystalline Solar panel
Mono-crystalline PERC Solar panel
Maximum Power(Pmax): 550W
Maximum Power Voltage: 41.95V
Maximum Power Current: 13.11A
Open Circuit Voltage: 49.90V
Short Circuit Current: 14.09A
Maximum Efficiency: 21.29%
Dimension: 2278*1134*30mm
Weight: 26.4kg Total number: 6 pieces
Brand panel available: Longi/JA/Jinko/Trina
Off grid Solar System Inverter
We have a deep cooeration with many brand inverters manufacturers in China and can provide you with favorable prices. The brand inverters we offer include growatt, MUST, Solis, and so on. Please tell us your detailed needs before you place an order.
10KWh LifePO4 Battery
The 10kwh powerwall lifePO4 battery has over 6000 cycle times and high energy density.The built in BMS manage the battery status and offers high safety and stability. The powerwall lifepo4 battery is designed for easy installation and space-saving. The ingress protection rate is IP20(IP65 optional). So if you want to install them outdoors, you can choose IP65 to adapt to various environment conditions.
Mounting Structure for Solar Panel
Our ground solar mounting structures are all aluminum steel materials. They are designed to withstand various environmental conditions, ensuring long-term stability and durability. The system’s lightweight design minimizes roof load, while its pre-assembled components significantly reduce installation time and labor costs.
Solar System Accessories
* Combiner box with voltage resistance of 500V;
* PV single core cable 4m㎡,6m㎡,10m㎡ etc;
* MC4 connectors, according to solar panels.
If your customers need any other accessories, feel free to tell us.
Application Show (6)
What can HBOWA support you?
As the configuration of the 3KW off grid solar system with powerwall lifepo4 battery will be different according to your detailed requirements, so feel free to send an inquiry to us for your customized solar system project!
